Seeed Studio Grove, multi-channel gas sensor, Seeedstudio 101020820
50.33 €
Monthly payment from 2,20 €
3589587 AN-16907
5904422345174
Shipping 11-18 b.d.
You are interested in this product?
All about the product

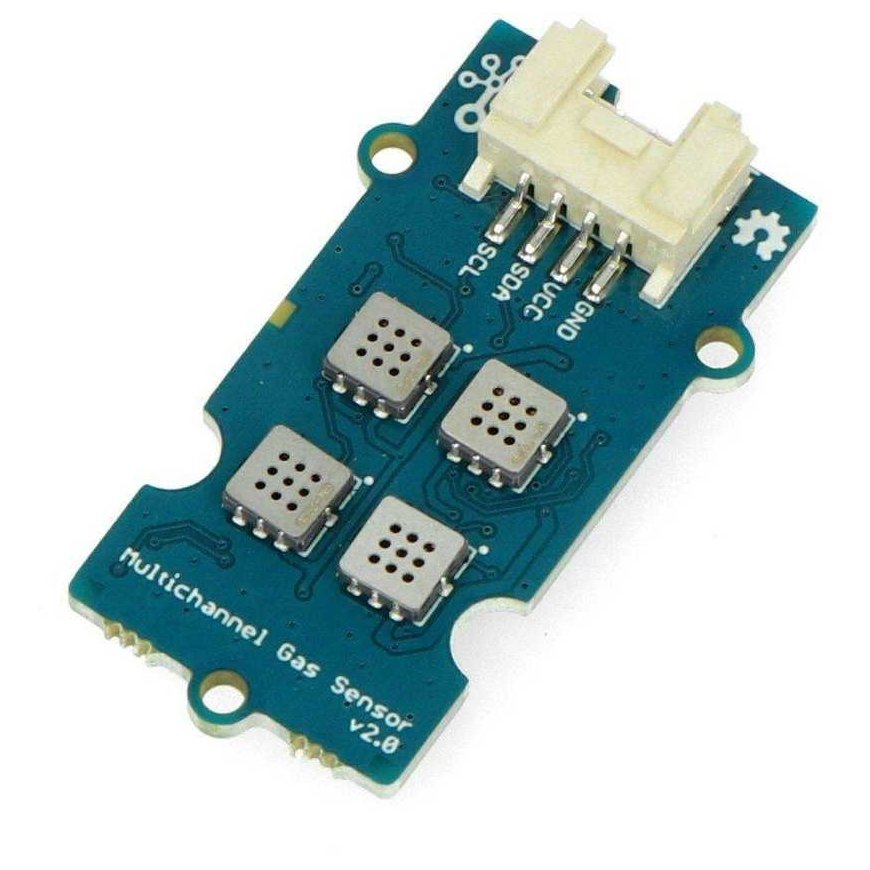

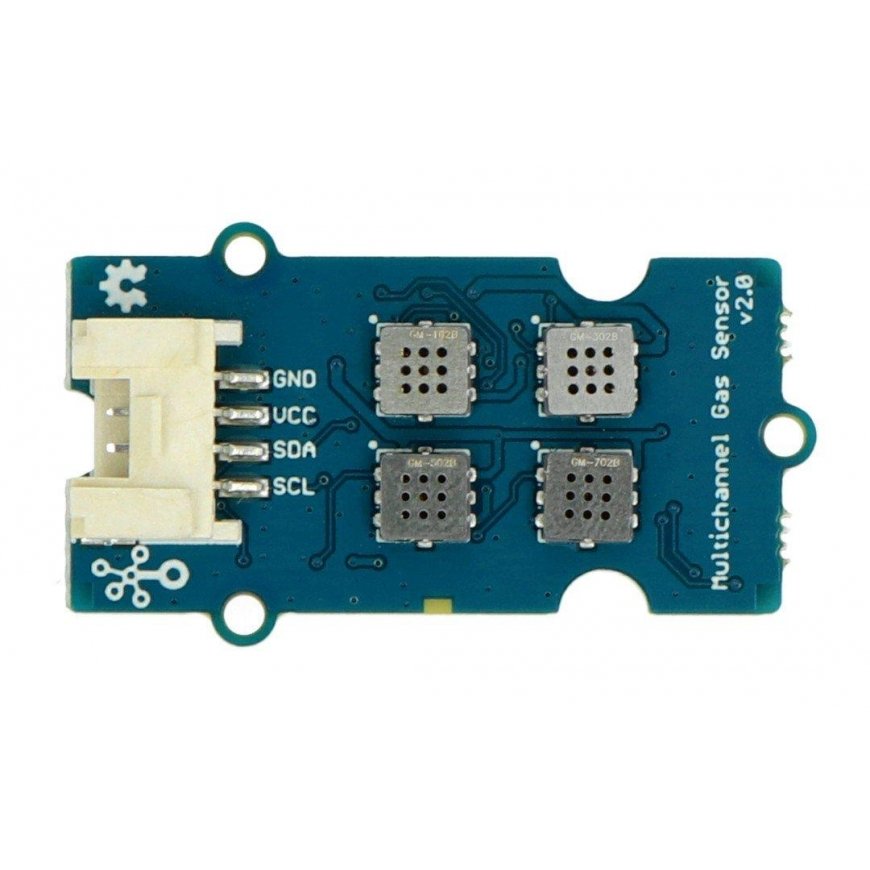

The board has four independent gas sensors: GM-102B, GM-302B, GM-502B, GM-702B, which can detect various gases such as carbon monoxide, nitrogen dioxide, ethyl alcohol, volatile organic compounds, etc. The sensors used are based on MEMS technology, interact via the I2C interface. The module is powered from 3.3 V to 5 V. The Grove connector used facilitates connection to the main board of the set-top box.
Specifications:
- Supply voltage: 3.3V to 5V
- Interface: I2C
- I2C interface address: 0x55
- Sensors used: GM-102B, GM-302B, GM-502B, GM-702B
- System: STM32F030
- Dimensions: 42 x 24 mm

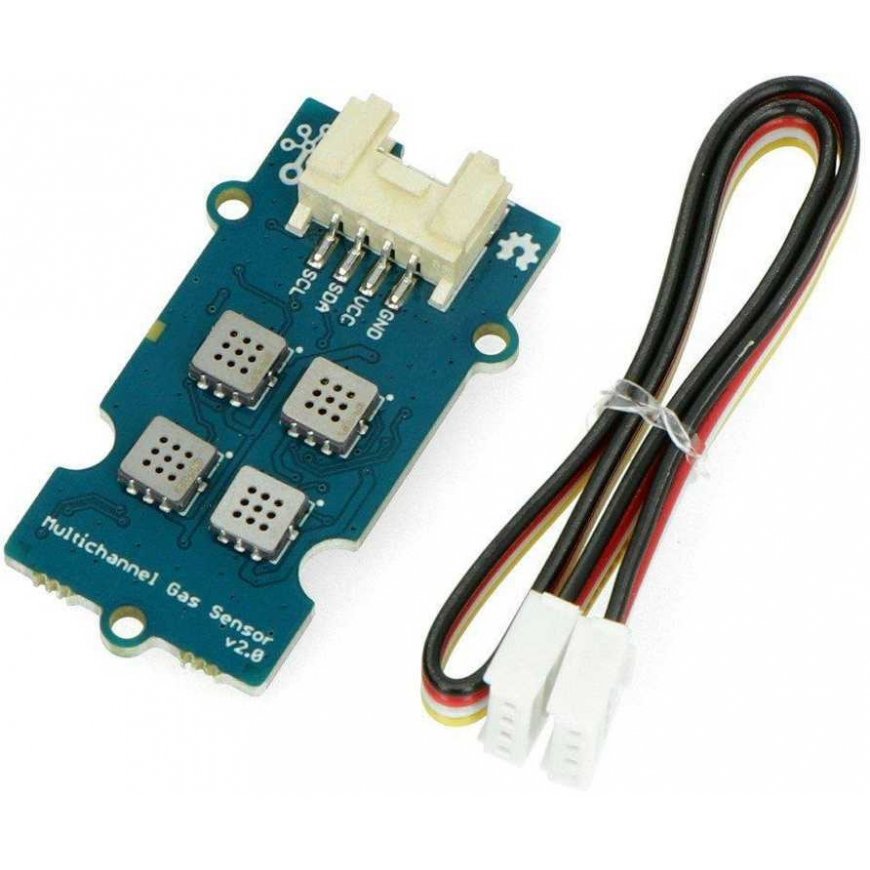

Included:
- Grove gas sensor
- Grove cable
Links:
Manufacturer's page
Manual
