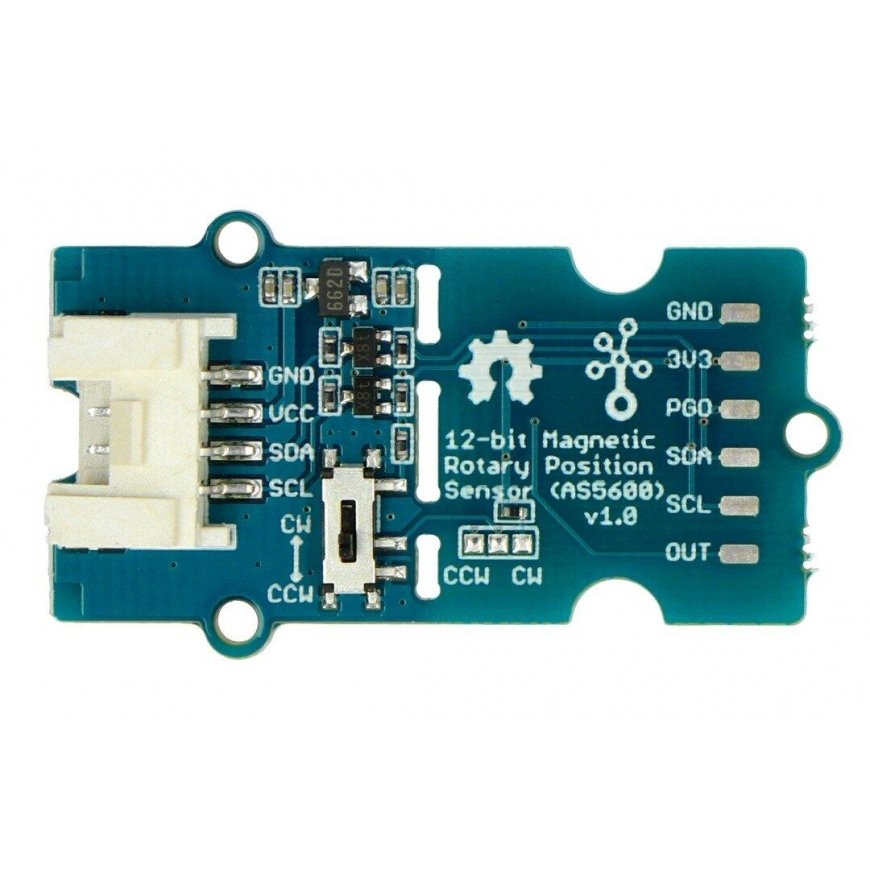

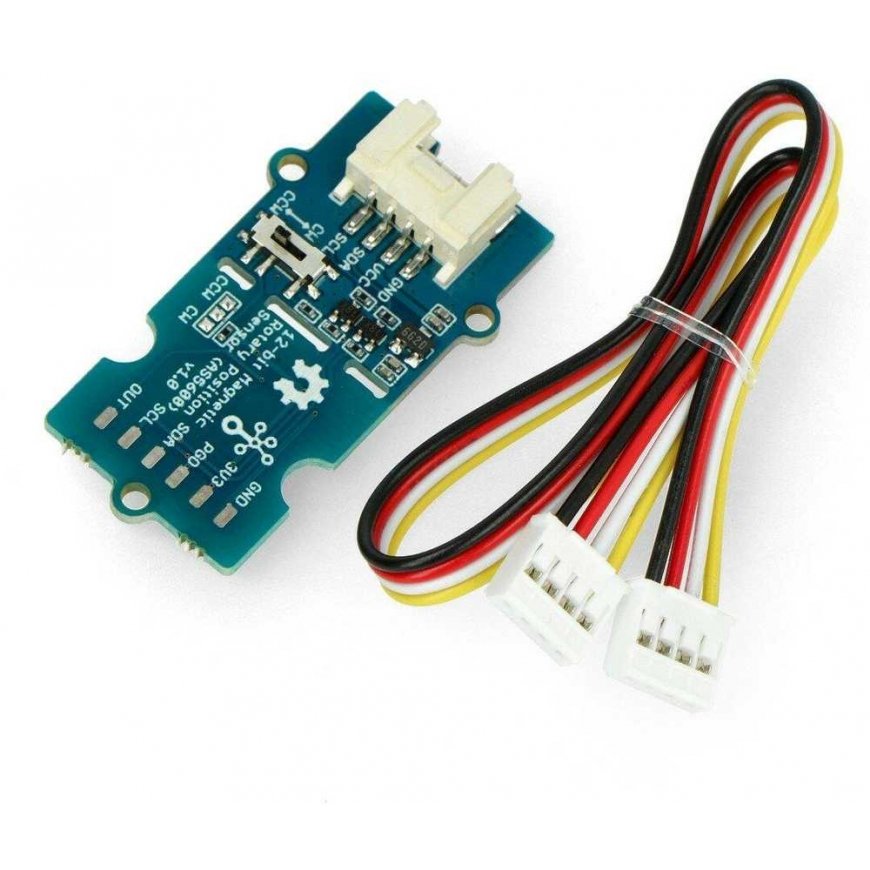

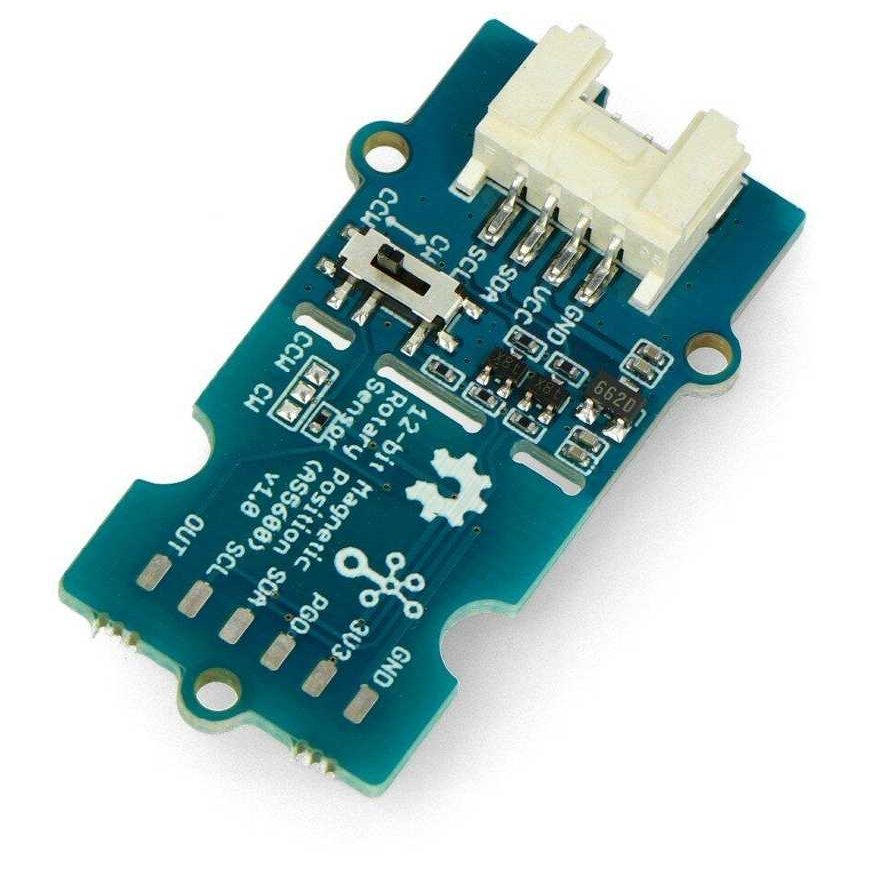

Seeed Studio Grove, 12-bit magnetic rotary position sensor/encoder (AS5600)
21.63 €
3586213 AN-15546
5904422351878
Shipping 11-18 b.d.
You are interested in this product?
All about the product

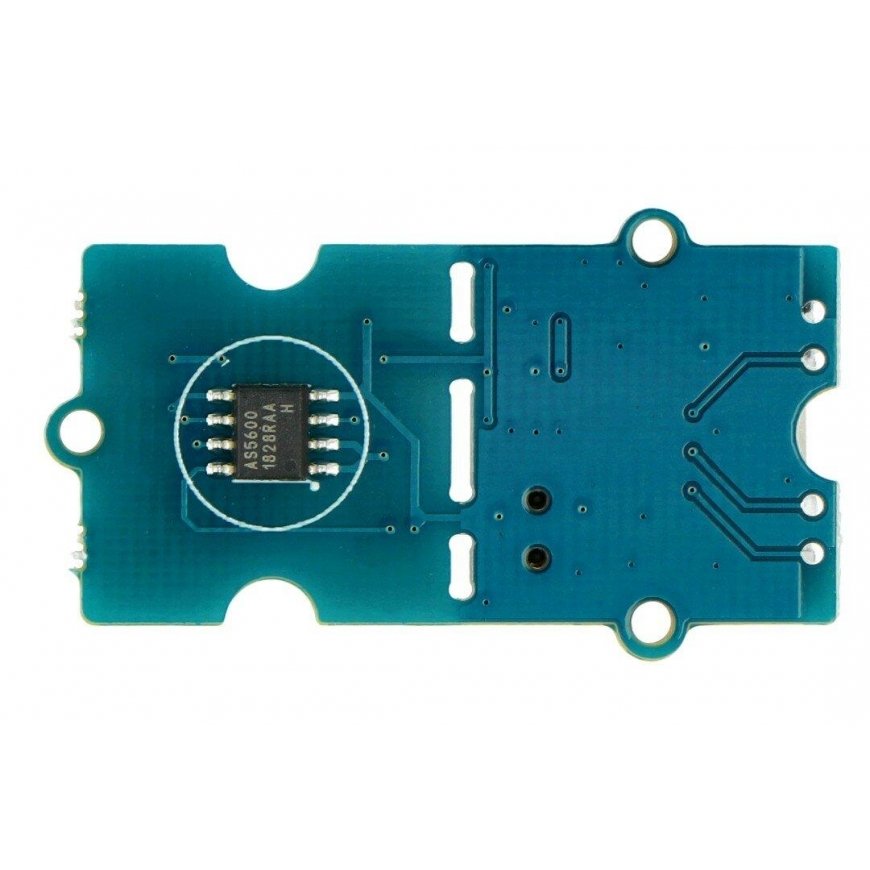

The module contains a 12-bit resolution magnetic encoder AS5600. It has higher accuracy, is non-contact and has no rotation angle limitations, unlike a traditional potentiometer. The board has a Grove connector for easy connection to the BaseShield. It operates at 3.3 V or 5 V.
Main features:
- Non-contact, no rotation angle limitations
- 12-bit resolution, 4096 elements per revolution
- Grove I2C, PWM/analog output
- Maximum programmable angle from 18° to 360°
Specifications:
- Supply voltage: 3.3V or 5V
- Input current: up to 100 mA
- Angle range: maximum programmable angle range from 18° to 360°
- Output: analog/PWM
- Interface: I2C - default address 0x36
- Output resolution: 12-bit DAC
- Operating temperature: -40 °C to 125 °C
- Dimensions: 40 x 20 mm
