Graphic OLED color display 0.95" (A) 96x64px SPI, angled connectors, Waveshare 10507
23.42 €
3586016 AN-04427
5904422309312
Shipping 11-18 b.d.
You are interested in this product?
All about the product

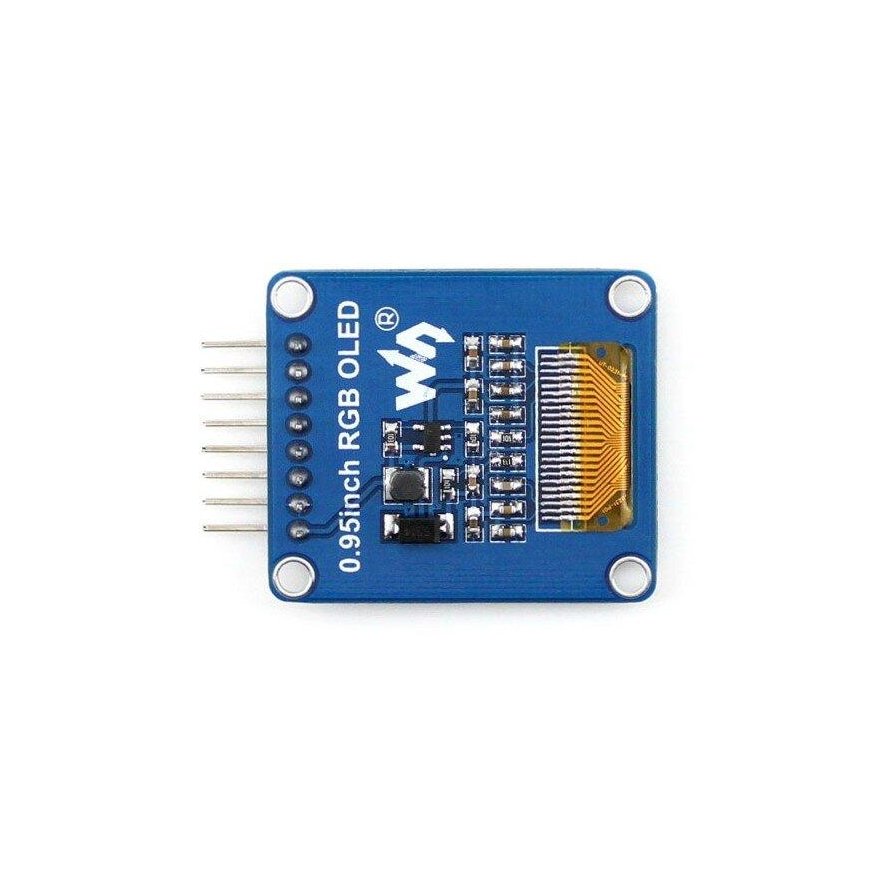

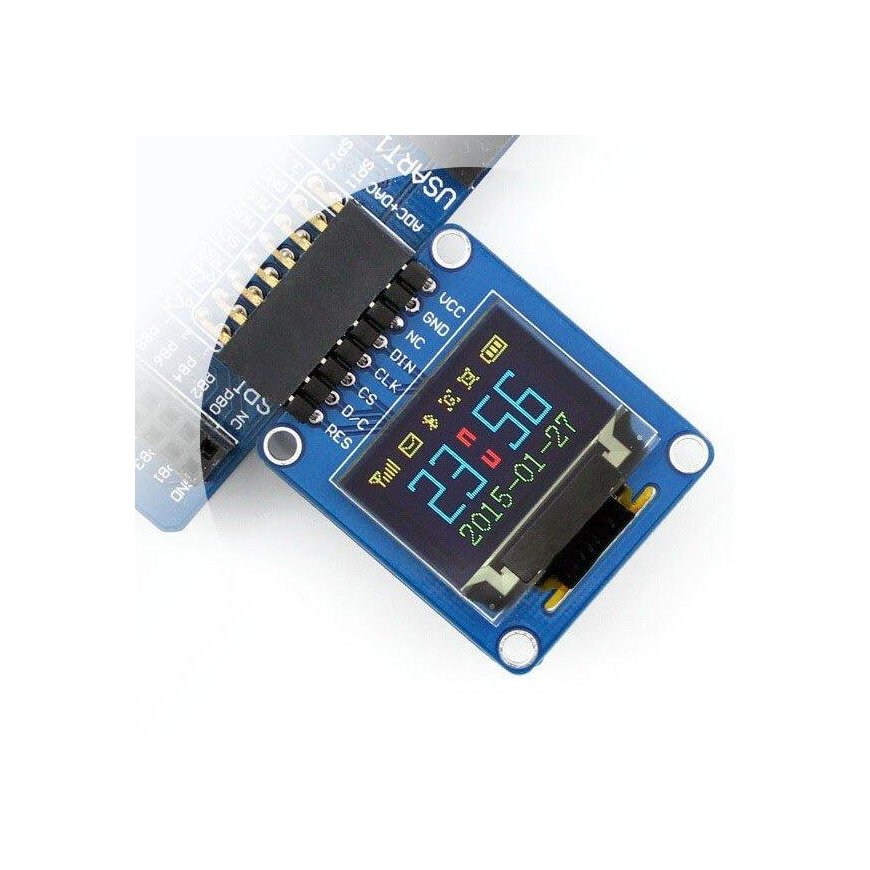

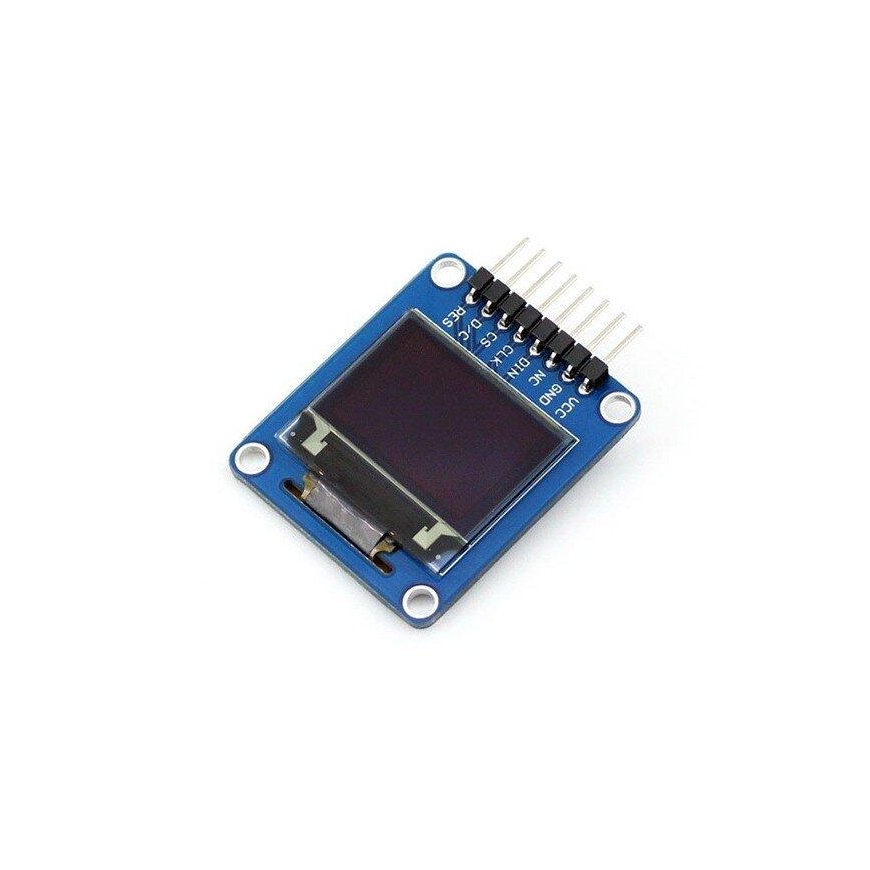

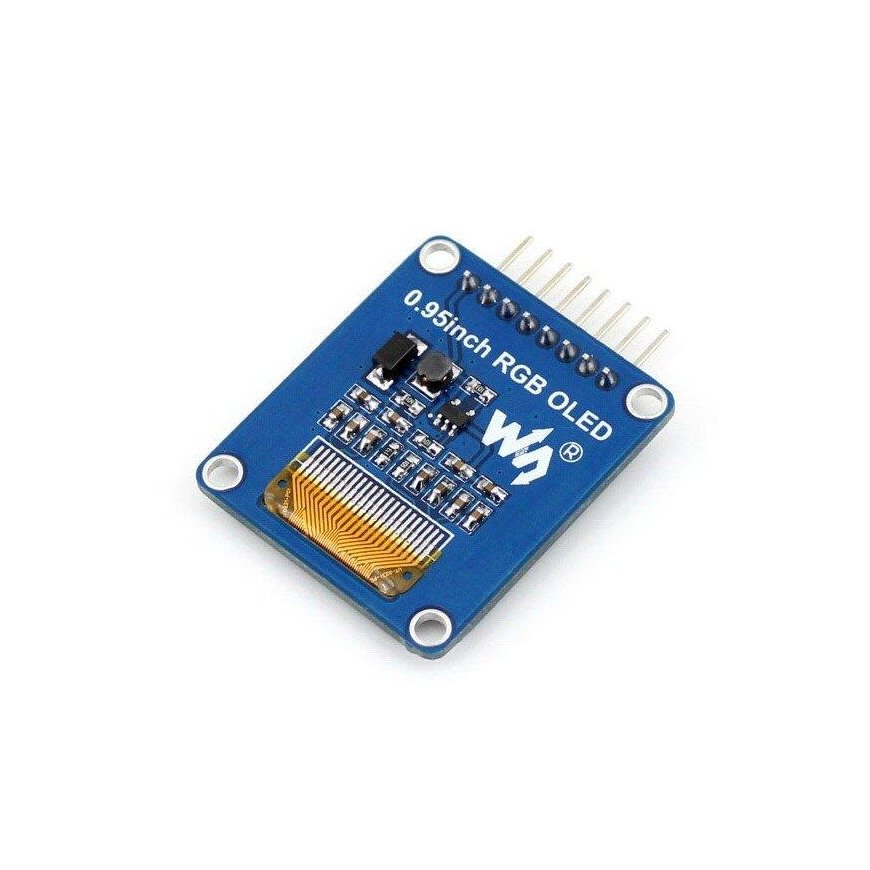

0.95" OLED color display with 96x64px resolution. Based on the SSD1331 controller, the display operates at 3.3V and 5V and supports SPI interface. It has soldered angled gold pin connectors.
Specifications:
- Operating voltage: 3.3 V to 5.0 V
- Controller: SSD1331
- Interface: SPI
- Display type: OLED
- Diagonal: 0.95"
- Resolution: 96x64px
- Colors: 65,000
- Viewing angle: over 160°
- Operating temperature: -20 °C to 70 °C
- Solder gold pin connectors - 2.54 mm

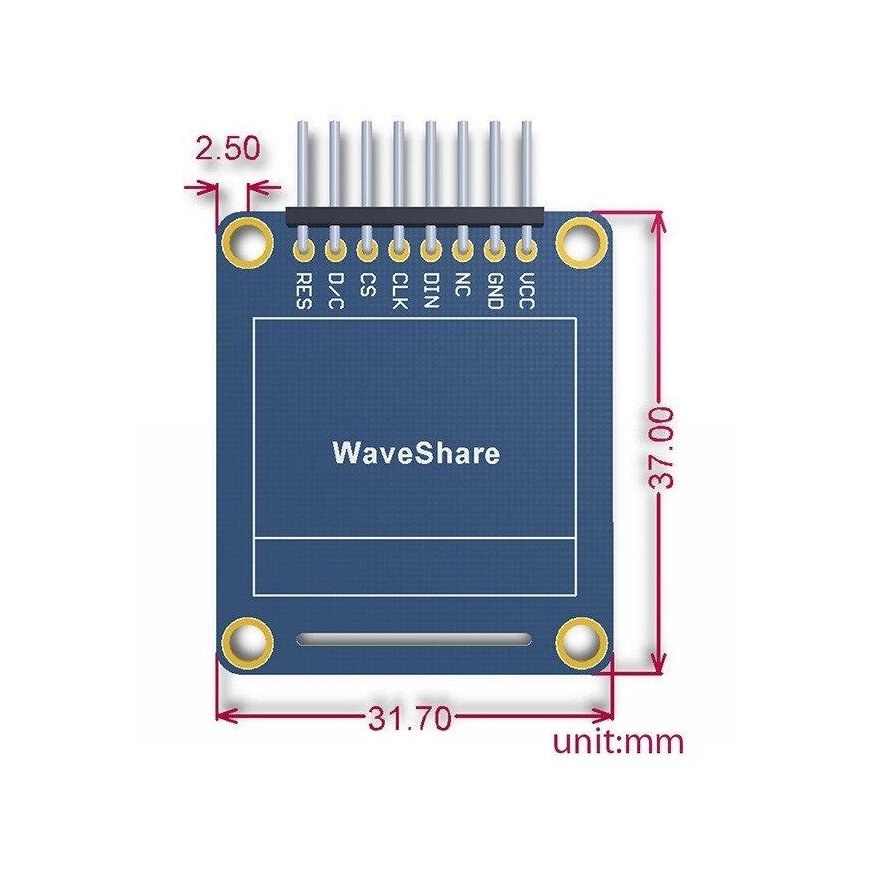

- Dimensions: 37 x 32 mm
