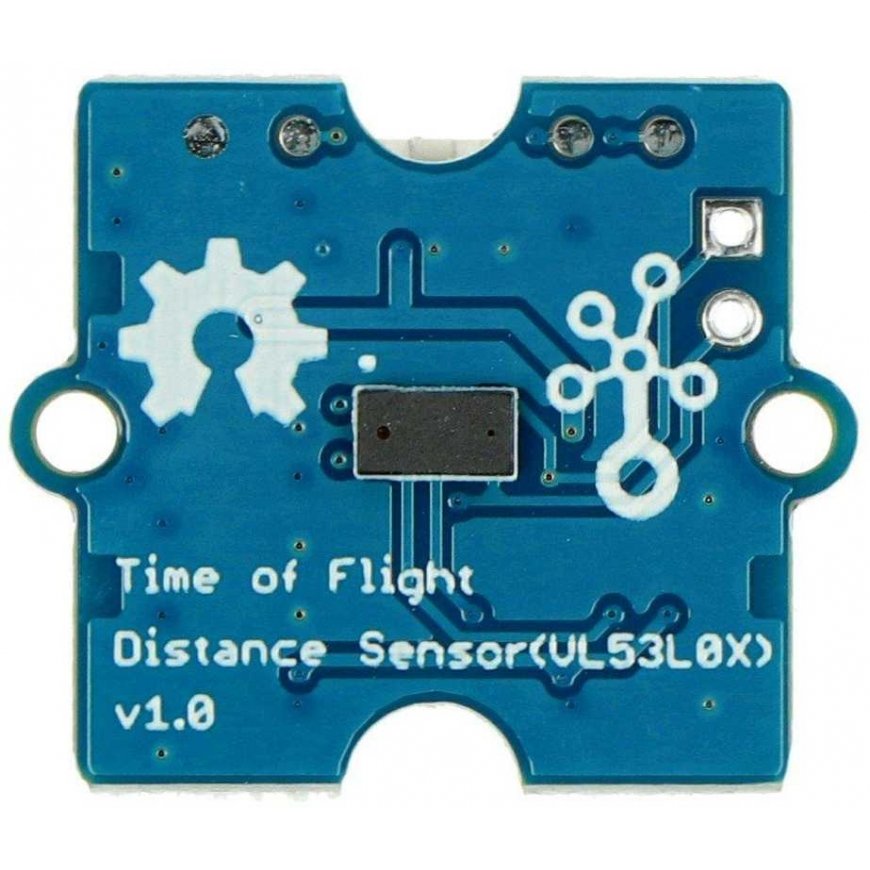

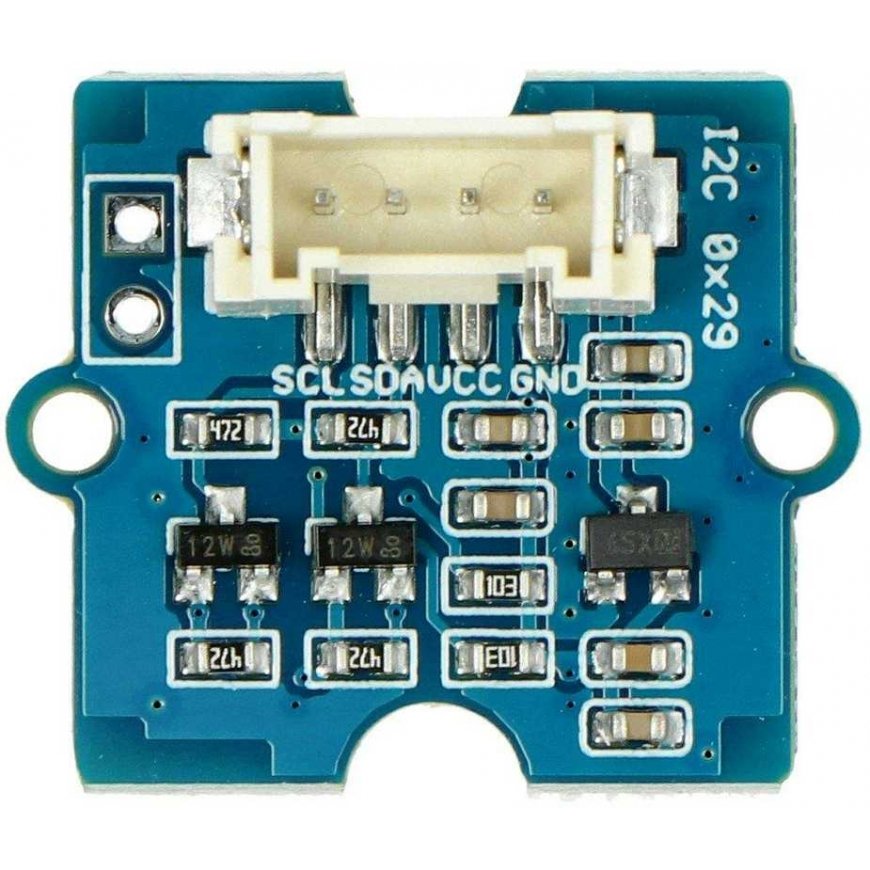

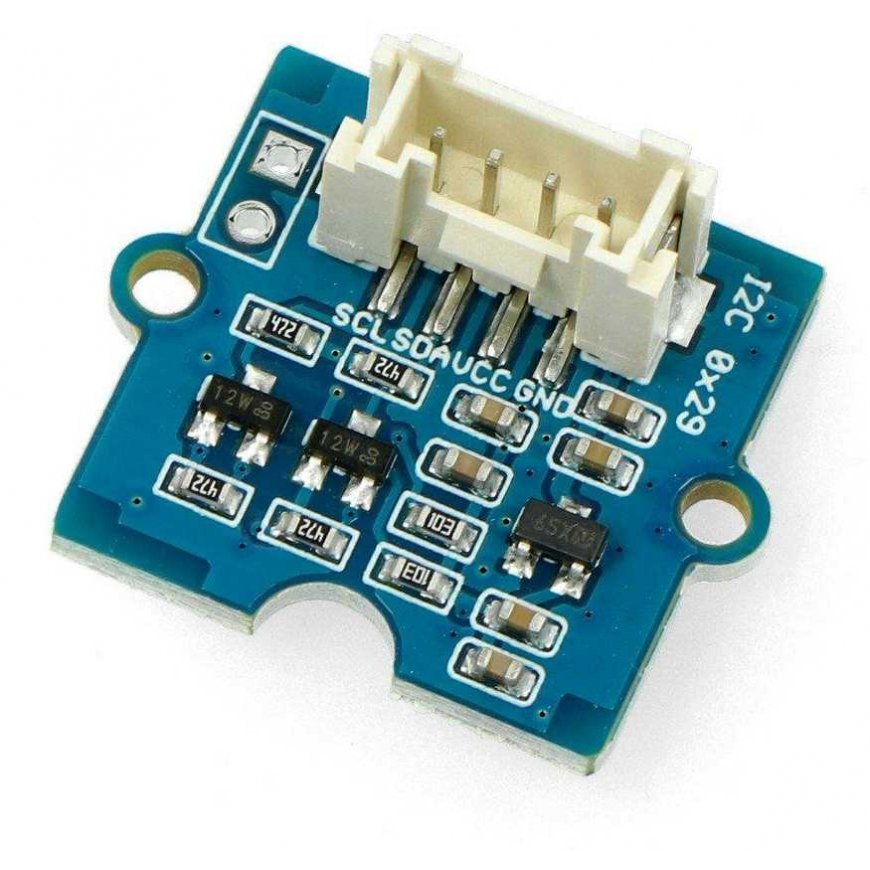

Seeed Studio Grove, VL53L0X Time of Flight, distance sensor, I2C
22.03 €
3583452 AN-15331
5904422323660
Shipping 11-18 b.d.
You are interested in this product?
All about the product

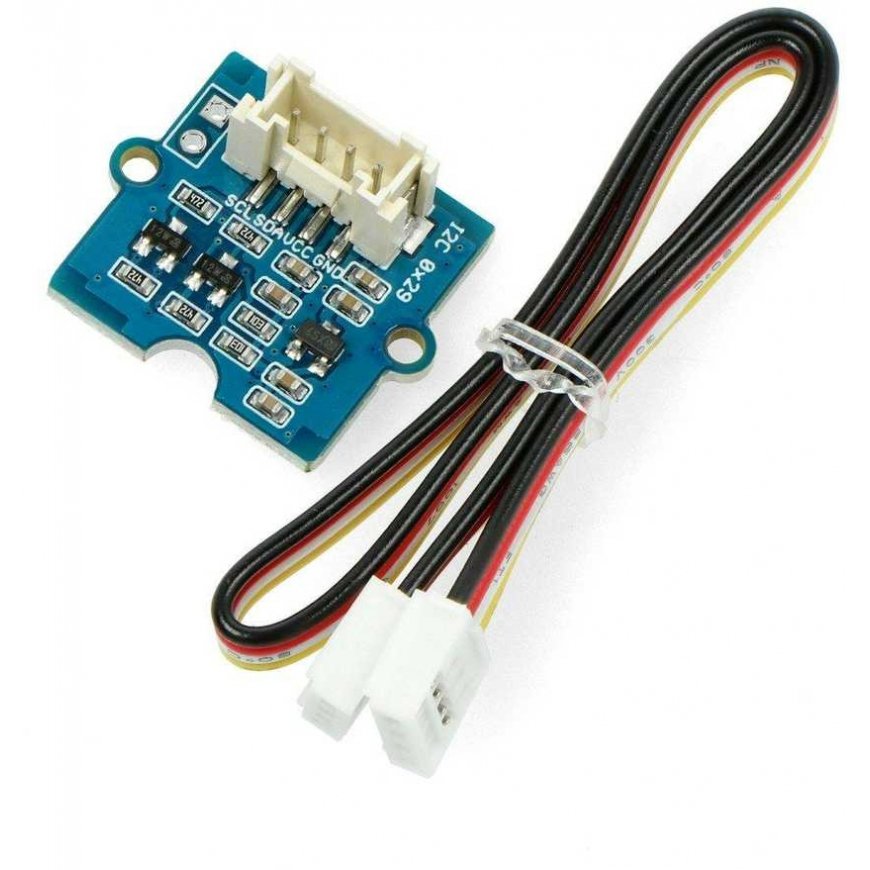

VL53L0X laser distance sensor, which uses Time of Flight technology for measurement. The Time of Flight method measures the time from the infrared laser pulse to its return to the detector. It is equipped with a VCSEL diode emitting a beam of 940 nm. It can measure distances from 3 cm to 100 cm with a resolution of 1 mm. Equipped with a Grove connector, interacts via the I2C interface. The supply voltage is from 3.3 V to 5 V. Cable included.
Specifications:
- Supply voltage: 3.3V to 5V
- Measuring range: 30 mm to 1000 mm
- Measurement resolution: 1 mm
- Infrared wavelength: 940 nm
- Interface: I2C
- Operating temperature: -20 °C to 70 °C
- Dimensions: 20 x 20 x 11 mm
- Weight: 7.8 g
