DFRobot Mega 2560 v2, Arduino compatible
49.00 €
Monthly payment from 2,16 €
3583207 AN-02685
5904422331108
Shipping 11-18 b.d.
You are interested in this product?
All about the product

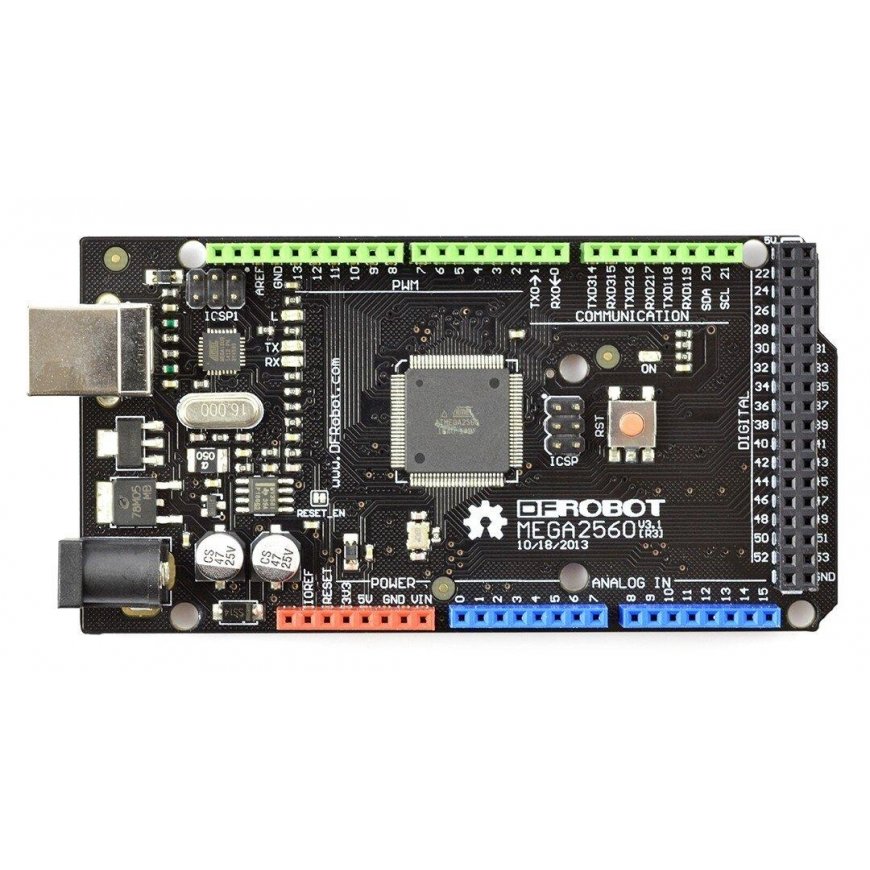

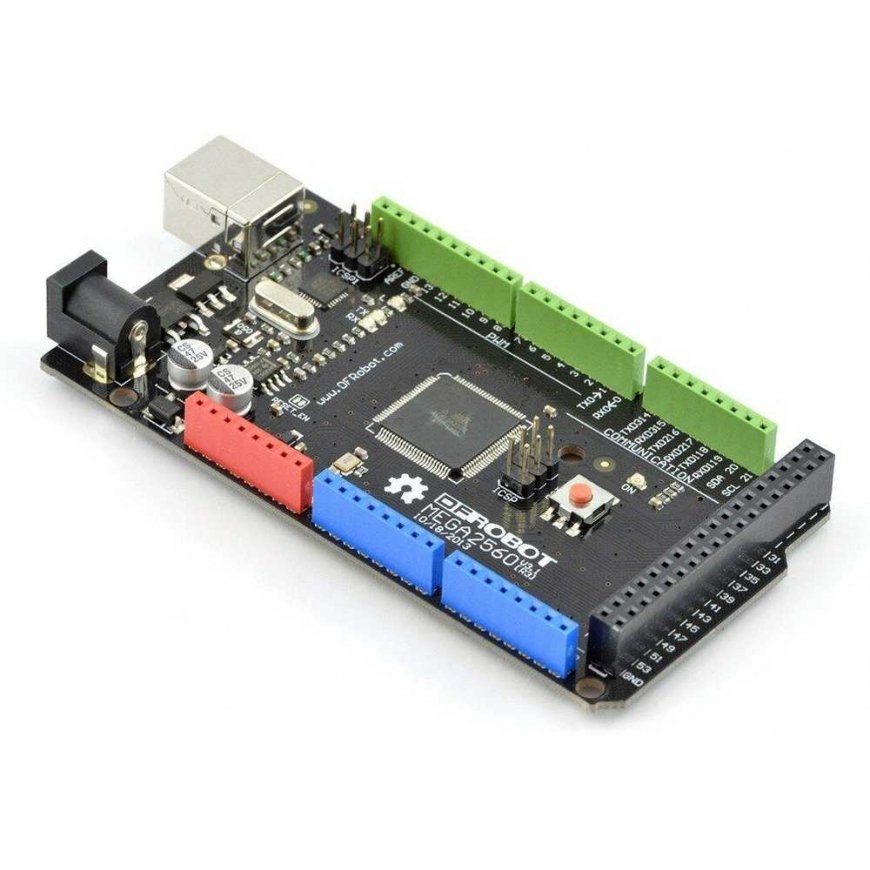

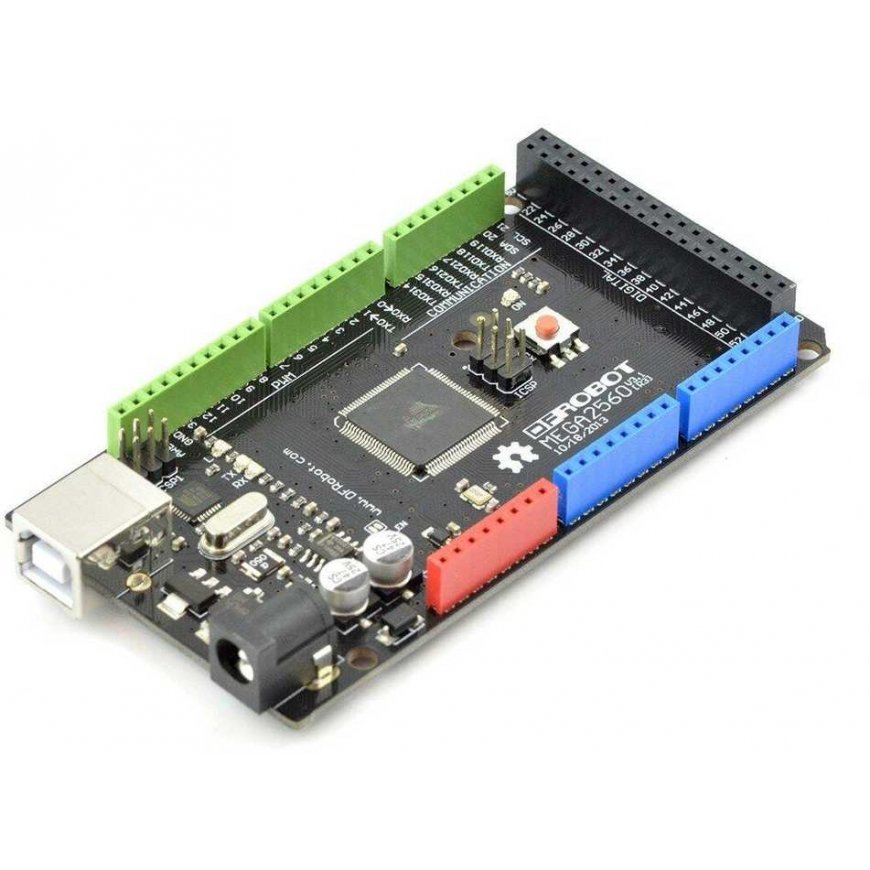

The board is equipped with an ATmega 2560 microcontroller, which has 54 digital inputs/outputs, of which 14 can be used as PWM outputs (e.g. for motor control) and 16 as analog inputs. The system operates with a 16 MHz clock signal. The module also has a USB connector, a DC power jack, a RESET button, and cables used to connect an AVR programmer.
Specifications:
- Supply voltage: 7 V to 12 V
- Programmable via USB using Atmega16u2 microcontroller
- Fully compatible with Arduino Mega 2560 R2
- Microcontroller: ATmega 2560
- Maximum clock frequency: 16 MHz
- SRAM: 8KB
- Flash memory: 256 KB (8 KB is reserved for the boot program)
- EEPROM: 4 KB
- Input/output ports: 54
- PWM outputs: 14
- Number of analog inputs: 16 (A/C converter channels)
- Serial interfaces: UART, SPI, I2C
- External interrupts
- Connector: USB Type B socket (USB cable not included)
- Soldered ISP connector
