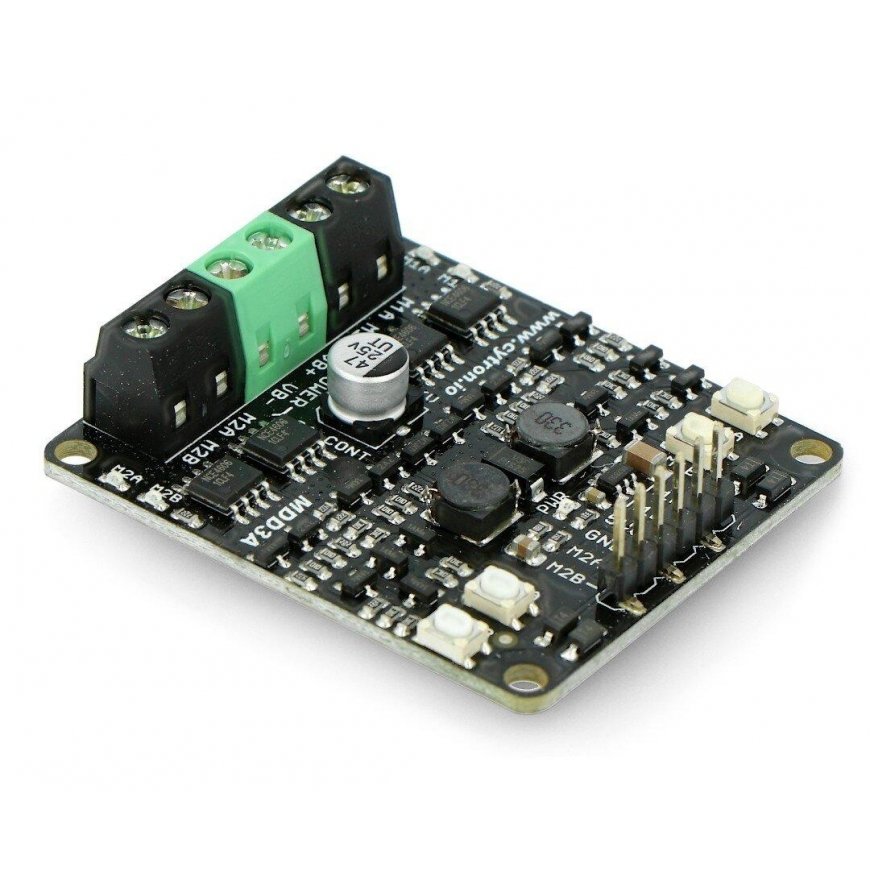

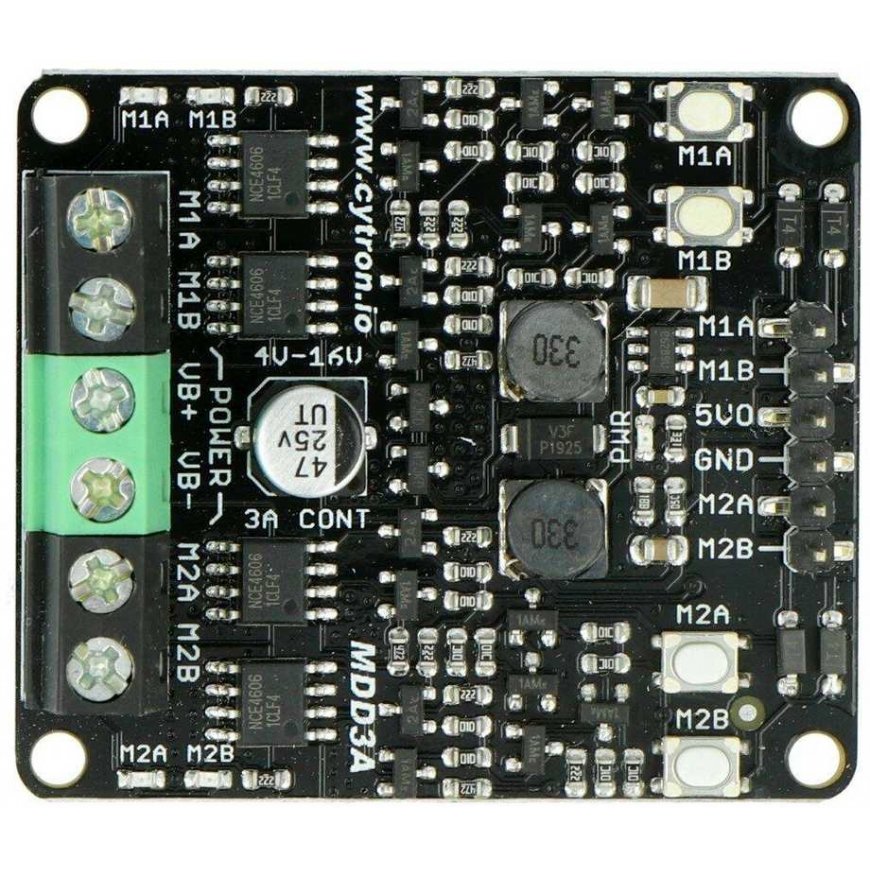

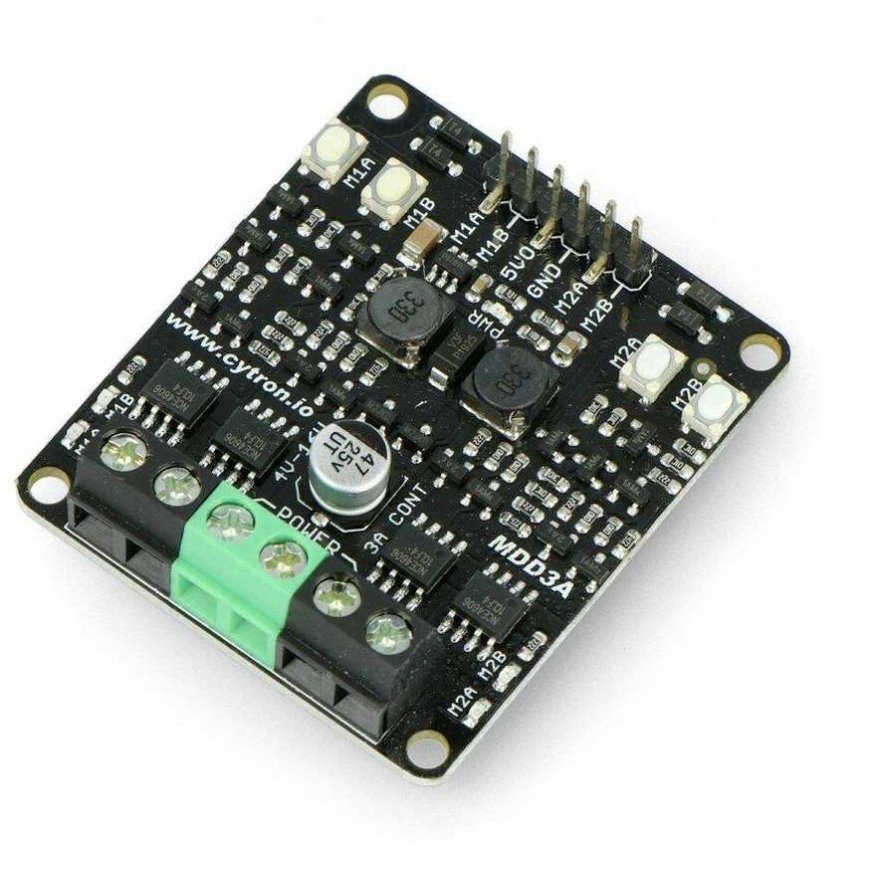

Cytron MDD3A - two-channel 16V/3A motor controller
21.03 €
3582730 AN-15819
5904422324841
Shipping 11-18 b.d.
You are interested in this product?
All about the product
The Cytron MDD3A motor controller has the ability to control 2 DC motors or 1 stepper motor. The DC current per channel is 3 A (instantaneous 5 A). The supply voltage is from 4 V to 16 V. The controller operates with 1.8 V, 3.3 V, 5 V and 12 V logic voltages (PWM and DIR), so it can be controlled by any microcontroller, such as Arduino or Raspberry.Specifications:
- Supply voltage: 4 V to 16 V
- Logic voltage: 1.8 V, 3.3 V, 5 V and 12 V
- Current per channel: 3 A (5 A instantaneous)
- Number of channels:
- DC motor: 2
- Stepper motor: 1
- Full NMOS H-bridge for better performance without heatsinks
- PWM speed control frequency up to 20 kHz
- 4 buttons for quick system testing
- Dimensions: 48 x 42 mm
- Weight: 14.5 g
