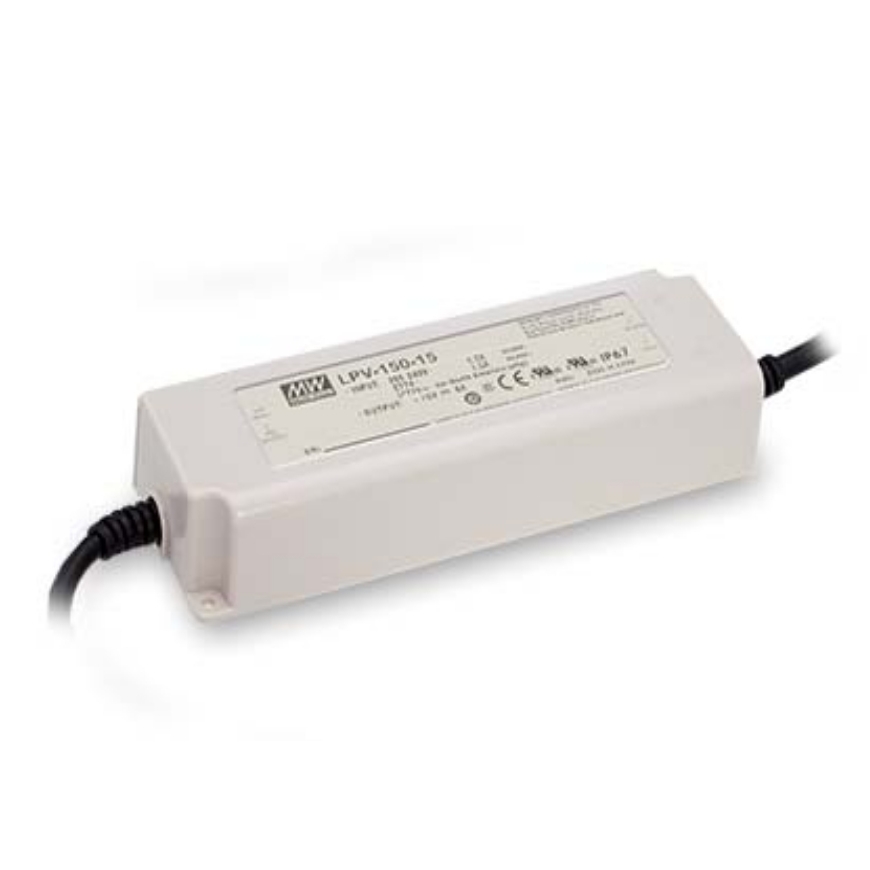

MEAN WELL LPV-150-24 LED driver
50.21 €
Monthly payment from 2,19 €
3582531 LPV-150-24
4021087026093, 4711287455853, 5410329600501
Shipping 8-12 b.d.
You are interested in this product?
All about the product
LPV-150 and LPVL-150 are 150W single output power supplies that specifically and perfectly wor kforLED lighting and LED moving sign applications. As a class II power unit, these two series are housedwith the UL 94V-0 rated flame retardant plastic enclosure. The IP67 design allows every model to fitthe use at dry, damp and wet locations. Both series are constant voltage mode design that variousmodels with 12V, 15V, 24V, 36V and 48V are offered for LPV-150 where as 12V and 24V areprovided for LPVL-150.Features
| Weight | 740 g |
| Width | 63 mm |
| Depth | 191 mm |
| Height | 37.5 mm |
| AC input voltage | 180 - 305 V |
| Input current | LPV-150: 1.7/230VC 1.5/277VC; LPVL-150: 3.0/115VC |
| Output voltage | 24 V |
| Output current | 6.3 A |
| Output power | 151.2 W |
| Input frequency | 47 ~ 63 Hz |
