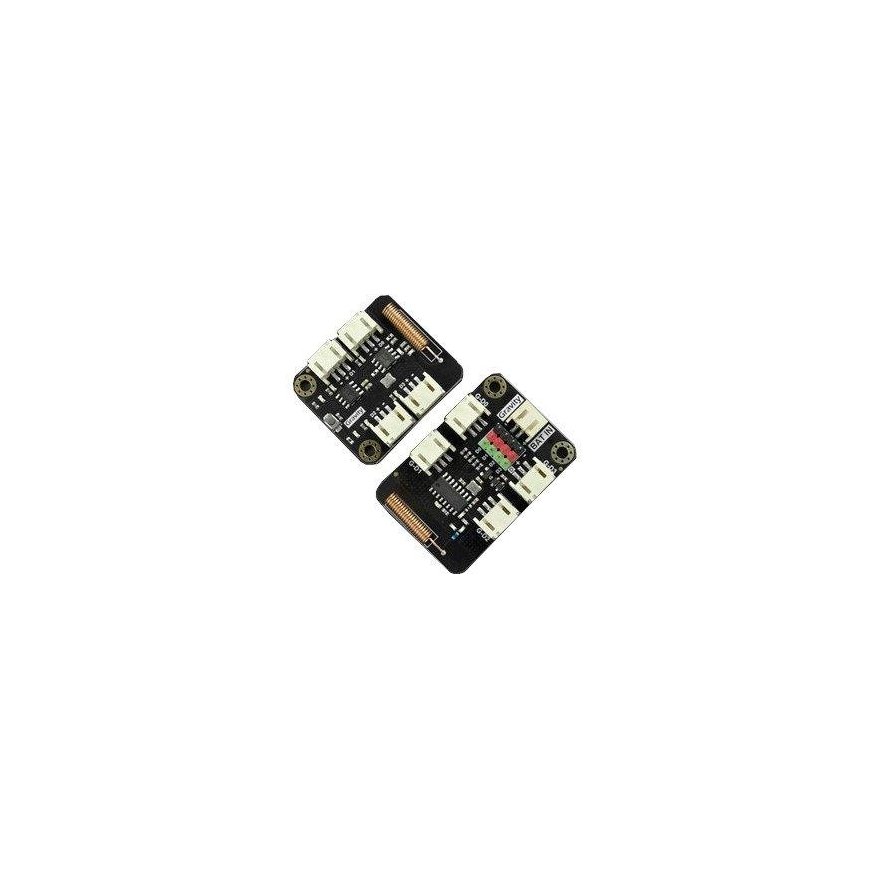

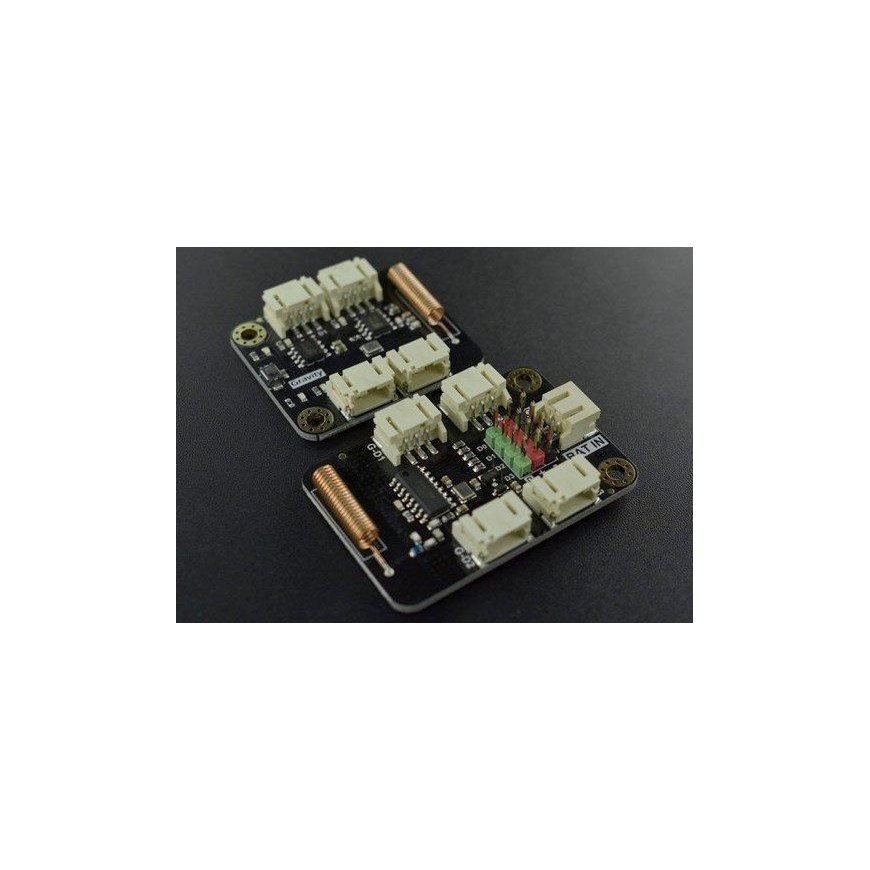

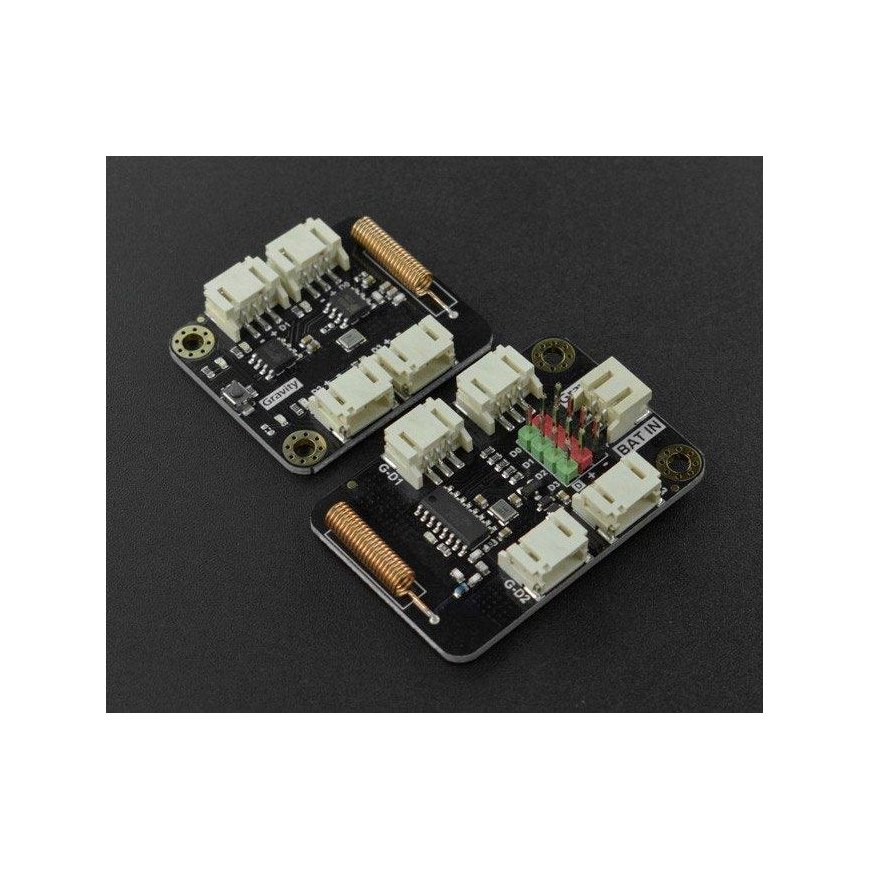

Gravity - Digital Wireless Switch Kit - 433MHz - DFRobot TEL0140-1
29.00 €
3582013 AN-20431
5904422380885
Shipping 11-18 b.d.
You are interested in this product?
All about the product
The digital wireless switch kit is a kit consisting of two radio modules - a receiver and a transmitter, which operate at a frequency of 433 MHz. It is powered by a voltage of 3.3 V to 5 V DC. Data can be transmitted from one transmitter to multiple receivers and from multiple transmitters to one receiver. It is used in projects that require wireless control.Main features:
- Based on radio technology and operating at an uncertified 433 MHz frequency
- Equipped with convenient Gravity connectors
- Low energy consumption
- Stable transmission distance of up to 15 meters indoors is achieved
- Data can be transmitted from one transmitter to multiple receivers and from multiple transmitters to one receiver
- Multiple operating modes: push-in, latch, self-latching and blocking
- Supply voltage range: 3.3 V to 5 V DC
- Stable transmission distance: up to 15 m indoors
- Transmitter current consumption:
- active: 10 mA / 5 V
- standby mode: ＜10 uA/5 V
- Current consumption of the receiver:
- active operation: 6 mA / 5 V
- standby mode: 3 mA / 5 V
- Input signal: digital
- Standard connection: 4 x Gravity
- Operating frequency: 433 MHz

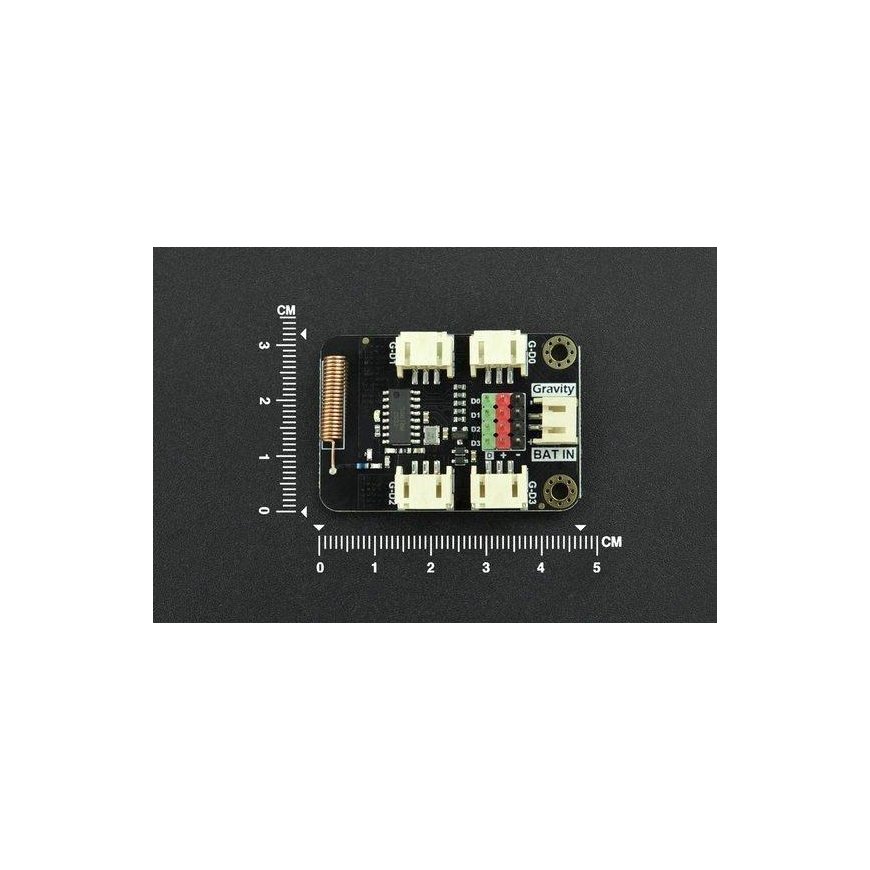

- Transmitter dimensions: 47 x 32 mm
- Receiver dimensions: 37 x 32 mm
- Mounting hole size:
- inner diameter: 3.1 mm
- outer diameter: 6 mm

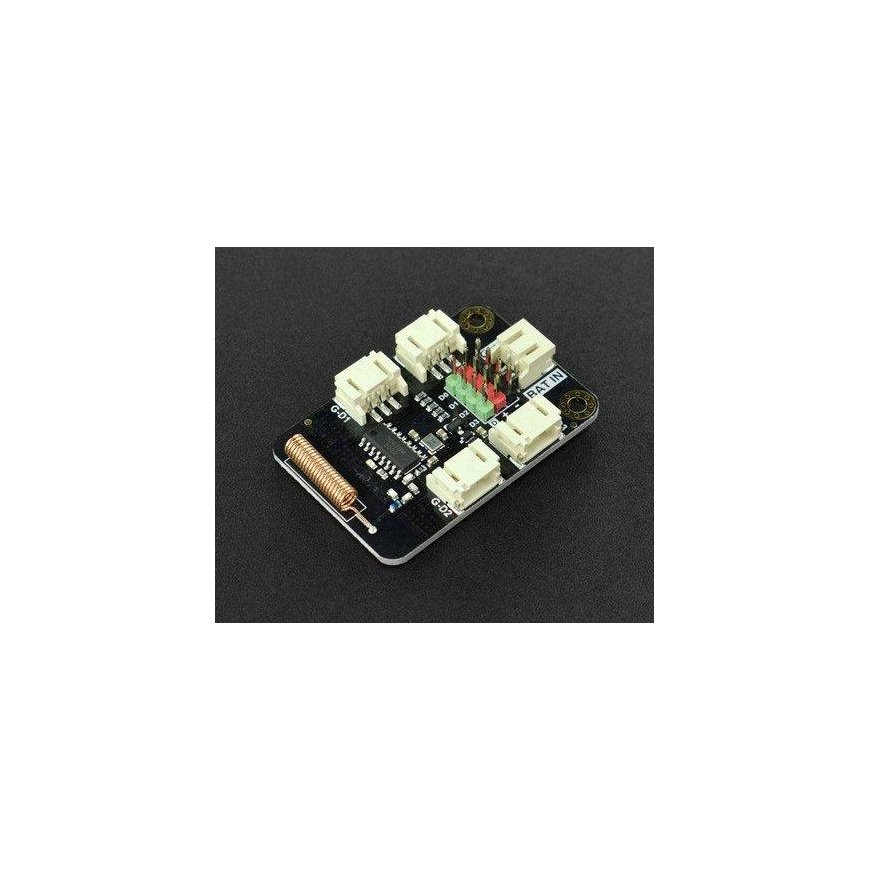

- Gravity - transmitter module
- Gravity - receiver module
- Gravity - digital connection cable
