Touchscreen LCD IPS Screen 3.5'' 480x320px + sound - SPI - 65K RGB - Raspberry Pi Pico - Waveshare 20159
69.13 €
Monthly payment from 2,68 €
3580063 WSR-20097
5904422380137
Shipping 11-18 b.d.
You are interested in this product?
All about the product

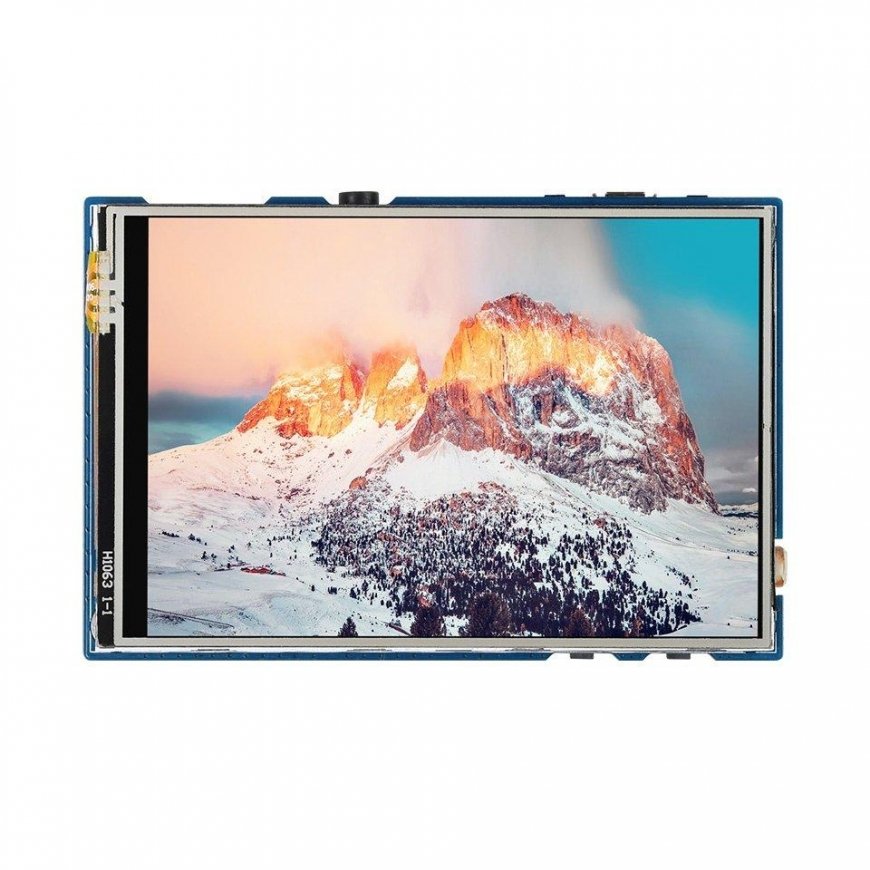

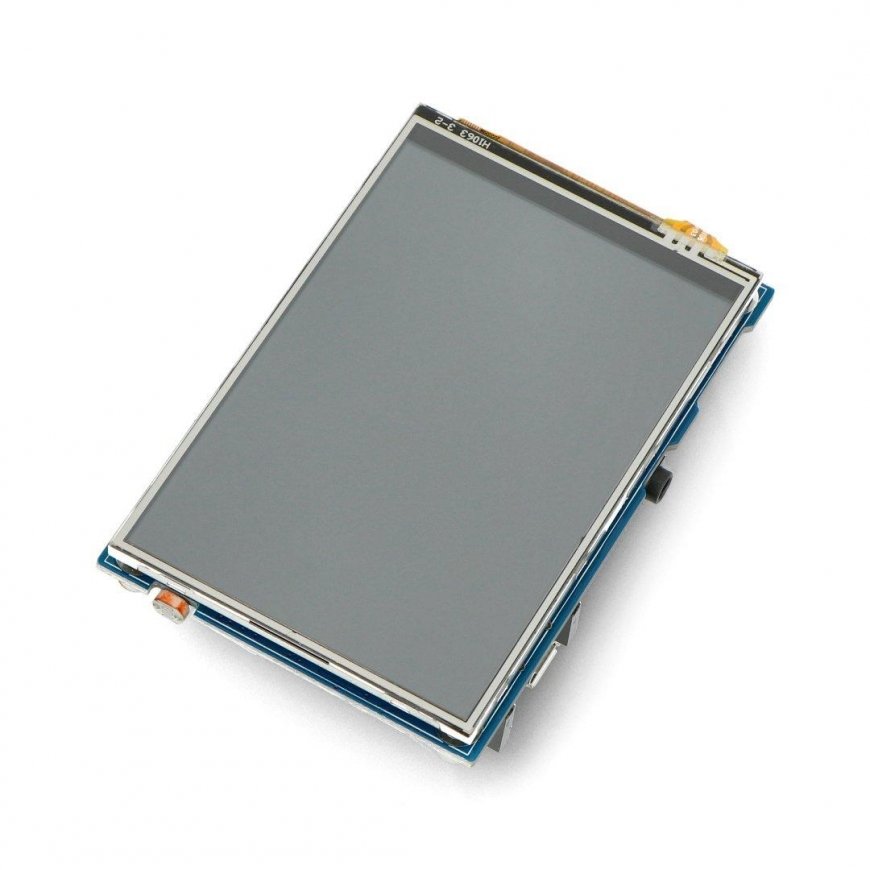

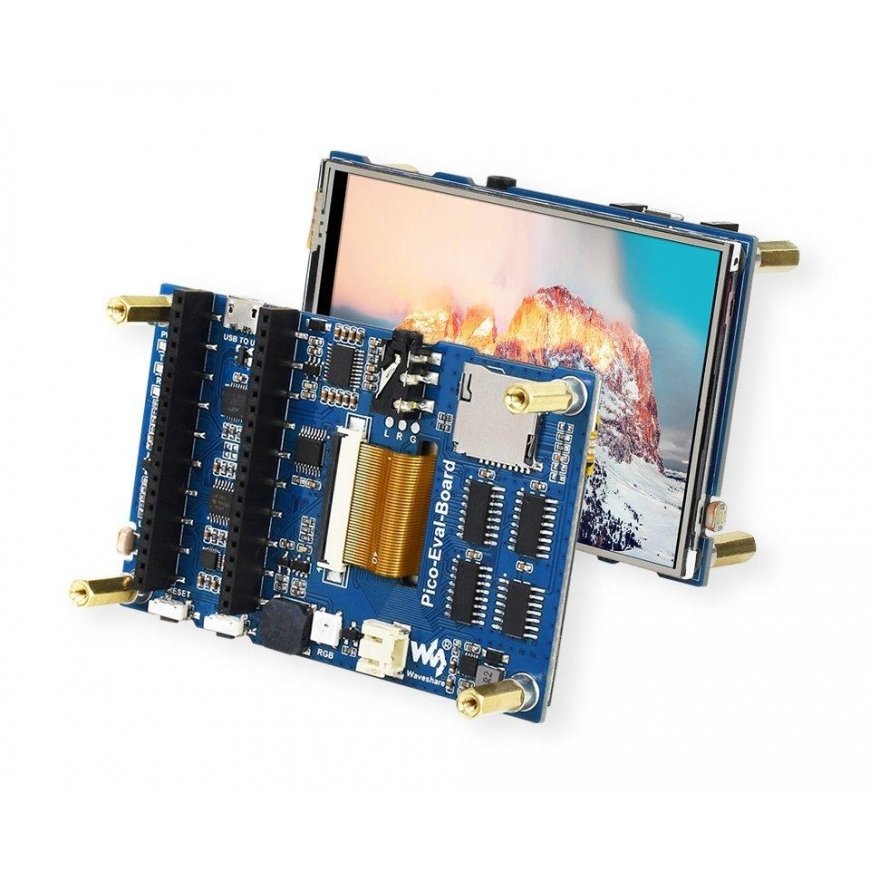

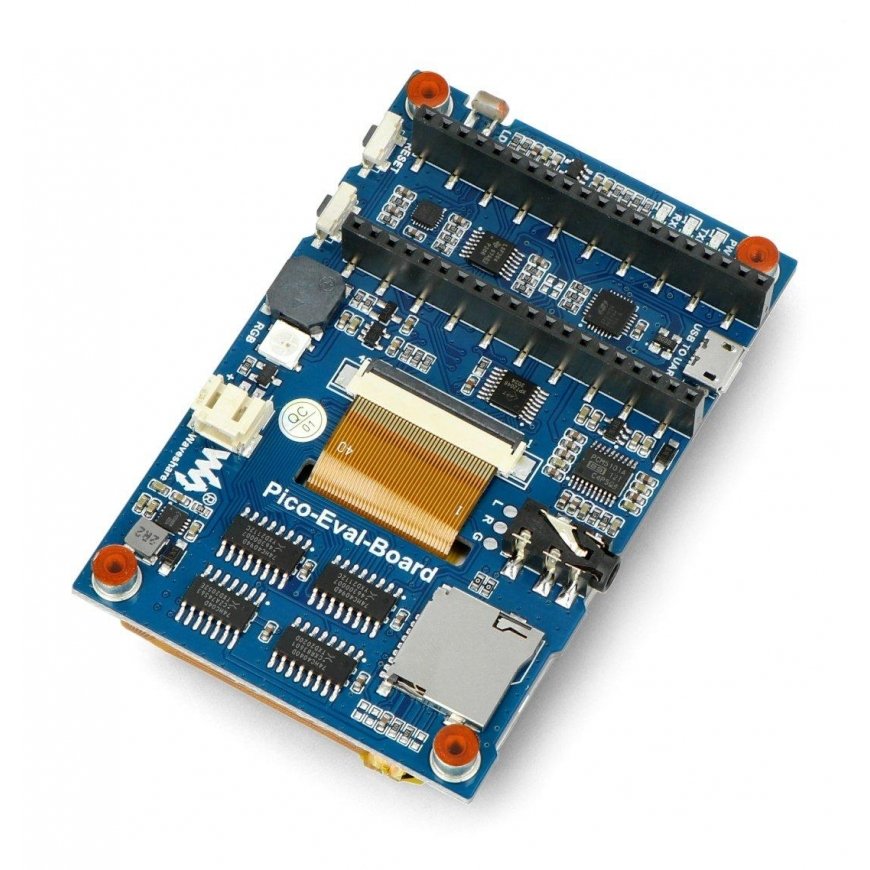

Raspberry Pi Pico display board made by Waveshare. It features a 3.5” IPS touchscreen with a resolution of 480x320px. The screen displays an RGB color image with 65,000 colors, created using the ILI9488 / XPT2046 controller. The board also has a microSD card slot, a 3.5 mm mini jack connector, a photoresistor, a passive buzzer, an RGB LED, and a connector for connecting a Li-Pol battery.Main features:
- Standard socket for connecting Raspberry Pi Pico
- 3.5” IPS touchscreen with 65,000 colors for a clear and bright display
- Standard 3.5mm jack for headphones and other audio devices
- SDIO interface supported by microSD slot, faster access speed compared to SPI
- Integrated Li-Pol power port and charger circuit allows you to power your device wirelessly
- It has various types of circuits such as buzzer, photoresistor and RGB LED
- Operating voltage: 5 V
- Touch type: resistive
- Interface: SPI
- Screen type: IPS
- Controller: ILI9488/XPT2046
- Resolution: 480x320px
- Number of colors displayed: 65K
- Screen size: 73.44 x 48.96 mm
- Pixel size: 0.153 x 0.153 mm
- Dimensions: 86 x 57.20 mm
- Touch screen module
- Gasket set
