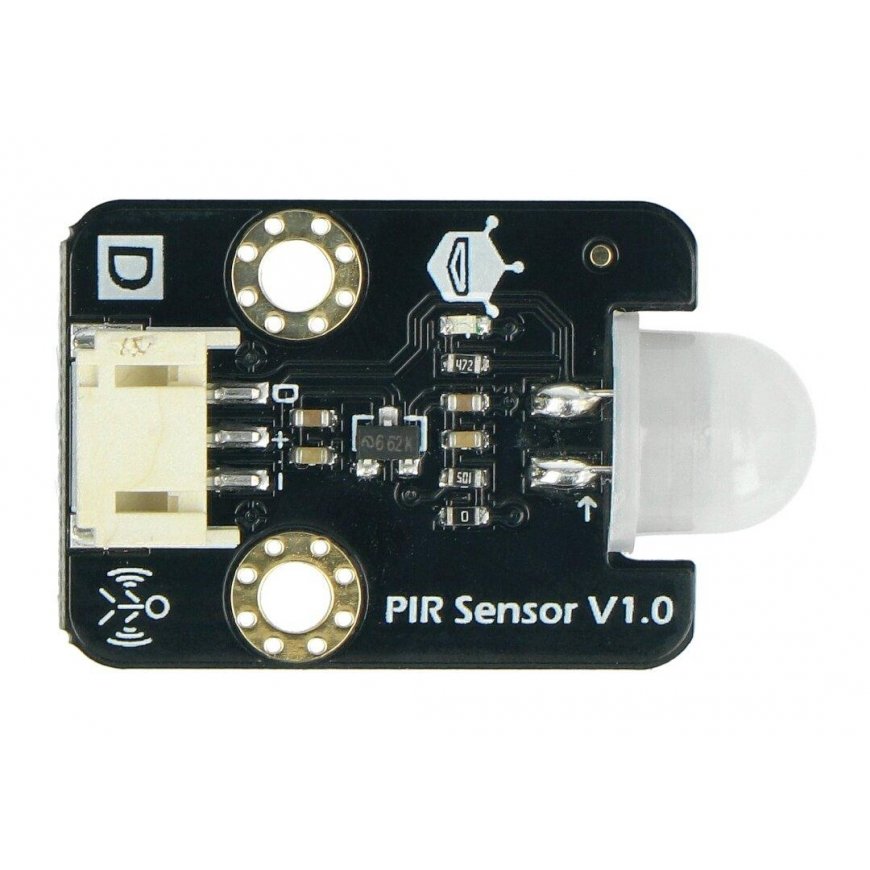

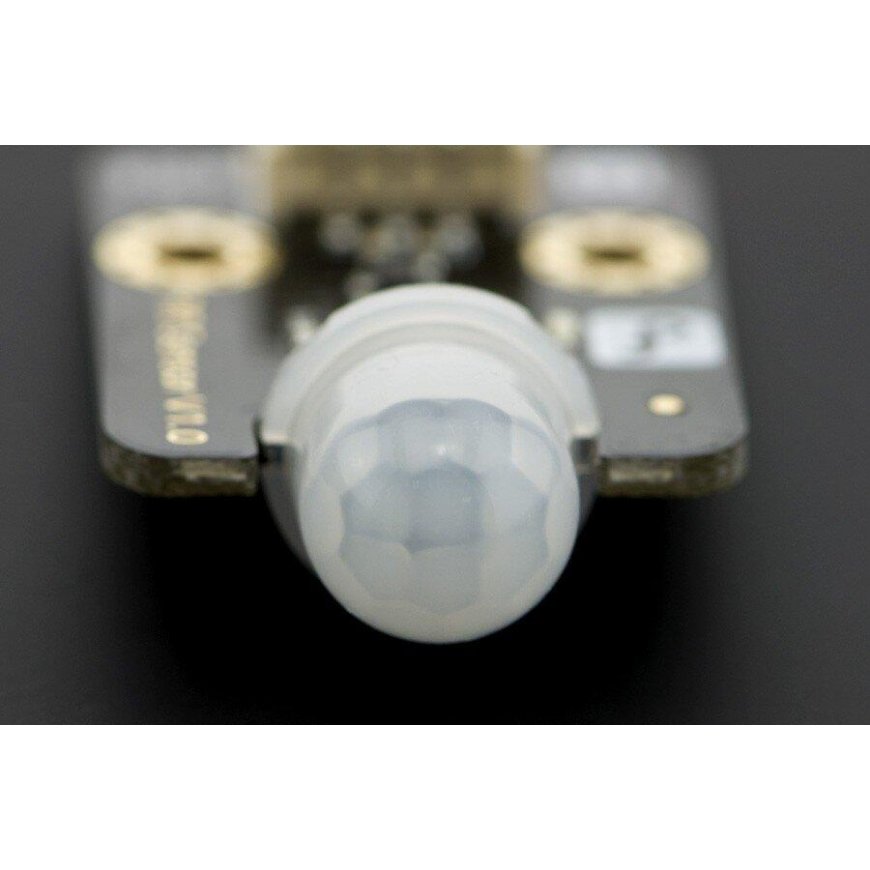

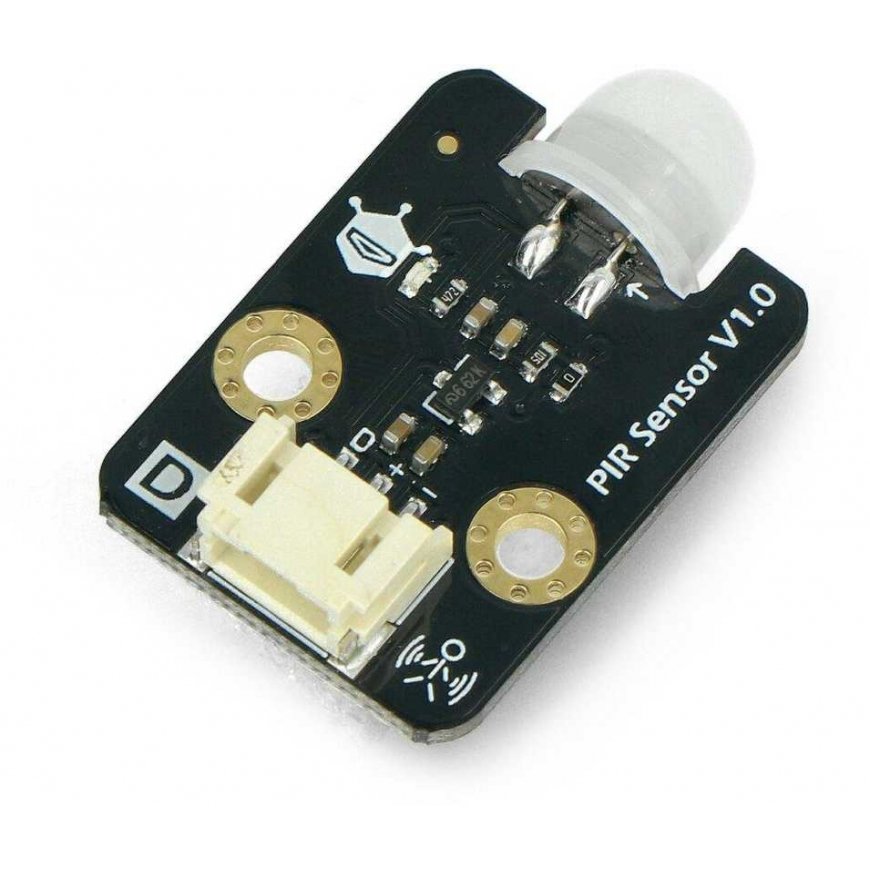

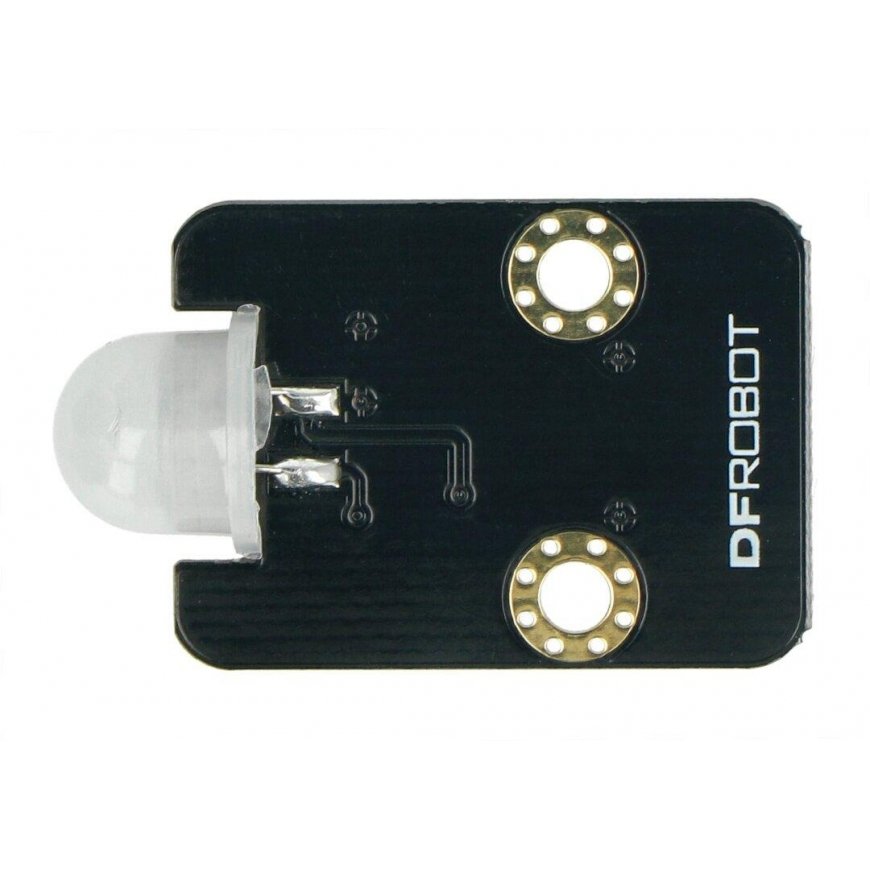

DFRobot Gravity mini PIR motion detector
19.00 €
3578076 AN-11275
5904422376710
Shipping 11-18 b.d.
You are interested in this product?
All about the product
PIR (passive infrared motion) sensor designed to work with Arduino and Raspberry Pi. Used to detect movement if someone is within range of the sensor. Inexpensive, easy to use, does not wear out. They are most often installed in homes or businesses, in various devices and gadgets.
Specifications:
- Supply voltage: 3.3 V to 5 V, max. 6 V
- Operating current: 15 uA
- Output voltage: high 3V, low 0V
- Detection angle: 100°
- Detection distance: 7 m
- LED indicator: detection - high state, LED is on.
- Interface: Gravity
- Operating temperature: -20℃ to 85℃
- Dimensions: 30 x 22 mm
In the package:

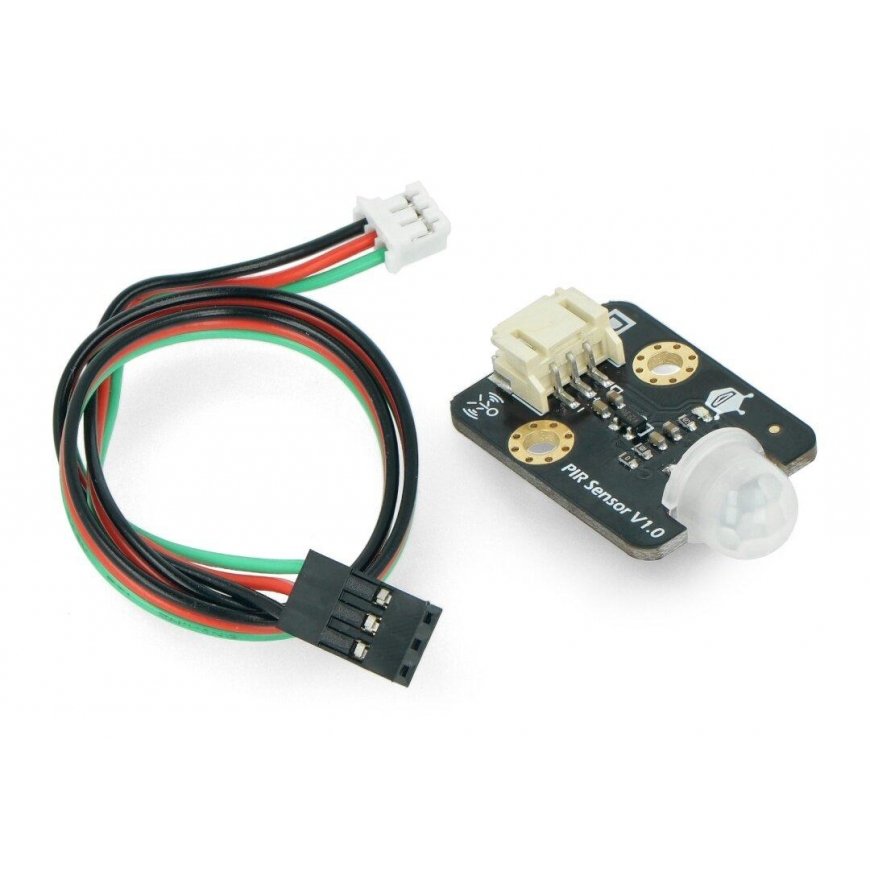

- Gravity digital cable ×1
Links:
Manufacturer's page
Manual
