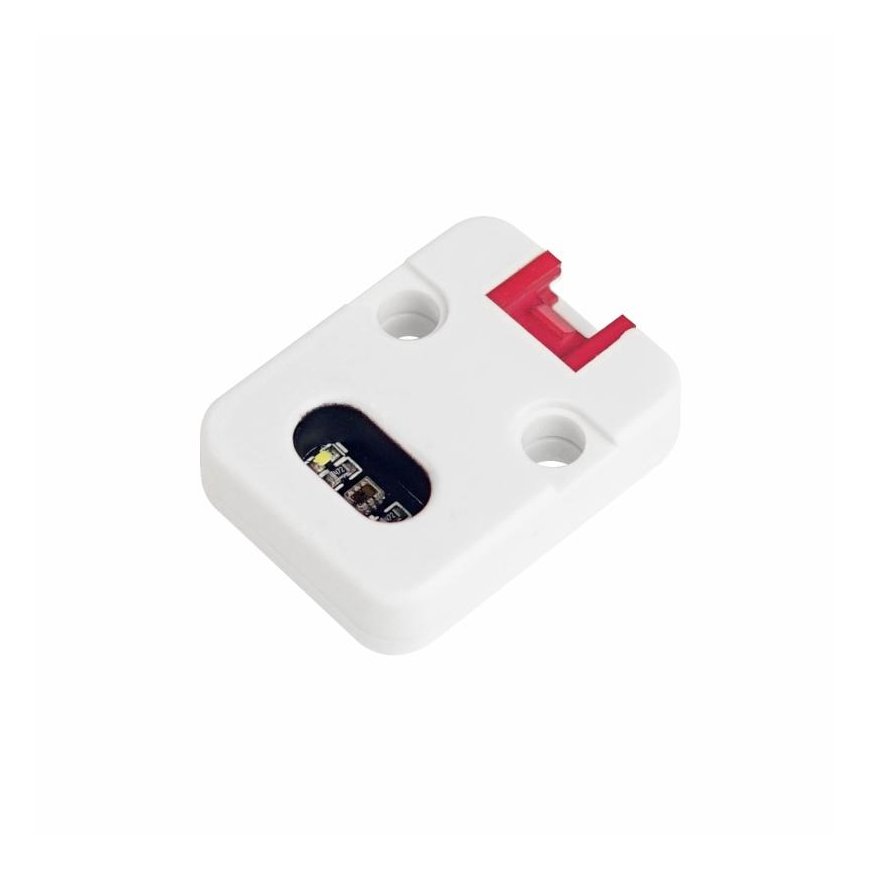

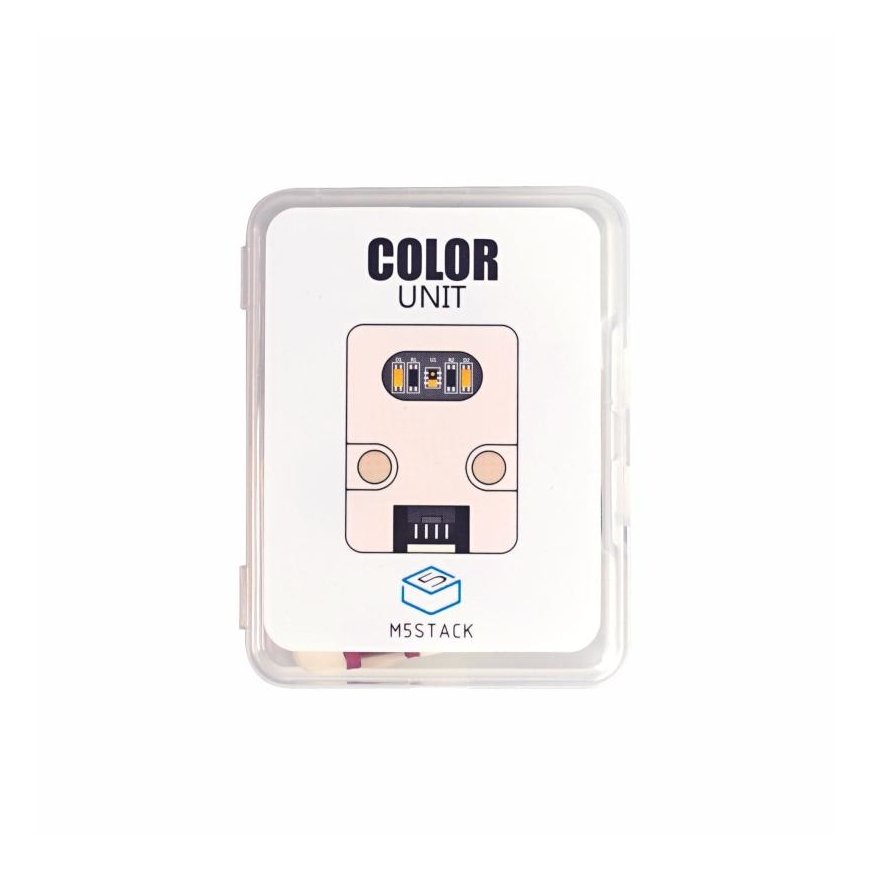

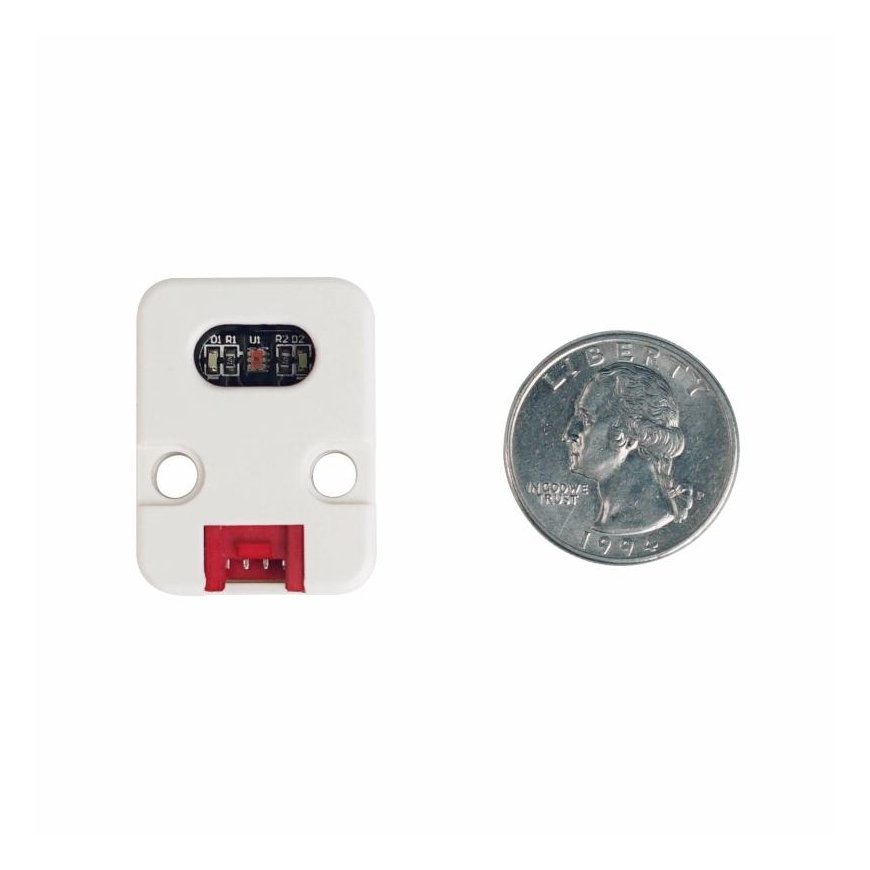

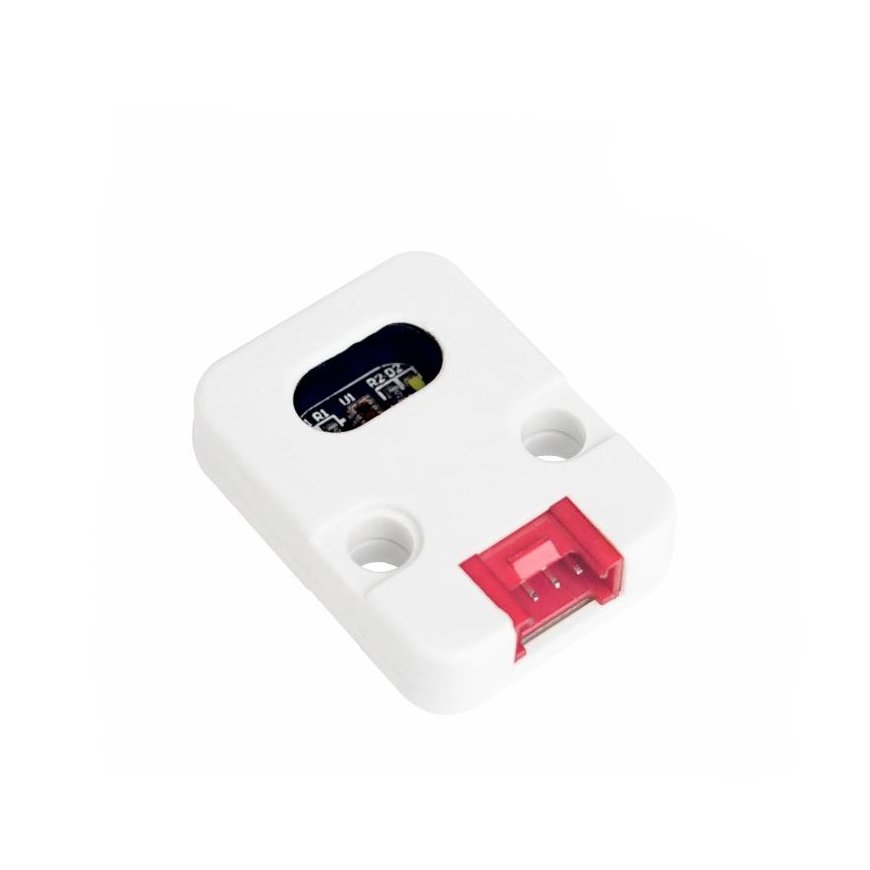

M5Stack U009 development board accessory Colour module White
29.00 €
3577485 U009
6972934170606
Shipping 11-18 b.d.
You are interested in this product?
All about the product
COLOR is color recognition unit integrated with TCS3472 chipset. As the name says, COLOR is able to detect color value and return RGB data as response.Identify color principle: The TCS3472 chipset integrated with 3*4 array of filtered photodiodes and a 16 bit analog-to-digital embedded converters. Out of the 12 photodiodes, 3 have red filters, 3 have green filters, 3 have blue filters and 3 have no filter (clear), which gives a total range of RGBA (RGB + Transparency)
When detecting the color of an object the TCS3472 returns data from four channels: red(R), green(G), blue(B) and clear(C)(non-filtered). The response from the red, green and blue channels (RGB) can be used to determine a particular source’s chromaticity coordinates (x, y).
When we get coordinates (x, y), please reference the below figure so as to get the recommended color.

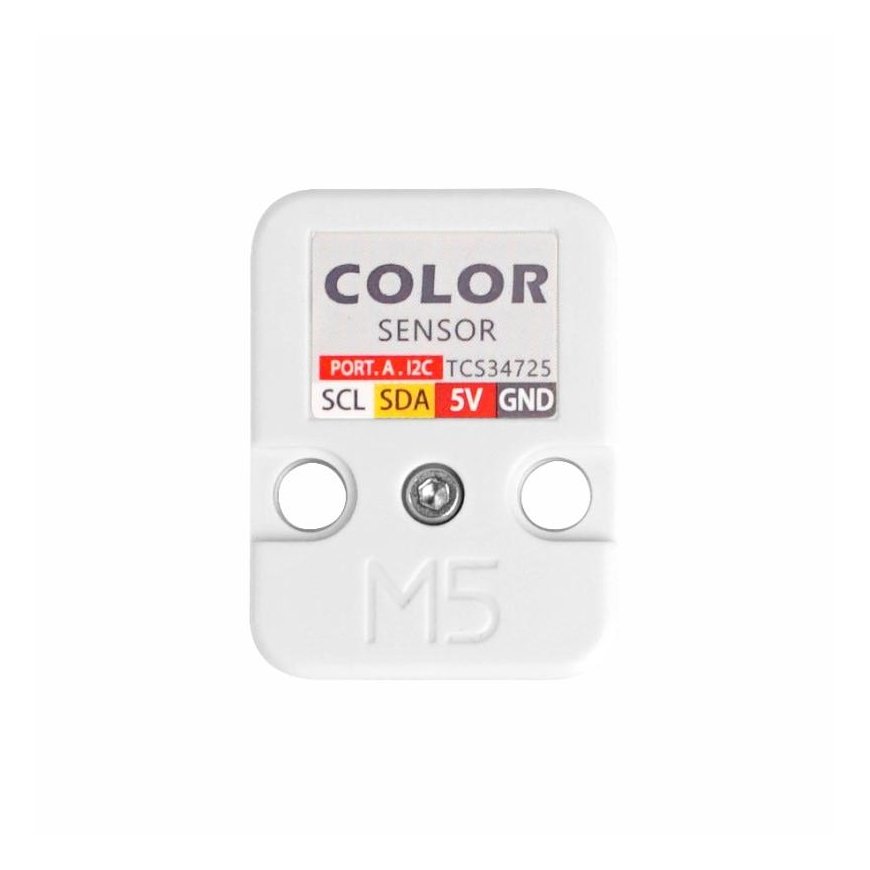

This Unit communicates with the M5Core via the GROVE A interface(I2C). Address is 0x29.
Features
| Product colour | White |
| Weight | 4 g |
| Width | 32.2 mm |
| Depth | 24.2 mm |
| Height | 8.2 mm |
| Package width | 67 mm |
| Package depth | 53 mm |
| Package height | 12 mm |
| Package weight | 17 g |
| Product type | Colour module |
