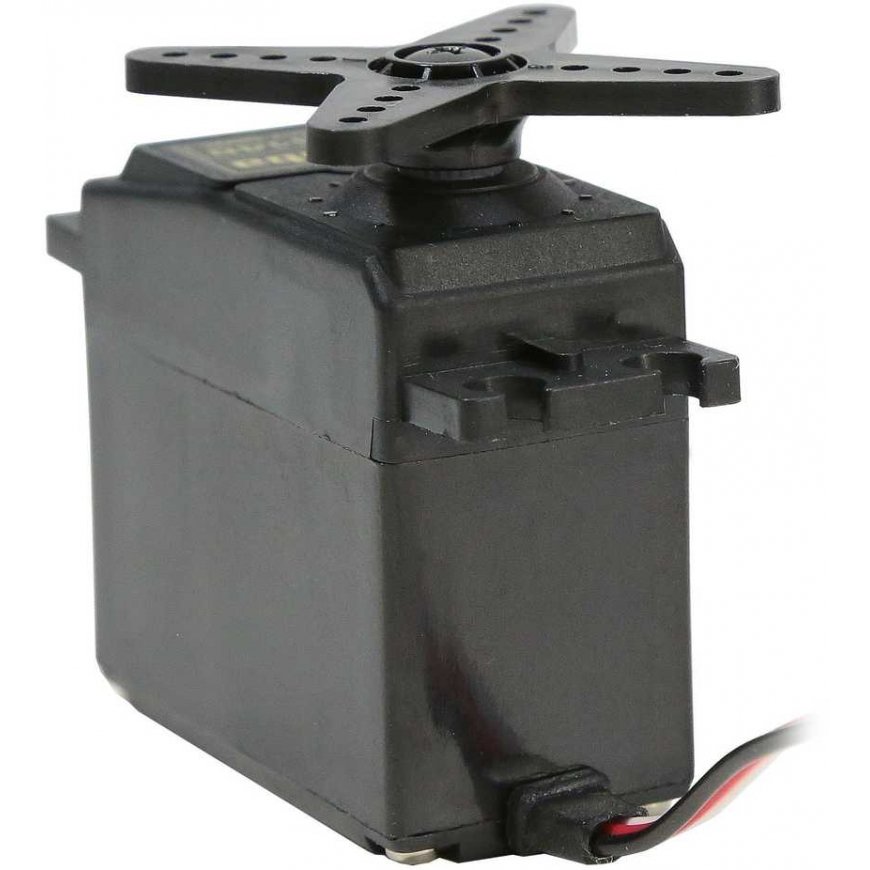

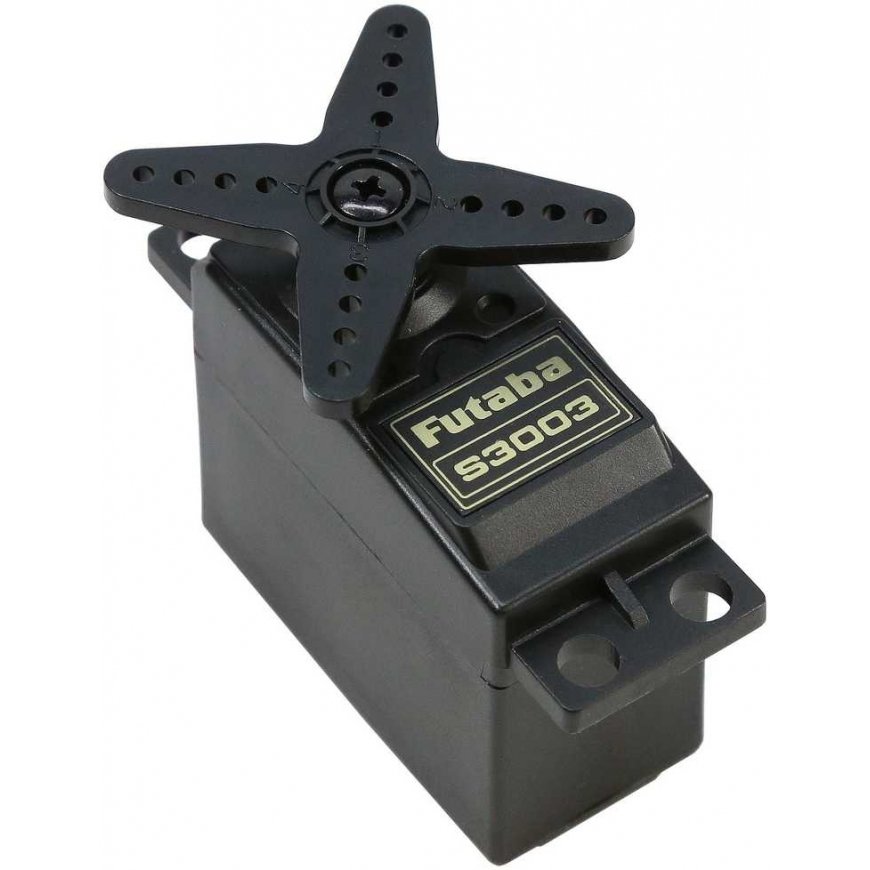

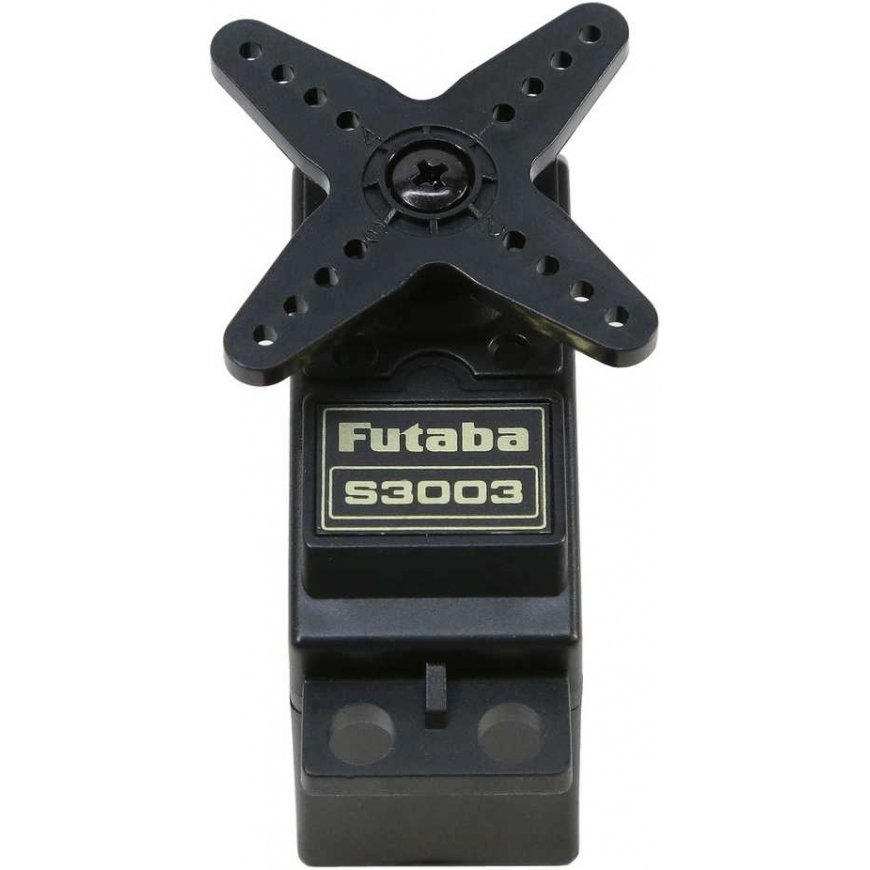

Servo Futaba S3003 - Standard
19.94 €
3575143 AN0145-4
4779044515325
Shipping 9-14 b.d.
You are interested in this product?
All about the product
A servo motor is a type of motor that moves when a desired position is sent to it. A built-in microcircuit detects the current position and rotates the motor to the new position.
Specification
- Voltage: 4.8V to 6.0V
- Range of motion: 60°
- Type: analog
- Cable length: 150mm
- Control signal: 500-3000 µs

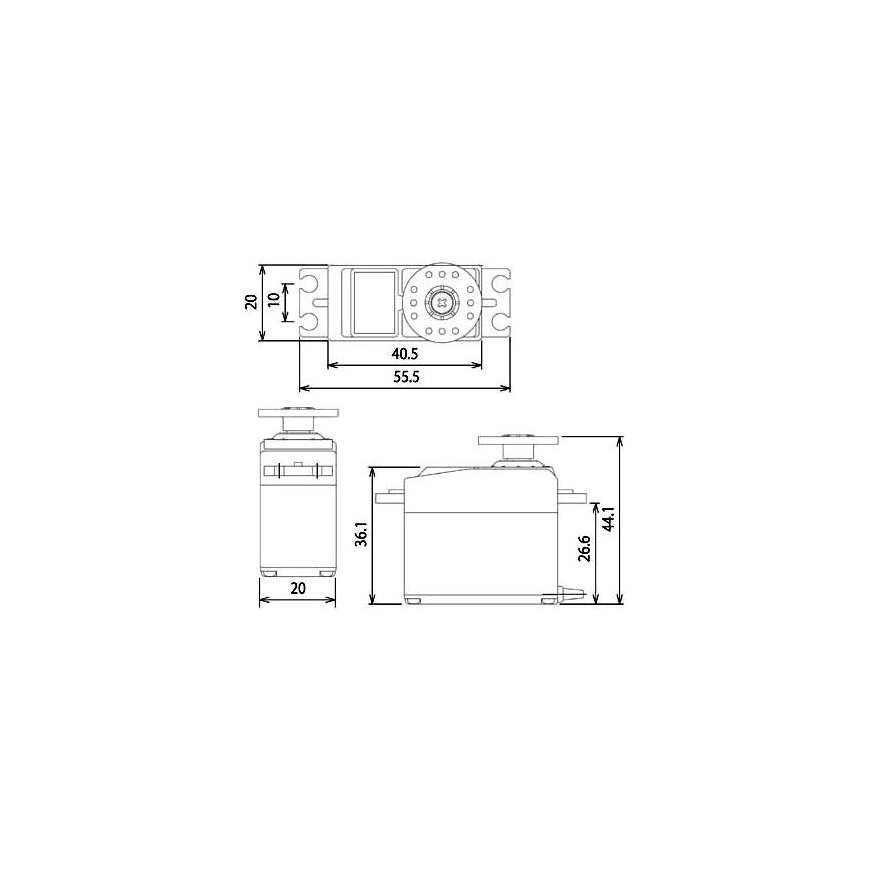

- Dimensions (mm): 41 x 20 x 36mm
- Weight: 37.2 g
- 4.8V parameters:
- Torque: 3.2 kg*cm (0.31 Nm)
- Speed: 0.23 s/60°
- 6.0V parameters:
- Torque: 4.1 kg*cm (0.40 Nm)
- Speed: 0.19 s/60°

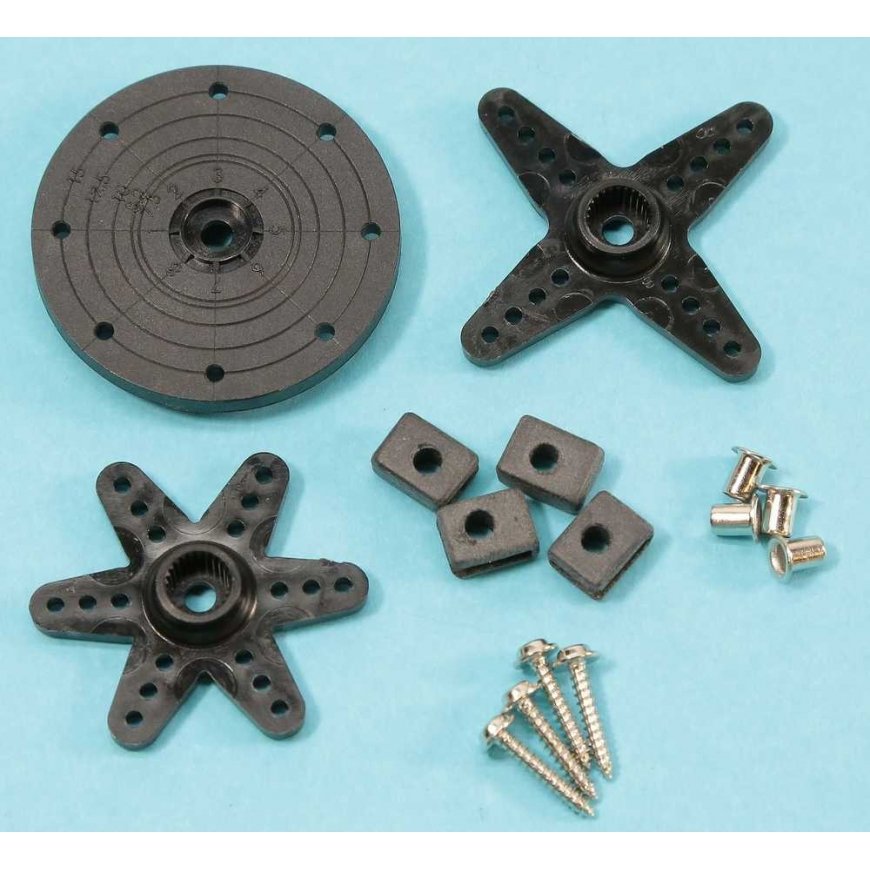

- The kit includes elbows, gaskets and screws.
