Gravity - MAX30102 Heart Rate and Oximeter Sensor - DFRobot SEN0518
41.16 €
Monthly payment from 1,96 €
3573326 AN-20974
5904422383220
Shipping 11-18 b.d.
You are interested in this product?
All about the product

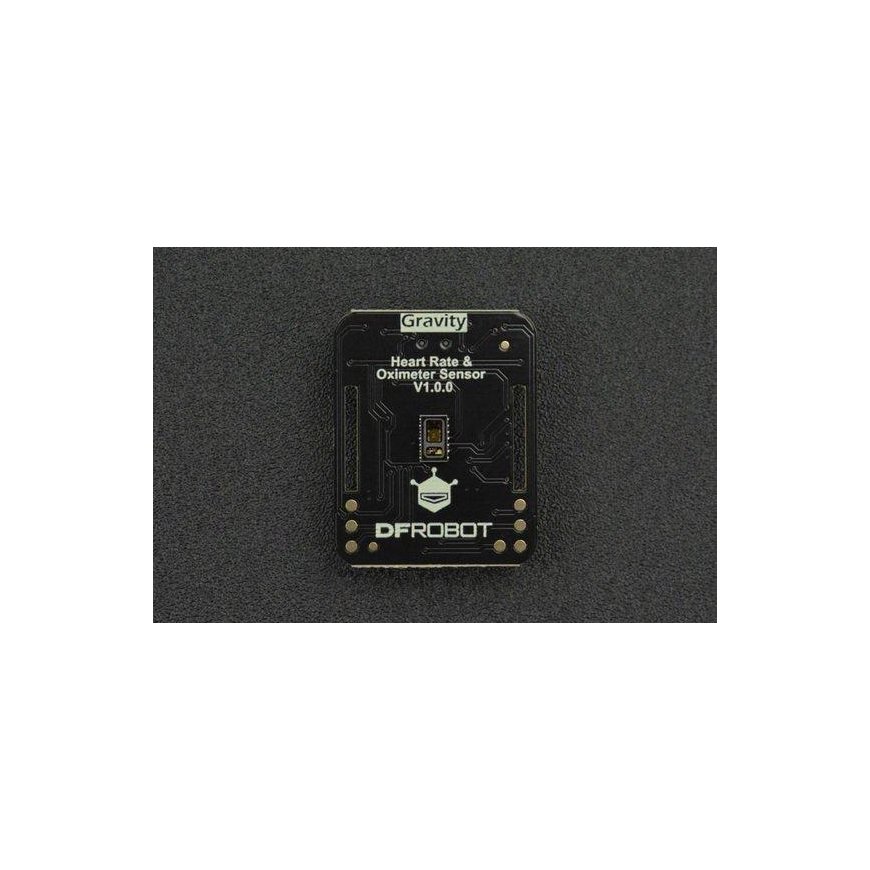

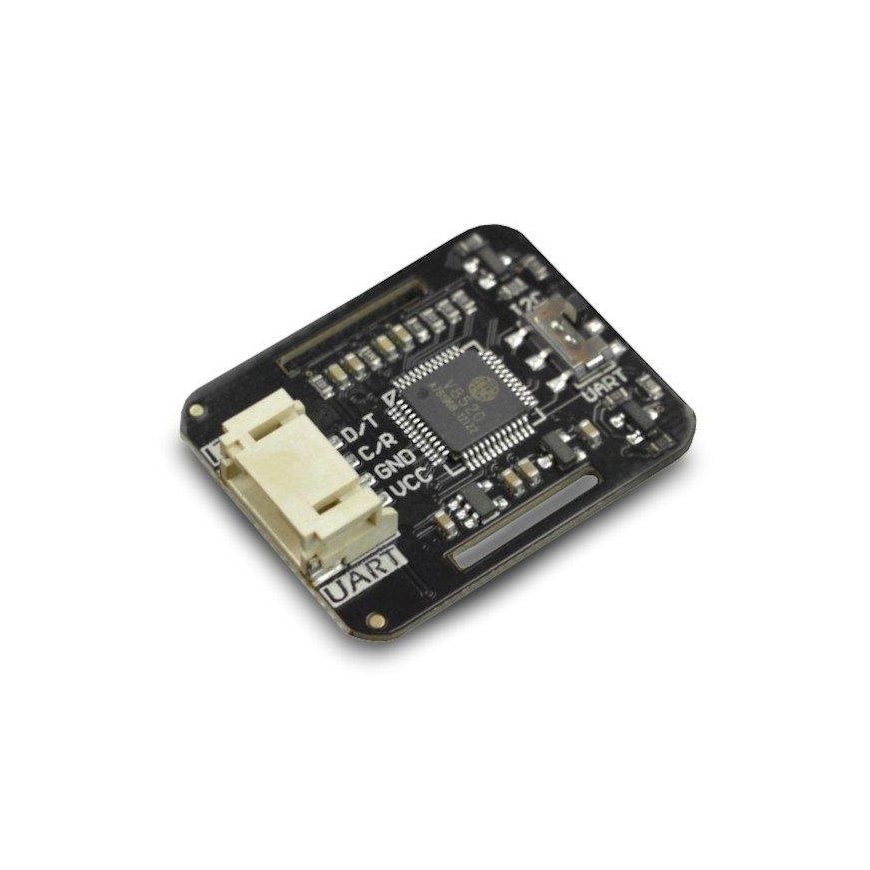

The heart rate sensor module and pulse oximeter are based on the MAX30102 chip. It is powered by 3.3V/5V. The MAX30102 uses PPG (PhotoPlethysmoGraphy) data for measurements, which are processed by the MCU and converted into heart rate and oximetry values and transmitted via the I2C or UART bus. The sensor is easy to use, and the data is read by an Arduino microcontroller or a Raspberry Pi minicomputer.Main features:

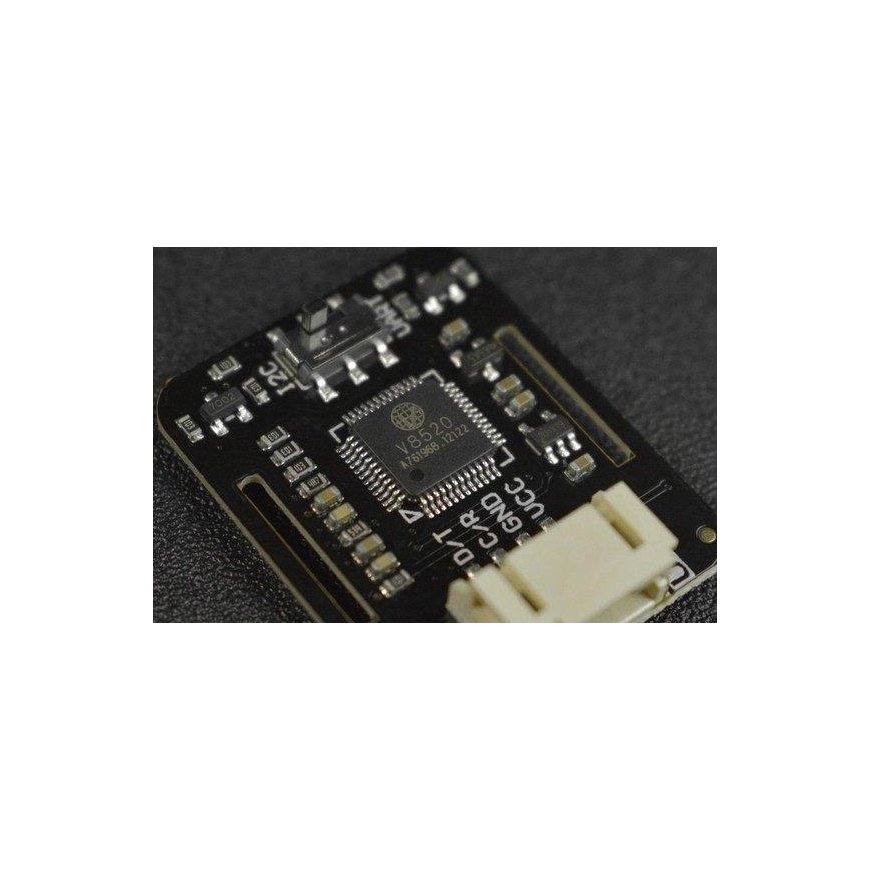

- Microcontroller with integrated algorithm
- Data can be read by a minicomputer/microcontroller connected directly to a computer
- The sensor is compatible with Raspberry Pi 4, DFRduino UNO R3, Arduino Uno Rev 3
- Supply voltage: 3.3V/5V
- Current: < 15 mA
- Interface: I2C/UART
- I2C address: 0x57
- Serial port baud rate: 9600
- Operating temperature range: -40°C to 85°C

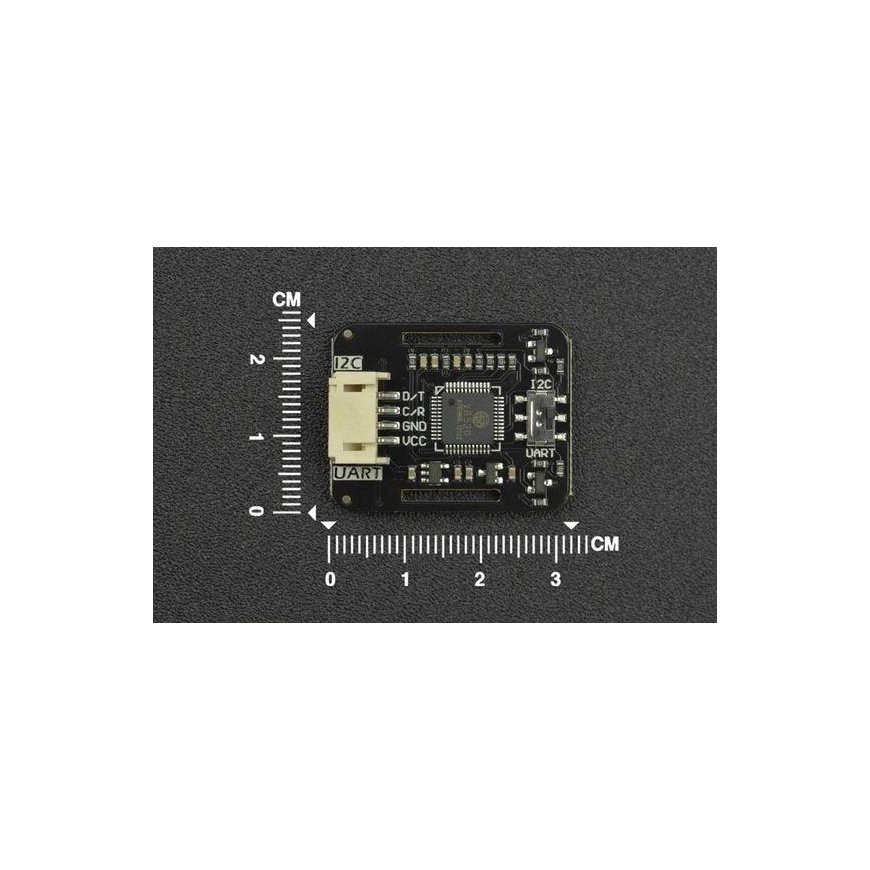

- Module dimensions: 25.5 x 32 mm

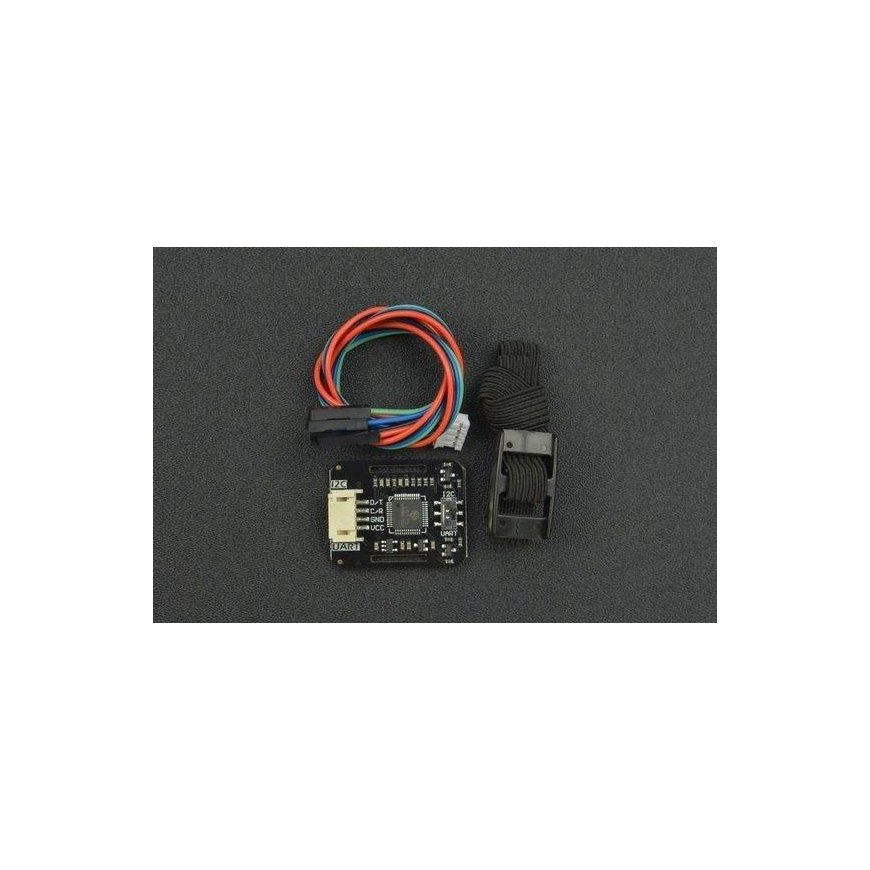

- 1 x Gravity - MAX30102 V1.0.0 Heart Rate Sensor and Pulse Oximeter
- 1 x Gravity sensor connector - 4-pin I2C/UART
- 1x tape
