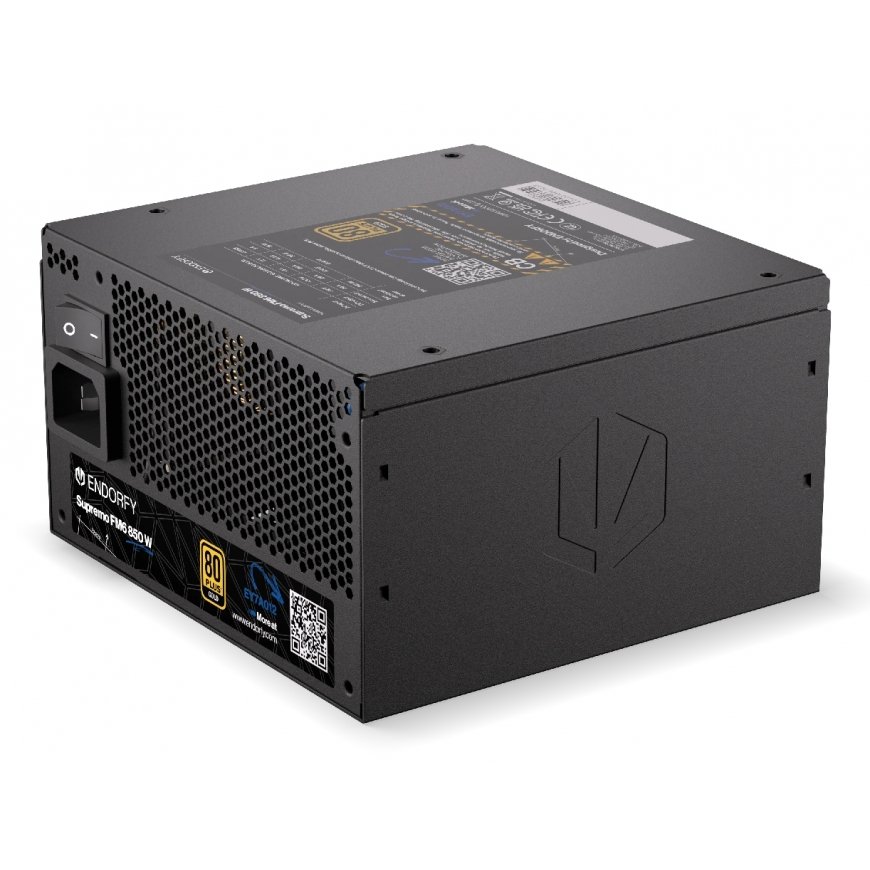

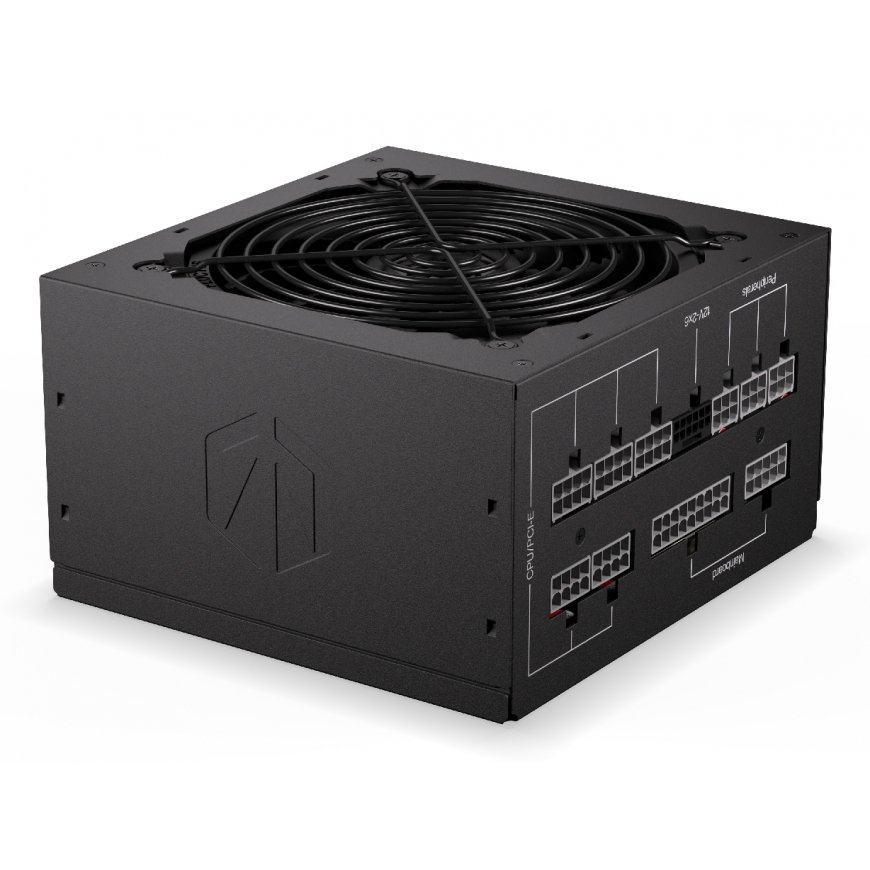

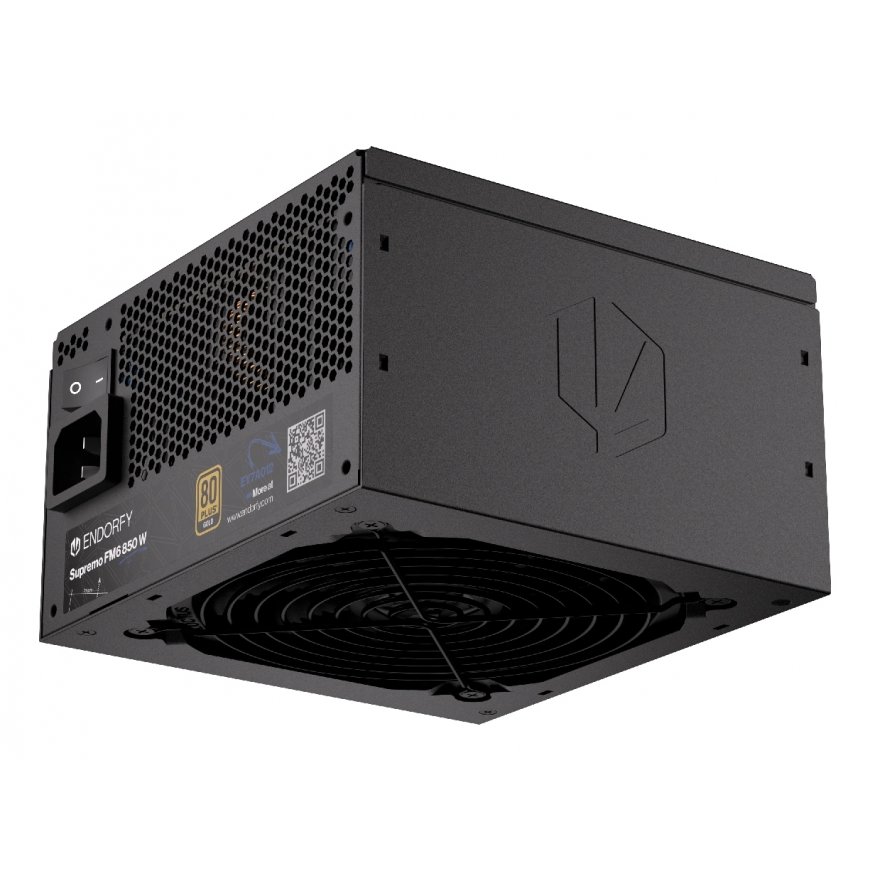

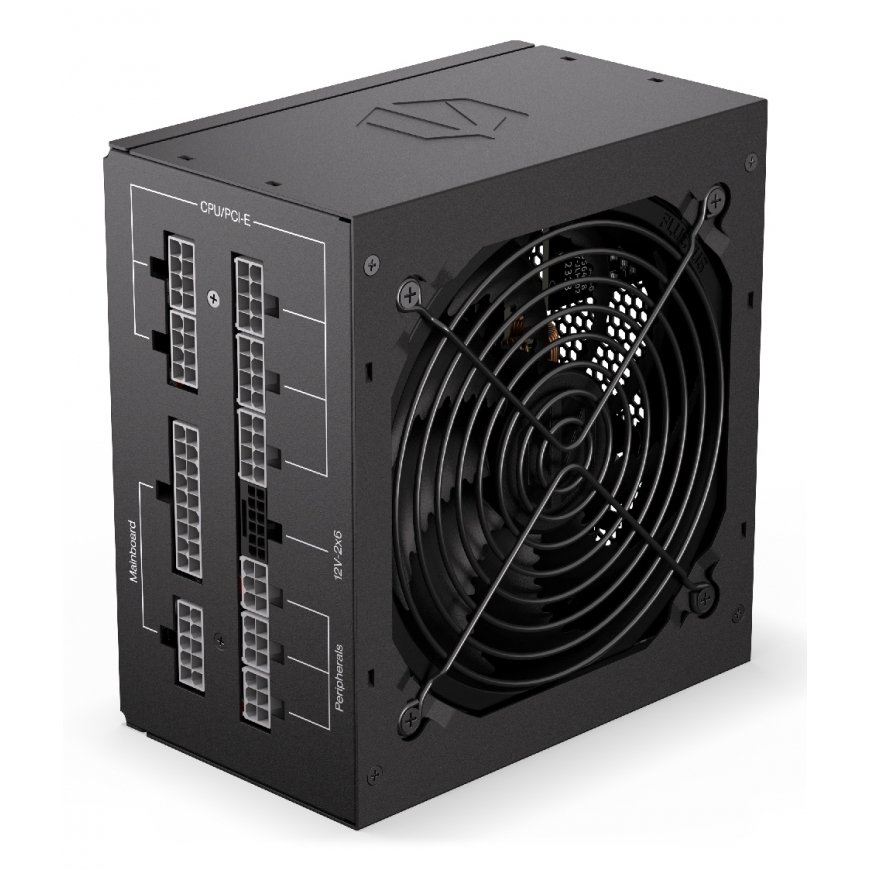

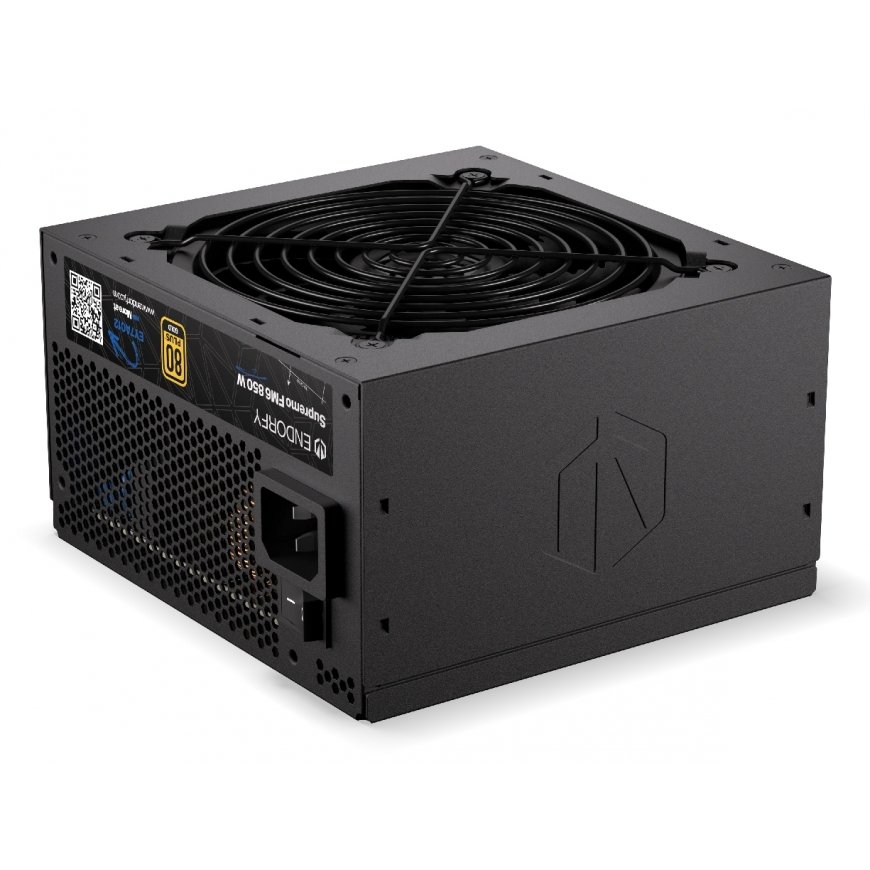

ENDORFY Supremo FM6 850 W power supply unit 24-pin ATX ATX Black
139,00 €
Monthly payment from 4.48 €
3573246 EY7A012
5903018667959
Shipping 3-5 b.d.
You are interested in this product?
Supremo FM6 850 W
Supremo FM6 850 W is a modular ATX 3.1 PSU for demanding users that supports PCIe 5.1 graphics cards. It boasts high power efficiency confirmed by an 80 PLUS® Gold certificate. The power supply’s design utilizes only the Japanese capacitors that guarantee its long service life.
The quiet Fluctus 120 mm fan and optimized component placement ensure low temperatures with almost noiseless operation. Additionally, the modular cables make it easier to keep the surrounding space in order. The PSU also has a security package that protects it from overloading and power surges. Its quality is additionally confirmed by a 10-year warranty.
Ready for latest ATX 3.1 standards
Supremo FM6 850 W is a power supply unit compliant with the ATX 3.1 standard. Its major advantages include even better performance, stability, and resistance to momentary power spikes than previous ATX standards. The set includes the 12V-2x6 cable fully compatible with PCIe 5.1 cards. A traditional PCI-E 6+2 PIN splitter is also included to handle GPUs with classic power supply systems.
80 PLUS® Gold – supreme performance and reliability
The 80 PLUS® Gold certificate confirms the high efficiency of the Supremo FM6 850 W power supply unit. Thanks to its excellent quality and refined design, the unit is characterized by low-noise and low-temperature operation, resulting in its extended service life.
Silence first
Supremo FM6 850 W has been designed with maximum user comfort in mind. Thanks to the optimized component setup streamlining the air flow and a high-performance cooling system, the PSU runs exceptionally quietly and retains low temperature even under full load.
Premium class capacitors made in Japan
All capacitors installed in the Supremo FM6 850 W power supply unit are reliable, premium-class components made in Japan. They retain their operating parameters even at high temperatures (105 °C), enabling them to perform faultlessly and stably for years to come, even under extremely demanding operating conditions.
Power | |
| Input current | 13 - 6.5 A |
| Power protection features | Over current, Overload, Over voltage, Short circuit, Under voltage, Surge & inrush protection (SIP), Under temperature |
| Power Factor Correction (PFC) type | Active |
| Combined power (+3.3V) | 66 W |
| Combined power (+12V) | 840 W |
| Combined power (+5V) | 100 W |
| Combined power (-12V) | 3.6 W |
| Combined power (+5Vsb) | 15 W |
| Max output current (+3.3V) | 20 A |
| Max output current (+12V) | 70 A |
| Max output current (+5V) | 20 A |
| Max output current (+5Vsb) | 3 A |
| Max output current (-12V) | 0.3 A |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Total power | 850 W |
Performance | |
| Mean time between failures (MTBF) | 100000 h |
| ATX version | 3.1 |
| Purpose | PC |
| 80 PLUS certification | 80 PLUS Gold |
| Bearing technology | FDB |
| Power supply unit (PSU) form factor | ATX |
Design | |
| LED indicators | No |
| Product colour | Black |
| Number of fans | 1 fan(s) |
| Fan diameter | 12 cm |
| Fan location | Top |
| Fan speed | 1260 - 1540 RPM |
| Illumination | No |
| Cooling type | Active |
| On/off switch | Yes |
| On/off fan switch | No |
Ports & interfaces | |
| Number of SATA power connectors | 8 |
| Peripheral (Molex) power connectors (4-pin) | 1 |
| PCI Express power connectors (6+2 pin) | 3 |
| Motherboard power connector | 24-pin ATX |
| Cabling type | Fully-Modular |
| SATA power cable length | 560 mm |
| EPS power connector (4+4 pin) | Yes |
| PCI Express power connectors (12+4 pin) | 1 |
Weight & dimensions | |
| Weight | 1.46 kg |
| Width | 140 mm |
| Depth | 150 mm |
| Height | 87 mm |
Technical details | |
| Doesn't contain | Mercury, Cadmium, Lead |
Packaging data | |
| Package weight | 2.74 kg |
| Case or master carton dimensions (W x D x H) | 600 x 235 x 290 mm |
| Case or master carton weight | 17000 kg |
| Manual | Yes |
| Package type | Box |
| Package height | 95 mm |
| Package width | 220 mm |
| Package depth | 270 mm |
Logistics data | |
| Country of origin | China |
| Warranty period | 10 year(s) |
Packaging content | |
| Cables included | AC |
Certificates | |
| Compliance certificates | CE, RoHS, Federal Communications Commission (FCC), UKCA, CB, CCC |
