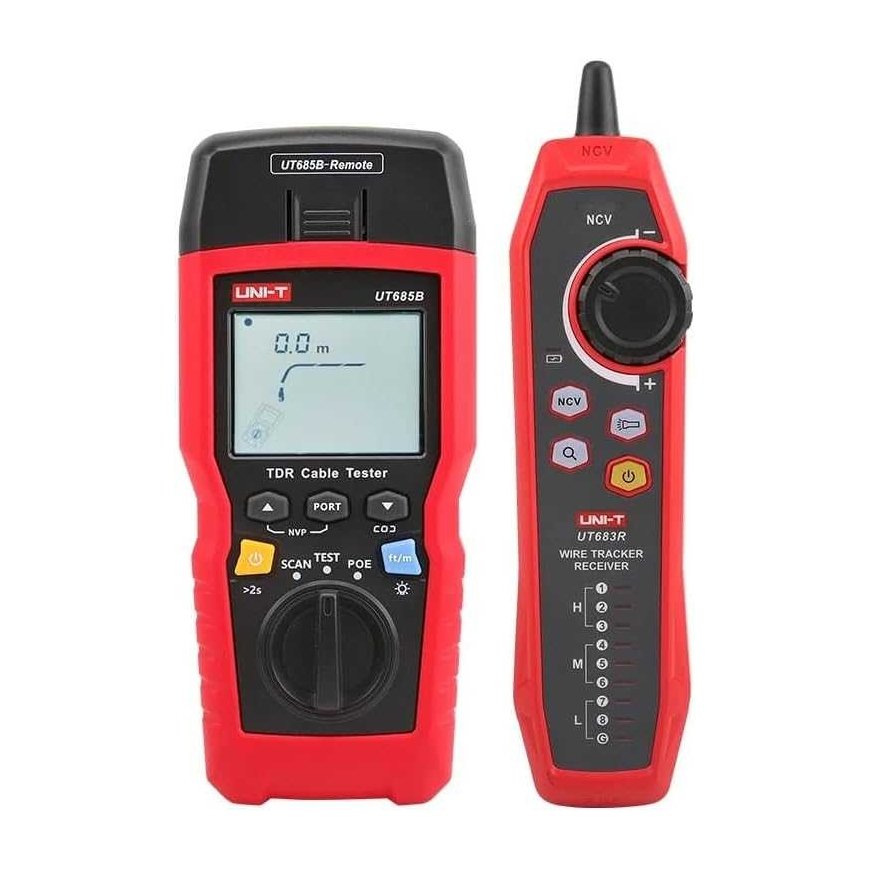

UT685B KIT TDR Cable Tester

UT685B KIT can test various types of cables (including twisted pair cable, coaxial cable and POE network cable): you can find the cable, determine the cable length and line sequence, and confirm whether it is POE and POE standards. In addition, it integrates RJ11, RJ45 and coaxial cable test ports to test almost all low-voltage cables without the use of cumbersome adapters.



Effectively reduces inefficient operator testing and improves work efficiency, making high-quality equipment more efficient and lighter.

UT685B KIT TDR Cable Tester Features

Certificates: CE, UKCA, RoHS

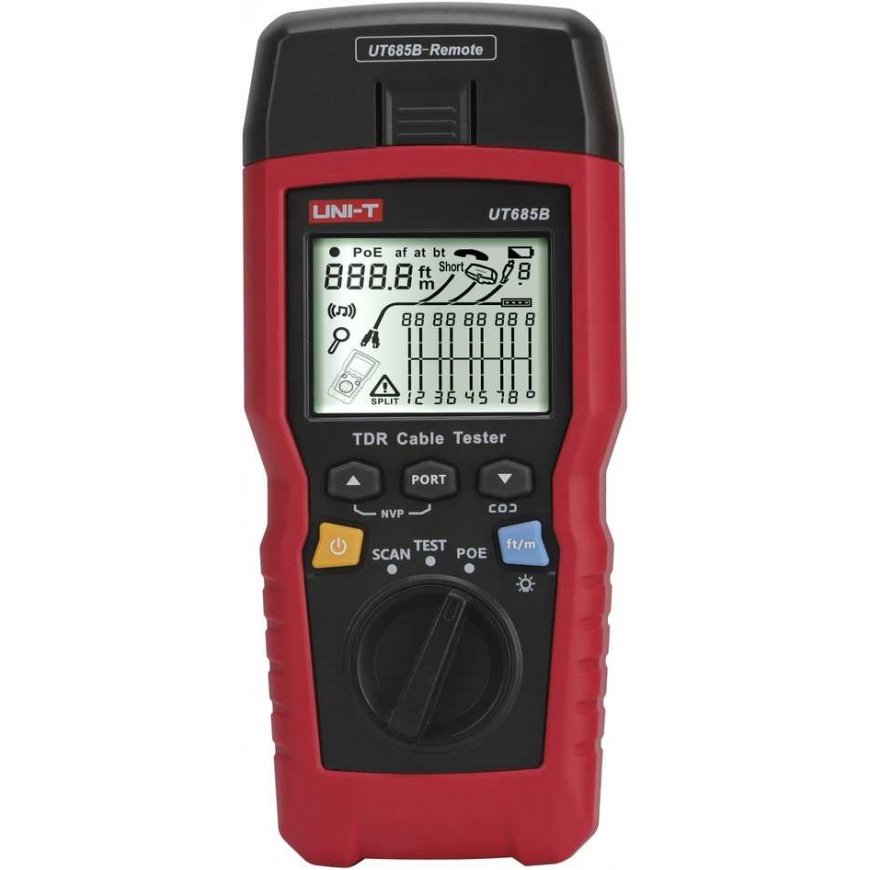

● 2.8 inch LCD screen with backlight

● Graphical interface

● Cable length test

● Tests RJ11, RJ45 and coaxial cable types

● Set POE standards

● Digital hunting

● Range 500m

● Resolution 0.33 m

● 70V DC input protection

● TDR technology: no blind zone testing

UT685B KIT TDR Cable Tester Specifications

Specifications

UT685B KIT

Tested cable type

Twisted pair cable:
1. UTP (unshielded cable),
2. FTP (aluminum foil shielded cable);
3. SSTP (double shielded network cable);

Coaxial cable: 50Ω, 75Ω, 93Ω

Cable length test

Range: 500 m

Resolution: 0.33 m

Accuracy: ± 4% or 0.6 m

POE detection

POE power detection

POE standard: 802.3AF

POE standard: 802.3AT

Ethernet port test

√

Cable location

√

The port is flashing.

√

Input protection

70 VDC

Screen

2.8″ LCD SCREEN

Automatic shutdown

About 10 minutes

General characteristics

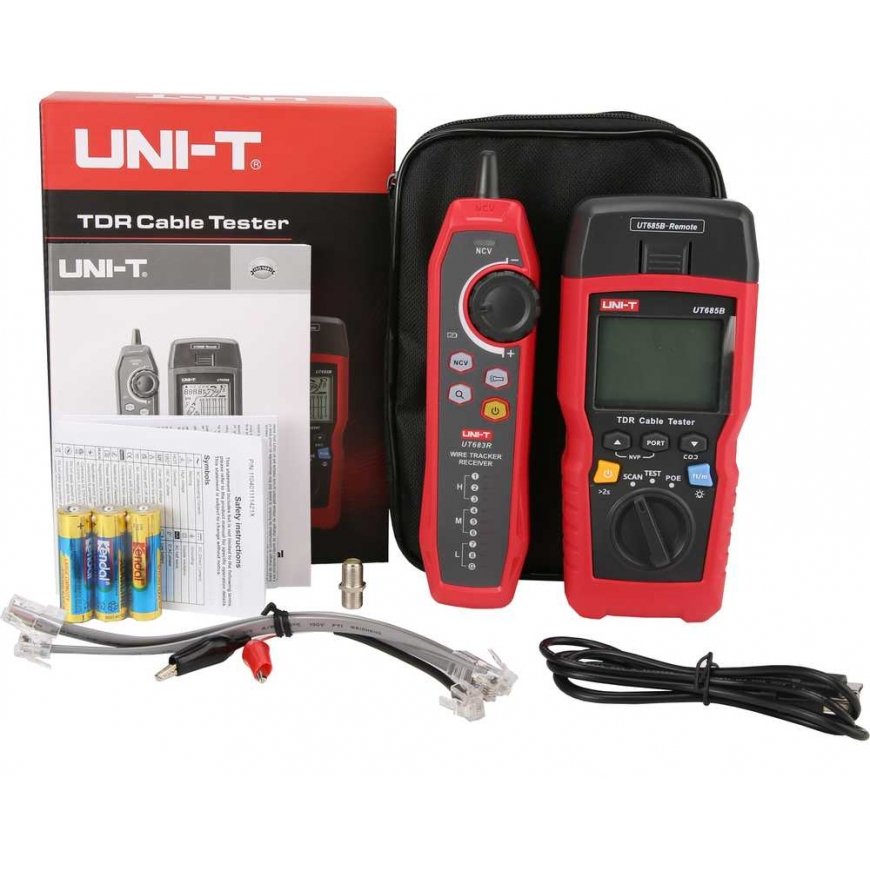

Standard accessories

RJ45 adapter cable: 1 pc;
RJ11 adapter cable: 1 pc: 1 pc;
RJ11 adapter cable (adapted to alligator clip): 1 pc;
Plug, F connector with F connector: 1 pc;
User manual: 1 pc: 1 pc.

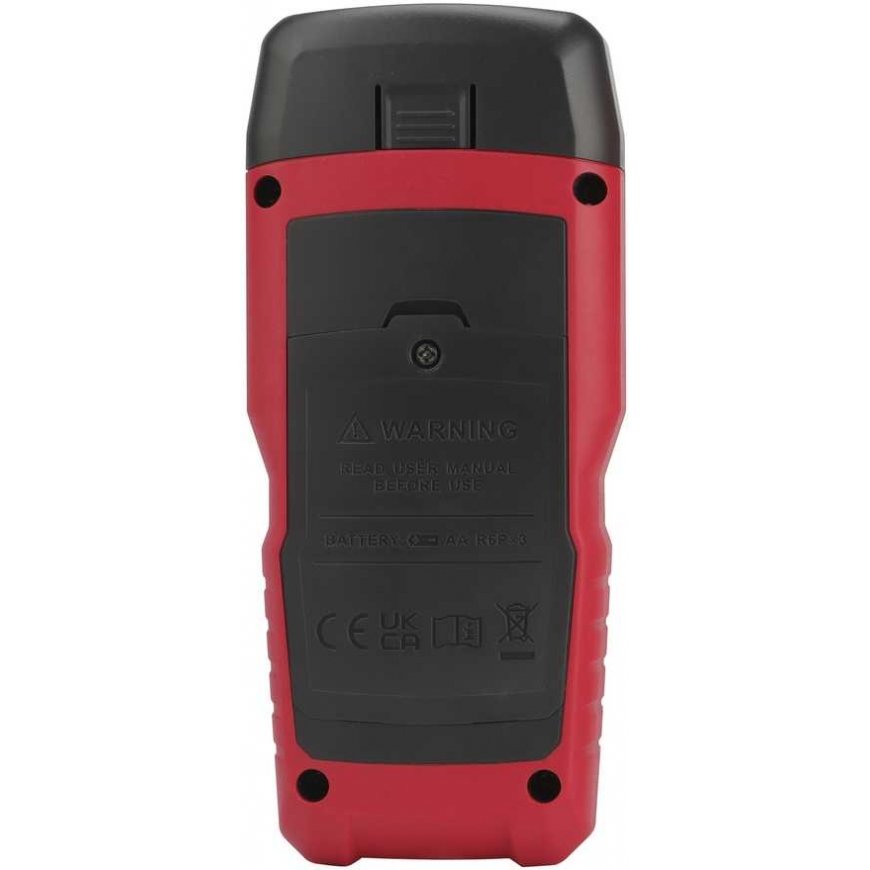

Power supply

AAA alkaline batteries x4

Product dimensions

180mm × 84mm × 37.8mm
