The product's shade and actual color may differ from what is shown in the picture, as the images are for illustrative purposes. The product description is general and may not include all the product's features.

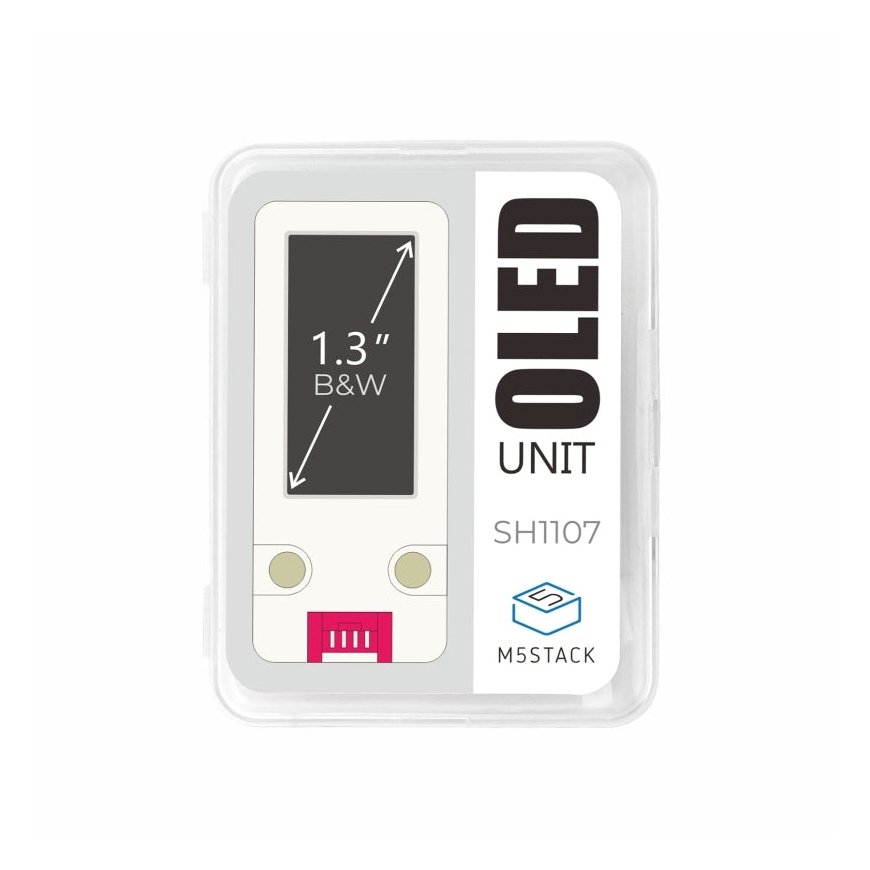

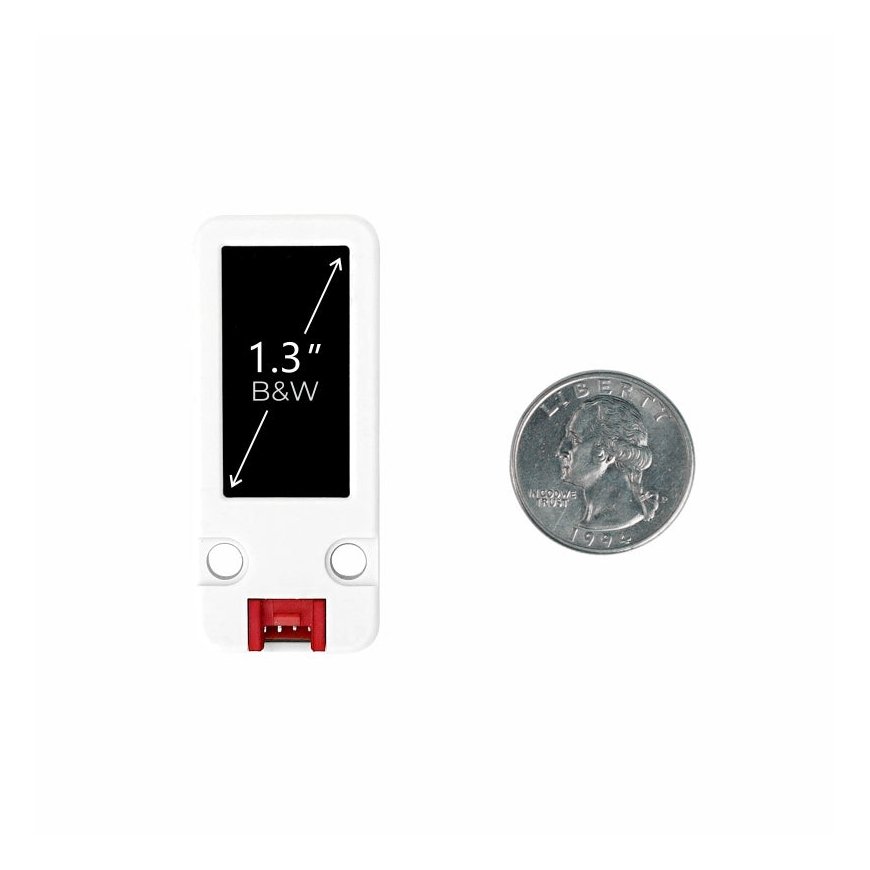

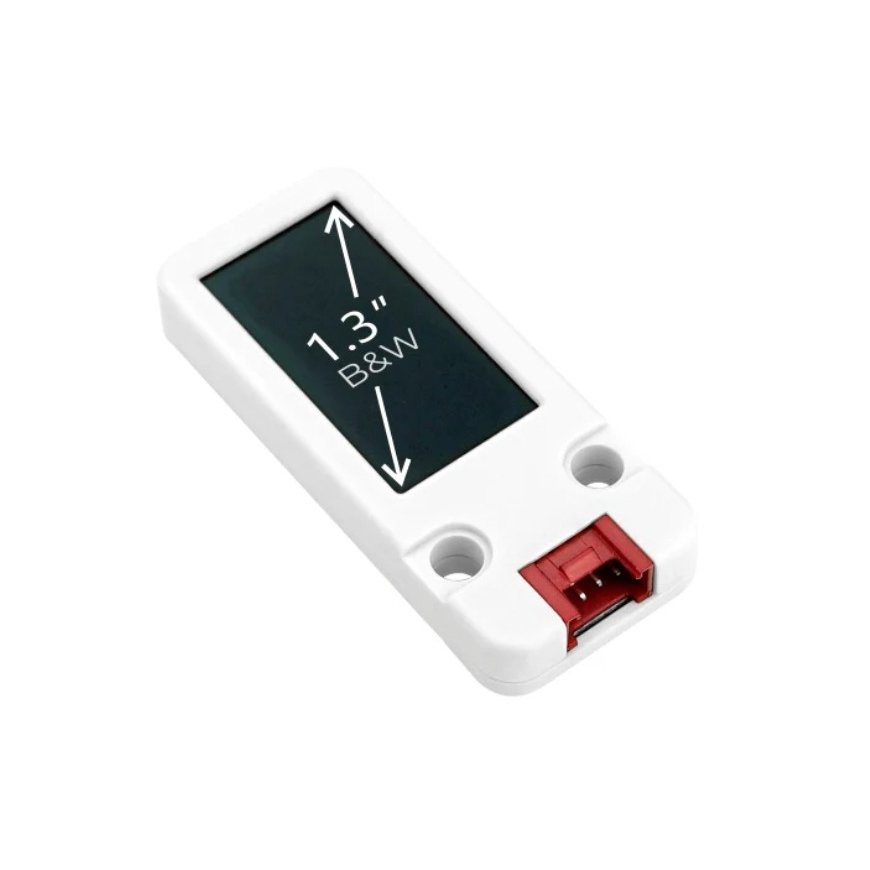

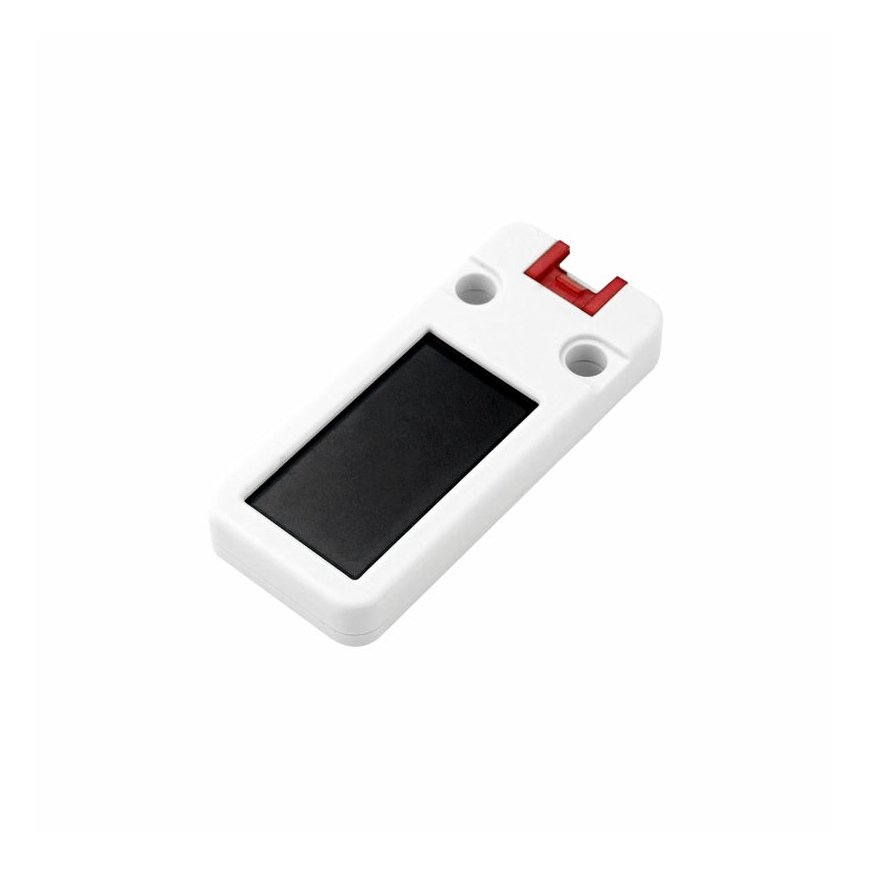

M5Stack U119 development board accessory Display White
29.00 €
3572523 U119
6972934173034
Shipping 11-18 b.d.
You are interested in this product?
All about the product

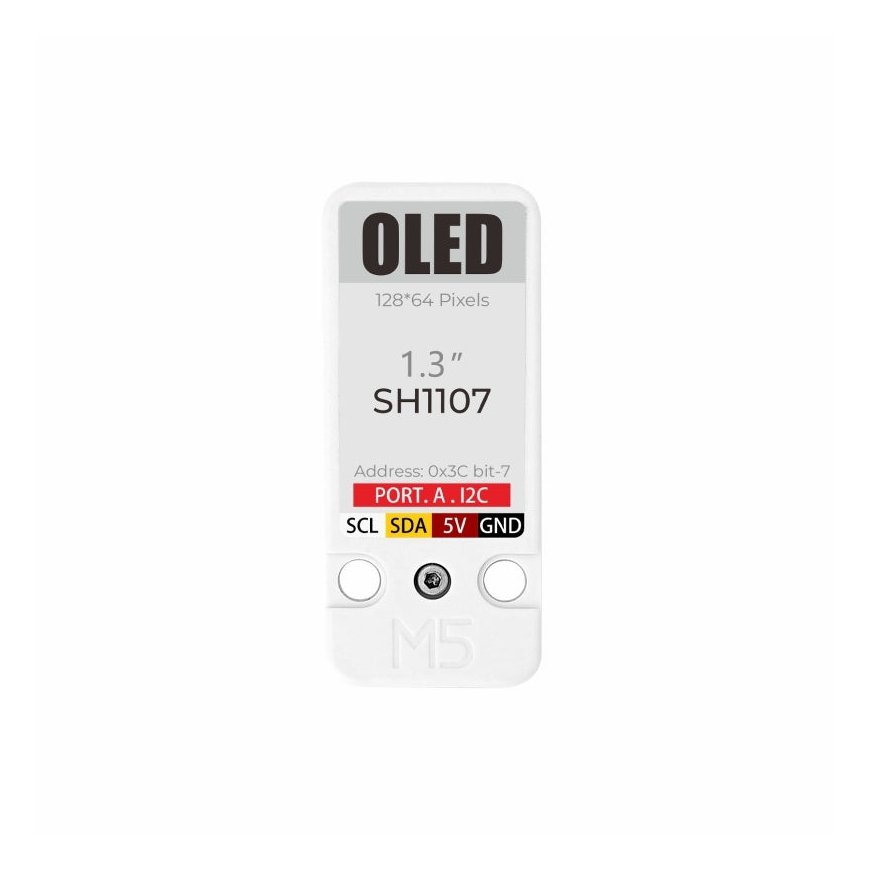

Unit OLED is a 1.3-inch OLED expansion screen unit. It adopts SH1107 drive scheme, supports black/white display, and the resolution is 128*64. The driver chip selects the I2C communication interface, and the user can mount it to the I2C bus of the existing device when in use, which saves IO. The back of the screen is integrated with a magnetic design, which can easily be fixed on the metal surface by adsorption. The OLED screen extension is suitable for being embedded in various instruments or control devices that need to display simple content as a display panel.Features
| Display diagonal | 3.3 cm (1.3") |
| Display resolution | 128 x 64 pixels |
| Product colour | White |
| Display type | OLED |
| Weight | 20 g |
| Width | 24 mm |
| Depth | 56 mm |
| Height | 8 mm |
| Material | Plastic; Metal |
| Package width | 67 mm |
| Package depth | 53 mm |
| Package height | 12 mm |
| Package weight | 20 g |
| Brand compatibility | M5Stack |
| Compatibility | M5 |
| Operating temperature (T-T) | 0 - 60 °C |
| Product type | Display |
| Display size (HxV) | 29.42 x 14.7 mm |
| I2C interface | Yes |
| Transmit current | 58mA |
