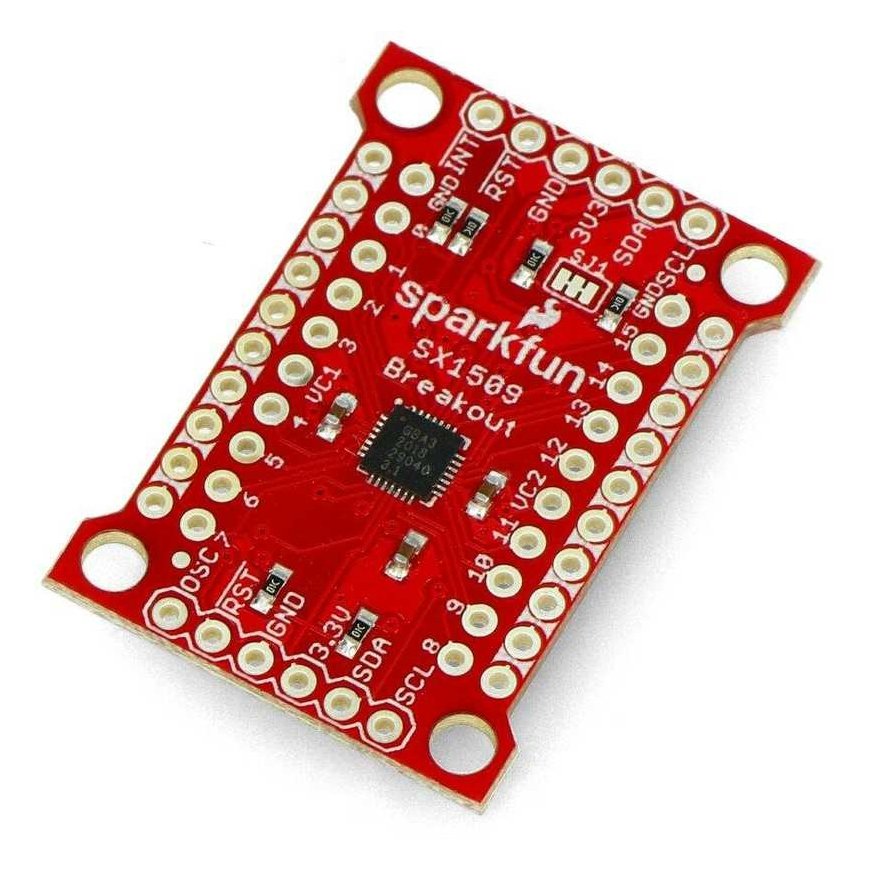

SX1509, GPIO expansion 16 I/O, for Arduino, SparkFun BOB-13601

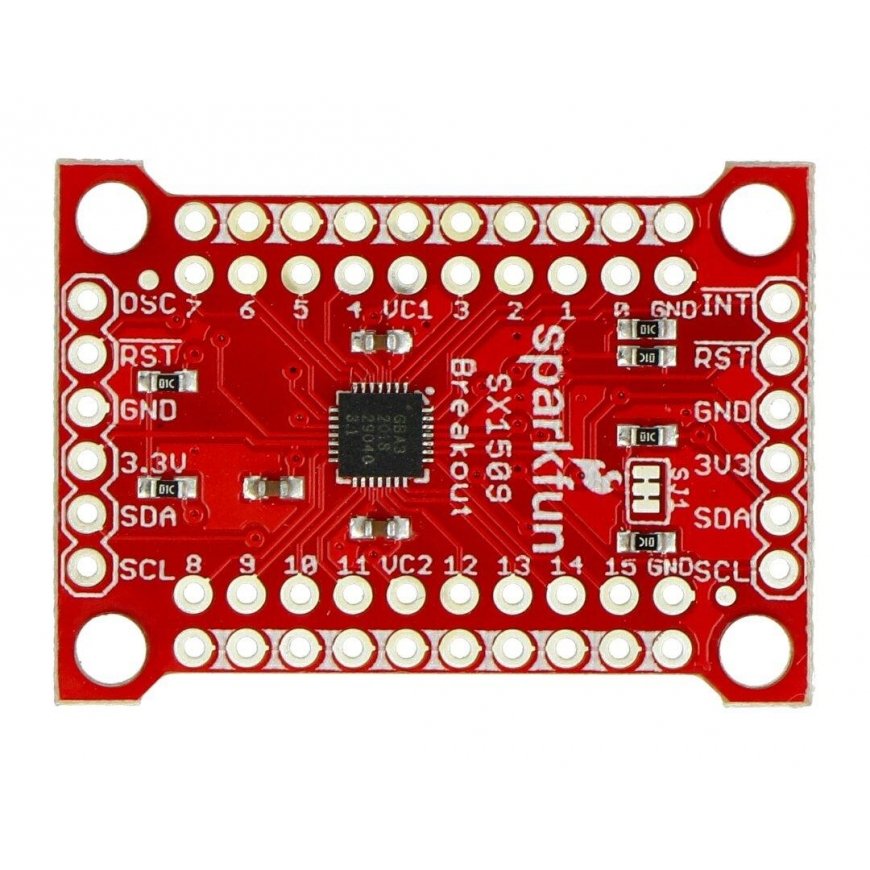

SX1509, GPIO expansion 16 I/O, for Arduino, SparkFun BOB-13601 – 2

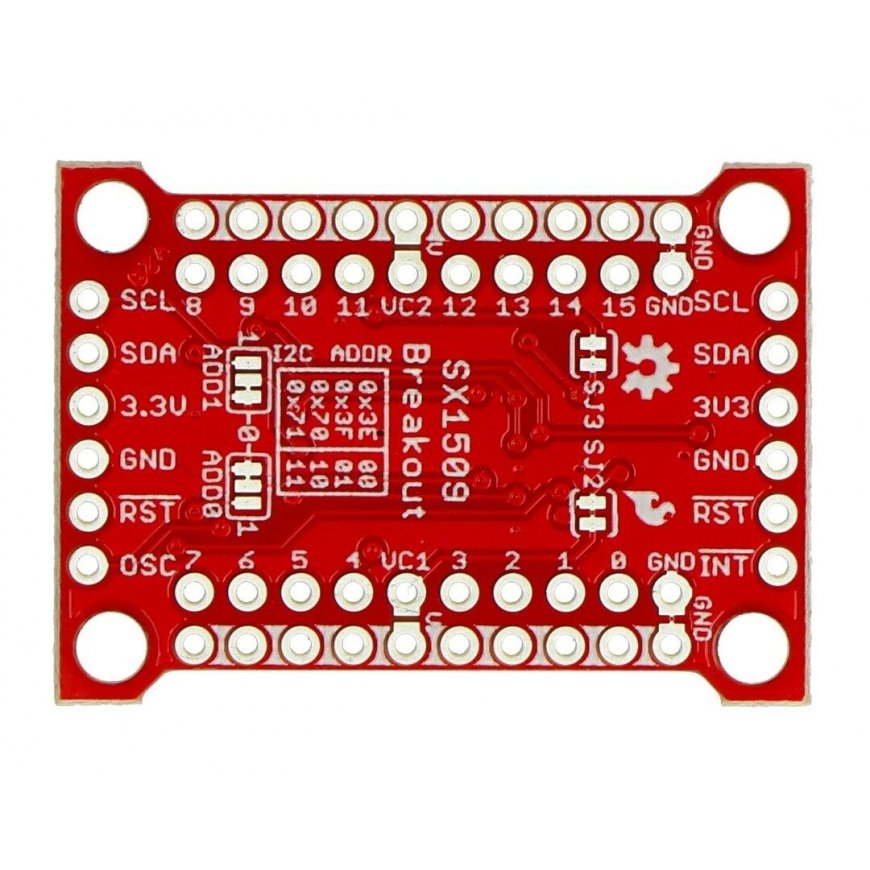

SX1509, GPIO expansion 16 I/O, for Arduino, SparkFun BOB-13601 – 3

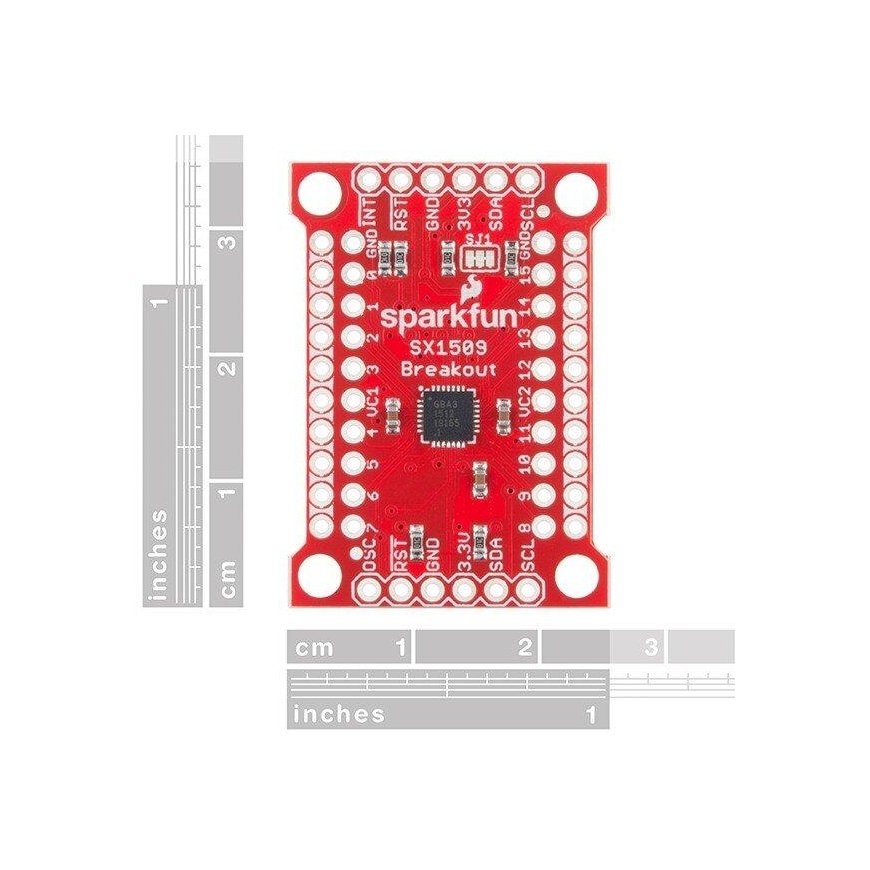

SX1509, GPIO expansion 16 I/O, for Arduino, SparkFun BOB-13601 – 4

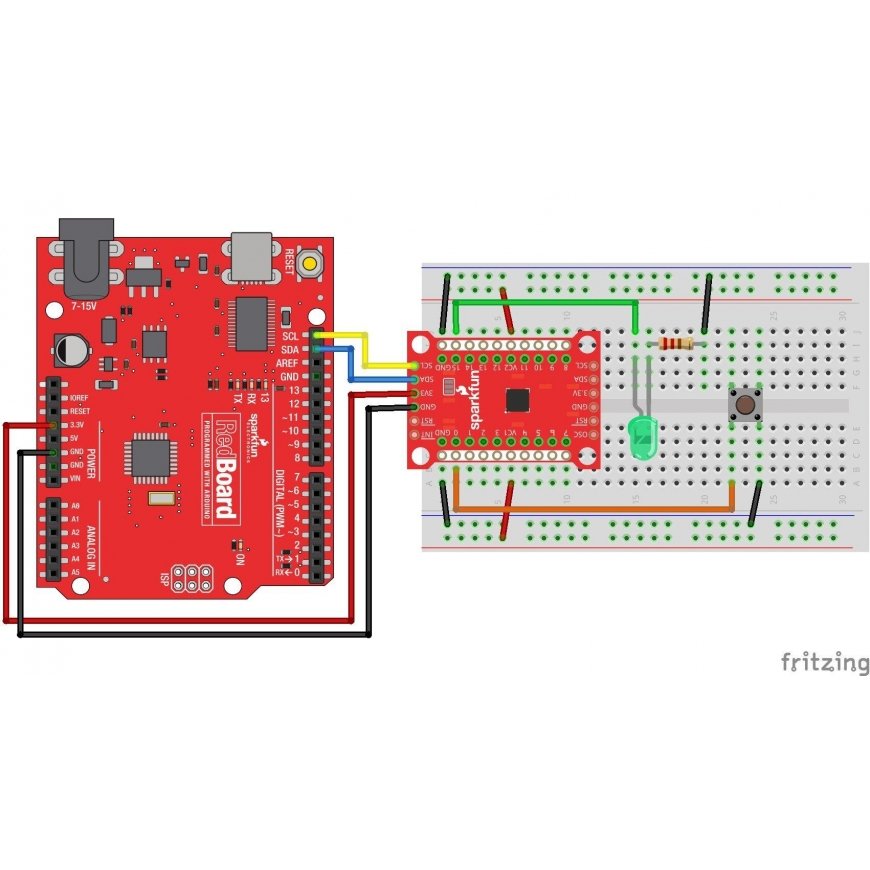

SX1509, GPIO expansion 16 I/O, for Arduino, SparkFun BOB-13601 – 5
SX1509, GPIO expansion 16 I/O, for Arduino, SparkFun BOB-13601
SX1509, GPIO expansion 16 I/O, for Arduino, SparkFun BOB-13601
SX1509, GPIO expansion 16 I/O, for Arduino, SparkFun BOB-13601
SX1509, GPIO expansion 16 I/O, for Arduino, SparkFun BOB-13601
SX1509, GPIO expansion 16 I/O, for Arduino, SparkFun BOB-13601
SX1509, GPIO expansion 16 I/O, for Arduino, SparkFun BOB-13601
SX1509, GPIO expansion 16 I/O, for Arduino, SparkFun BOB-13601
SX1509, GPIO expansion 16 I/O, for Arduino, SparkFun BOB-13601
SX1509, GPIO expansion 16 I/O, for Arduino, SparkFun BOB-13601
SX1509, GPIO expansion 16 I/O, for Arduino, SparkFun BOB-13601
SX1509, GPIO expansion 16 I/O, for Arduino, SparkFun BOB-13601
SX1509, GPIO expansion 16 I/O, for Arduino, SparkFun BOB-13601
SX1509, GPIO expansion 16 I/O, for Arduino, SparkFun BOB-13601
SX1509, GPIO expansion 16 I/O, for Arduino, SparkFun BOB-13601
SX1509, GPIO expansion 16 I/O, for Arduino, SparkFun BOB-13601

The product's shade and actual color may differ from what is shown in the picture, as the images are for illustrative purposes. The product description is general and may not include all the product's features.

SX1509, GPIO expansion 16 I/O, for Arduino, SparkFun BOB-13601

22.74 €
3572431

AN-11147

5904422352264

This product is no longer in stock

You are interested in this product?
(Read terms of service)

All about the product

Expansion board with 16 GPIO and I2C interface, which means that to fully utilize all the pins, it is enough to connect two wires to the microcontroller. The SX1509 also has PWM interfaces, allowing, for example, to control the brightness of LEDs. The board is similar to a multiplexer or "mux" in that it allows you to get more IO with fewer pins. It has a built-in keyboard controller, allowing you to connect up to 64 buttons in an 8x8 matrix. The board is powered by a voltage from 1.3 V to 3.6 V (5.5 V is tolerant). The device works with Arduino and other IO microcontrollers.

Specifications:

  • Supply voltage: 1.3V to 3.6V (all IOs tolerance 5.5V to 15mA)
  • 16 IO channels
  • Integrated keyboard controller supporting up to 64 keys (8x8 matrix)
  • I2C 400 kHz interface - possibility to change the address
