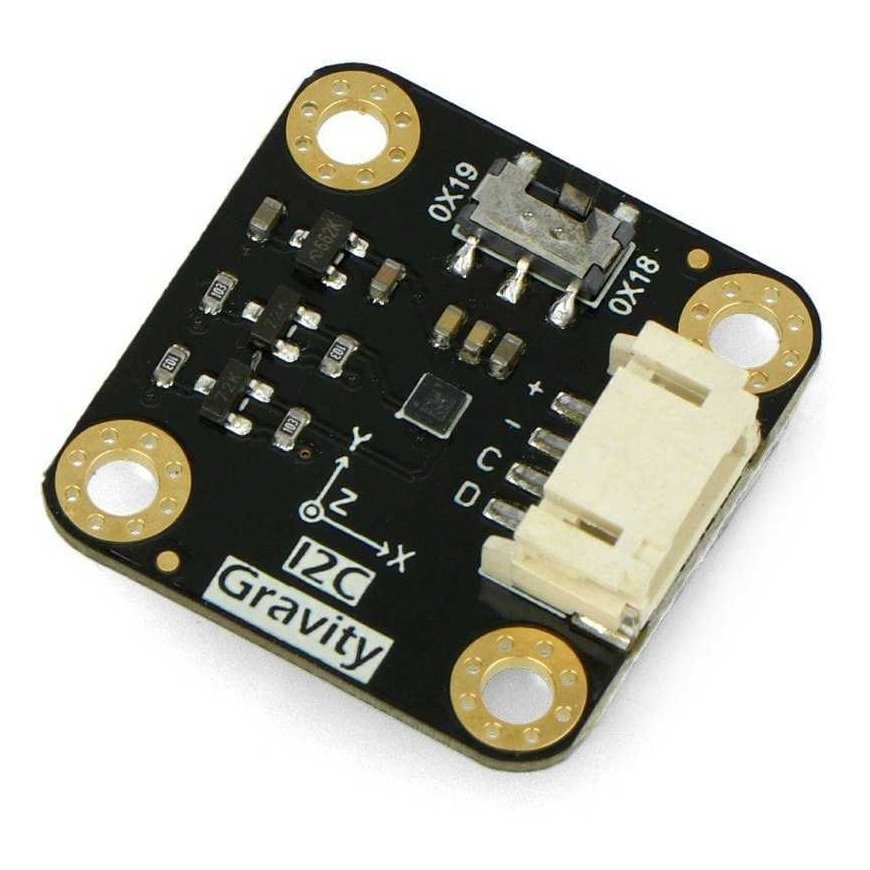

Gravity, LIS2DW12, 3-axis accelerometer ±2g/±4g/±8g/±16g, I2C, DFRobot SEN0409
20.91 €
3570764 AN-19915
5904422350598
Shipping 11-18 b.d.
You are interested in this product?
All about the product
The Gravity module is a 3-axis accelerometer that allows you to measure linear acceleration. It has a built-in LIS2DW12 chip (belonging to the popular LIS series), powered from 3.3 V to 5 V. In addition, the DFRobot sensor has the ability to measure acceleration ± 2 g / ± 4 g / ± 8 g / ± 16 g. The measurement frequency ranges from 1.6 Hz to 1600 Hz.Specifications:
- Module type: accelerometer
- Objective: to measure linear acceleration
- Embedded chip: LIS2DW12
- Acceleration measurement range: ±2g/±4g/±8g/±16g
- Measurement frequency: from 1.6 Hz to 1600 Hz
- Supply voltage range: 3.3 V to 5 V
- Operating current:
- Low power mode from 8 µA to 10 µA
- about 0.12 mA in high-performance mode
- Connection standard: Gravity
- Interface: I2C bus

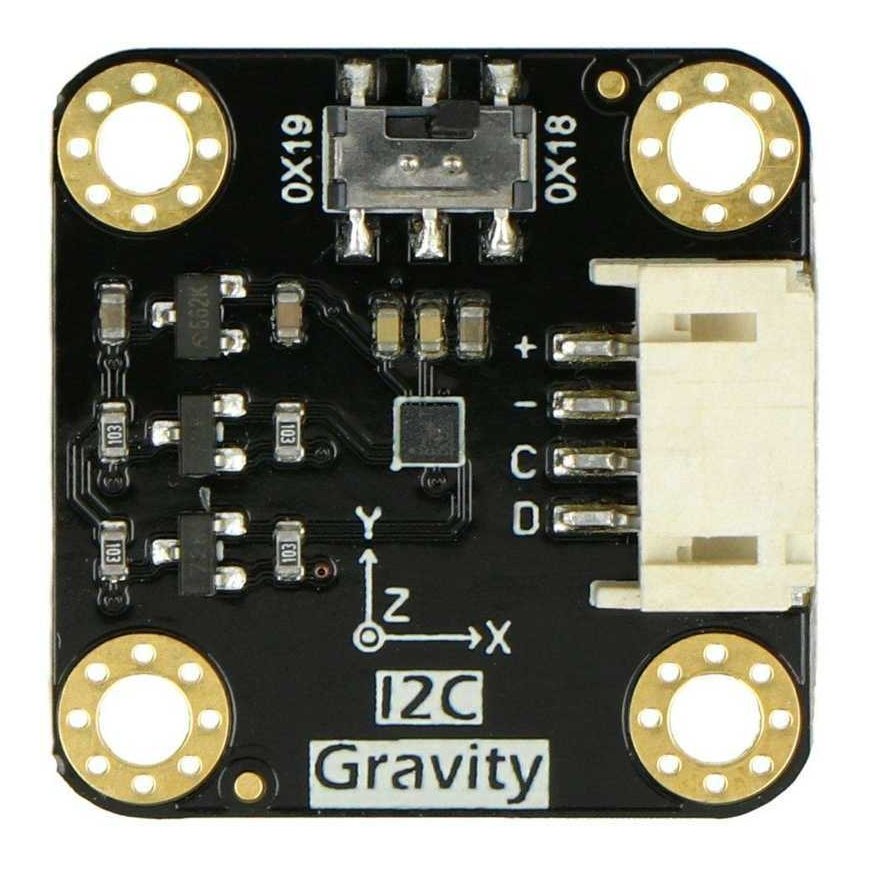

- I2C interface address:
- 0x19 (default)
- 0x18 (optional)
- 16-bit data output
- Operating temperature range: -40°C to 85°C
- Shock resistance 10000 g
- Sleep and wake function
- Very low noise level: 1.3 mg RMS (low power mode)
- 32-level FIFO
- Complies with ECOPACK, RoHS and Green requirements
- Module dimensions: 27 x 27 mm
- Mounting hole size:
- inner diameter: 3.1 mm
- outer diameter: 6 mm
- Gravity - H3LIS200DL - 3-axis accelerometer - I2C - from DFRobot

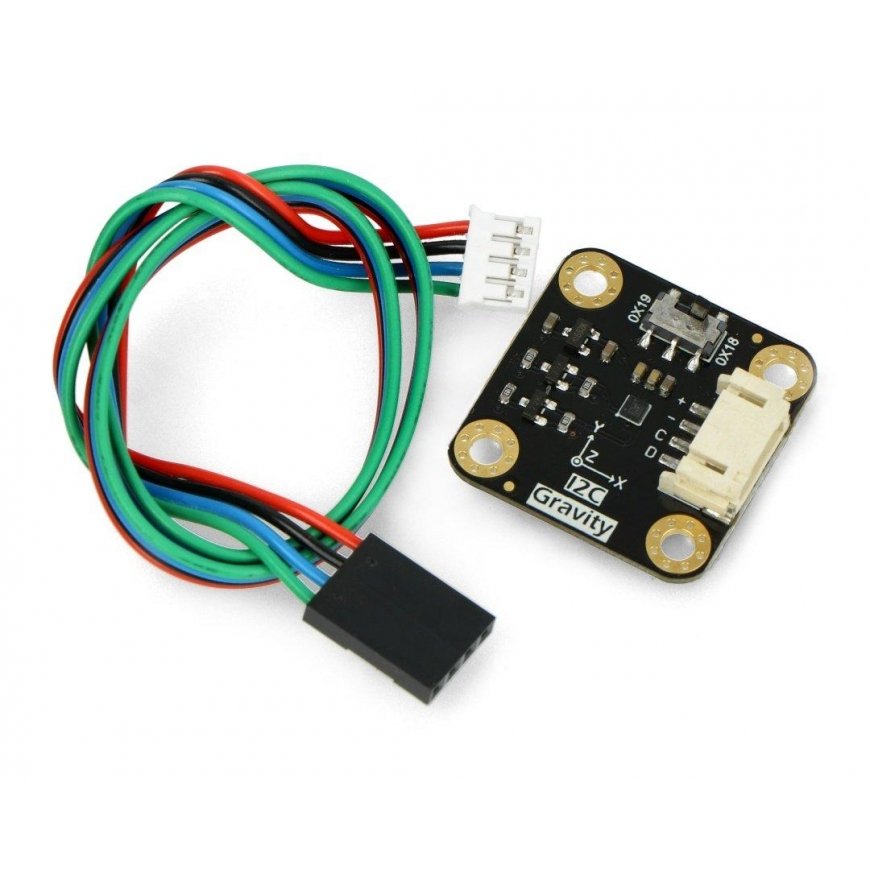

- Gravity 4-pin I2C/UART connector cable - x1
