Router Carrier Board Mini, IoT mini expansion board for Raspberry Pi Compute 4 module, DFRobot DFR0767
39.00 €
Monthly payment from 1,90 €
3570360 AN-19424
5904422346553
Shipping 11-18 b.d.
You are interested in this product?
All about the product

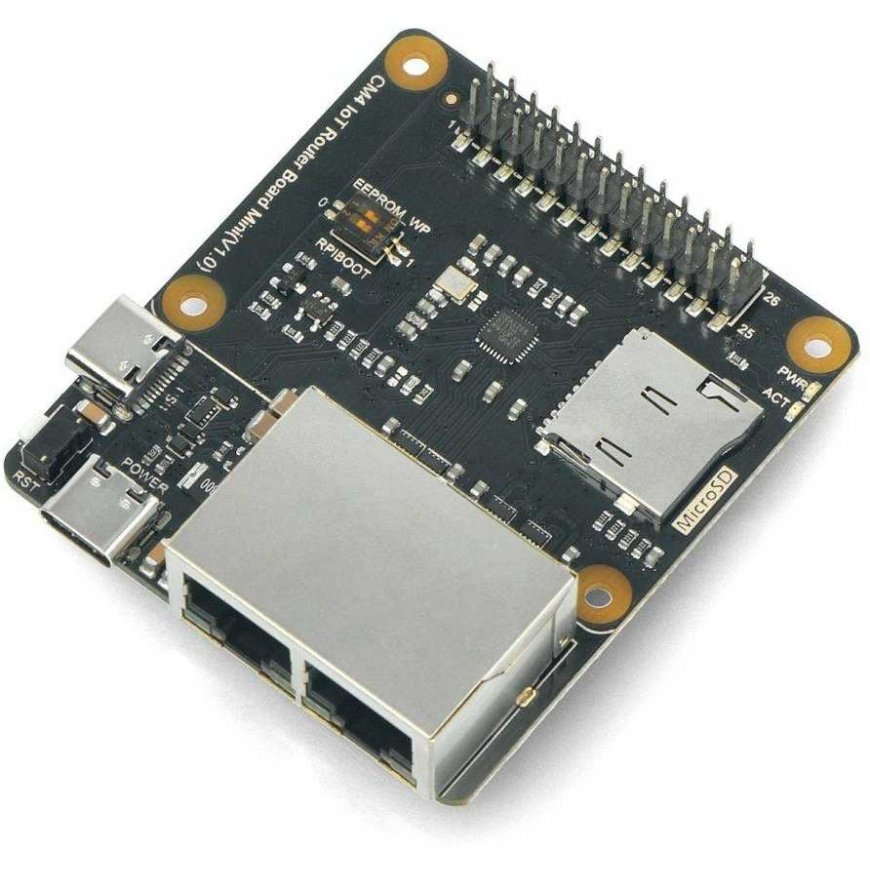

The Router Carrier Board Mini is a mini expansion in the form of an IoT card for the Raspberry Pi Compute 4 module. The expansion has two Ethernet ports, a microSD memory card slot, as well as a USB Type-C connector and a 26-pin connector compatible with the Raspberry Pi. It can be used with the OpenWRT system. When used in conjunction with the Raspberry Pi Compute 4 module, a compact router is created. The module is also compatible with Raspberry OS and Ubuntu Server.Specifications:
- The expansion is compatible with the Raspberry Pi Compute Module 4 (CM4) series
- Ethernet ports: 2
- ETH1: Built-in Compute Module 4
- ETH2: PCI Express 1000BASE-T NIC
- USB ports: 2
- 1x USB Type-C connector - for power supply
- 1x USB Type-C connector - Hi-Speed USB 2.0
- Memory card: Built-in microSD slot (only non-eMMC modules supported)
- GPIO: 26-pin GPIO compatible with Raspberry Pi
- Module power supply: USB Type C 5 V / 3 A
- Operating temperature range: 0 °C to 80 °C
- Module dimensions: 55 x 62 mm
