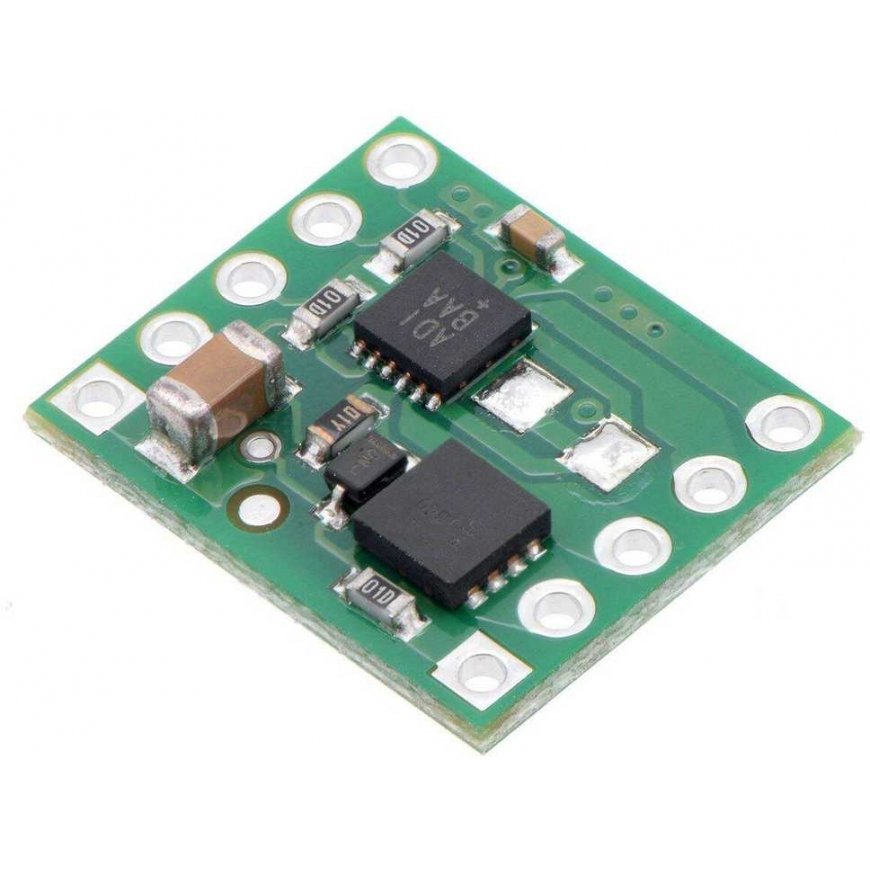

MAX14870, single-channel motor controller 36V/1.7A, Pololu 2961
23.00 €
3567859 AN-04200
5904422367336
Shipping 11-18 b.d.
You are interested in this product?
All about the product
The MAX14870-based module allows you to control a single DC motor. The motor can be powered from 4.5 V to 36 V at a constant current of 1.7 A, and temporarily (for a few seconds) up to 2.5 A.
Specifications:
- Number of channels: 1
- Supply voltage: 4.5 V to 36 V
- Continuous current per channel: 1.7 A
- Maximum instantaneous current per channel: 2.5 A
- Maximum PWM signal frequency: 50 kHz
- Protective power supply protection

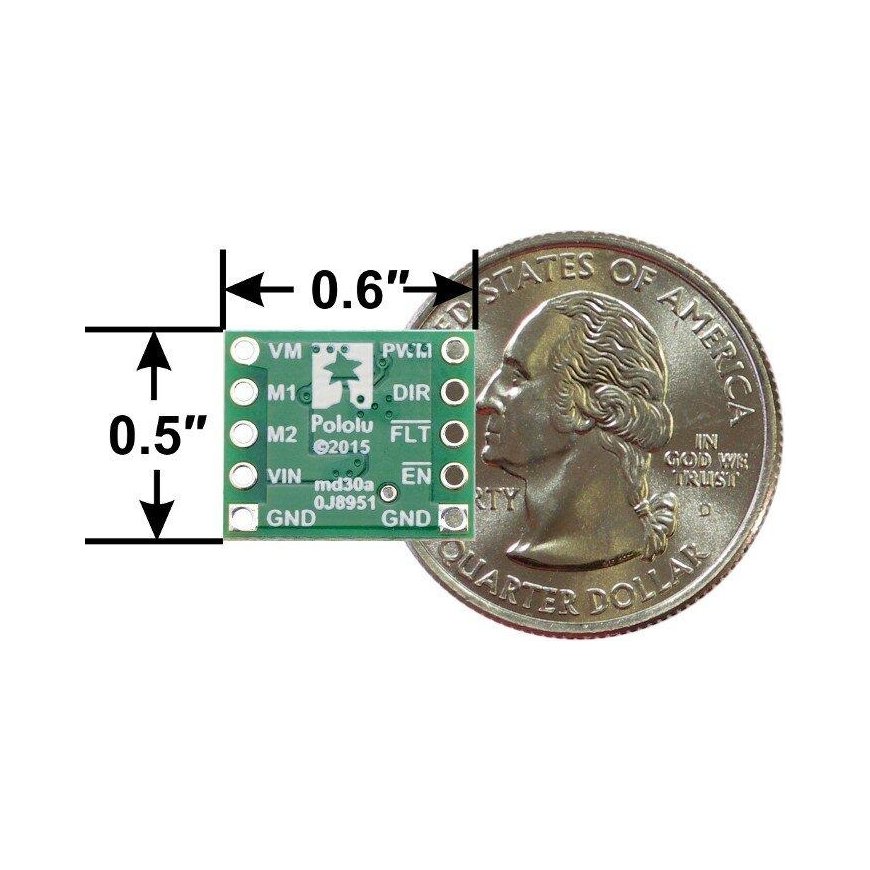

- Dimensions: 15.5 x 13.0 mm
- Weight: 5 g (without connectors)

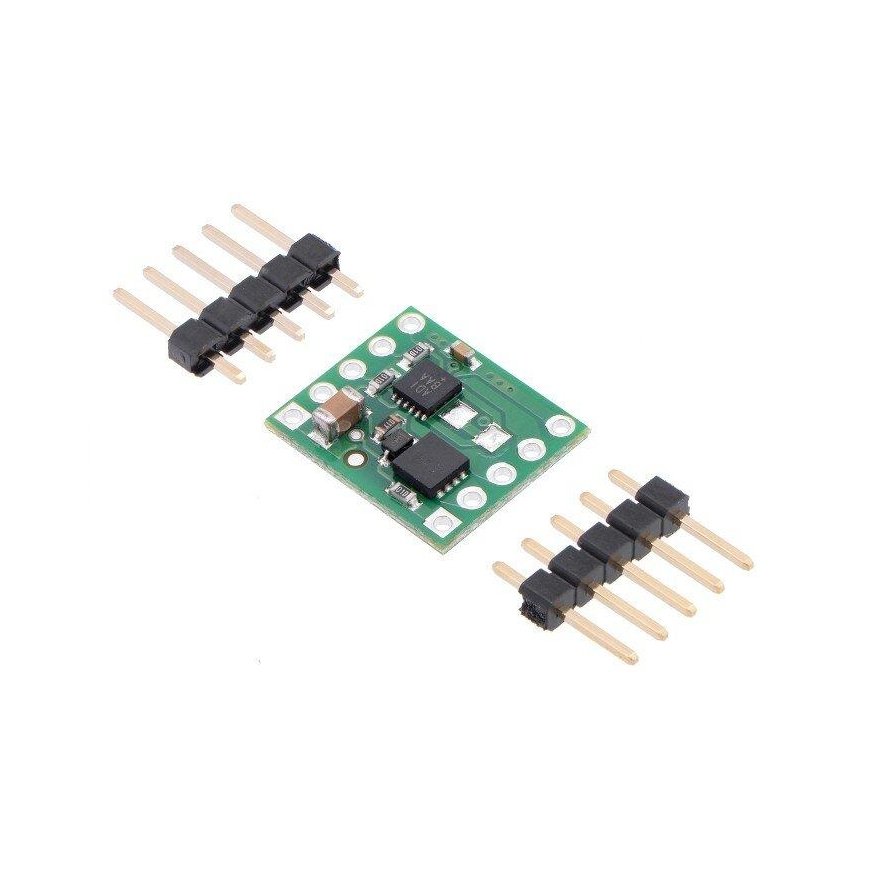

- Includes module and gold-pin connectors
Links:
Manufacturer's page
