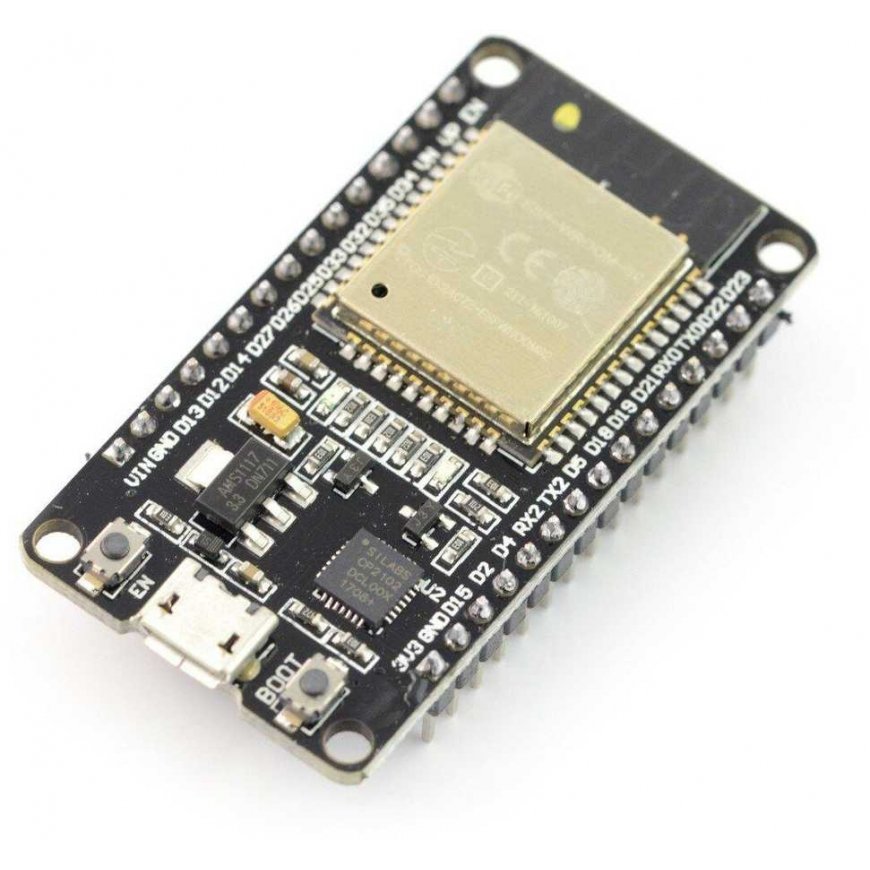

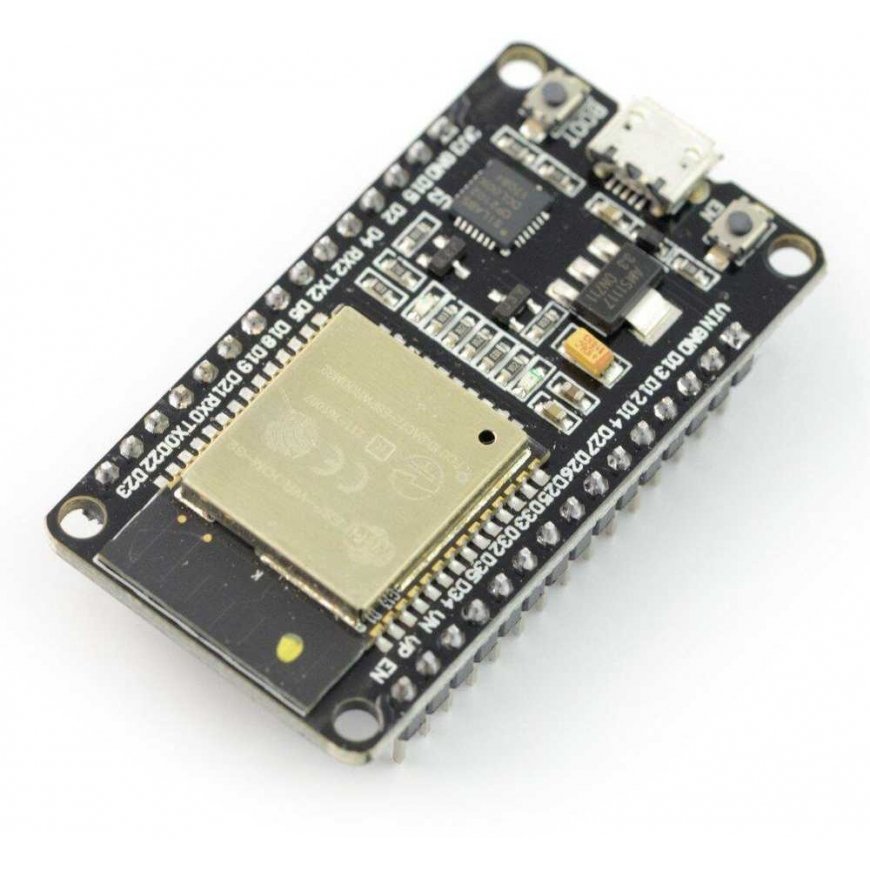

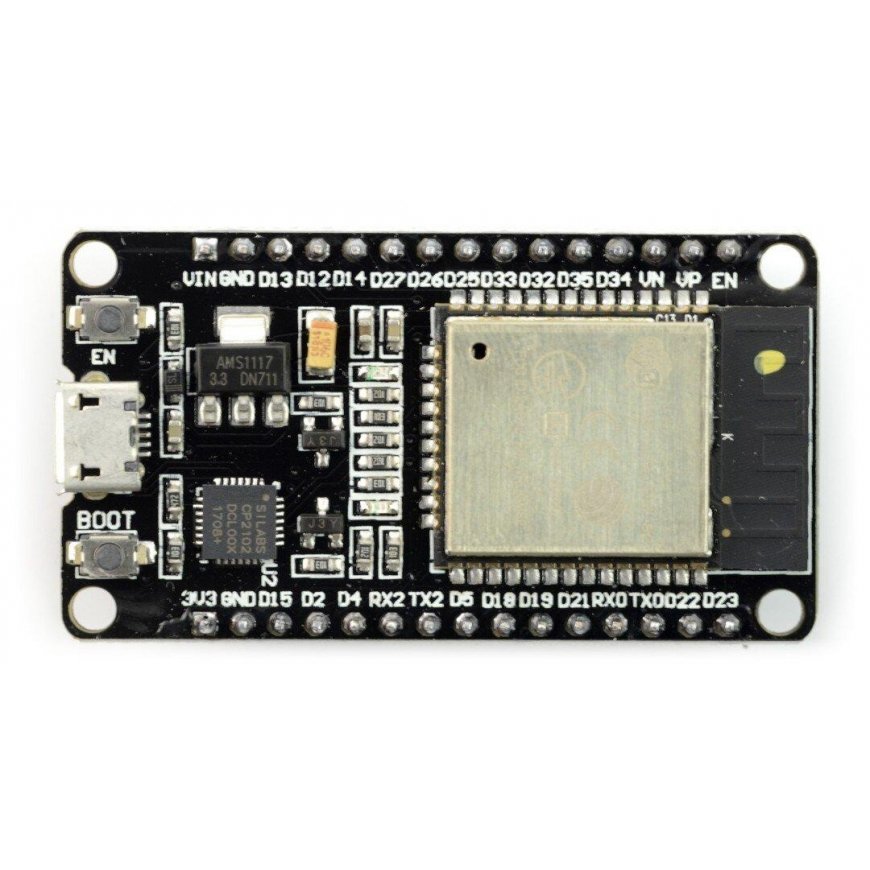

Oem ESP32 WiFi + BT 4.2 - platform with ESP-WROOM-32 module compatible with ESP32-DevKit
22.46 €
3567358 AN-08893
5904422337438
Shipping 9-14 b.d.
You are interested in this product?
All about the product
Board with built-in ESP-WROOM-32 module. The ESP-WROOM-32 module has gold pins, 2.54 mm pitch. System from the ESP32 family, designed for WiFi network communication in the 2.4 GHz frequency band and Bluetooth BLE / v4.2 standard. It is powered by 5 V. The system has 30 pins with popular interfaces, including: UART, SPI, I2C.
Features:
- Power supply: 5 V - with microUSB
- Dual-core microcontroller Tensilica LX6 240 MHz
- SRAM 520 KB
- Flash memory: 4MB
- Integrated Wi-Fi module 802.11 BGN HT40
- Wi-Fi security: WEP, WPA/WPA2 PSK/Enterprise, AES/SHA2/Elliptic Curve Cryptography/RSA-4096
- Built-in Bluetooth BLE
- Integrated Hall sensor and touch interface
- 30 GPIO pins, including:
- 3x UARTs
- 3x SPI
- 2x I2C (2x I2S)
- 12-channel ADC converter
- 2-channel DAC converter
- PWM outputs
- SD card interface
- Dimensions: 55x28x8mm (without connectors)
Specifications:
- ESP-WROOM-32 system
- Supply voltage: 5V
- Current consumption: approx. 80 mA
- Wi-Fi standard: 802.11 b/g/n
- Bluetooth standard: Bluetooth v4.2 / Bluetooth BLE
- Wi-Fi security: WEP, WPA/WPA2 PSK/Enterprise, AES/SHA2/Elliptic Curve Cryptography/RSA-4096
- Band: 2412 to 2484 GHz GHz
- Operating temperature: -40 °C to +125 °C
- MicroUSB connector
- 2 buttons: Enable and Boot
- Goldpin connectors, 2.54 mm pitch: helps connect the breadboard
- Dimensions: 50x26x8mm (without connectors)
Links:
Manufacturer's page
