The product's shade and actual color may differ from what is shown in the picture, as the images are for illustrative purposes. The product description is general and may not include all the product's features.

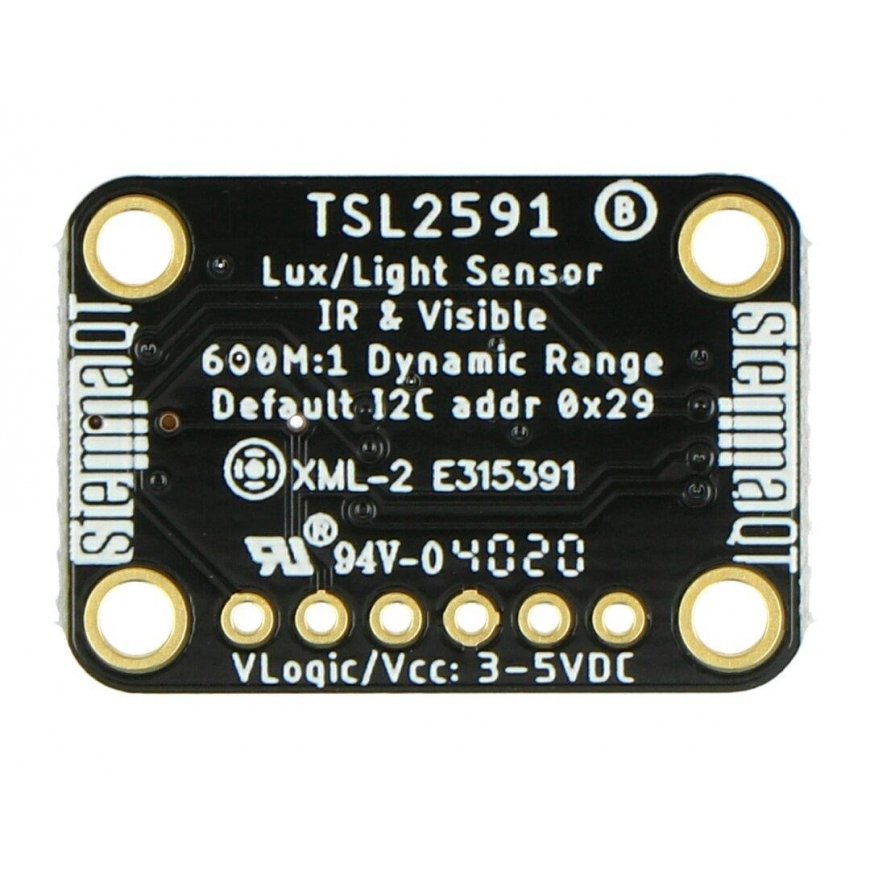

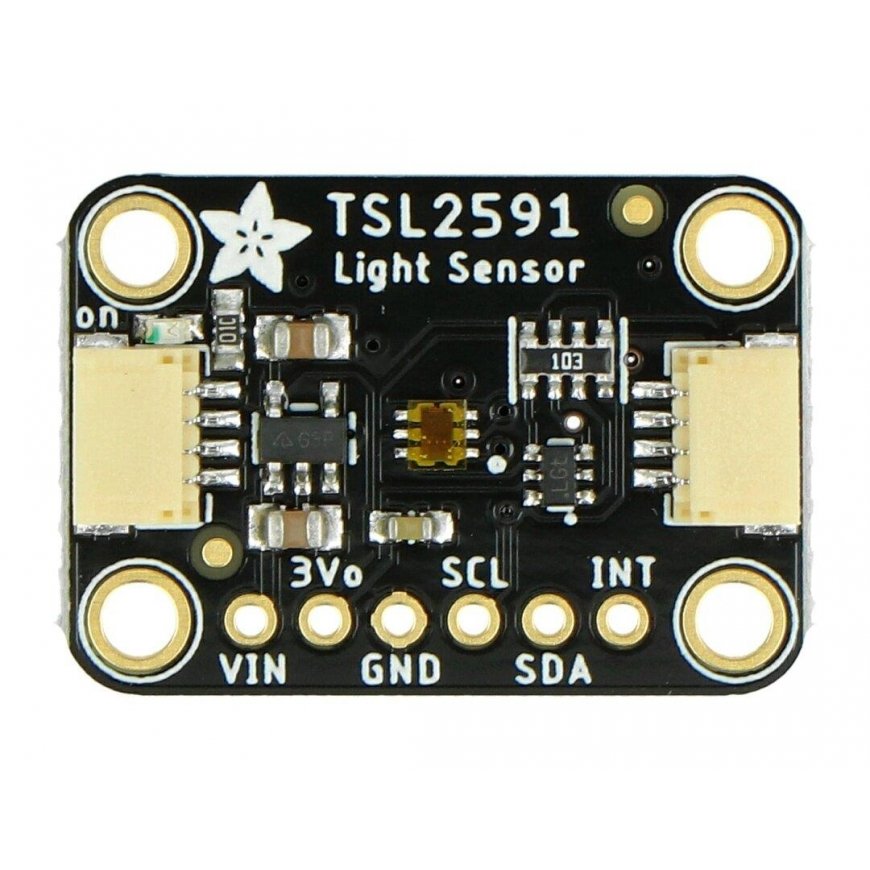

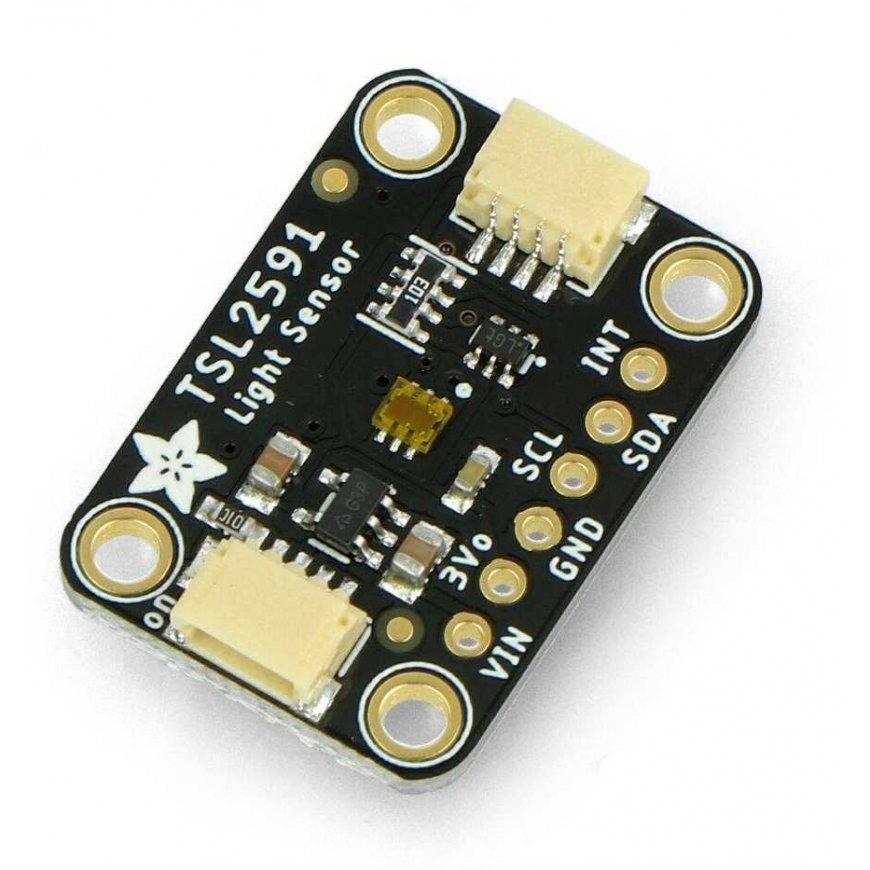

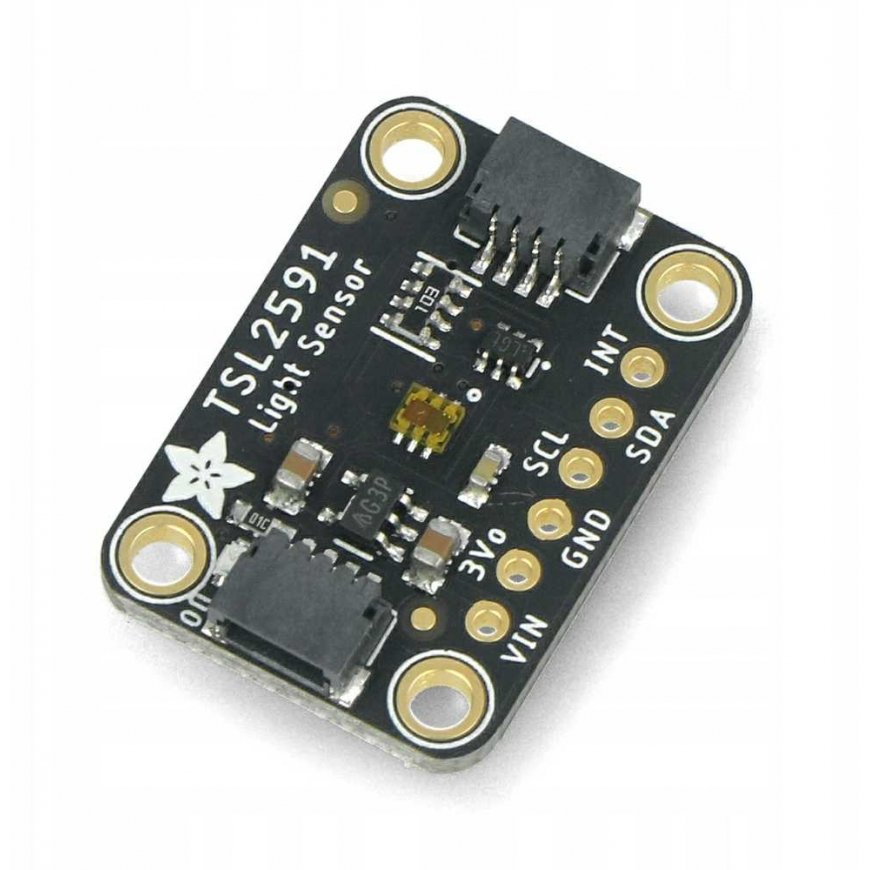

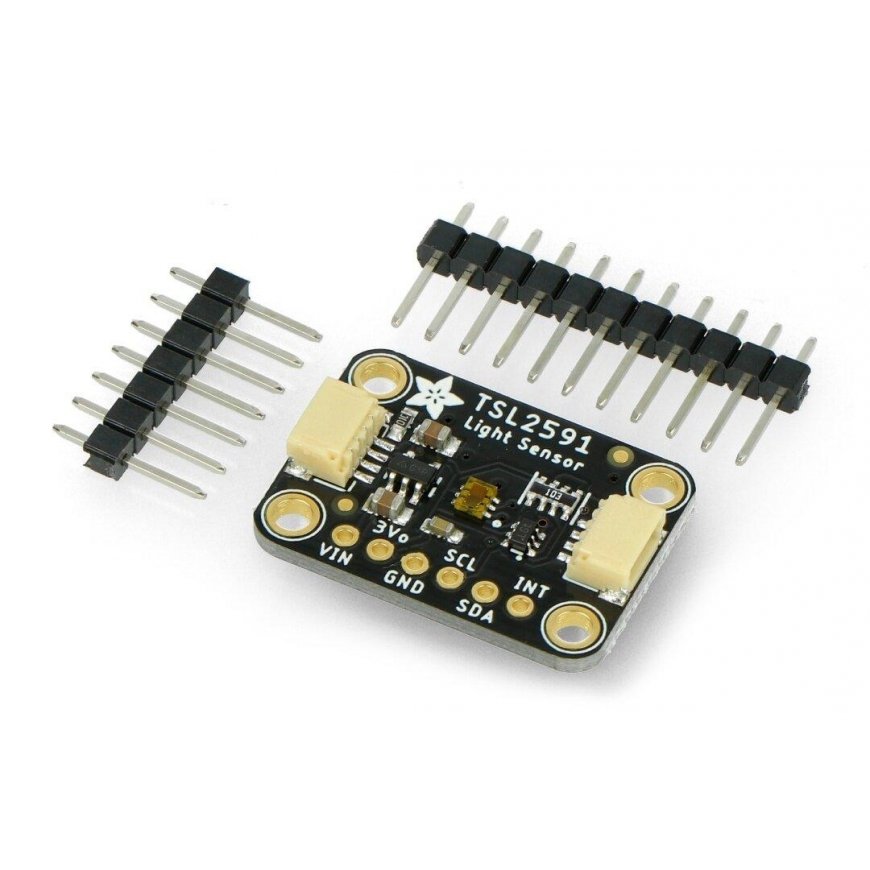

TSL2591, Wide Dynamic Range Digital Light Sensor, STEMMA QT / Qwiic, Adafruit 01980
22.61 €
3563618 AN-18233
5904422308131
Shipping 11-18 b.d.
You are interested in this product?
All about the product
Digital light intensity sensor with TSL2591 from Adafruit. Allows you to determine light intensity, with a sensitivity of up to 188 lx in the range up to 88000 lx. Its dynamic range is very wide - 600M:1. Powered from 3 V to 5 V DC. It uses an I2C interface to communicate with a microcontroller module. It can be used in various lighting conditions and has low power consumption.
Specifications:
- Supply voltage: 3 V to 5 V DC
- Layout: TSL2591
- Communication interface: I2C
- Interface address: 0x29
- Sensitivity: up to 188 lx
- Measurement range: 0 lx to 88000 lx
- Dynamics: 600M:1
- Data rate: up to 400 kB/s
- Spectral sensor response like the human eye
- Ability to work behind dark glass
- Dimensions: 19 x 16 x 1 mm
- Weight: 1.1 g
