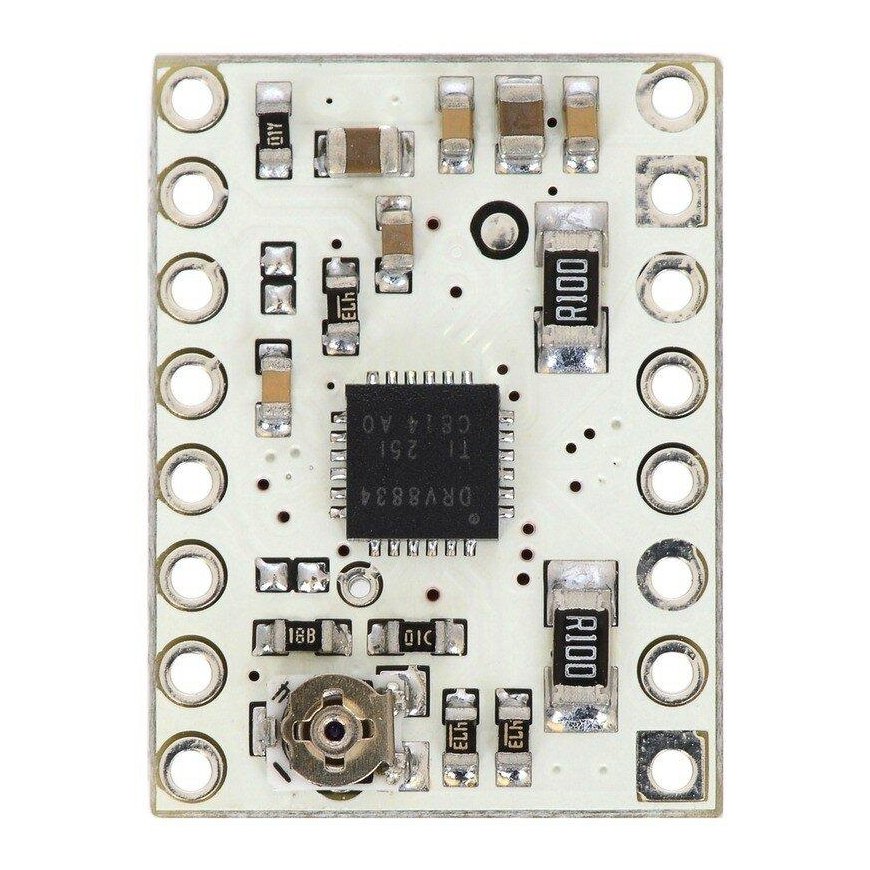

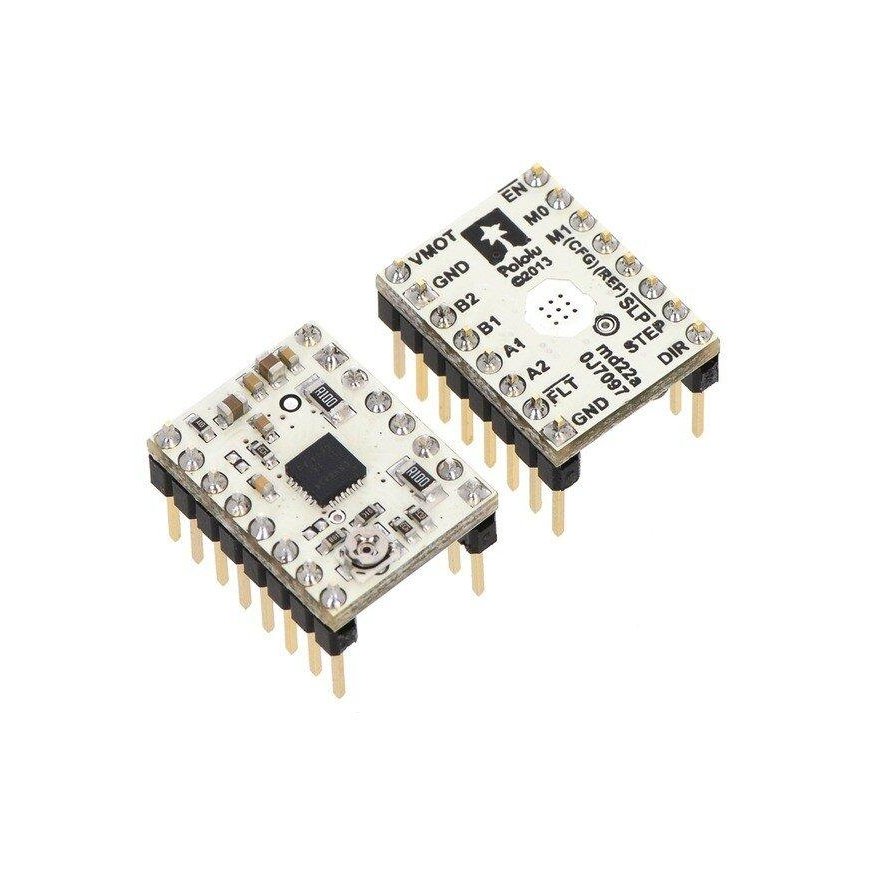

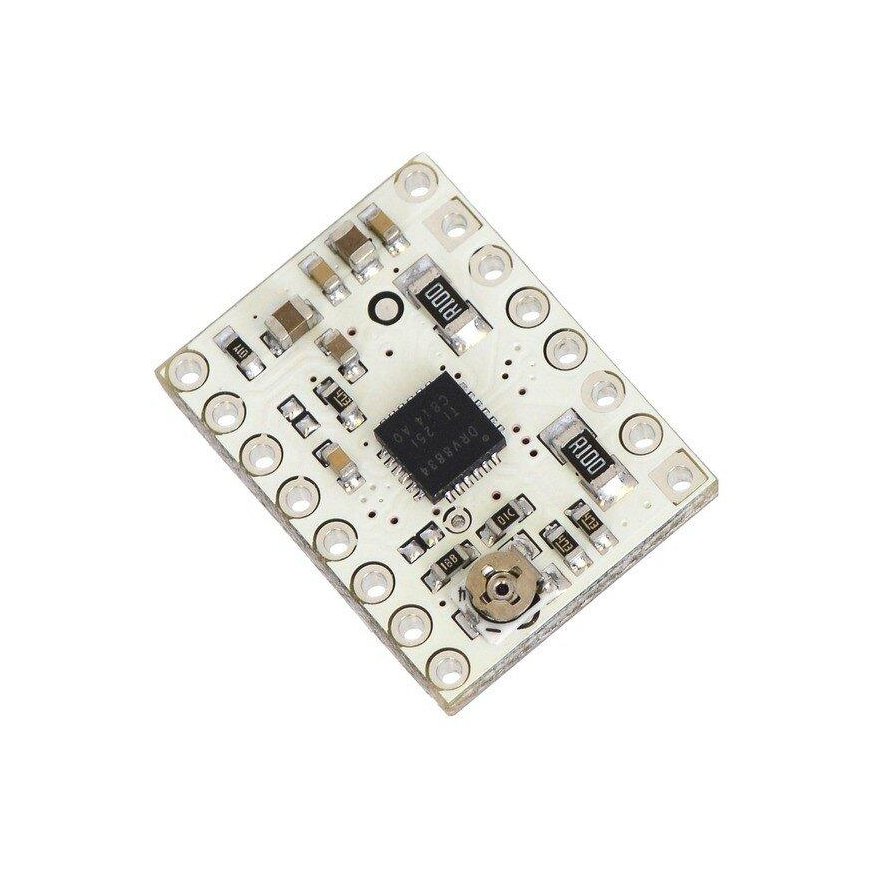

DRV8834 stepper motor driver, low voltage 10.8V 2A, Pololu 2134
20.34 €
3562832 AN-01418
5903351244831
Shipping 11-18 b.d.
You are interested in this product?
All about the product
The stepper motor controller based on the DRV8834 system allows you to control a motor with a current consumption of up to 1.5 A (instantaneous up to 2 A) per coil with a voltage of 2.5 V to 10.8 V. It has six operating modes: full step, 1/2, 1/4, 1/8, 1/16 and 1/32 step.
Main features:
- The module has a simple interface for controlling steps and direction
- It can operate in six modes: full, half, 1/4, 1/8, 1/16 and 1/32 step
- This allows you to control the maximum motor current using a potentiometer, which allows you to use a supply voltage higher than the rated motor voltage, so you can get a higher step speed
- Motors can be powered from 2.5 V to 10.8 V
- Current consumption up to 2 A per coil (continuous 1.5 A)
- Thanks to the integrated voltage regulator, the user does not need to supply additional power to the logic part
- The DRV8834 works with systems with both 3.3V and 5V logic voltages
- Has protection against overcurrent, temperature, short circuit and undervoltage lockout system
- To increase the heat-retaining surface, the board is manufactured using four-layer technology with a thicker copper cover
- The open area on the underside allows for soldering of cooling elements
- The module is compatible with the A4988 controller in terms of size and output.
Specifications:
- Supply voltage: 2.5V - 10.8V
- Continuous current on the coil: 1.5 A
- Maximum instantaneous current in the coil: 2 A
- Logic supply voltage: 2.5 V - 5.5 V
- Operating modes: 1, 1/2, 1/4, 1/8, 1/16 and 1/32 steps

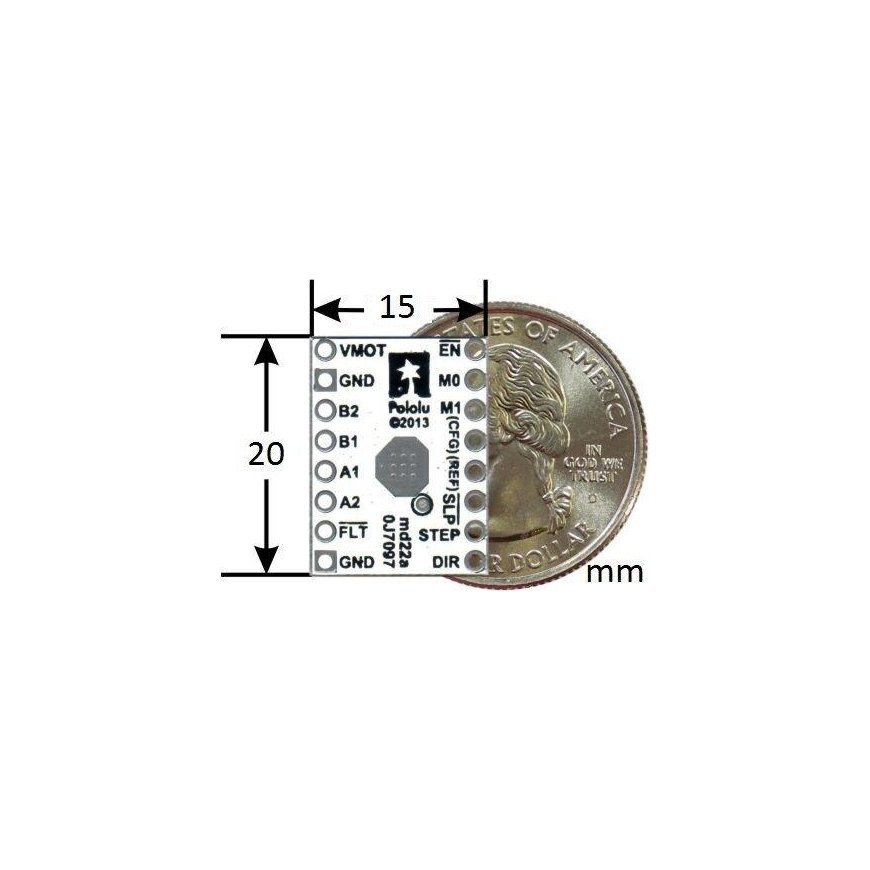

- Dimensions: 20 x 15 mm
- Weight: 1.6 g (without connectors)
