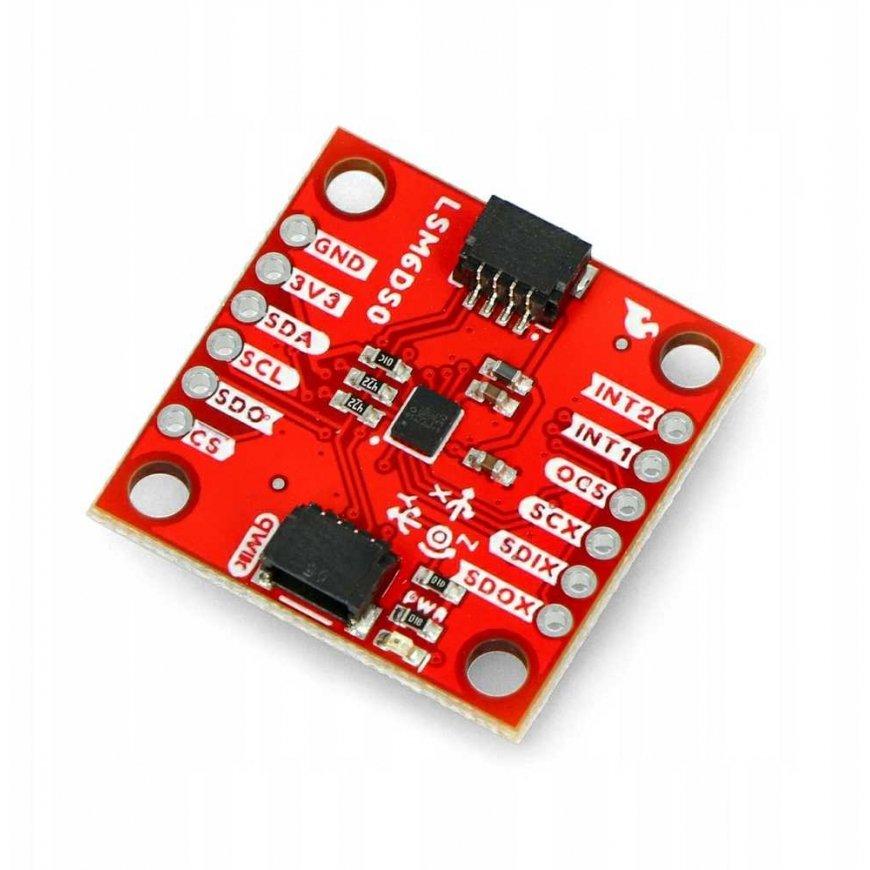

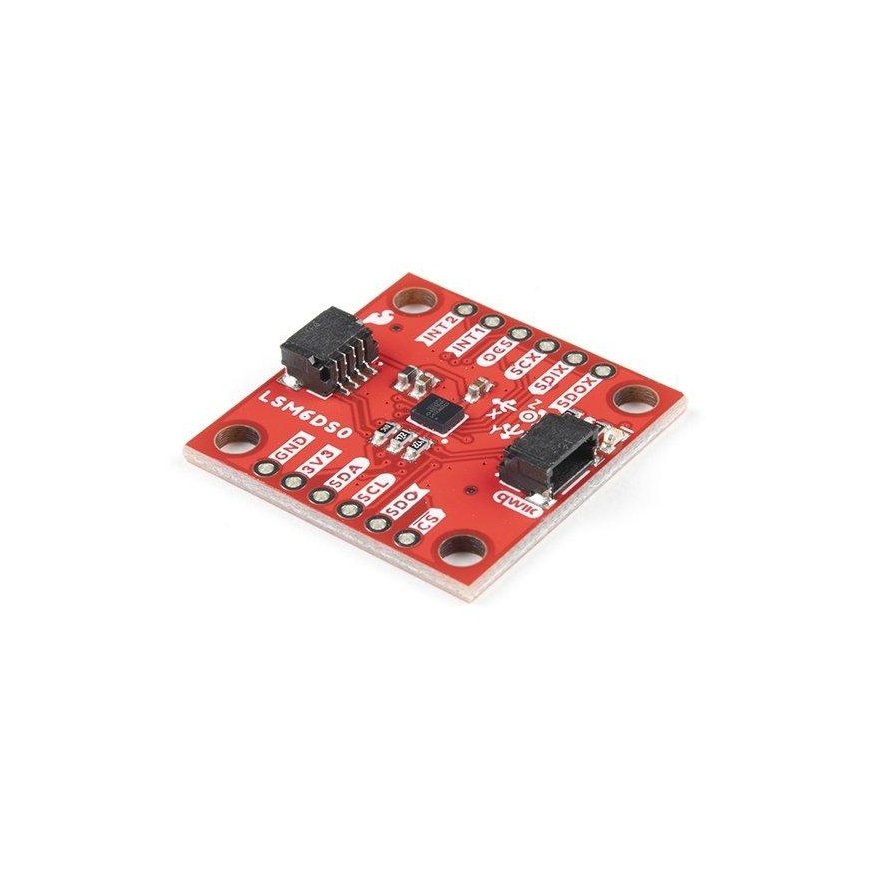

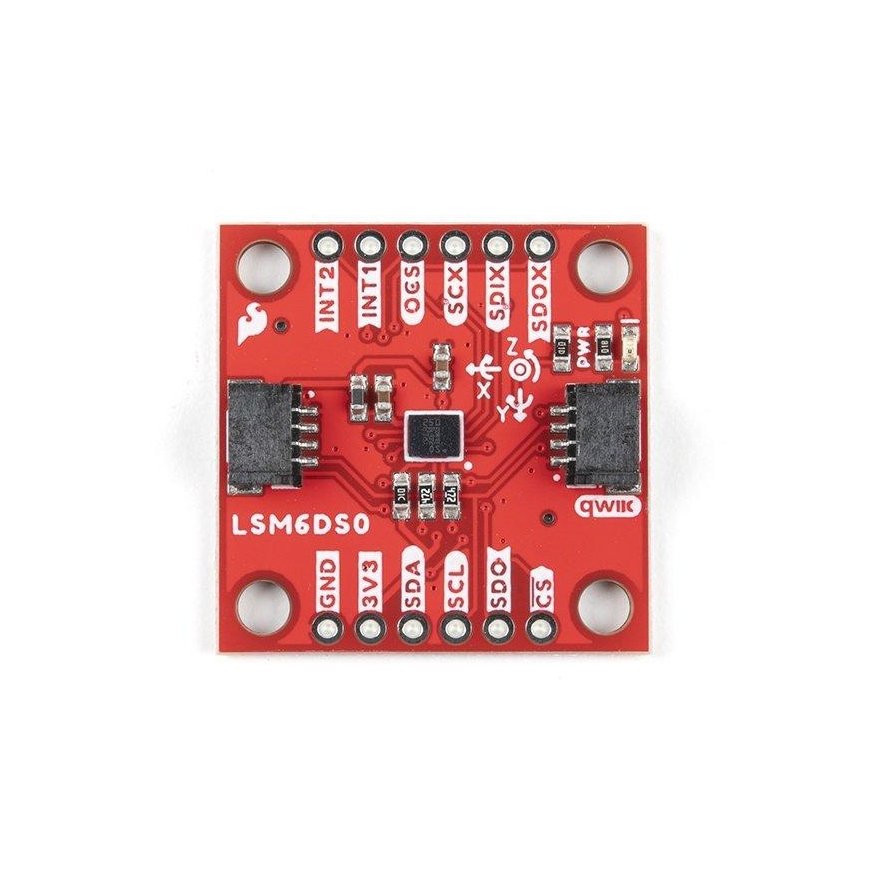

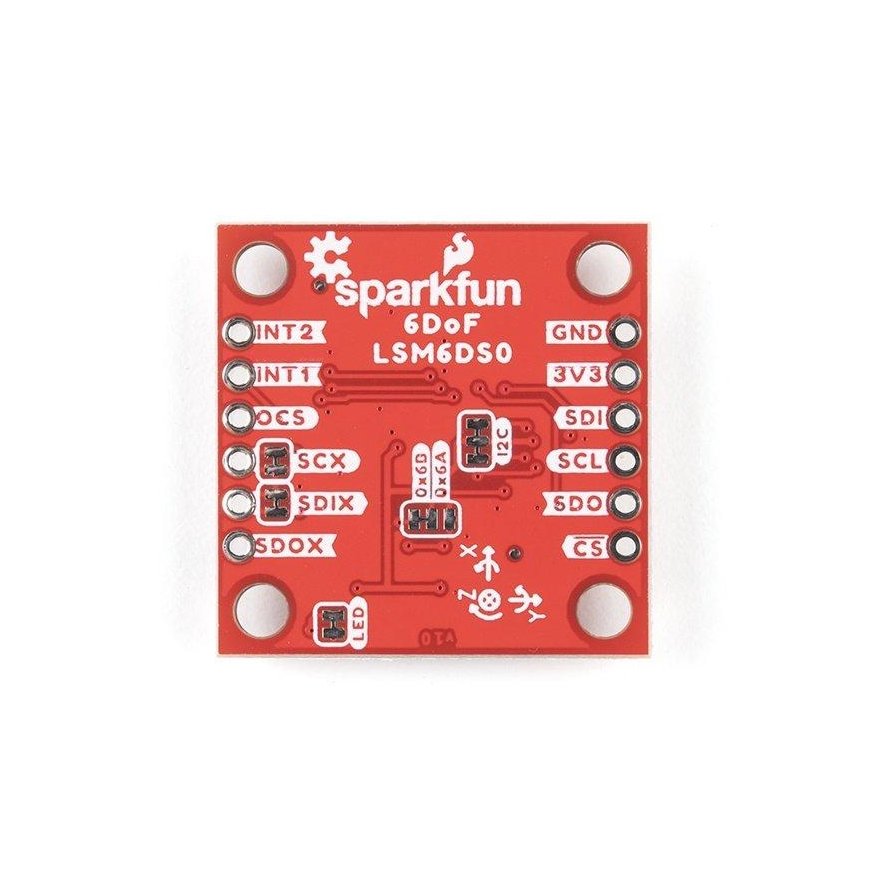

LSM6DSO, 3-axis accelerometer and I2C/SPI gyroscope, SparkFun SEN-18020
39.00 €
Monthly payment from 1,90 €
3562819 AN-19708
5904422347185
Shipping 8-15 b.d.
You are interested in this product?
All about the product
PCB with 6DoF LSM6DSO chip, which includes accelerometer and gyroscope, as well as 9kB FIFO buffer and embedded processing interrupt functions. The device can detect shock, roll, motion, touch, count steps and read temperature. LSM6DSO can read accelerometer and gyroscope data at a rate of up to 6.66 kHz. The module has an I2C and SPI interface. Two built-in Qwiic connectors allow easy connection to the main module via the I2C interface. The module operates at 3.3 VMain features:
- Accelerometer data reading at 6.66 kilogram samples/s
- Gyroscope data reading for 6.66 kilogram samples/s
- 0.55 mA for modes up to 6.66 kilograms of samples/s
- Temperature display
- Buffer up to 9 kB of data between readings (built-in FIFO)
- Step counter (pedometer)
- Shock, tilt, motion, tap, double-tap detection
- Accepts other sensors into its FIFO
- Triggering interrupt pins using built-in functions or due to low capacity/full FIFO warning
- 2x Qwiic connector
- I2C address: 0x6B (default), 0x6A
- Accelerometer reading range: ± 2 / ± 4 / ± 8 / ± 16 g full scale
- Gyroscope reading range: ±125 / ±250 / ±500 / ±1000 / ±2000 dps full scale
- Built-in temperature sensor: 16 bit
- Operating voltage: 1.71 V to 3.6 V (3.3 V - Qwiic)
- Current consumption at 1.8 V:
- 0.55 mA in combined high-performance mode
- 0.265 mA in low power combined mode
- "Always on" when accelerometer and gyroscope current consumption is low
- I2C/SPI interface
- Smart FIFO up to 9 kB
- Operating temperature: -40°C to 85°C

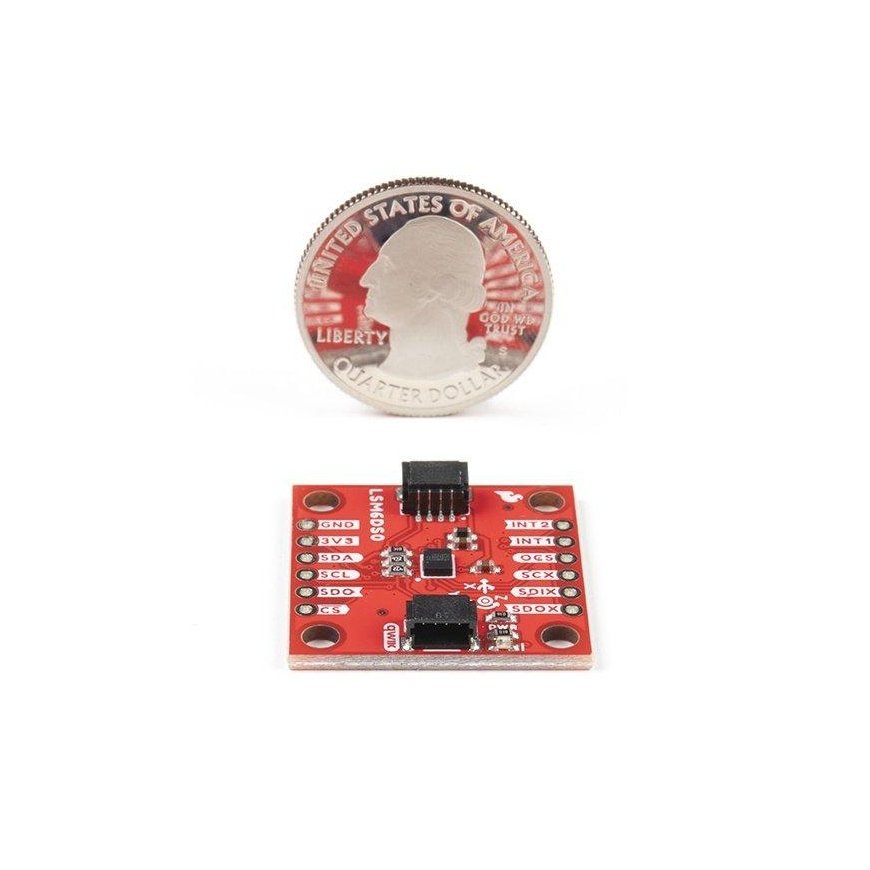

- Board dimensions: 25.4 x 25.4 mm
