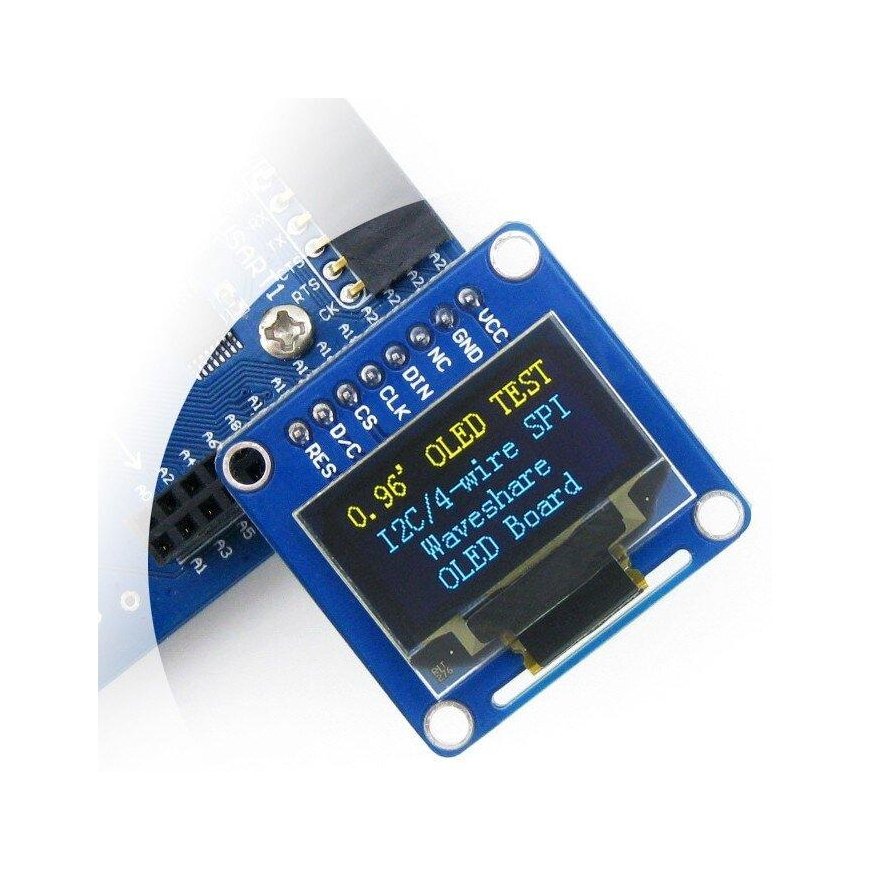

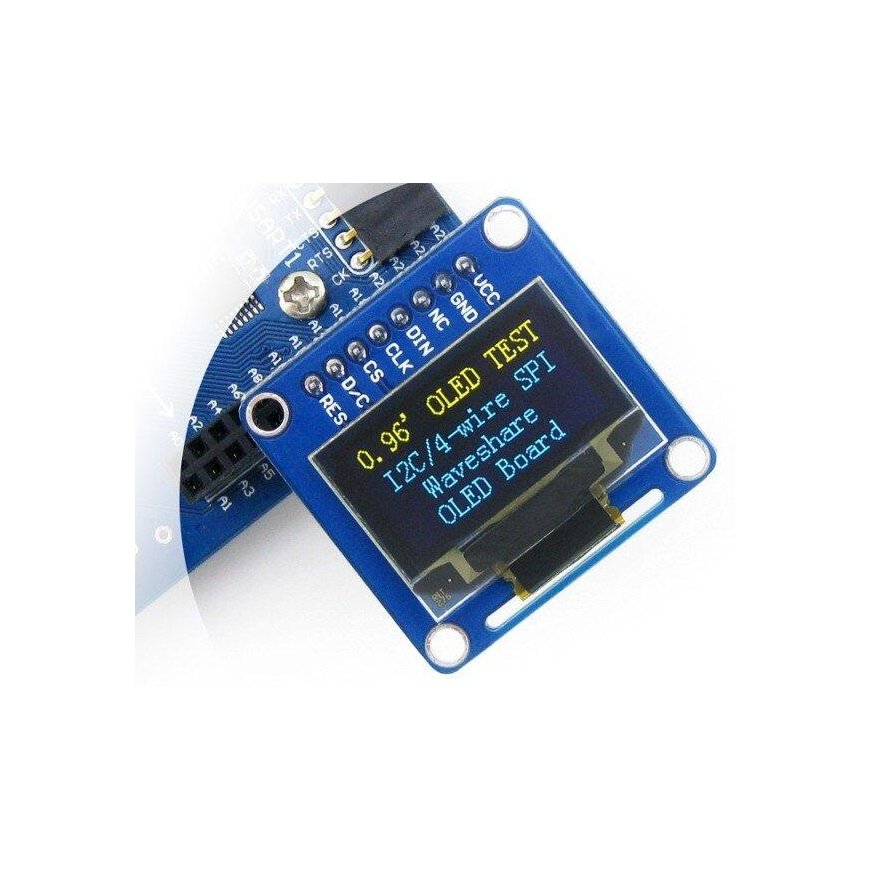

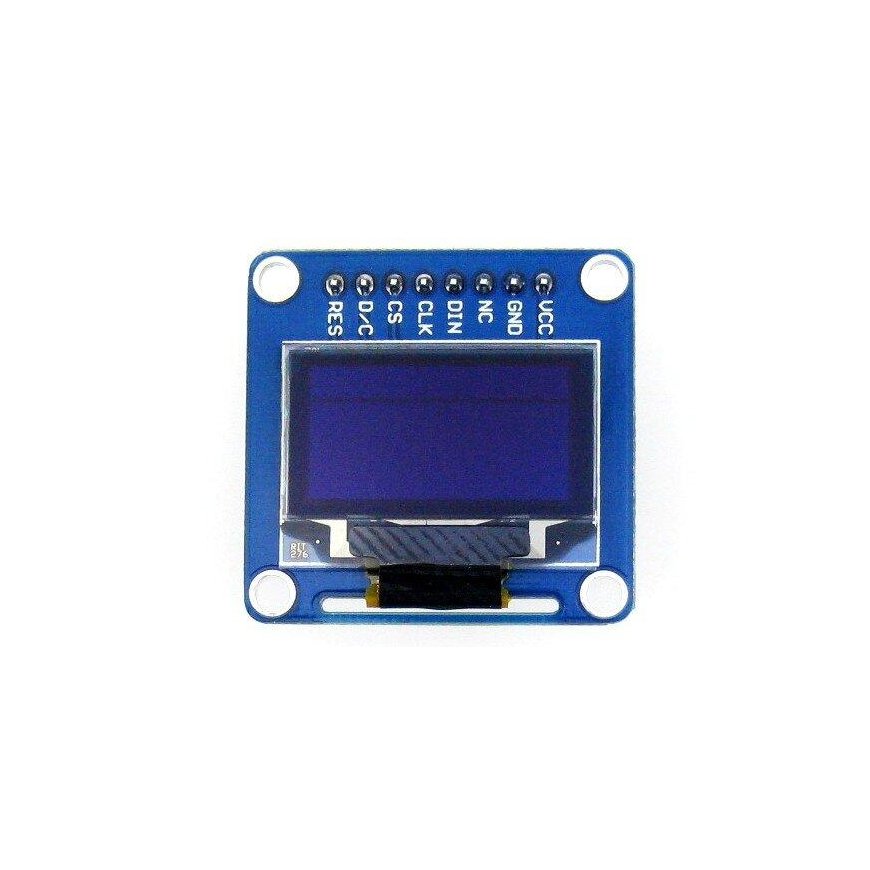

Two-color graphic OLED display 0.96" (B) 128x64px SPI/I2C, straight connectors, Waveshare 9092
21.35 €
3562335 AN-04437
5904422371944
Shipping 11-18 b.d.
You are interested in this product?
All about the product
0.96" OLED display with 128x64px resolution, yellow and blue. The display, based on the SSD1306 controller, operates at 3.3 V and 5 V voltages, supports interface via SPI or I2C. Soldered gold pin connections.
Specifications:
- Operating voltage: 3.3 V to 5.0 V
- Controller: SSD1306
- Interface: SPI/I2C

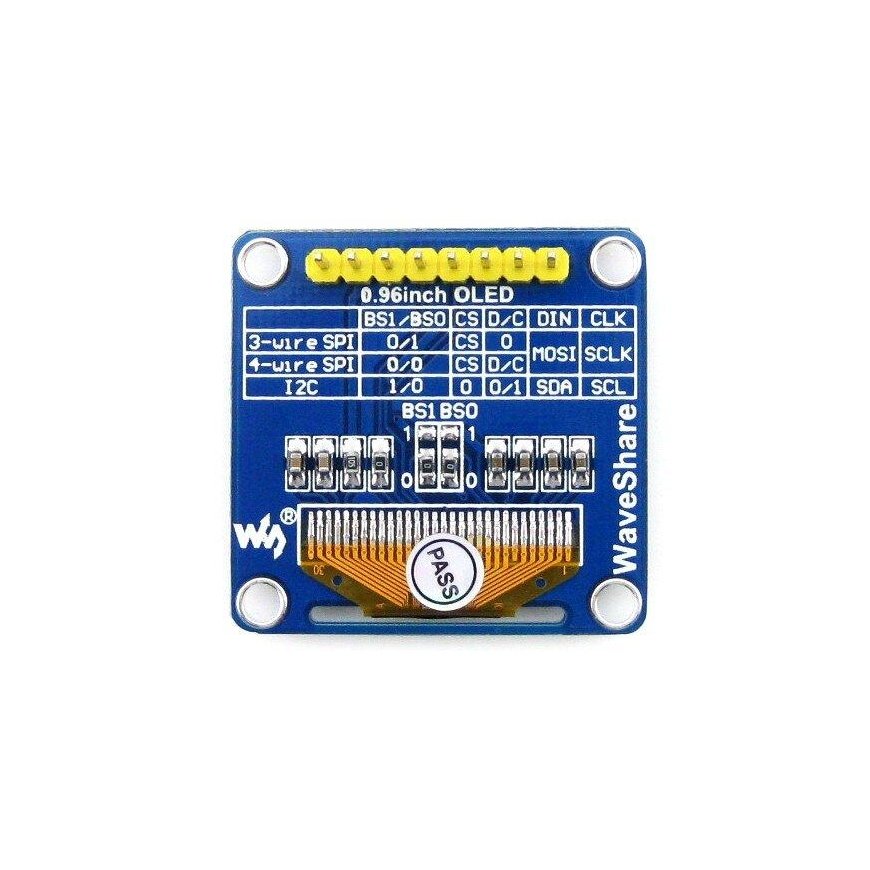

- Operating mode selection using jumpers BS0 and BS1
- Display type: OLED
- Diagonal: 0.96"
- Resolution: 128x64px
- Colors: yellow and blue
- Viewing angle: over 160°
- Operating temperature: -20 °C to 70 °C
- Solder gold pin connectors - 2.54 mm

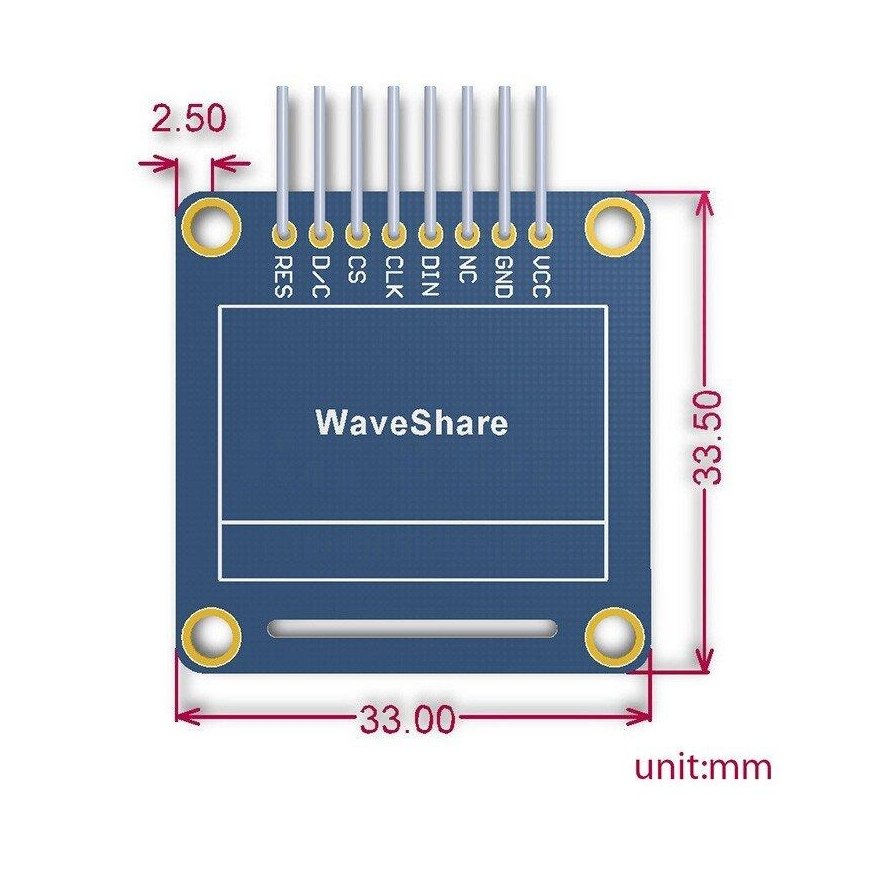

- Dimensions: 33.5 x 33 mm
