Levenhuk D740T 2000x Optical microscope
1 259.00 €
Monthly payment from 33,32 €
3561760 69658
5905555004617, 0611901504780
Shipping 9-12 b.d.
You are interested in this product?
All about the product

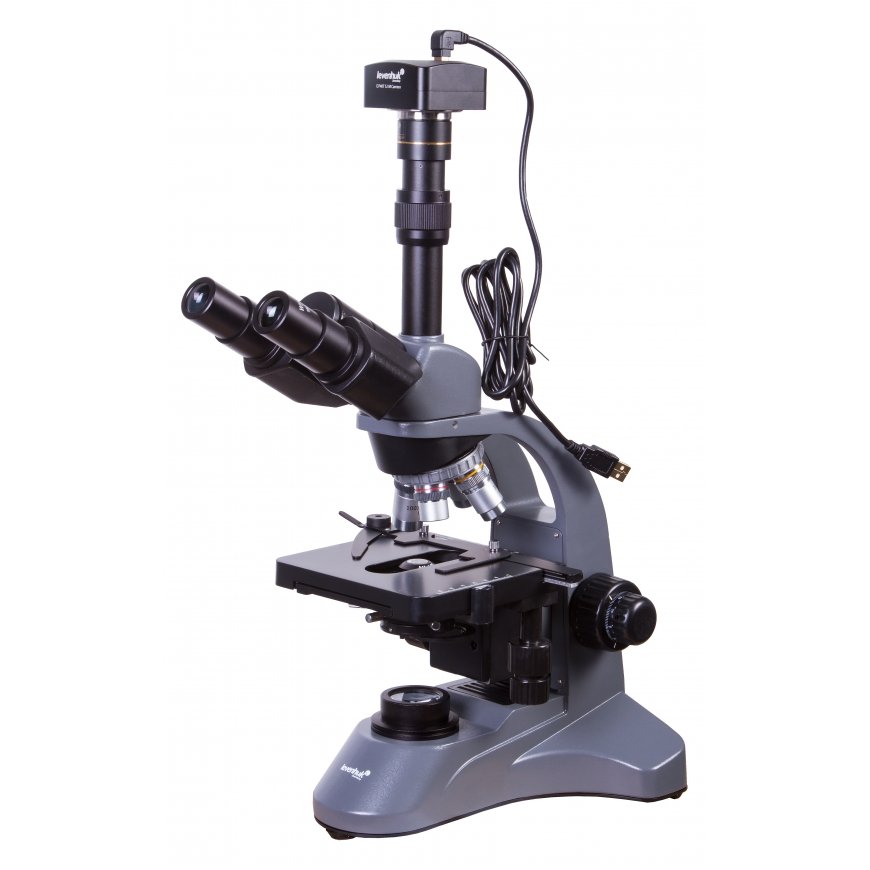

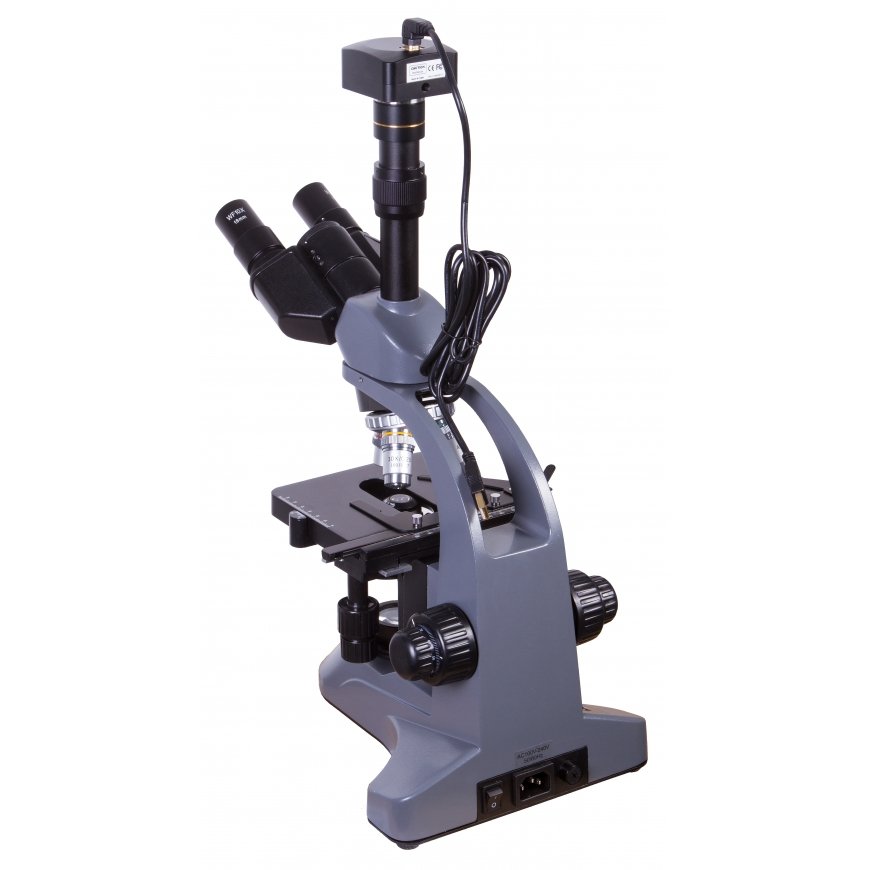

Levenhuk D740T digital microscope is designed for both visual observations through the microscope eyepiece and for data transmission to a PC monitor. The microscope comes with a modern 5 Mpx camera that you install in the eyepiece tube to transmit images to a PC monitor in real time. As the microscope has a trinocular head, you can at the same time keep an eye (in our case both eyes) on what’s happening through the eyepieces.The microscope has a wide range of available magnifications: from 40x to 2000x. Choose the right magnification power by turning the revolving nosepiece with objectives and changing eyepieces. The kit includes four achromatic objectives (including an immersion lens) and two eyepiece sets.
Levenhuk D740T Microscope is designed for viewing transparent microscope samples. The illumination system is located below the stage and has а convenient brightness control. The light source is bright LED (3 watts). Its brightness is continuously adjustable over a wide range. Illumination is powered by household current (power cord is included). The light from the source is redirected to the Abbe condenser equipped with iris diaphragm. By adjusting the aperture opening, you can precisely focus the light beam at the desired area. Coarse and fine sharpness adjustment is done with a focusing knob.
The microscope stage is equipped with metal clips to securely fix the specimen and can be moved in horizontal and vertical directions. The body is made of metal.

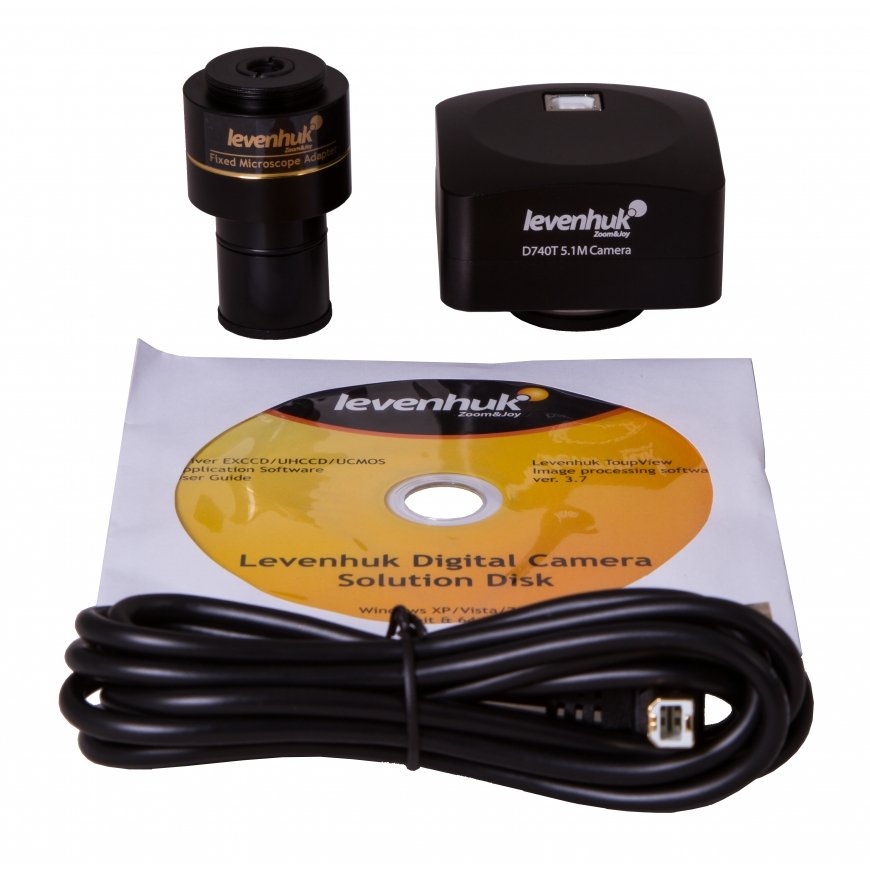

The microscope kit also includes the Levenhuk D740T digital camera and accessories. When installed in place of an eyepiece, it will show you everything that’s happening under the objective lens on your PC monitor. This feature can be used for presentations or for saving the results of your studies in photo and video formats for future use. Levenhuk software (included in the kit) allows you to edit received images: change their sizes, adjust brightness and contrast, crop and so on.
The kit includes everything you will need to start working. The digital camera comes with an installation CD that contains the necessary software and drivers. Levenhuk D740T and its camera are compatible with Windows, Linux and Mac OS.
The kit includes:
Microscope stand with base
Trinocular head
Achromatic objective lenses: 4x, 10x, 40xs, and 100xs (oil)
Eyepieces: WF10x and WFH20x
Filters (blue, yellow, green)
Bottle of immersion oil

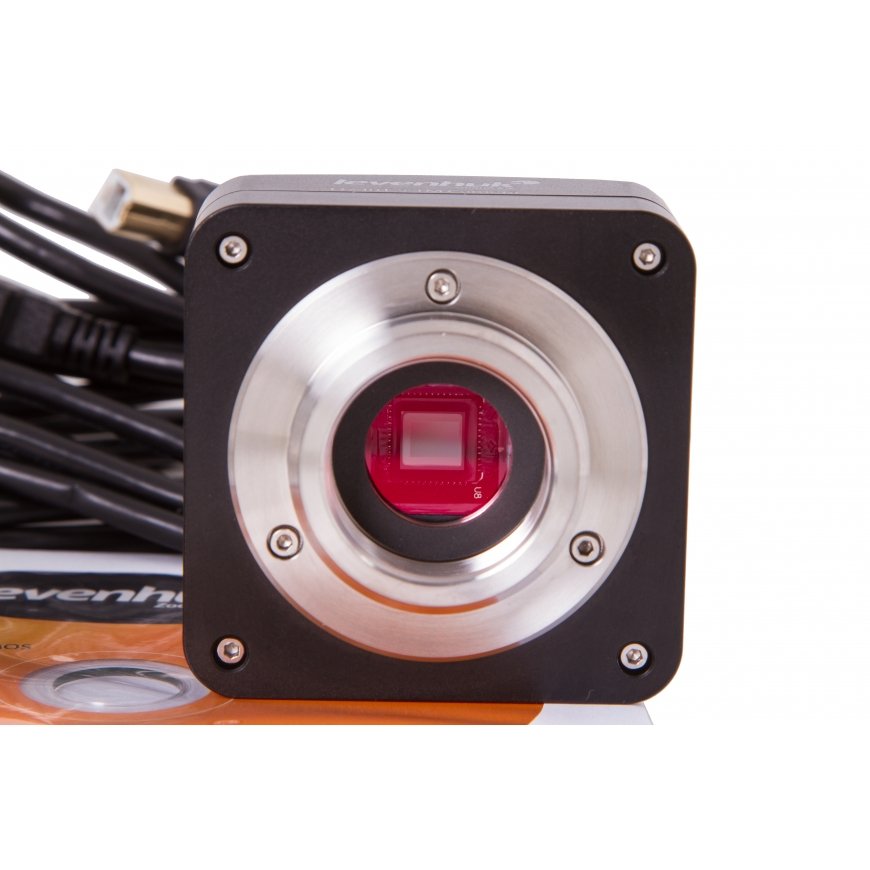

5Mpx digital camera

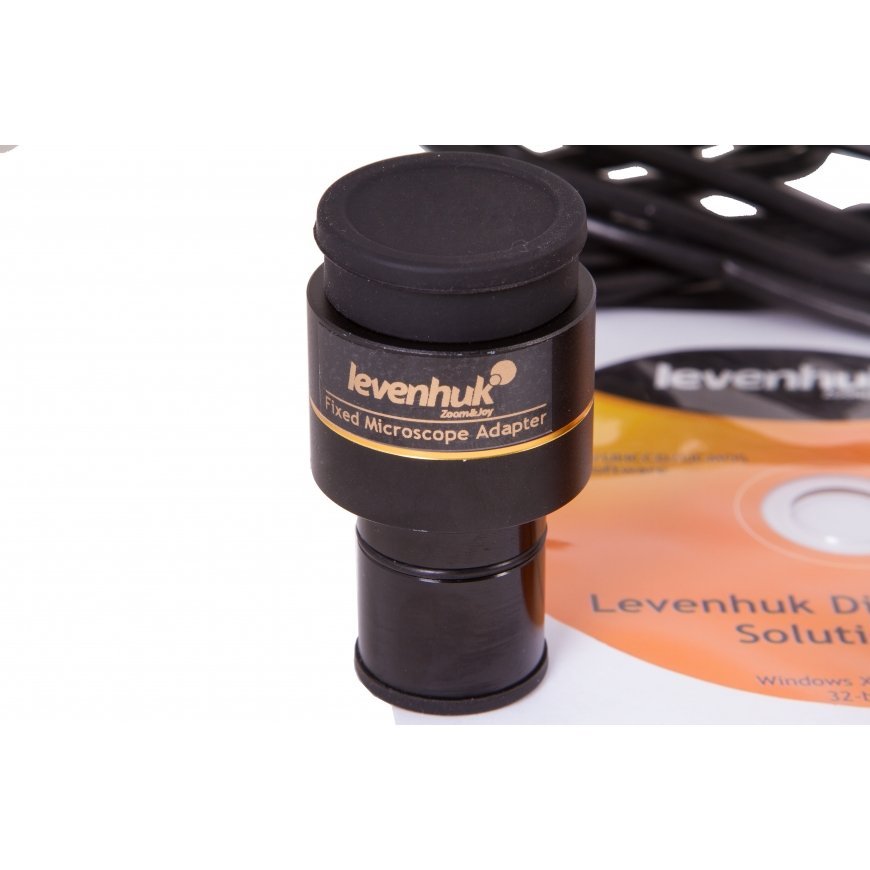

Camera adapter
USB cable
Installation CD with software and drivers
Dust cover
AC adapter
Allen key
Spare fuse
User manual
Lifetime warranty
Features
| Product colour | Black; Grey |
| Package width | 400 mm |
| Package depth | 490 mm |
| Package height | 270 mm |
| Package weight | 6 kg |
| Windows operating systems supported | Yes |
| Mac operating systems supported | Yes |
| Housing material | Aluminium |
| AC input voltage | 110 V |
| Power source | AC |
| AC input frequency | 50 Hz |
| Illumination | Yes |
| Interface | USB 2.0 |
| Bulb power | 3 W |
| Sensor type | CMOS |
| Built-in camera | Yes |
| Filter type | Blue; Green; Yellow camera filter |
| Megapixel (approx.) | 5.1 MP |
| White balance | Auto; Manual |
| Bundled software | Levenhuk software |
| Image sensor size | 1/2.5" |
| Video recording | Yes |
| USB required | Yes |
| Lens material | Glass |
| Maximum magnification | 2000x |
| Camera resolution | 2592 x 1944 pixels |
| Brightness adjustment | Yes |
| Illumination type | LED |
| Spectral range | 380 - 650 nm |
| Diopter compensation (±) | 6 |
| Microscope type | Optical microscope |
| Minimum magnification | 40x |
| Rotatable head | Yes |
| Number of eyepieces | 3 |
| Coarse focus | 2.2 cm |
| Manual exposure | Yes |
| Stage width | 14 cm |
| Stage depth | 13 cm |
| Stage moving range (vertical) | 0 - 24 mm |
| Stage moving range (horizontal) | 0 - 75 mm |
| Eyepiece(s) | WF10x/18mm, WFH20x |
| Number of objectives | 4 |
| Eyepiece barrel diameter | 2.32 cm |
| Double layer mechanical stage | Yes |
| Fine focus | 0.002 mm |
| Condenser | Abbe N.A. 1.25 |
| Eyepiece tube length | 16 cm |
| Coordinate scale | Yes |
