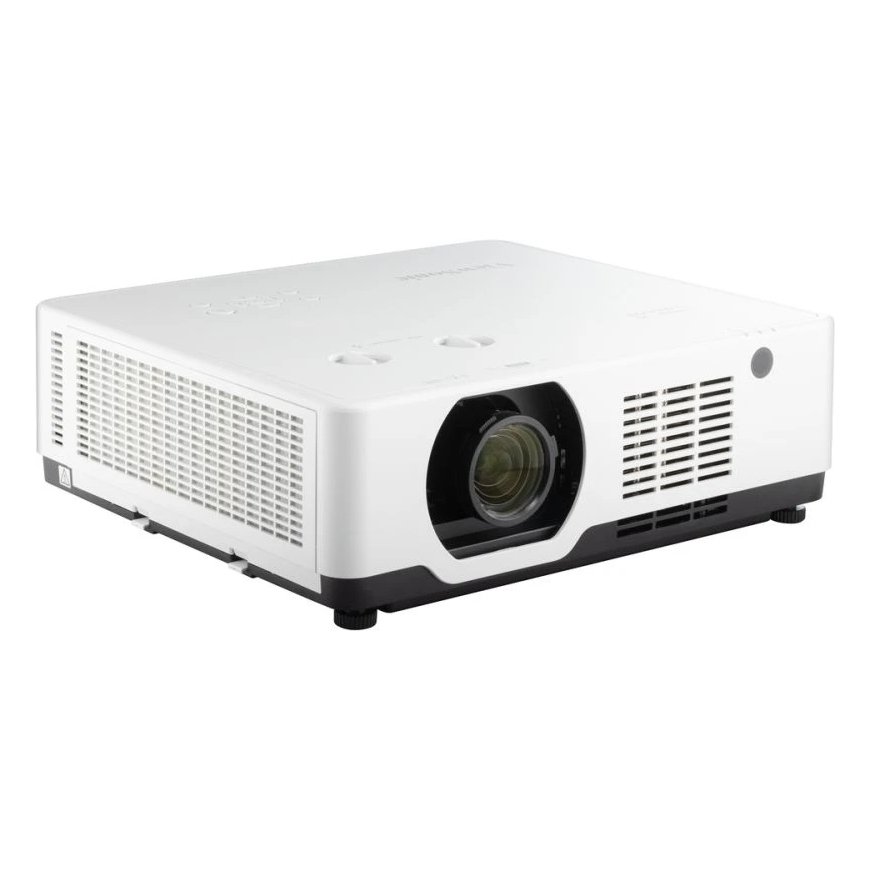

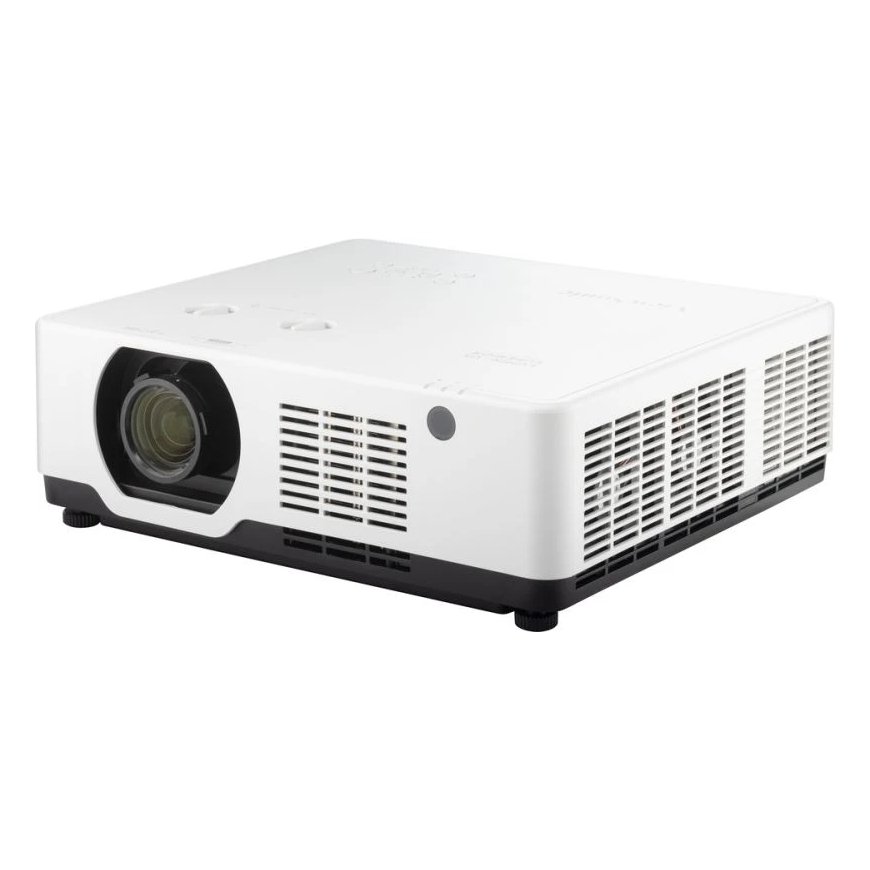

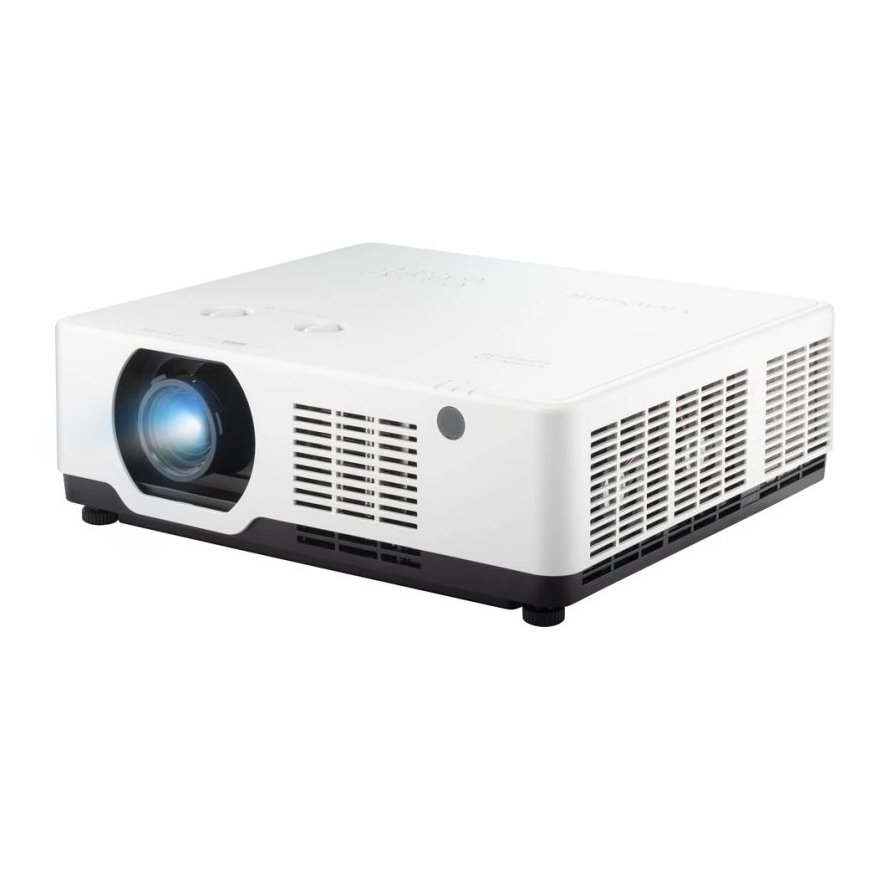

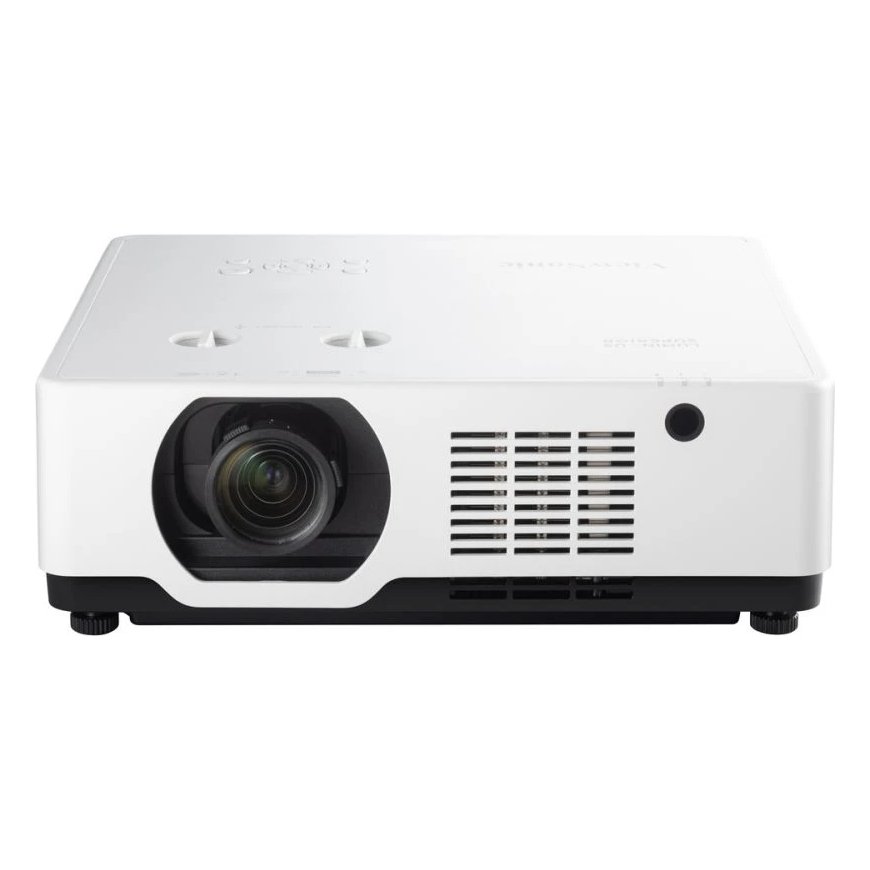

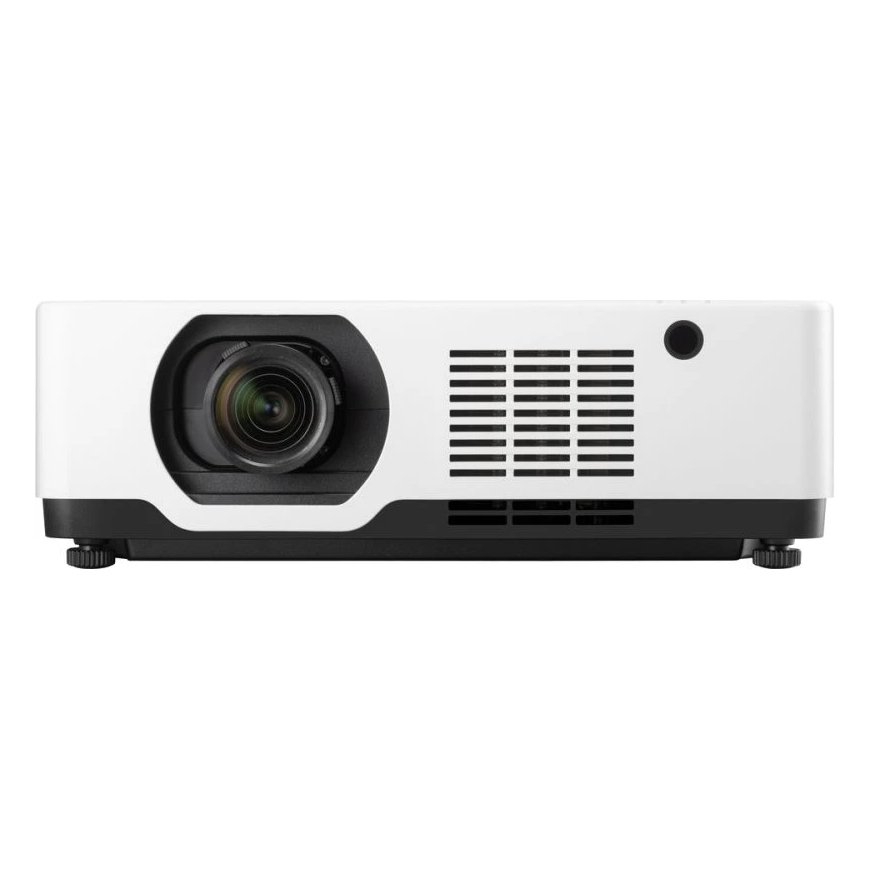

Viewsonic LSC601WU data projector Standard throw projector 6000 ANSI lumens 3LCD WUXGA (1920x1200) White
2 329.01 €
Monthly payment from 60,87 €
3561585 LSC601WU
0766907029284
Shipping 5-7 days
You are interested in this product?
All about the product
The LSC601WU is a lamp-free, high-brightness projector designed for commercial, educational, and public spaces. Utilizing 2nd generation laser phosphor technology, this projector delivers 6,000 ANSI Lumens of brightness for up to 30,000 hours and can project an ultra-large screen up to 300” in WUXGA resolution. Ideal for modern workplaces, its 21:9 aspect ratio is optimized for Microsoft Teams Rooms applications, enhancing collaborative environments. Equipped with features like H/V lens shift, 1.6x optical zoom, H/V keystone correction, and 360° projection capabilities, the LSC601WU offers flexible setup possibilities. Additionally, its comprehensive LAN control ensures seamless integration into existing device management networks.Bright Images for Large Venues
Delivering 6,000 ANSI Lumens, the projector provides vibrant and sharp projection in all lighting conditions, making it ideal for boardrooms, lecture halls, galleries, simulation experience venues, and other expansive spaces
Ultra-large Screen with Lower Cost-per-inch
This easy-to-install projector allows for an image size of up to 300”, offering a lower cost-per-inch compared to other types of commercial displays.
Next-Gen Meeting Experience with 21:9 Aspect Ratio
The projector supports a 21:9 aspect ratio, tailored for Microsoft Teams Rooms (MTR) in front-row mode. This widescreen format enhances meeting experiences by simultaneously displaying the presentation, chat box, hands-up notifications, and participant video feeds, fostering a highly engaging and collaborative environment.
Adaptable to Any Environment
Featuring tool-free lens shift control knobs, 1.6x optical zoom, H/V keystone correction, and 4-corner adjustment capabilities, this projector allows image adjustments without relocation, ensuring it fits any environment.
2nd Generation Laser Phosphor Technology
The projector adopts the 2nd generation laser phosphor technology. In addition to inheriting excellent color performance, lamp-free design, and instant power on/off from the previous generation, technology on the new generation improves around 20% of brightness, better heat-resistance, and a smaller module design, making the images consistent in ambient settings as well as increased reliability with a more compact size for extended use in various scenarios.
Centralized Control for Management Efficiency
The projector is compatible with Crestron, PJ Link, ATEN, and Extron systems, allowing for centralized device management for better operational efficiency.
Projector | |
| Projection distance | 0.7 - 11.37 m |
| Projection technology | 3LCD |
| Projector brightness | 6000 ANSI lumens |
| Contrast ratio (typical) | 3000000:1 |
| Keystone correction, horizontal | -30 - 30° |
| Keystone correction, vertical | -30 - 30° |
| Screen size compatibility | 762 - 7620 mm (30 - 300") |
| Horizontal synchronization (min) | 15 kHz |
| Horizontal synchronization (max) | 100 kHz |
| Vertical synchronization (max) | 0.085 kHz |
| Native aspect ratio | 16:10 |
| Supported aspect ratios | 16:9, 16:10 |
| Projector native resolution | WUXGA (1920x1200) |
| Number of colours | 1.07 billion colours |
| Zoom capability | Yes |
| Focal length range | 15.3 - 24.6 mm |
Light source | |
| Light source type | Lamp |
| Service life of light source | 20000 h |
| Service life of light source (economic mode) | 30000 h |
Lens system | |
| Offset | 5% |
| Throw ratio | 1.08 - 1.76 |
| Aperture range (F-F) | 1.58 - 2.02 |
Video | |
| Full HD | Yes |
| Supported graphics resolutions | 1920 x 1200 (WUXGA) |
Technical details | |
| Serial interface type | RS-232 |
Ports & interfaces | |
| Audio (L/R) in | 1 |
| HDMI ports quantity | 2 |
| VGA (D-Sub) ports quantity | 0 |
| AC (power) in | Yes |
| USB 2.0 Type-B ports quantity | 1 |
Features | |
| Noise level | 35 dB |
| Noise level (economic mode) | 25 dB |
Multimedia | |
| RMS rated power | 16 W |
| Built-in speaker(s) | Yes |
| Number of built-in speakers | 1 |
Colour | |
| Product colour | White |
Design | |
| Product type | Standard throw projector |
| Market positioning | Education |
Operational conditions | |
| Power consumption (typical) | 330 W |
| Operating temperature (T-T) | 0 - 40 °C |
Power | |
| Power source | AC |
| Power consumption (standby) | 0.5 W |
| AC input frequency | 50 - 60 Hz |
| AC input voltage | 100 - 240 V |
Packaging data | |
| Package weight | 10.9 kg |
| Package width | 510 mm |
| Package depth | 498 mm |
| Package height | 260 mm |
Weight & dimensions | |
| Weight | 7.9 kg |
| Height | 137 mm |
| Depth | 358 mm |
| Width | 405 mm |
Packaging content | |
| Remote control included | Yes |
| Manual | Yes |
Network | |
| Ethernet LAN (RJ-45) ports | 1 |
| Ethernet LAN | Yes |
Display | |
| Built-in display | No |
