Digital distance sensor 100cm, Pololu 4069
32.50 €
3560423 AN-19812
5904422349059
Shipping 11-18 b.d.
You are interested in this product?
All about the product

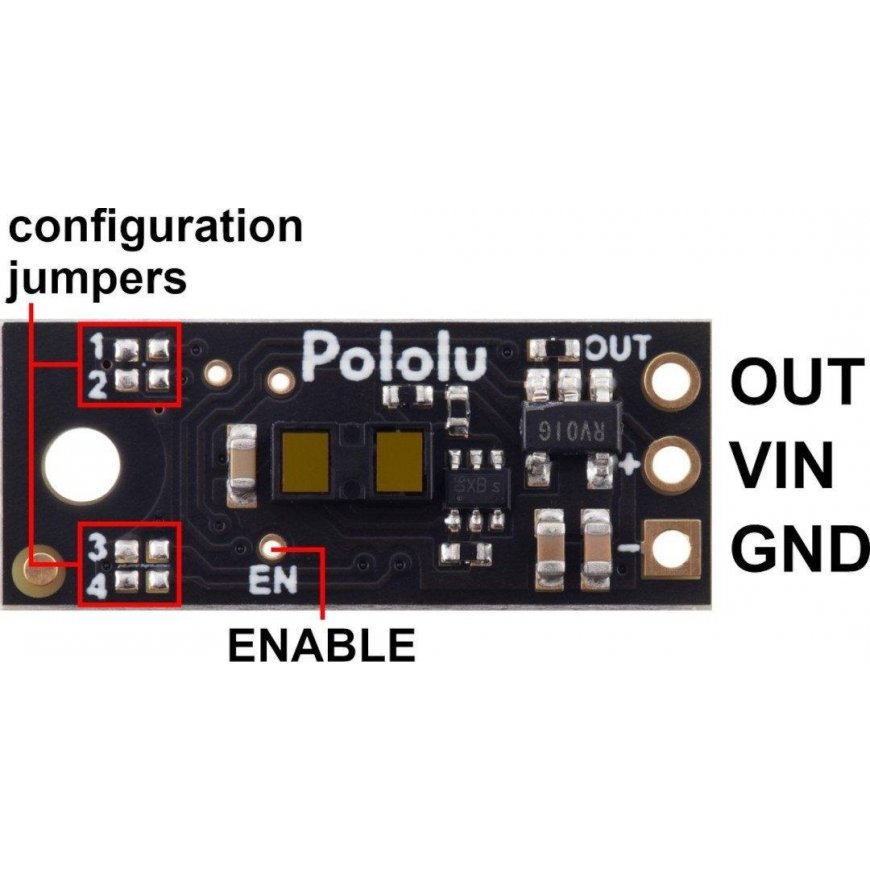

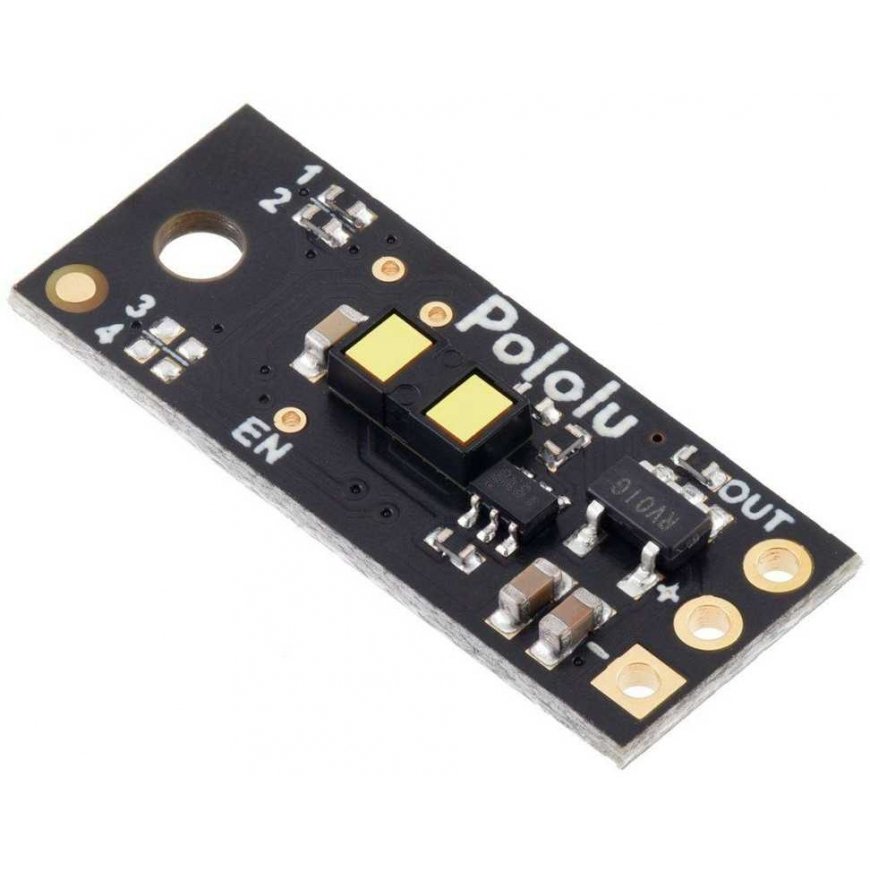

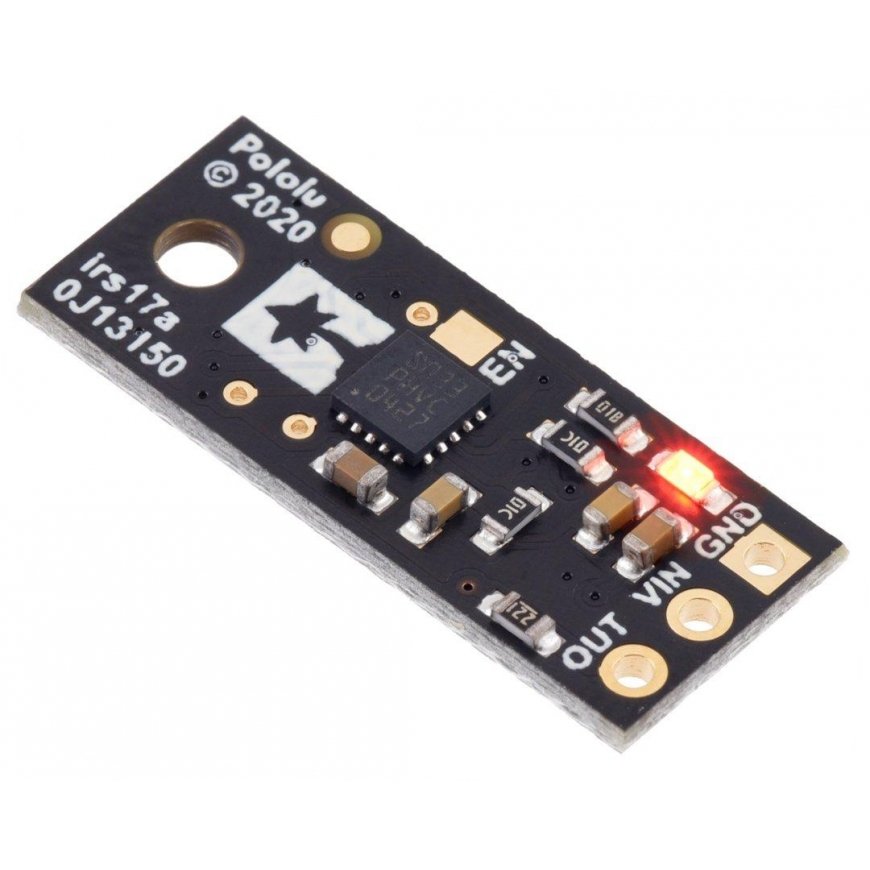

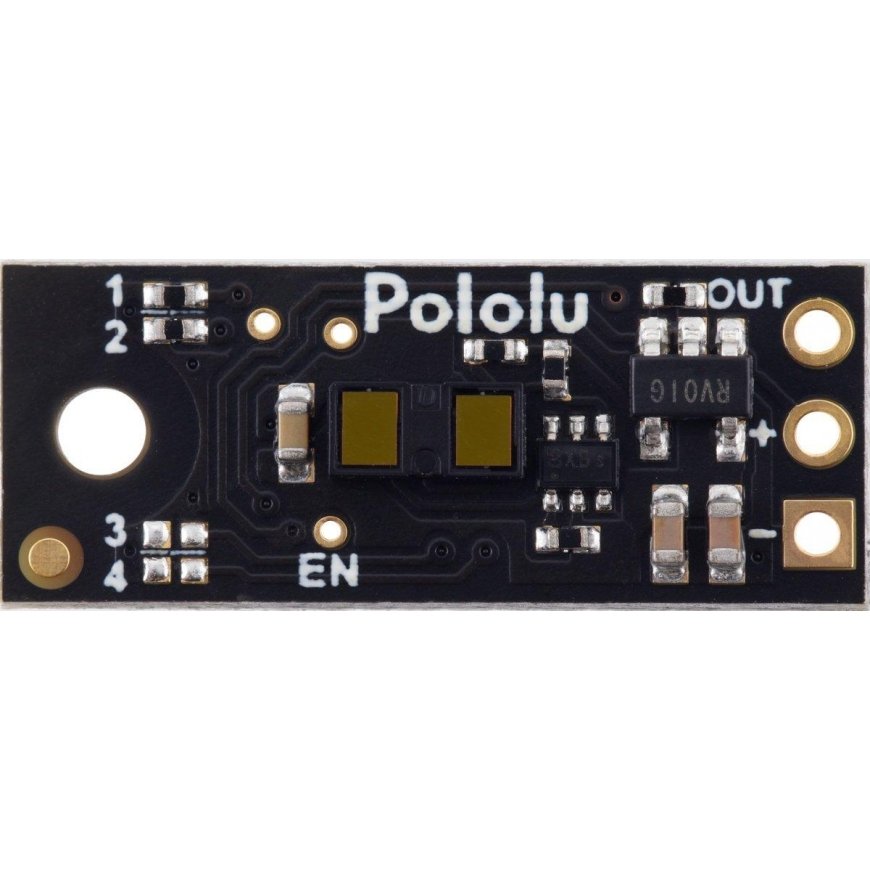

Module with a distance sensor based on Lidar technology. The sensor has an operating range of up to 100 cm, it is powered from 3 V to 5.5 V. It has one digital output, which changes the state to low when an object is detected. The module cannot measure distance, it only informs about the detection of an obstacle at a distance of 100 cm with an accuracy of 1 mm. Short-range Lidar technology is used to accurately measure the time it takes for the emitted eye-safe infrared light pulses to reach the nearest object and be reflected back.Specifications:
- Supply voltage: 3 V to 5.5 V
- Current consumption: 30 mA (typical) on, 0.4 mA off
- Maximum range: 100 cm
- Minimum range: up to 1 mm
- Minimum refresh rate: 100 Hz (10 ms period)
- Field of View (FOV): typically 15°, may vary depending on object reflectivity and environmental conditions
- Output type: digital signal (low when object is detected, high)

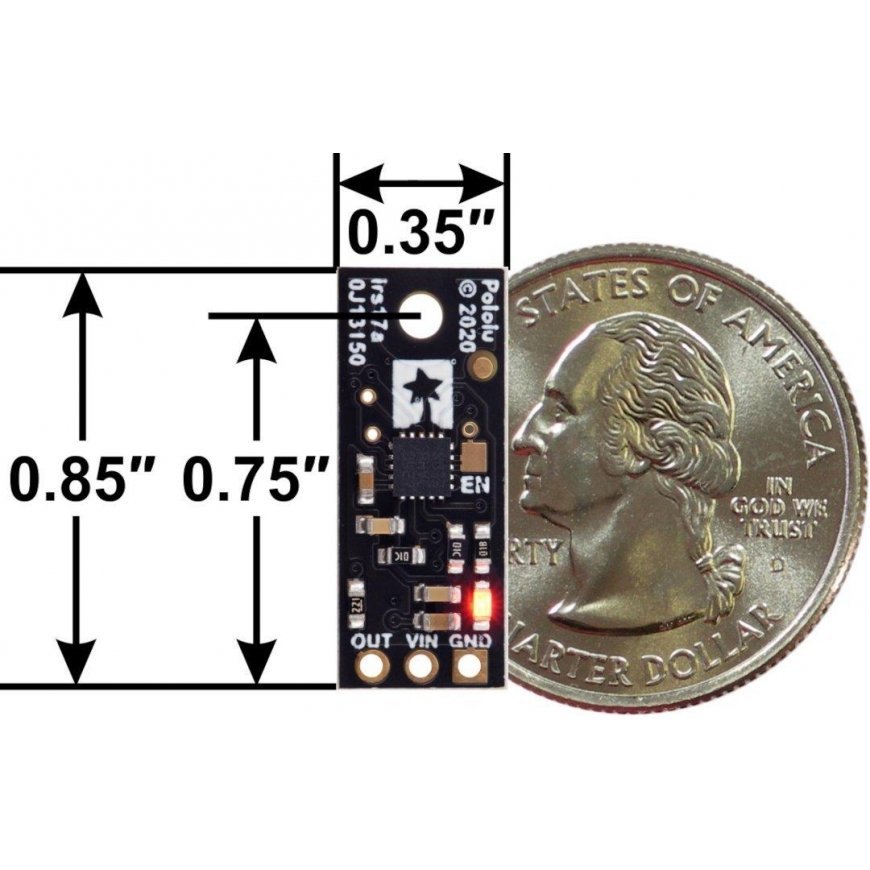

- Dimensions: 21.6 x 8.9 x 3.5 mm
- Weight: 0.4 g
