IPS LCD display 0.96" 160x80px, SPI, 65K RGB, for Raspberry Pi Pico, Waveshare 19653
19.17 €
3558572 AN-19540
5903351249683
Shipping 11-18 b.d.
You are interested in this product?
All about the product

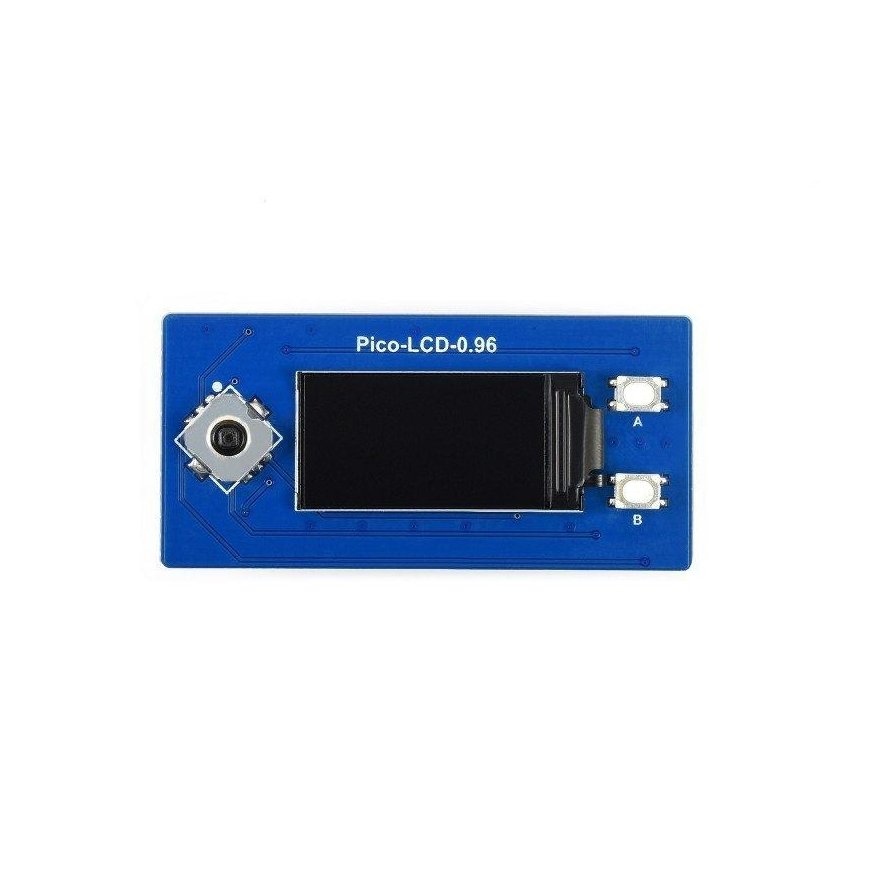

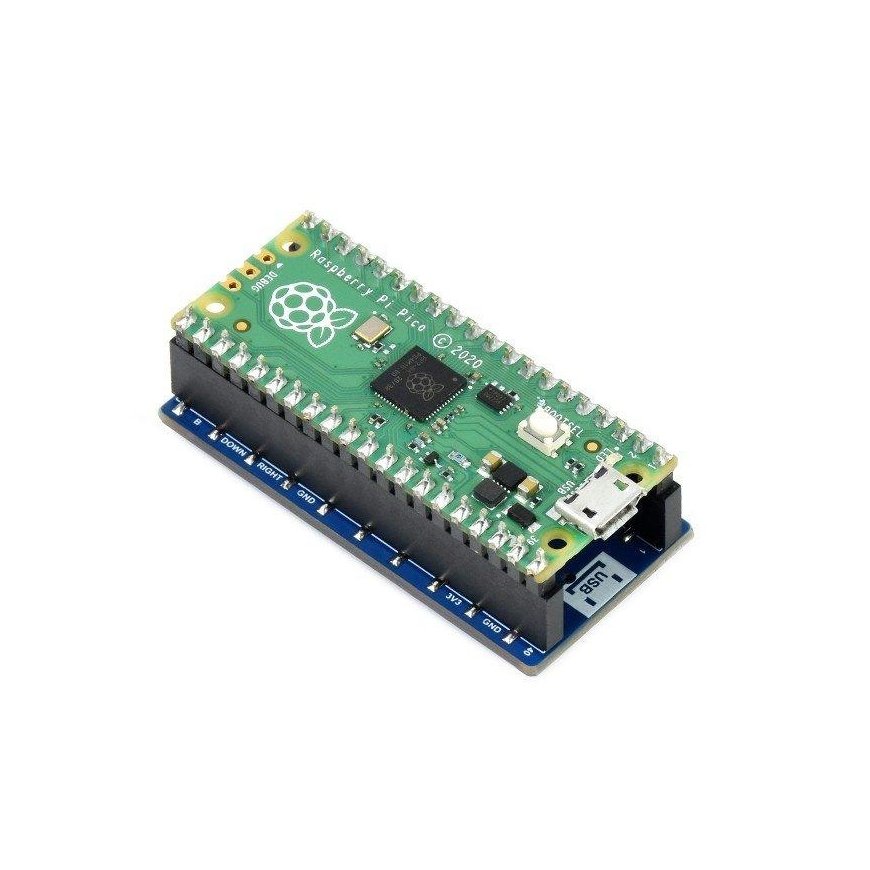

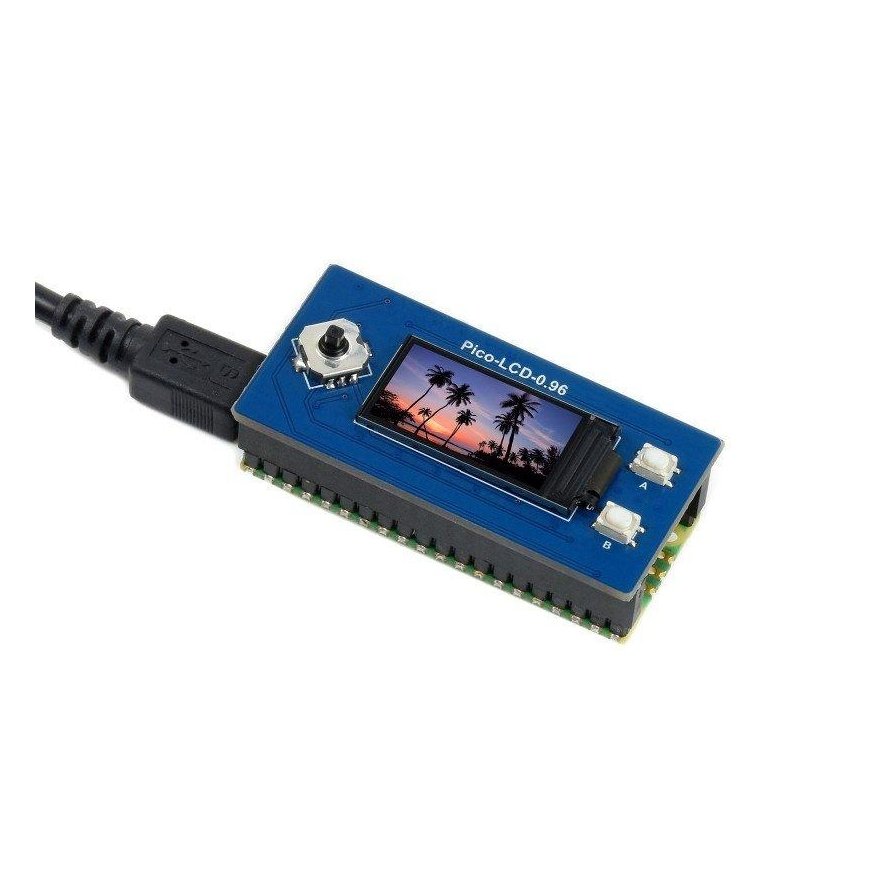

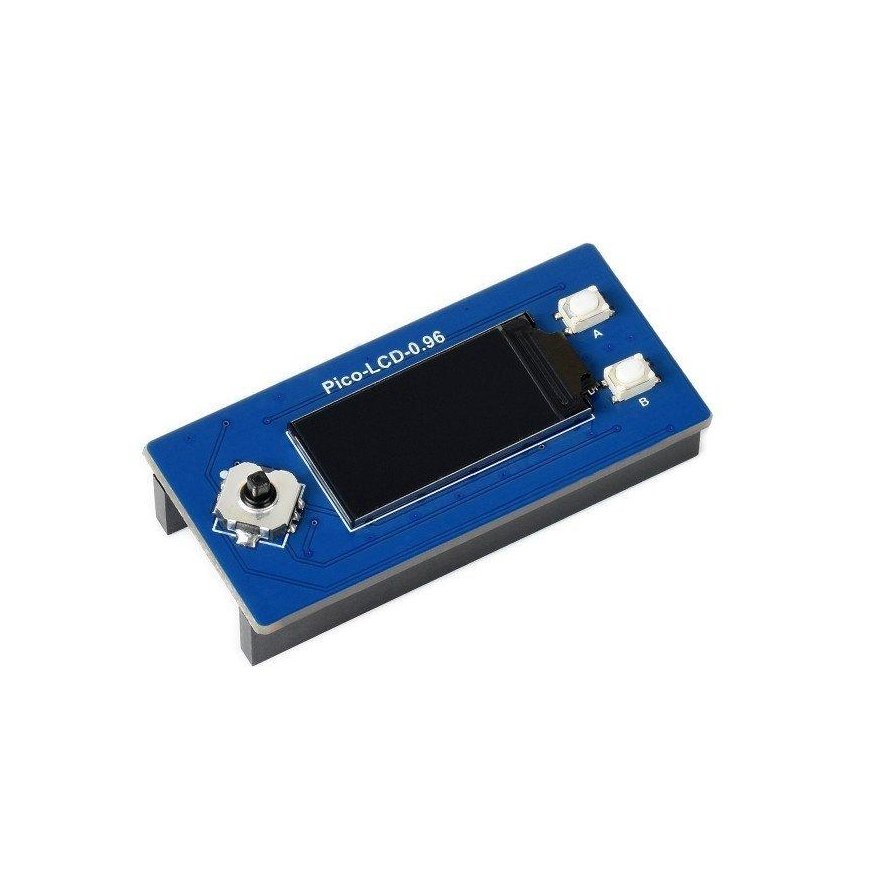

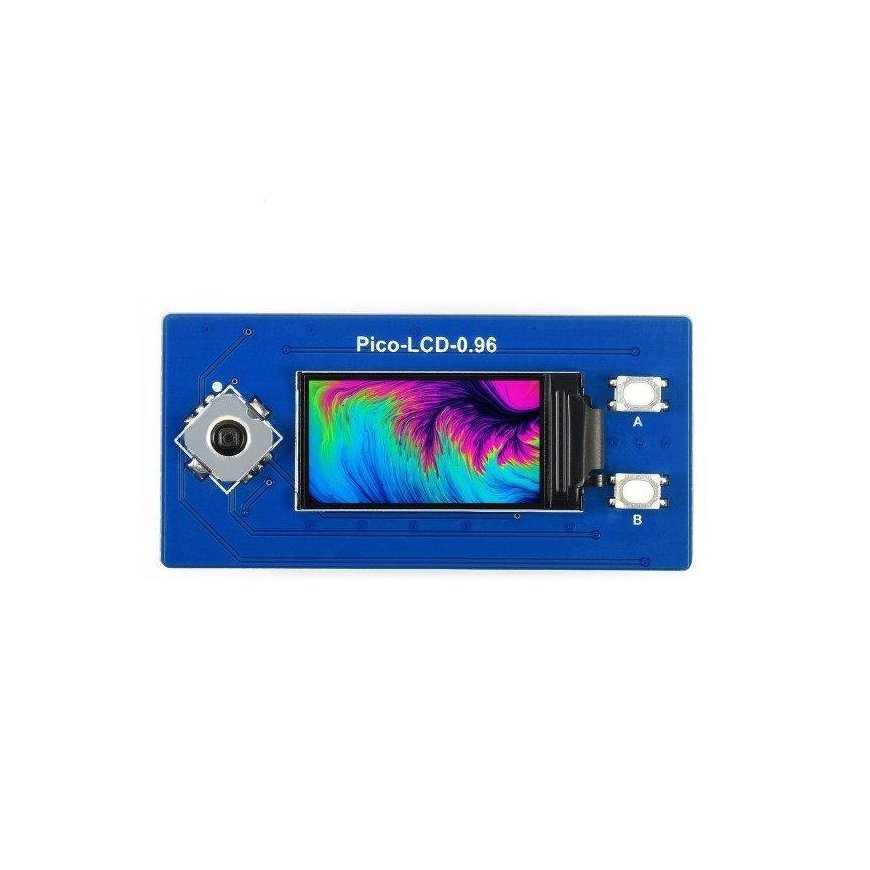

The display is designed for the popular Raspberry Pi Pico minicomputer. It is equipped with a high-quality ST7735S controller, uses the SPI bus to interact with the Raspberry Pi. The screen resolution is 160x80px, and the diagonal is 0.96". The module displays images in 65 thousand colors, which are part of the RGB gamut. The size of one pixel is 0.1356 × 0.135 mm.Specifications:
- For Raspberry Pi Pico version
- Type: IPS LCD screen
- Interface: SPI 4-pin
- Screen diagonal: 0.96"
- Screen resolution: 160x80px
- Pixel size: 0.1356 x 0.135 mm
- Display colors: 65K RGB
- Supply voltage: 2.6 V to 5.5 V
- Additional equipment:
- utility buttons A and B - x2
- joystick - x1
- Programming language: C / C++ / MicroPython
- Built-in controller: ST7735S
- Screen dimensions: 21.7 x 10.8 mm
- Module dimensions: 52 x 25 mm
