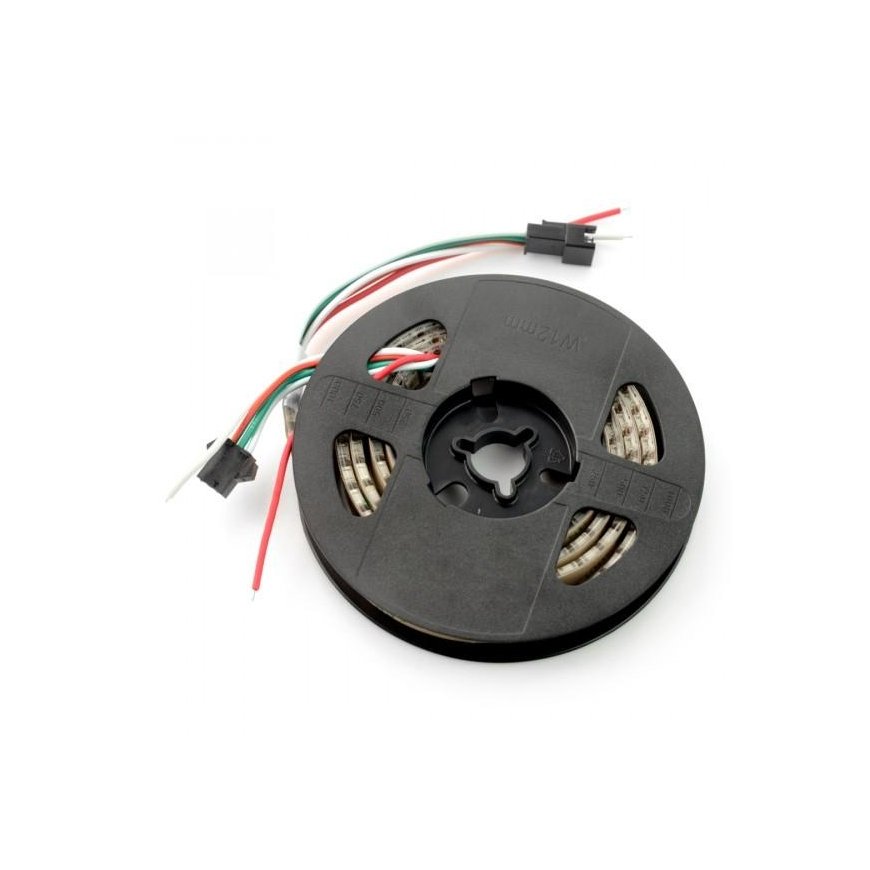

Oem RGBW LED strip - SK6812 144 LED/m 5V - 1m
3557341 AN-12486
5904422319373
Shipping 11-18 b.d.
All about the product

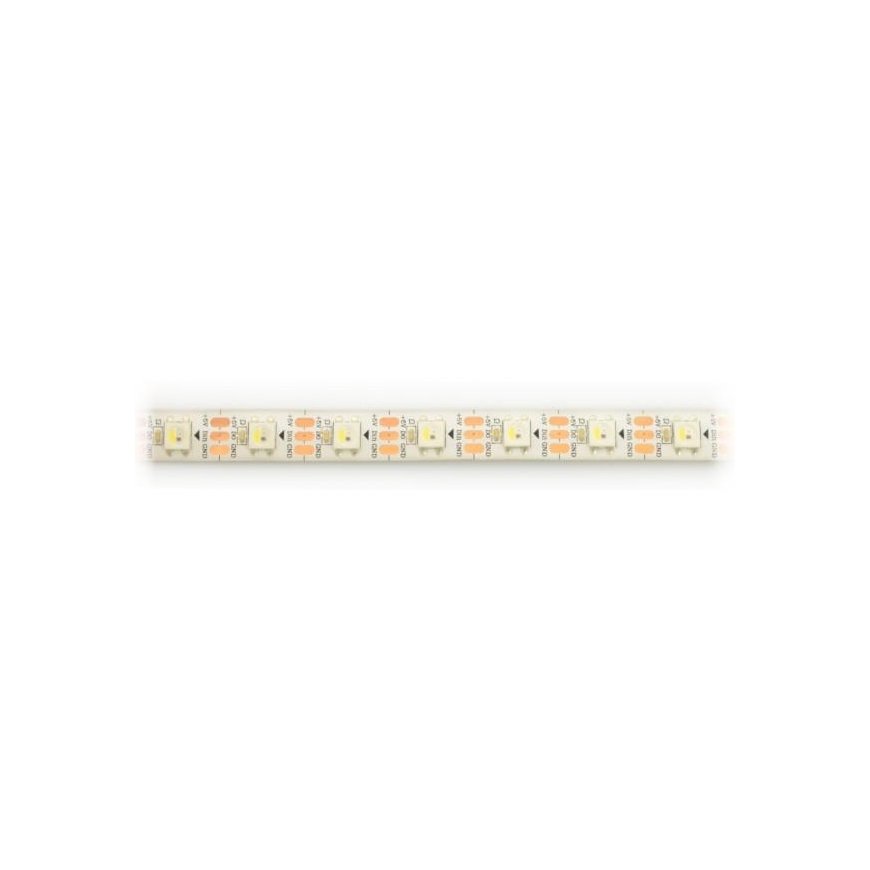

Individually addressable RGB LEDs, arranged in a strip with a density of 144 diodes per meter. In addition to RGB colors, pixels can also emit white colors, each pixel can emit colors from a 32-bit palette. One microcontroller pin is enough to control the module. (e.g. Arduino). The diodes are densely arranged at a distance of about 2mm, so their brightness is very high. The system is powered by 5V, consuming about 9A for each meter (43.2W). The circuit can be cut under each diode.
Specification:
- Supply voltage: 5V
- Power: 43.2W/m
- Power consumption: approximately 9A per 1 meter of circuit per LED
- LEDs used: LED RGBW SMD5050 SK6812
- Addressable point: 1 RGBW LED
- IP class: IP65 (silicone cover)
- Chain length: 1m
- Number of LEDs per meter: 144 pcs.
