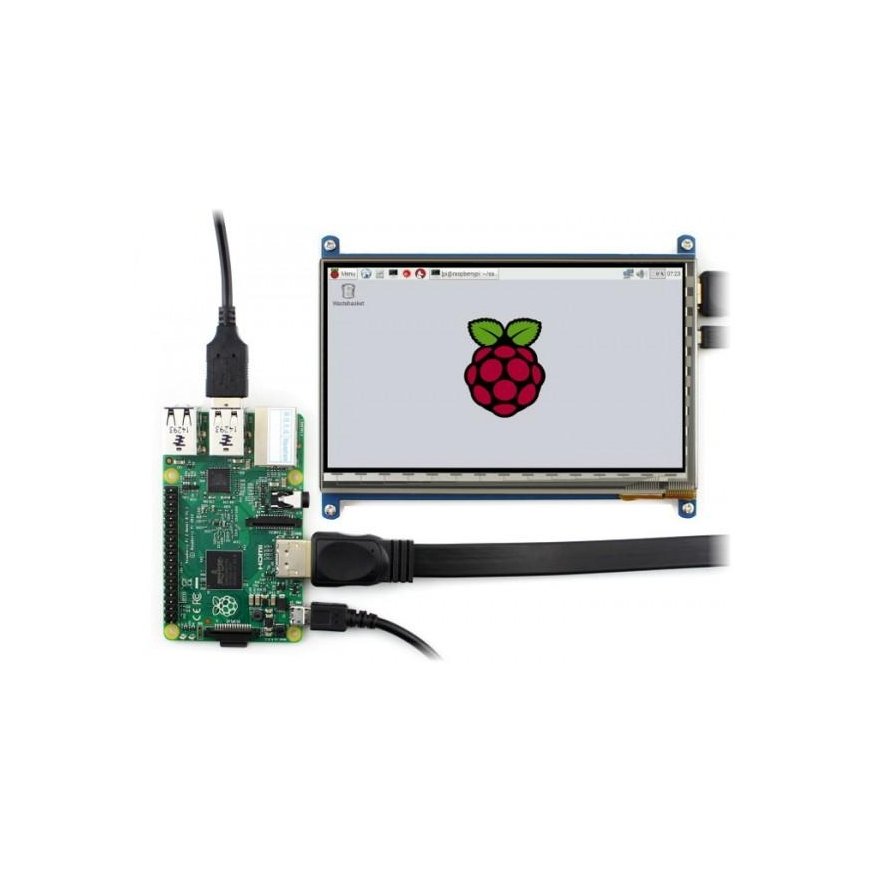

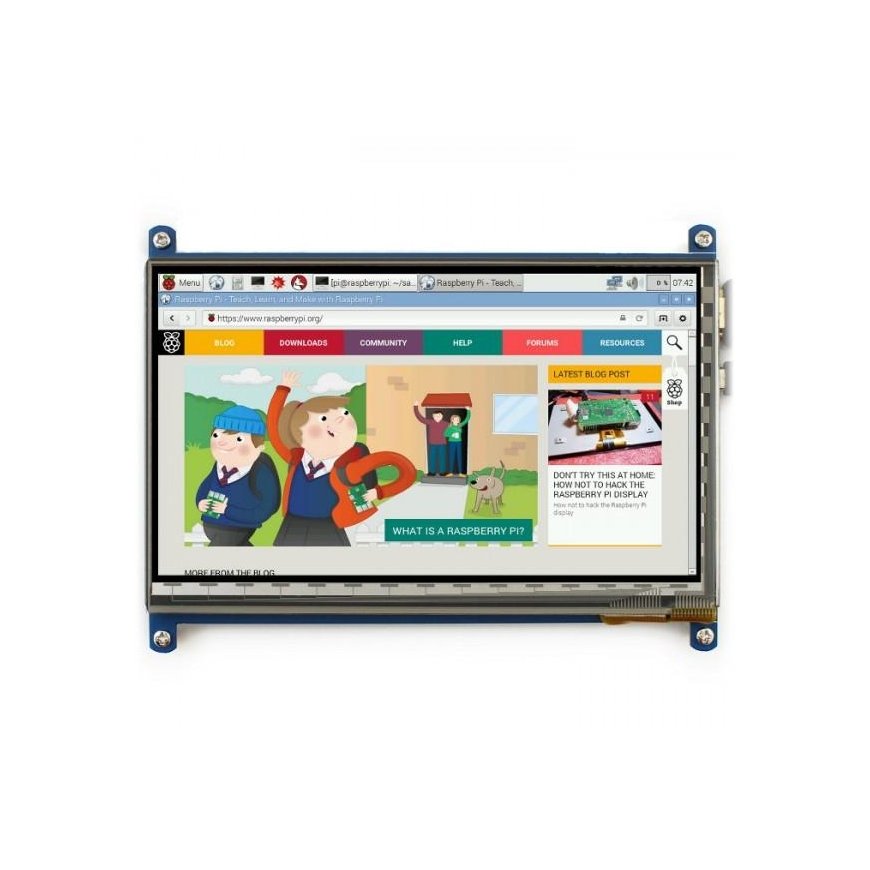

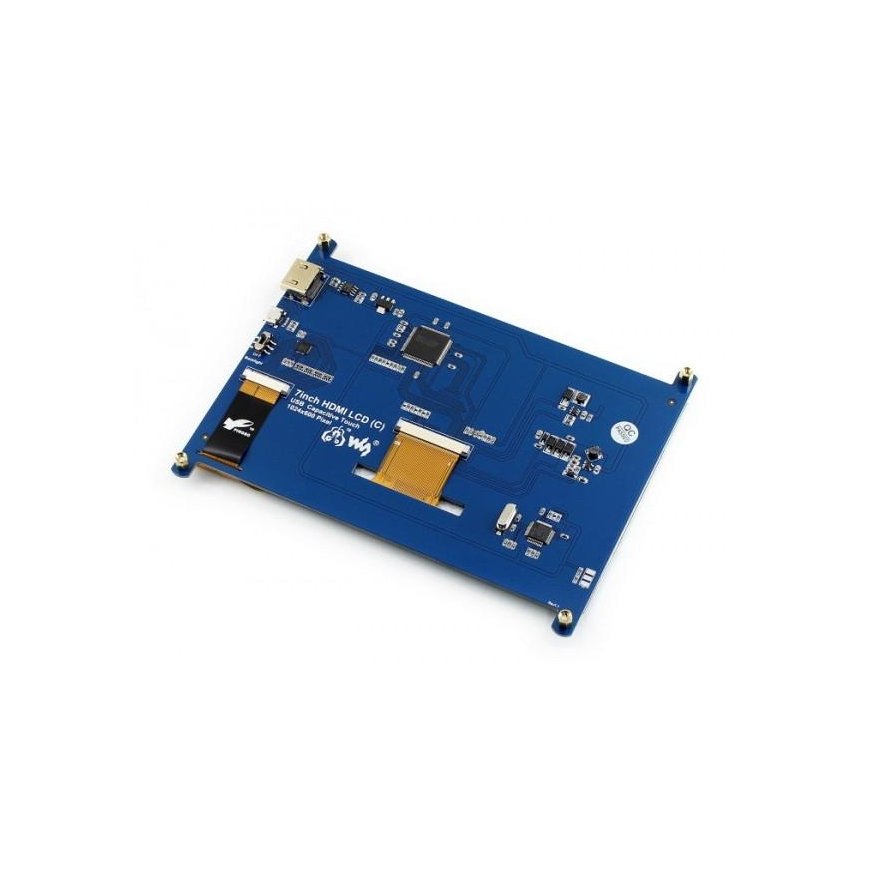

Waveshare Capacitive Touch Screen for Raspberry Pi Microcomputer - LCD IPS 7
79.00 €
Monthly payment from 2,93 €
3556899 AN-04688
4779044514922
Shipping 8-12 b.d.
You are interested in this product?
All about the product
Specification
- Type: touch screen
- Diagonal: 7'
- Resolution: 1024 x 600 px
- Works with:
- Raspberry Pi 3/2/+ (works directly, without additional drivers)
- Beagle Bone Black
- Banana Pi / Banana Pro
- Windows 7 / 8 / 8.1 / 10 (works directly, without additional drivers)
- Works with all HDMI devices (touch function not available at this time)
- 4 mounting holes (screws included)
- Screen dimensions: 165 x 107 mm
Programming
The display works with the latest Raspbian software, without any special drivers. In order for the display to display the correct resolution image, you need to change a variable in the settings. You can do this by opening config.txt and entering the code:
- sudo nano /boot/config.txt
and at the end of this file you need to add the following instructions:
- max_usb_current=1
- hdmi_group=2
- hdmi_mode=87
- hdmi_cvt 1024 600 120 6 0 0 0
- hdmi_drive=1
- framebuffer_depth=32
- framebuffer_ignore_alpha=1
After making changes, you should restart Raspberry.
The set includes:
- 7' touchscreen
- HDMI cable
- Mounting screws
- USB - microUSB cable for touch interface
