Gravity Kitchen Scale - 1kg (10N) Digital Pressure Sensor - HX711 - Scale Kit - DFRobot KIT0176
49.00 €
Monthly payment from 2,16 €
3556867 AN-20415
5903351246217
Shipping 11-18 b.d.
You are interested in this product?
All about the product

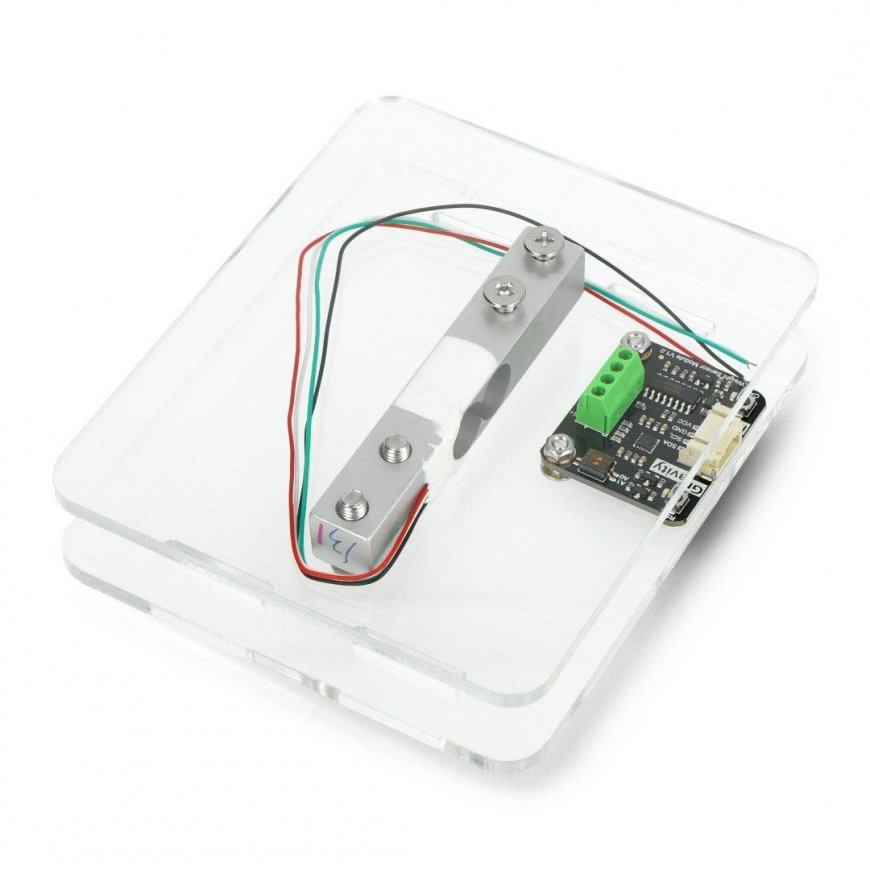

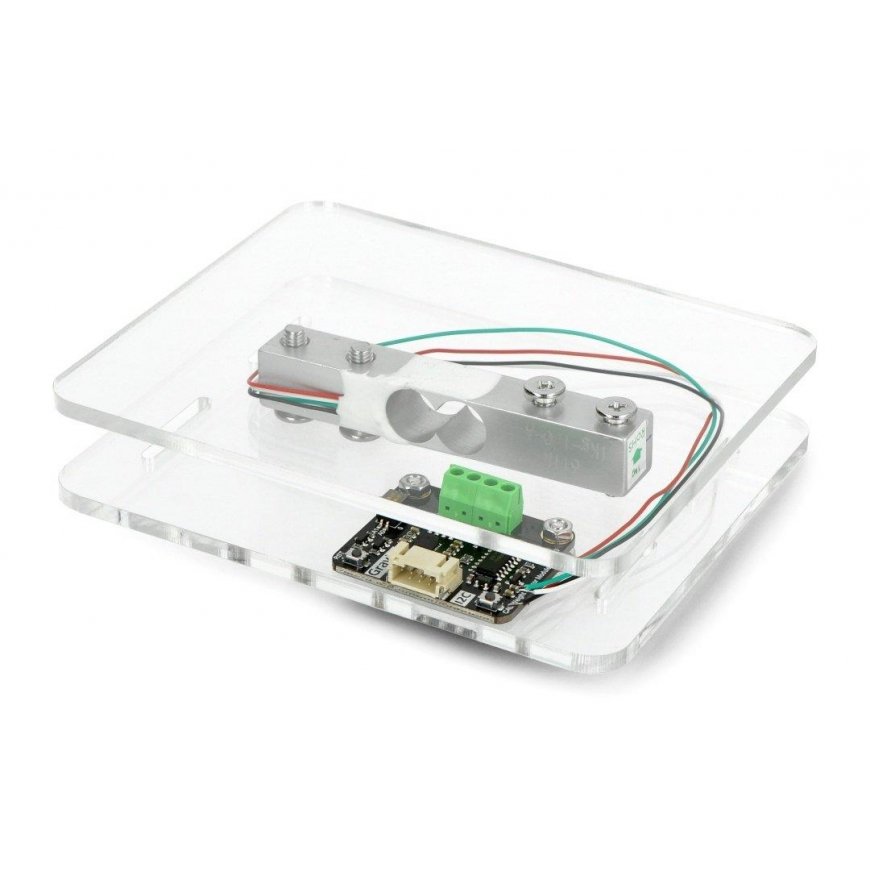

A self-assembly kit that allows you to make electronic scales. The kit includes a digital pressure sensor that detects pressure from 1 g to 1 kg (with a force of 10 N). In addition, the manufacturer has included a signal converter with a built-in HX711 chip. The assembled scales have dimensions of 120 x 100 x 30 mm.Main features:
- All accessories for convenient and quick assembly
- Built-in calibration algorithm – calibrate with a single click or via API, see user manual for more information
- Compatible with Arduino series, micro:bit, ESP32, Raspberry Pi and other controllers operating at 3.3 V and 5 V
- Can be used as a simple electronic scale or as an everyday kitchen scale
- Type: pressure sensor
- Type: digital
- Measuring range: 1 g to 1000 g
- Supply voltage: 3.3V/5V
- Current consumption: <20 mA
- Integrated AD conversion circuit: HX711
- Synthesis deviation: ± 0.2% g
- Interface: I2C bus
- Interface address: 0x64 / 0x65 / 0x66 / 0x67
- Integrated one-click calibration algorithm
- Compatible with Arduino, micro:bit, ESP32, Raspberry Pi
- Plate dimensions: 37 x 31 mm
- Scale dimensions when assembled: 120 x 100 x 30 mm

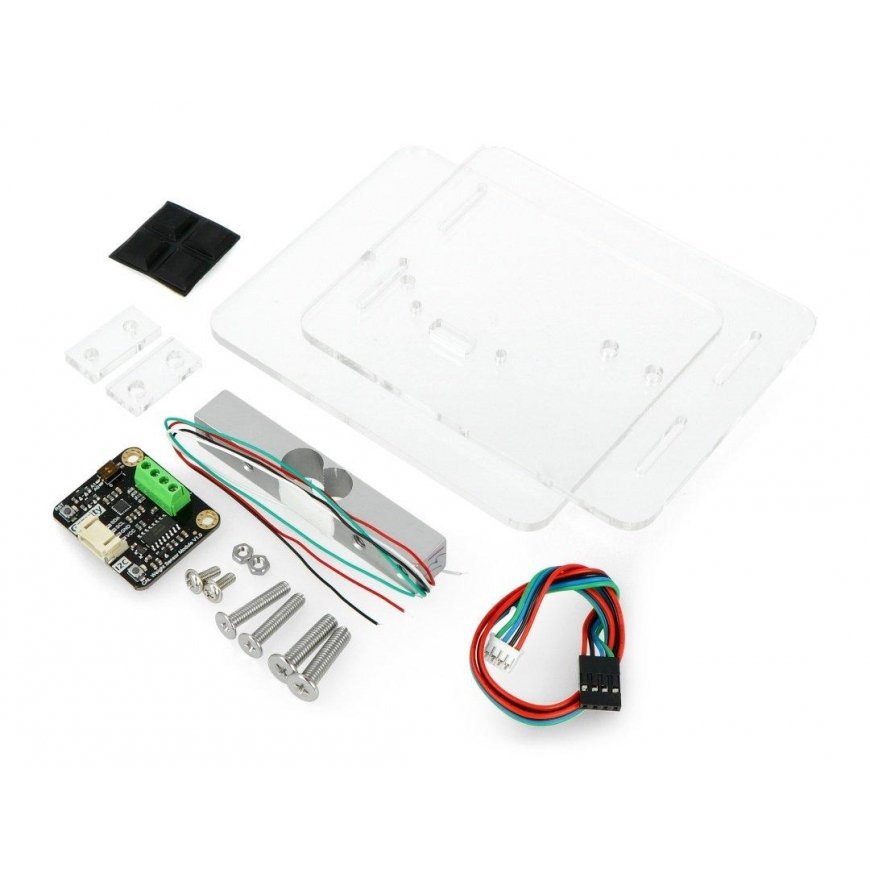

- Pressure sensor - 1 kg (10 N)

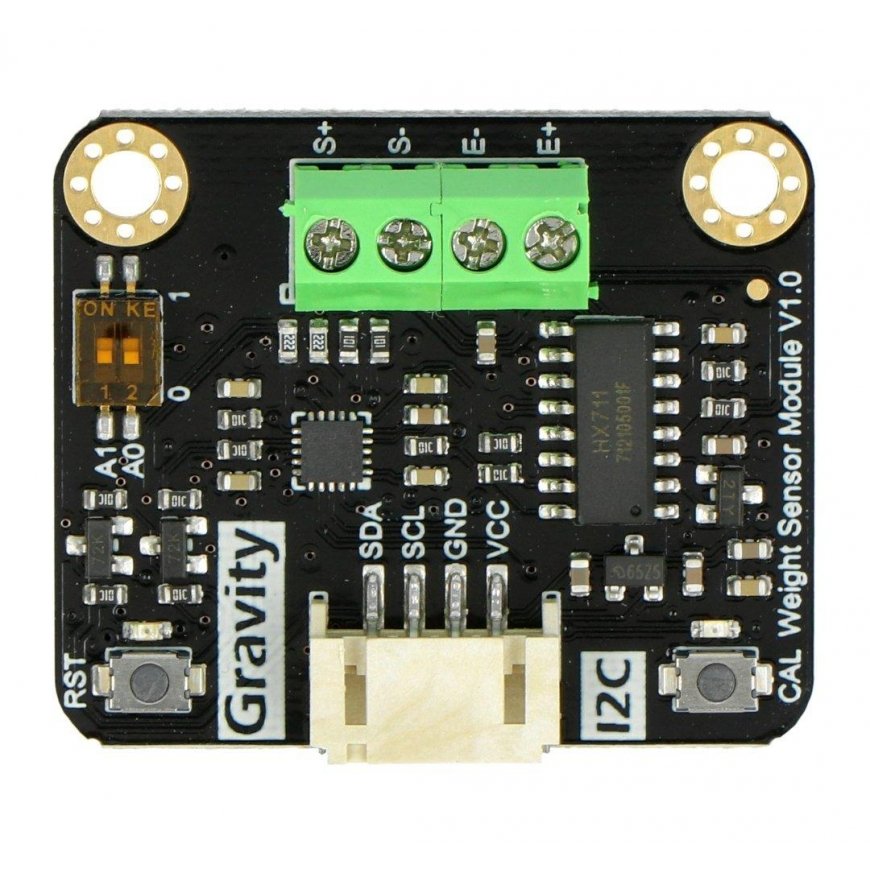

- Analog-to-digital converter
- 4-pin cable with Gravity connector
- Acrylic covers for creating scales
- Mounting screws
- M4x20 cm - 2 pcs.
- M5x20 cm - 2 pcs.
- M3x8 cm - 2 pcs.
- Non-slip feet - 4 pcs.
