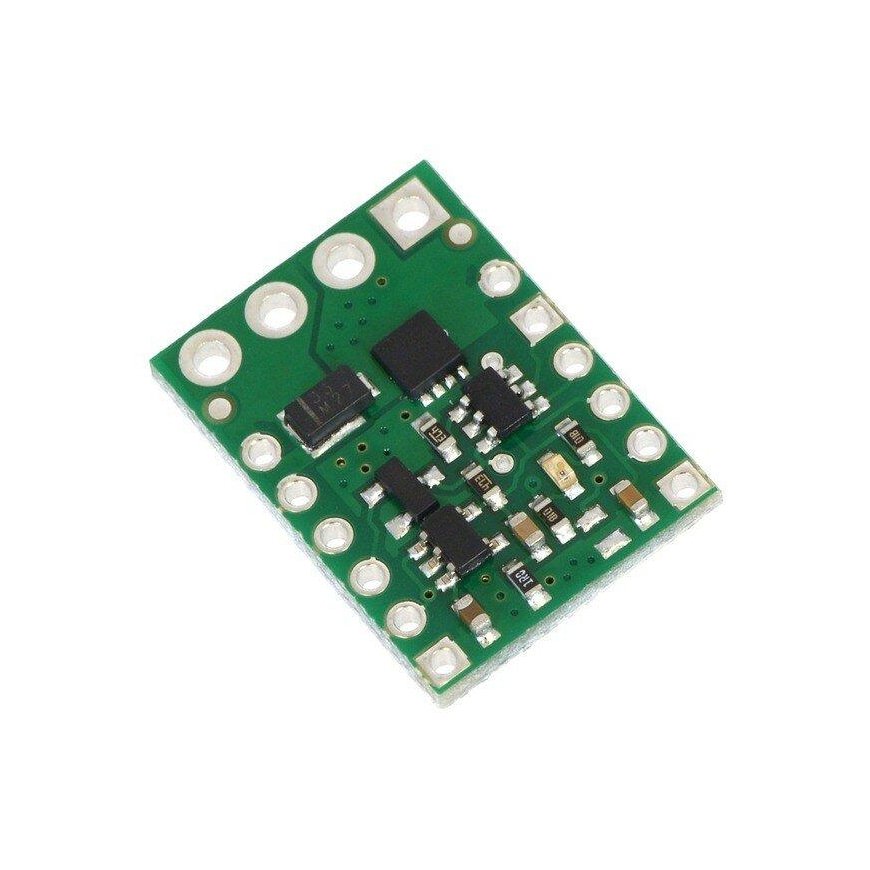

RC switch with MOSFET 30V/15A transistor, Pololu 2803
22.46 €
3555978 AN-01931
5904422305093
Shipping 11-18 b.d.
You are interested in this product?
All about the product
The module processes RC signals into digital on/off states. It has a built-in MOSFET transistor that allows you to control devices with current consumption up to 15 A. Thanks to the built-in voltage regulator, the board can be powered from 2.5 V to 15 V.
Specifications:
- Load voltage: up to 30 V
- Load current: up to 15 A
- Digital supply voltage: 2.5 to 16 V

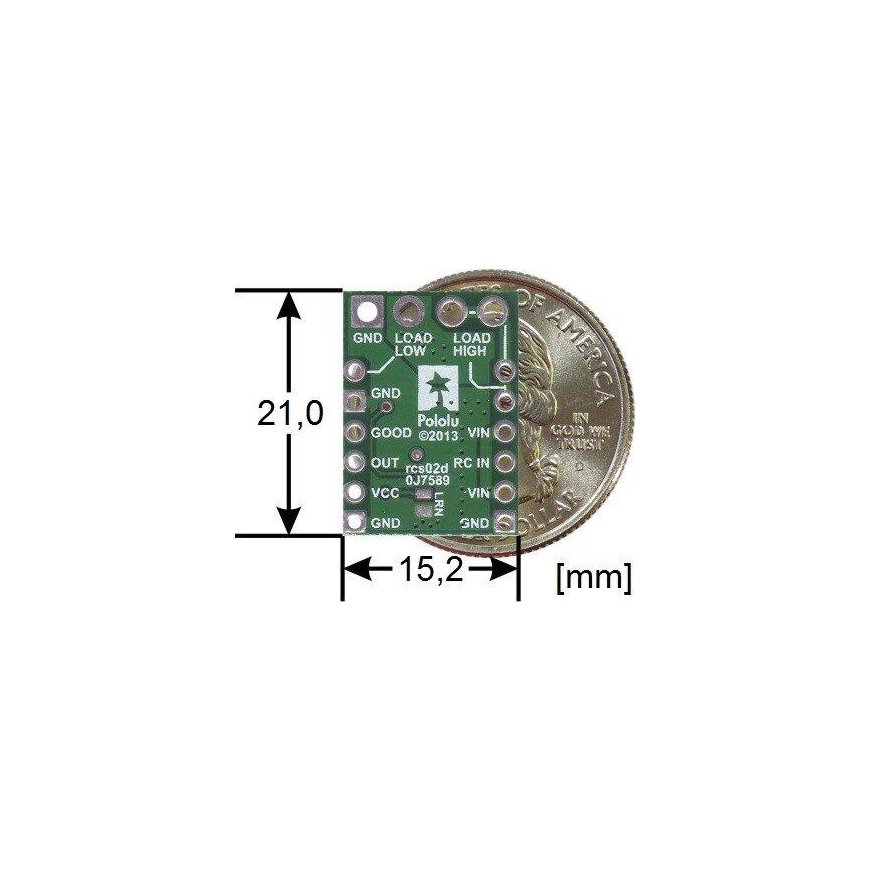

- Dimensions: 21 x 15.2 mm
- Weight: 1.2 g (without connectors)

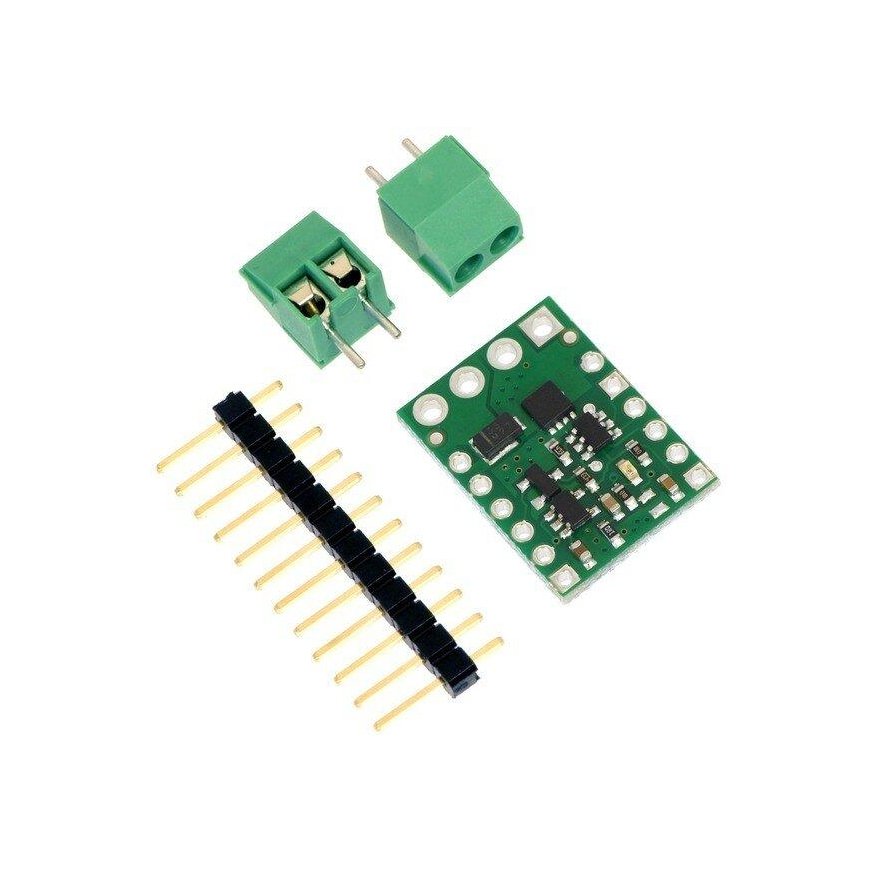

Included:
- Module
- Connectors for self-soldering
