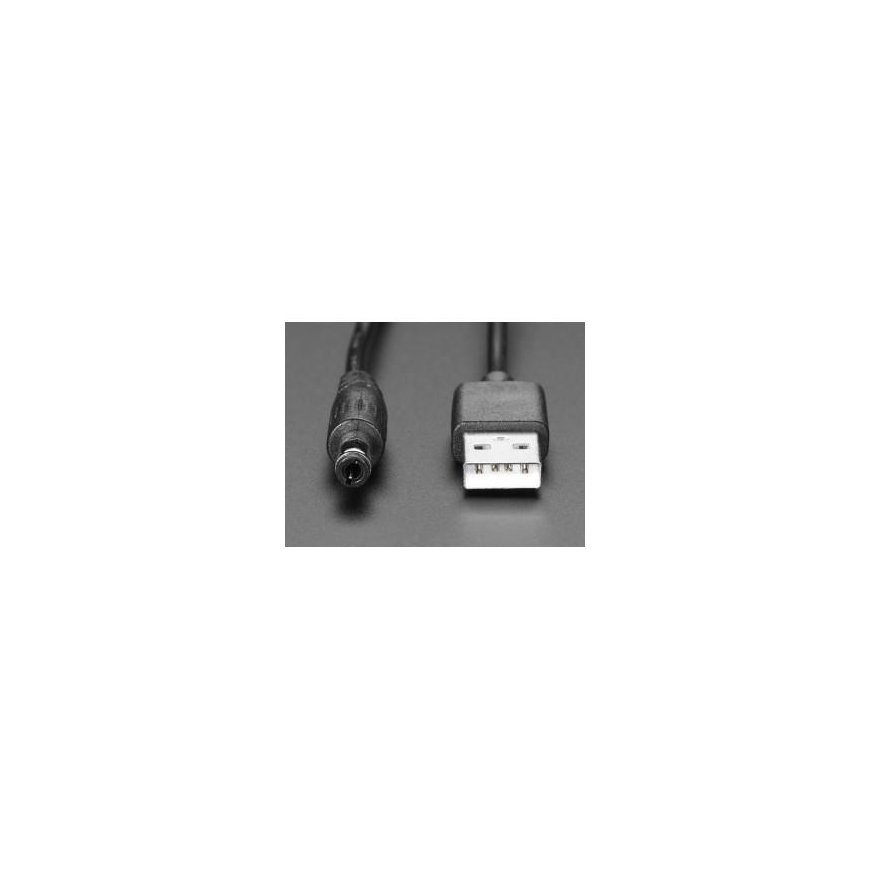

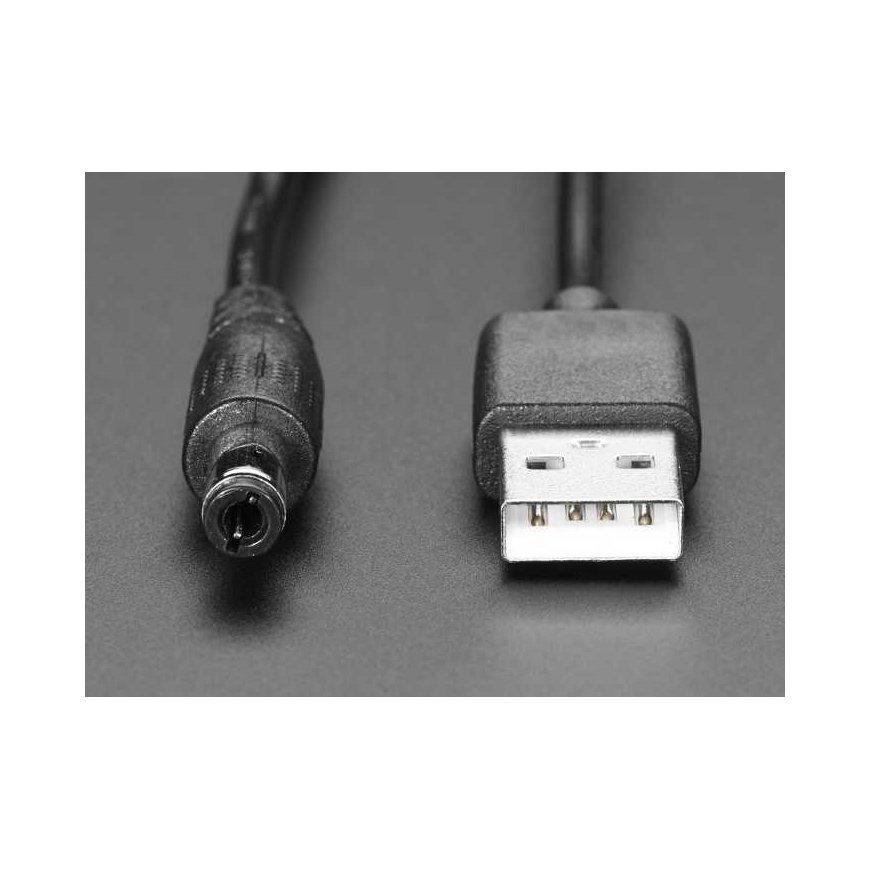

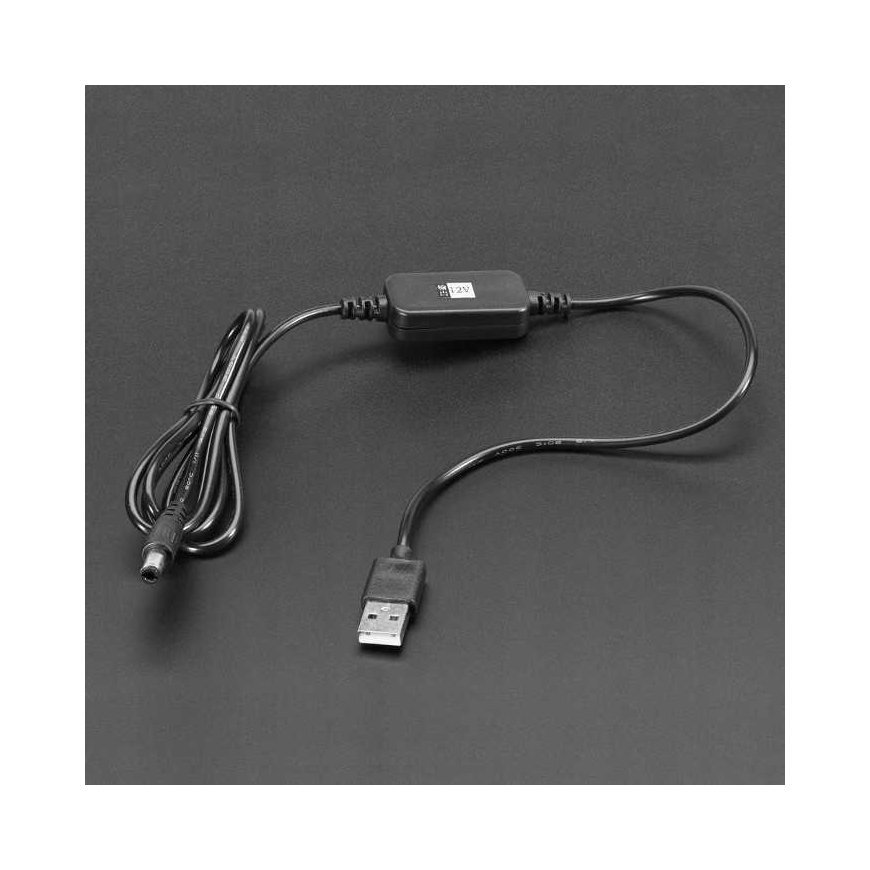

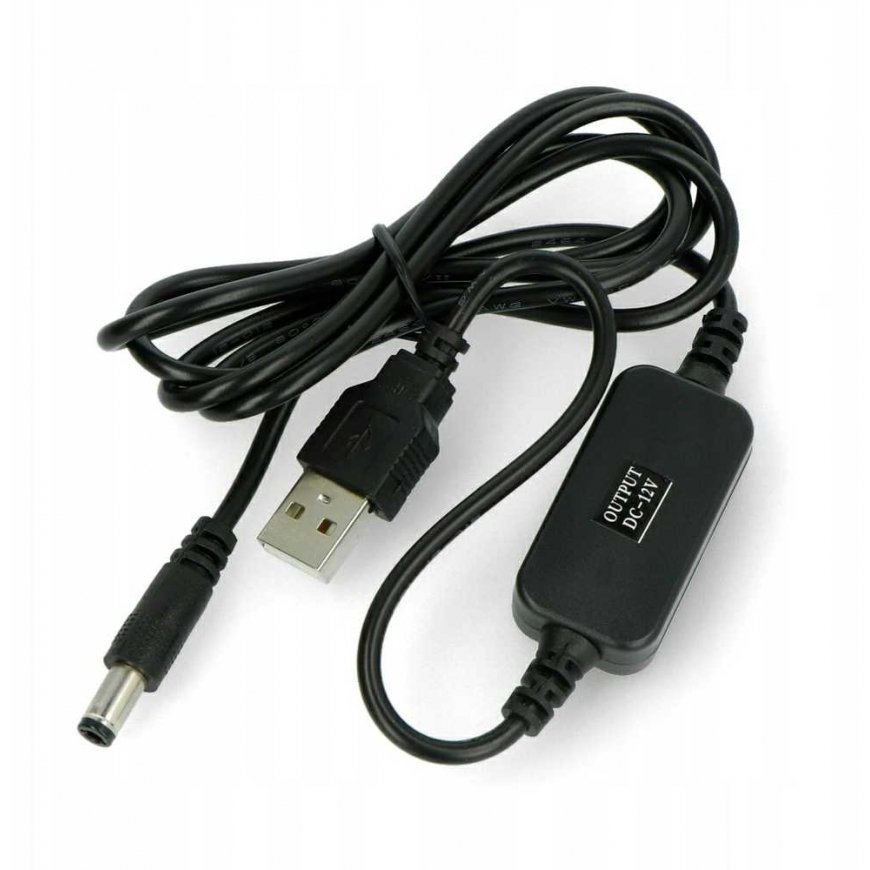

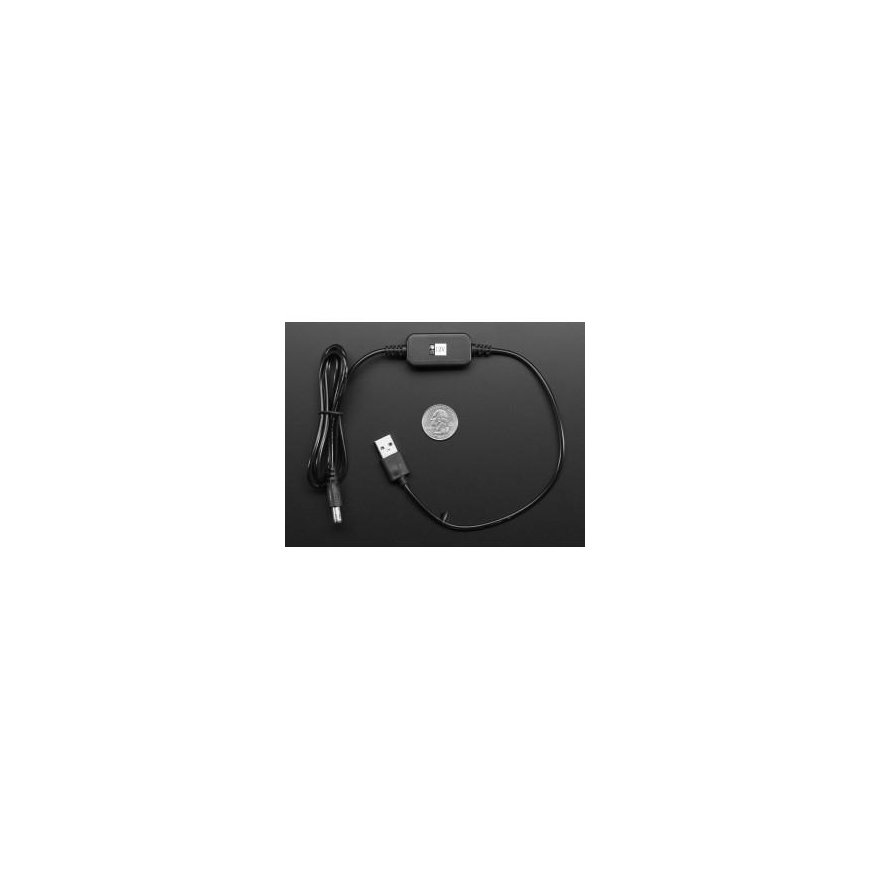

Adafruit Amplifier - Step-Up Voltage Regulator - DC 5.5/2.1mm Plug - 5-12V 0.7A
21.75 €
3555348 AN-05292
5904422348762
Shipping 11-18 b.d.
You are interested in this product?
All about the product
Cable with integrated converter that increases the voltage to 12 volts from the 5V supply voltage received from the USB port. The output connector is a 5.5 / 2.1 mm DC connector. The device can act as a UPS for devices operating on 12 volts with a current consumption of no more than 700 mA (this value depends on the input current, more details in the specifications)
Specification
- Input voltage: DC 5V
- Voltage and output current:
- 50mA (12.4V output), 150mA, 83% efficiency
- 100ma (12.4V), 290mA in, 86% efficiency
- 200ma (12.3V): 570mA in, 86% efficiency
- 300ma (12.2V): 870mA in, 84% efficiency
- 500ma (12.1V): 1500mA in, 81% efficiency
- 700ma (11.4V): 2140mA in, 75% efficiency
- Input connector: USB connector-A
- Output connector: DC 5.5/2.1mm
- Cable length: 1.2 m
