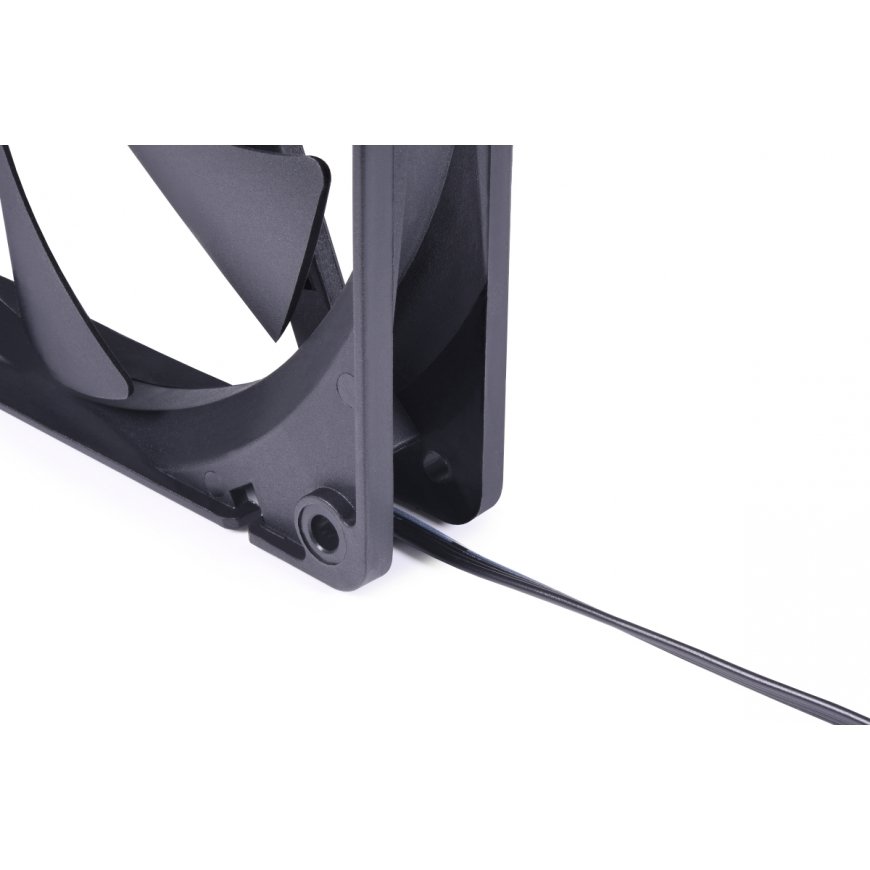

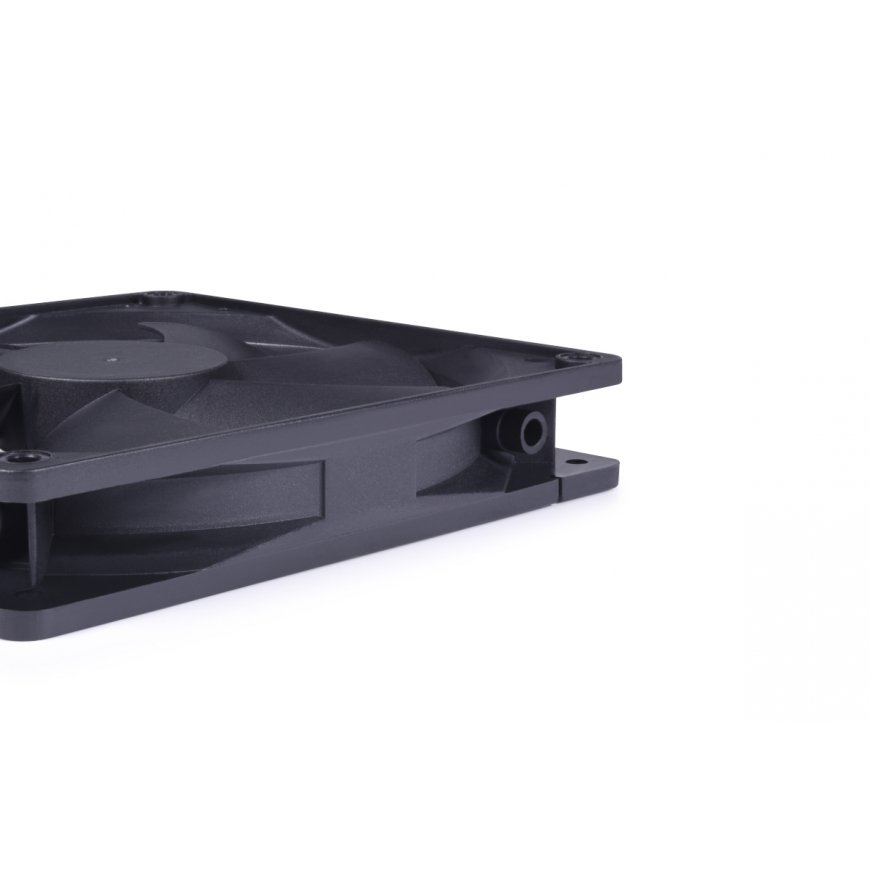

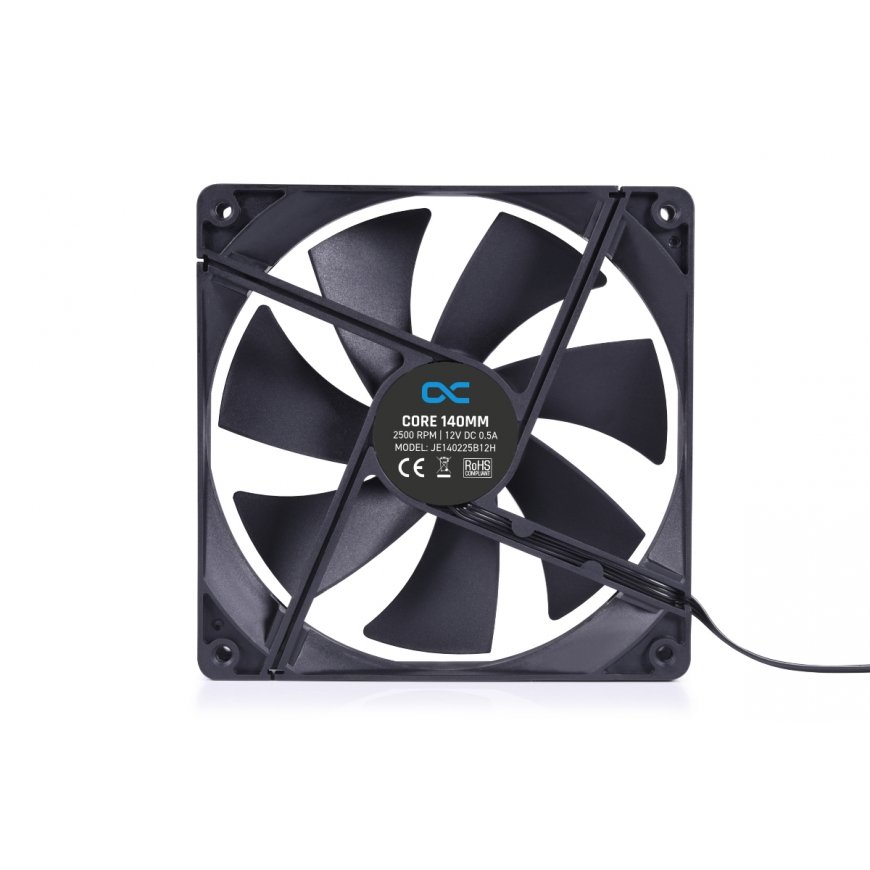

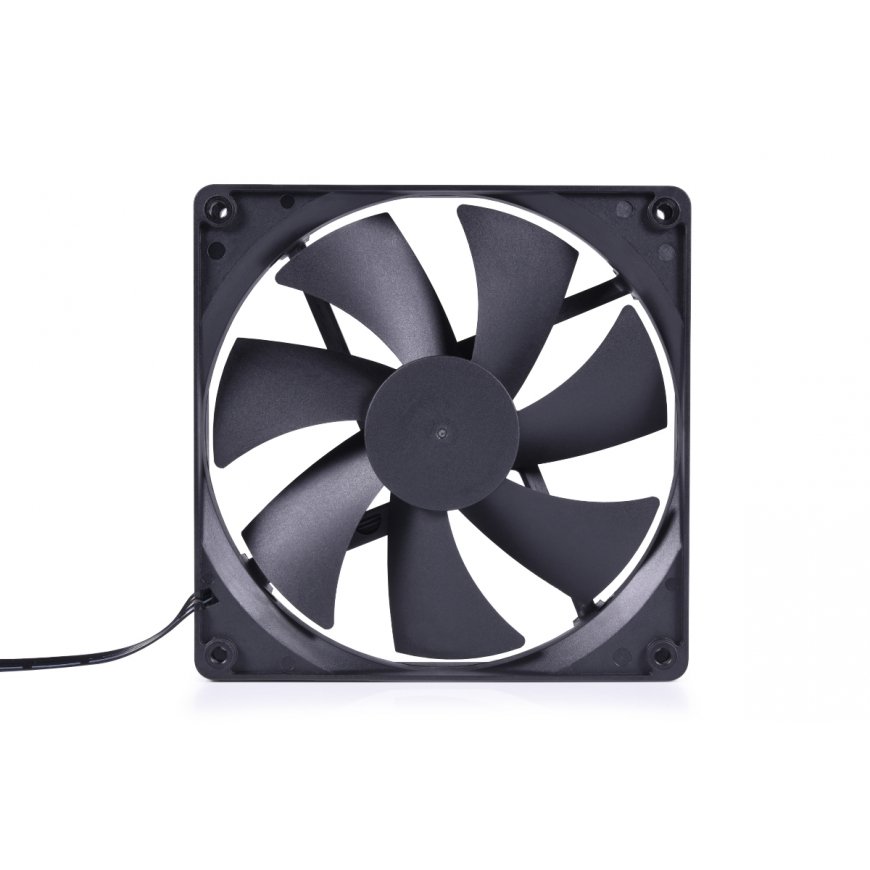

Alphacool 24846 computer cooling system Computer case Fan 14 cm Black 1 pc(s)
18.81 €
3554863 24846
4250197248464
Shipping 12-17 b.d.
You are interested in this product?
All about the product
Alphacool's Core 140mm is a quiet and efficient fan with a wide control range up to 2500 rpm. The PWM controllable fan is not only suitable as a fan on CPU coolers or radiators. Due to its excellent performance values (throughput & static pressure), it can also be used as a case fan. The double-bearing fan axis is smooth running and enables a long service life as well as quiet operation. If you are looking for a powerful fan without aRGB illumination, you will find it in Alpacool's Core 140mm model!Connections
The fan is controlled via a 4-pin PWM connector. The cable is 40cm long. This allows the fan to be connected directly to the motherboard or a dedicated controller without the use of additional adapter cables or extensions.
Control range
The fan can be controlled from 0 to 2500 rpm via the 4-pin PWM connector. At maximum speed, it allows an airflow of 115.56 CFM combined with a high static pressure of 3.96 mm/H2O. This makes the fan perfect for mounting on radiators of a water cooling system or for ventilating a case.
Performance | |
| Operating temperature (T-T) | -10 - 70 °C |
| Type | Fan |
| Fan diameter | 14 cm |
| Maximum airflow | 115.56 cfm |
| Maximum air pressure | 3.96 mmH2O |
| Noise level (low speed) | 30 dB |
| Noise level (high speed) | 49.9 dB |
| Pulse-width modulation (PWM) support | Yes |
| Rotational speed (max) | 2500 RPM |
| Bearing type | Dual ball bearing |
| Quantity per pack | 1 pc(s) |
| Suitable location | Computer case |
Design | |
| Product colour | Black |
| Number of fans | 1 fan(s) |
| Illumination LED | No |
| Fan connector | 4-pin |
Power | |
| Rated current | 0.4 A |
| Power consumption (typical) | 4.8 W |
| Maximum current | 0.5 A |
| Rated voltage | 12 V |
| Starting voltage | 7 V |
Weight & dimensions | |
| Weight | 200 g |
| Height | 140 mm |
| Width | 140 mm |
| Depth | 25 mm |
Technical details | |
| Compliance certificates | CE, RoHS |
