The product's shade and actual color may differ from what is shown in the picture, as the images are for illustrative purposes. The product description is general and may not include all the product's features.

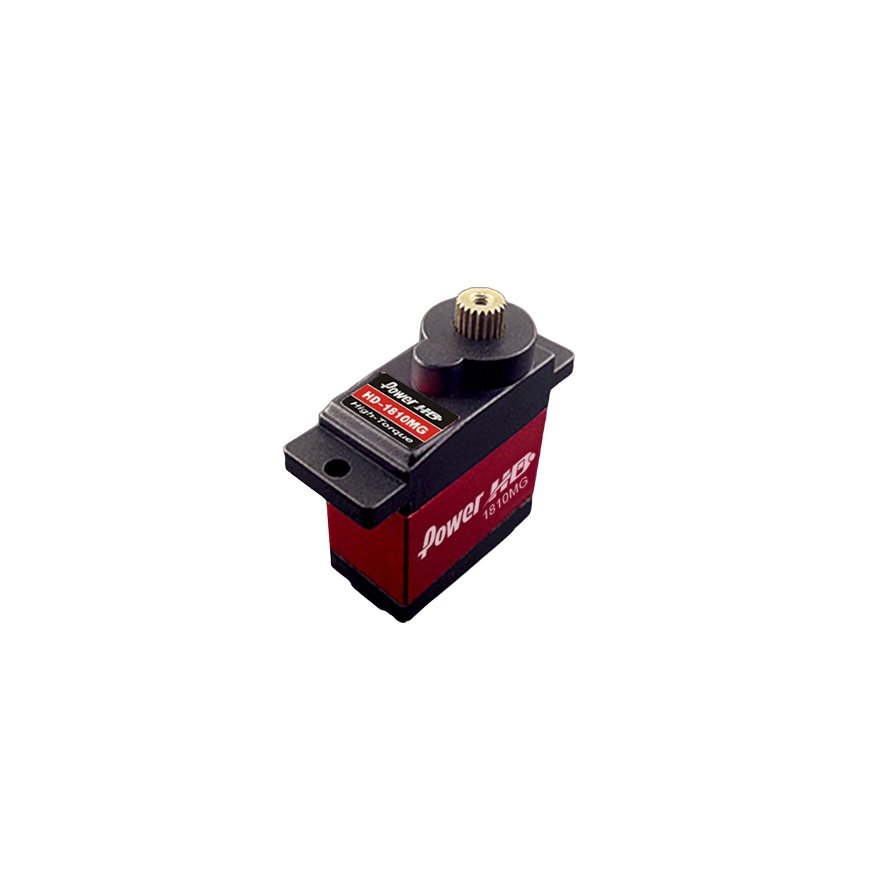

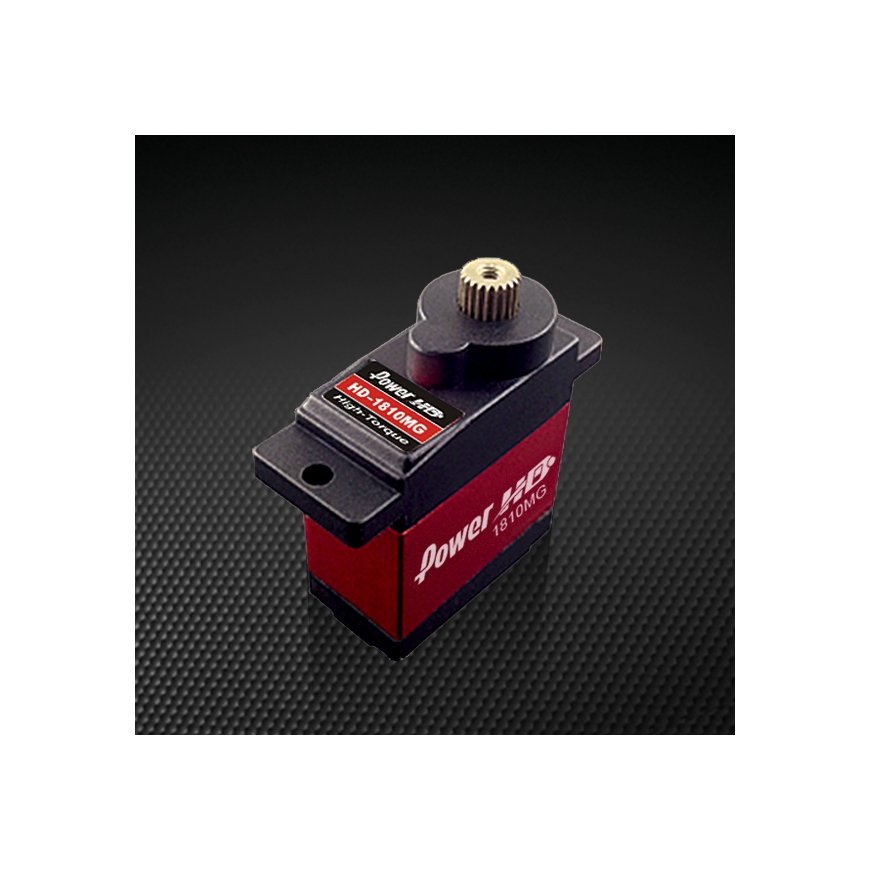

PowerHD HD-1810MG Radio-Controlled (RC) model part/accessory Servo
39.00 €
Monthly payment from 1,90 €
3554403 HD-1810MG
6939570720114
Shipping 11-18 b.d.
You are interested in this product?
All about the product
PowerHD HD-1810MG. Product type: Servo, Product colour: Black, Cherry (fruit)Features
| Product colour | Black; Cherry (fruit) |
| Weight | 15.8 g |
| Width | 22.8 mm |
| Depth | 12 mm |
| Height | 29.4 mm |
| Quantity per pack | 1 pc(s) |
| Type | Radio-Controlled (RC) Model Parts |
| Not for children 0-3 years | Yes |
| Brand compatibility | Universal |
| Compatibility | PowerHD |
| Certification | CE |
| Operating temperature (T-T) | -20 - 60 °C |
| Product type | Servo |
| Proper use | Airplane; Helicopter |
| Bearing technology | Single ball bearing |
| EU TSD warning | Not for children under 36 months |
| Voltage | 4.8 / 6 V |
| Rotating direction | Right |

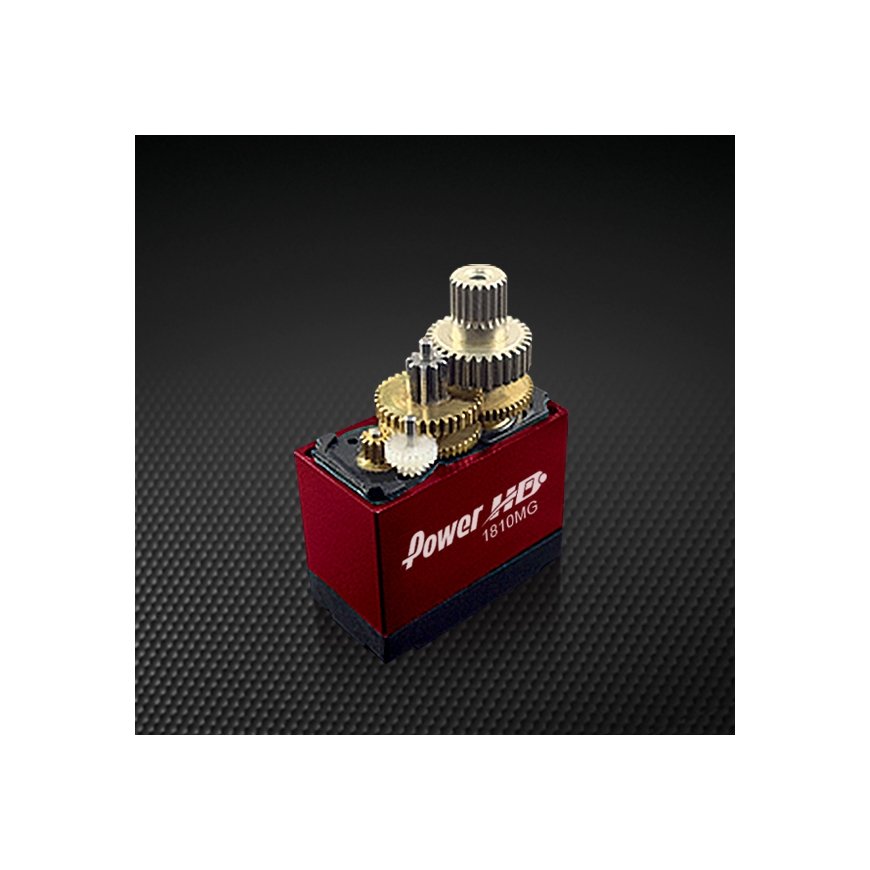

| Other features | Working frequence: 1520μs / 250Hz; Copper Gear |
| Torque (@6 V) | 3.9 kg/cm |
| Speed (@60°, 6 V) | 0.13 s |
| Torque (@4.8 V) | 3.1 kg/cm |
| Speed (@60°, 4.8 V) | 0.16 s |
| Limit angle | 220° |
| Neutral position | 1500 µs |
| Dead bandwidth | 5 µs |
| Running current (@4.8 V) | 180 mA |
| Running current (@6.0 V) | 240 mA |
| Stall current (@4.8 V) | 1200 mA |
| Stall current (@6.0 V) | 1400 mA |
| Idle current (@4.8 V) | 5 mA |
| Idle current (@6.0 V) | 5 mA |
