Seeed Studio Grove, LoRa-E5 STM32WLE5JC, EU868 / US915, LoRaWAN radio module, Seeedstudio 113020091
33.24 €
3554113 AN-19265
5904422368876
Shipping 11-18 b.d.
You are interested in this product?
All about the product

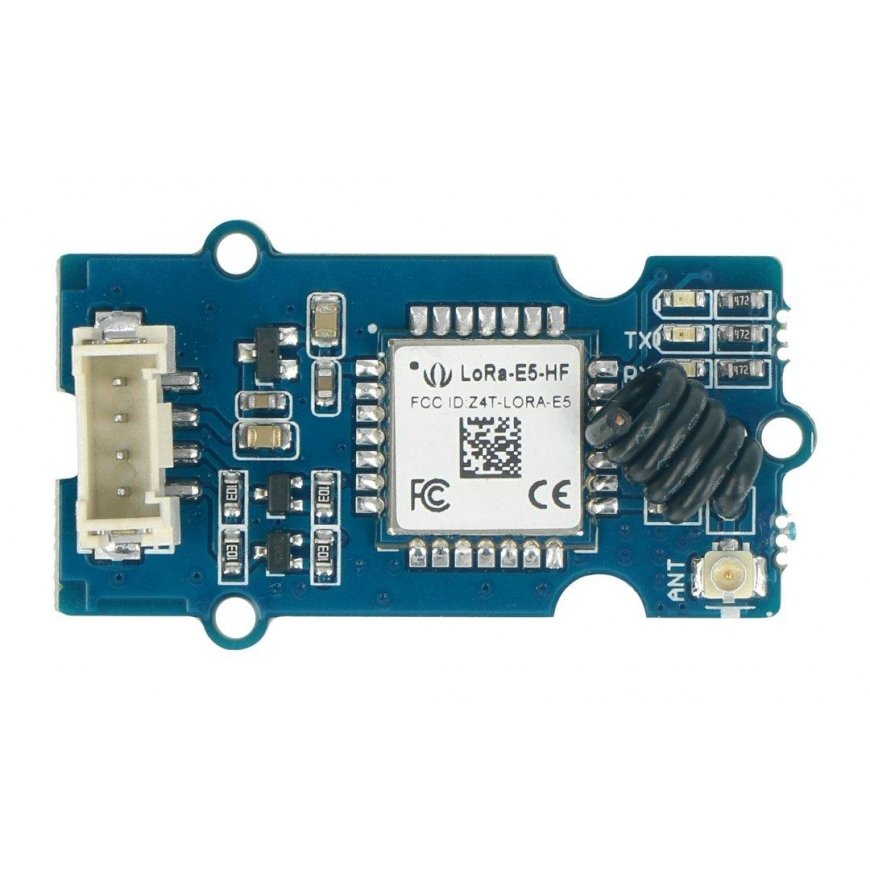

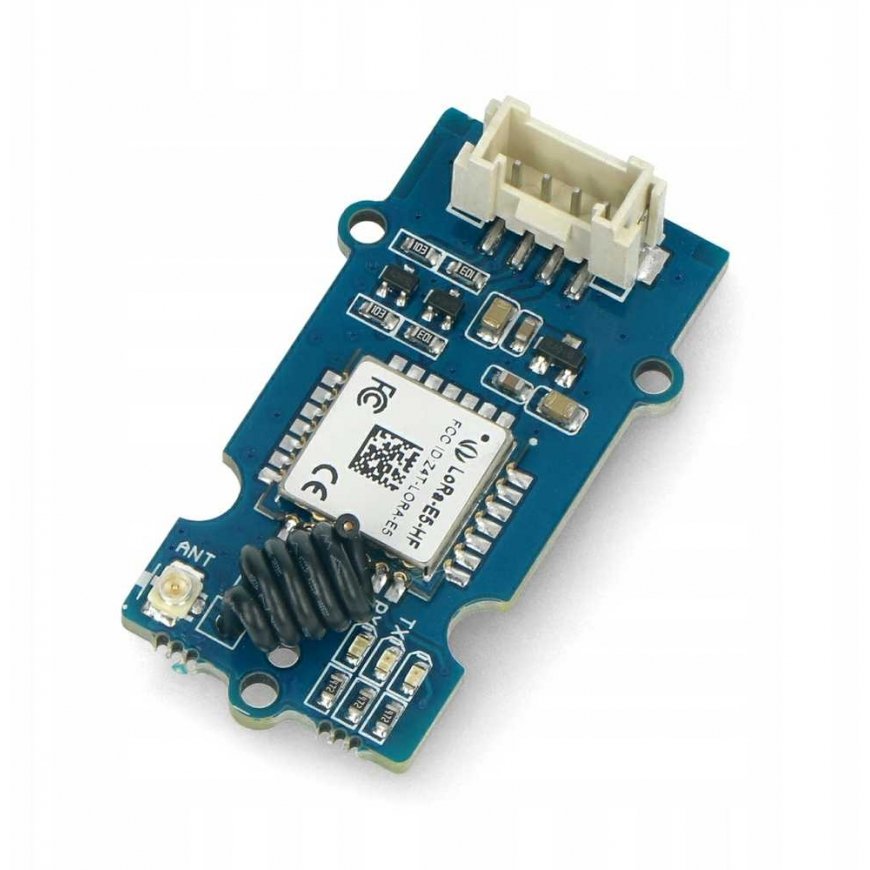

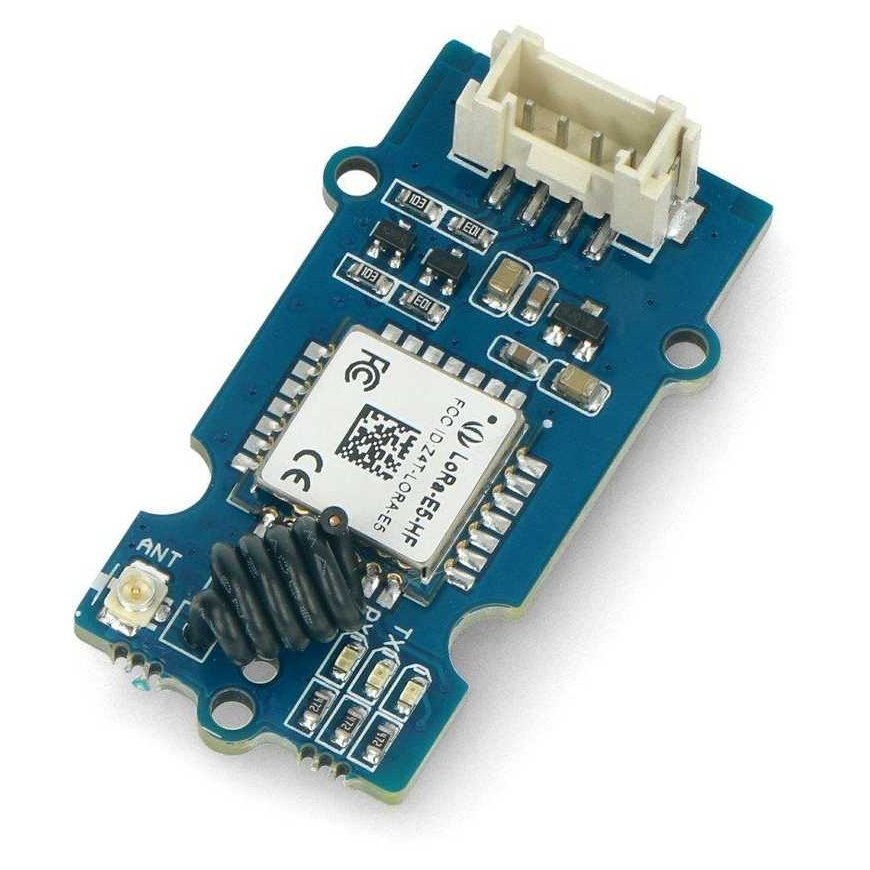

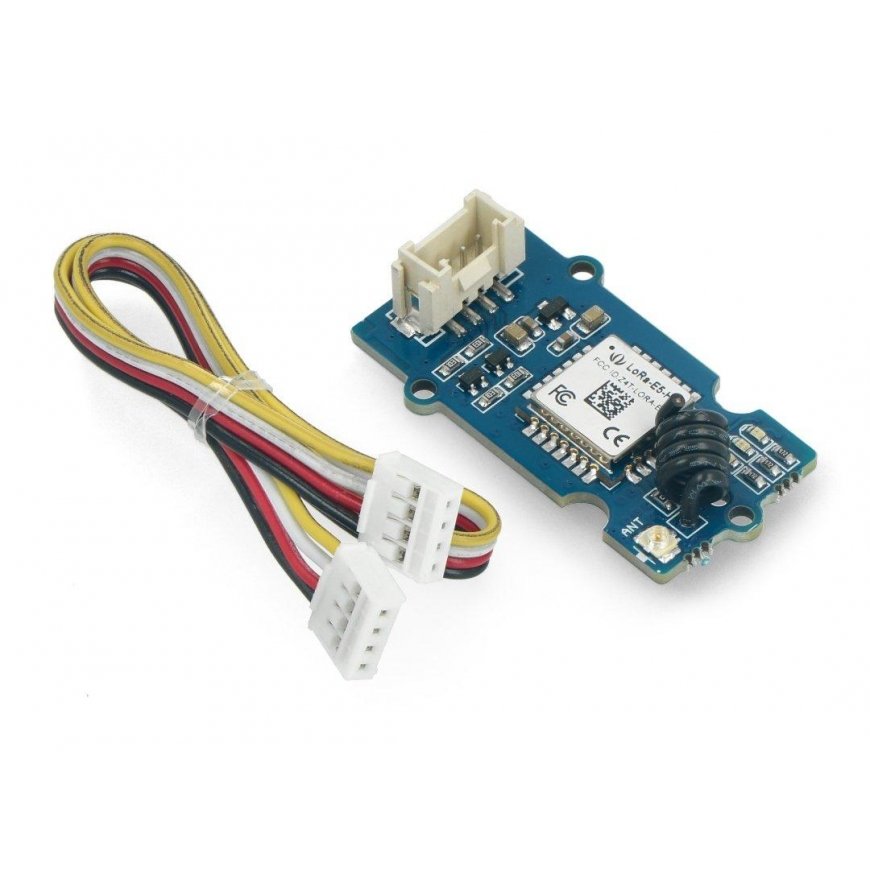

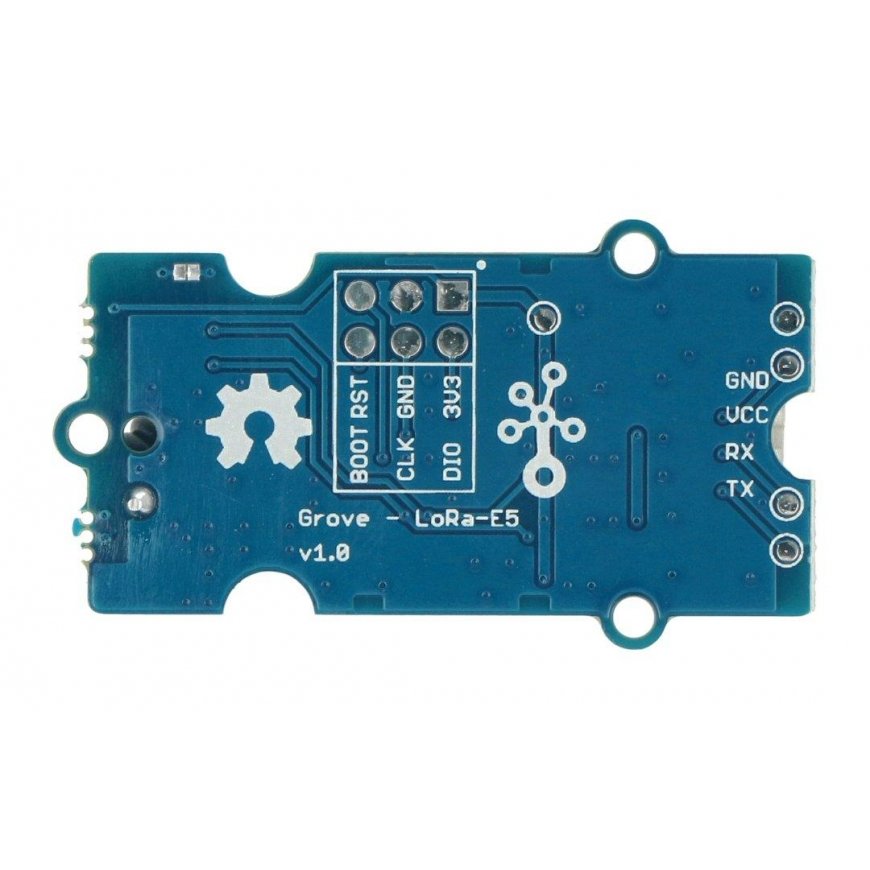

LoRa-E5 radio module with Grove connector, manufactured by Seeedstudio. It is equipped with STM32WLE5JC chip with low-power 32-bit ARM Cortex M4 processor with a clock frequency of 48 MHz. It supports LoRaWAN protocol in the EU868 / US915 frequency band. The transmission range in open space is up to 10 km. The module can be controlled using AT commands via UART communication.LoRa-E5 chip specifications:
- Processor: 32-bit ARM Cortex M4 with a clock frequency of 48 MHz
- Interfaces: 3x UART, 1x I2C, 1x ADC 12-bit, 1x SPI, 6x GPIO
- Circuit sensitivity: -116.5 dBm (SF5), -121.5 dBm (SF7), -136 dBm (SF12)
- Modulation: LoRa, (G) FSK, (G) MSK, BPSK
- Certificate: FCC, CE
- Supply voltage: 1.8 V to 3.6 V
- Type: radio module
- Supply voltage: 3.3V to 5V
- Connector: standard Grove
- Output power: up to 20 dBm at 3.3 V
- Operating frequency: 868 MHz / 915 MHz
- Communication protocol: LoRaWAN
- Antenna connector: IPEX MHF
- Antenna type: external
- Sensitivity from -116.5 dBm to 136 dBm
- Modulation type: LoRa, (G) FSK, (G) MSK and BPSK
- Operating temperature: -40°C to 85°C
- Module dimensions: 20 x 40 mm
