PiMoroni, Audio Dac Shim, audio output I2S
30.33 €
3551049 AN-18912
0769894017074
Shipping 11-18 b.d.
You are interested in this product?
All about the product

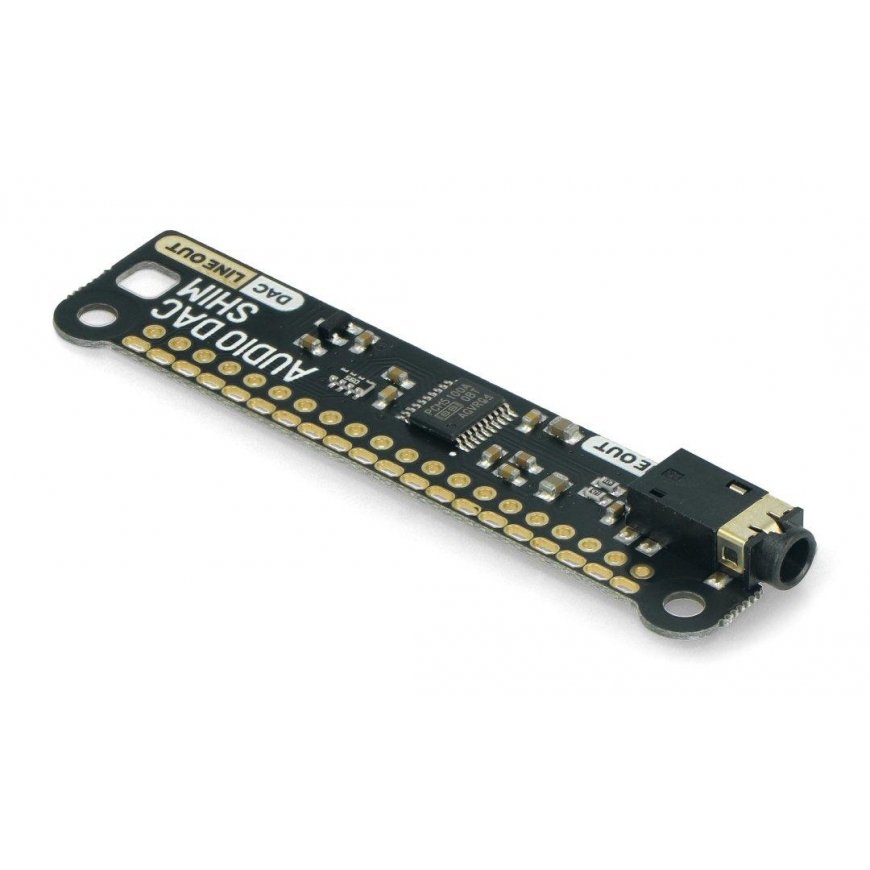

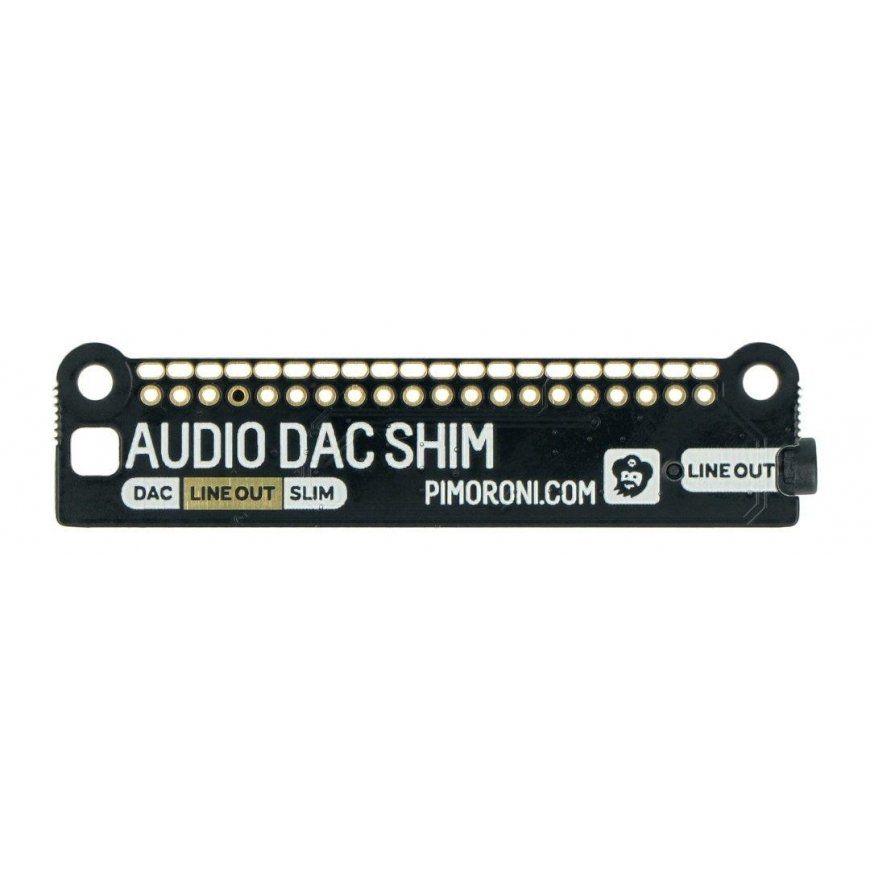

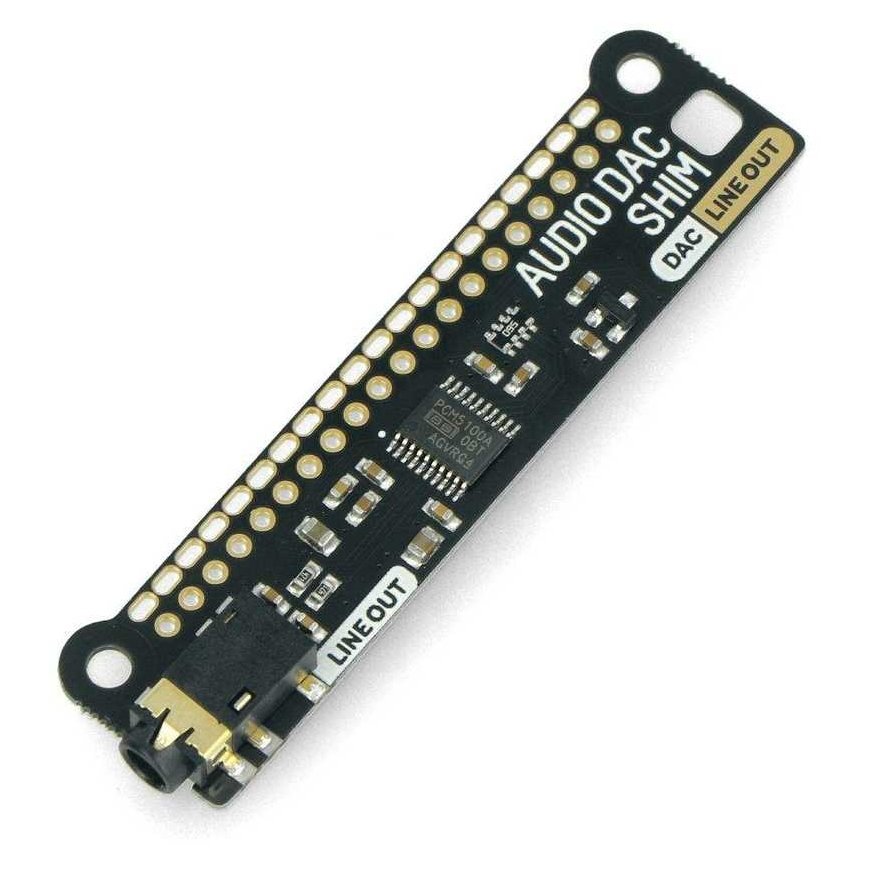

Audio Dac Shim is a Raspberry Pi-based DAC chip. It takes high-quality digital audio from the Raspberry Pi and outputs clear 24-bit/192kHz linear stereo sound via a 3.5mm jack. The DAC uses the I2S bus to interface with the Raspberry Pi. The product is compatible with all versions of the Raspberry Pi that have a 40-pin GPIO connector. The DAC does not require soldering when installing, and can be removed from the microcomputer at any time if necessary. The Audio Dac Shim can be placed in a Raspberry Pi case due to its small size. This product is a convenient way to add audio output to the Raspberry Pi Zero or Raspberry Pi 400.Specifications:
- Integrated DAC chip: PCM5100A
- Linear audio output: 24-bit/192 kHz
- Interface: I2S
- 3.5mm stereo jack
- SHIM format board with plug-in connectors
- Two M 2.5 mounting holes
- No soldering required
- Compatible with all Raspberry Pi models with a 40-pin GPIO connector
- Dimensions (with socket): 66.5 x 16.2 x 5.2 mm
