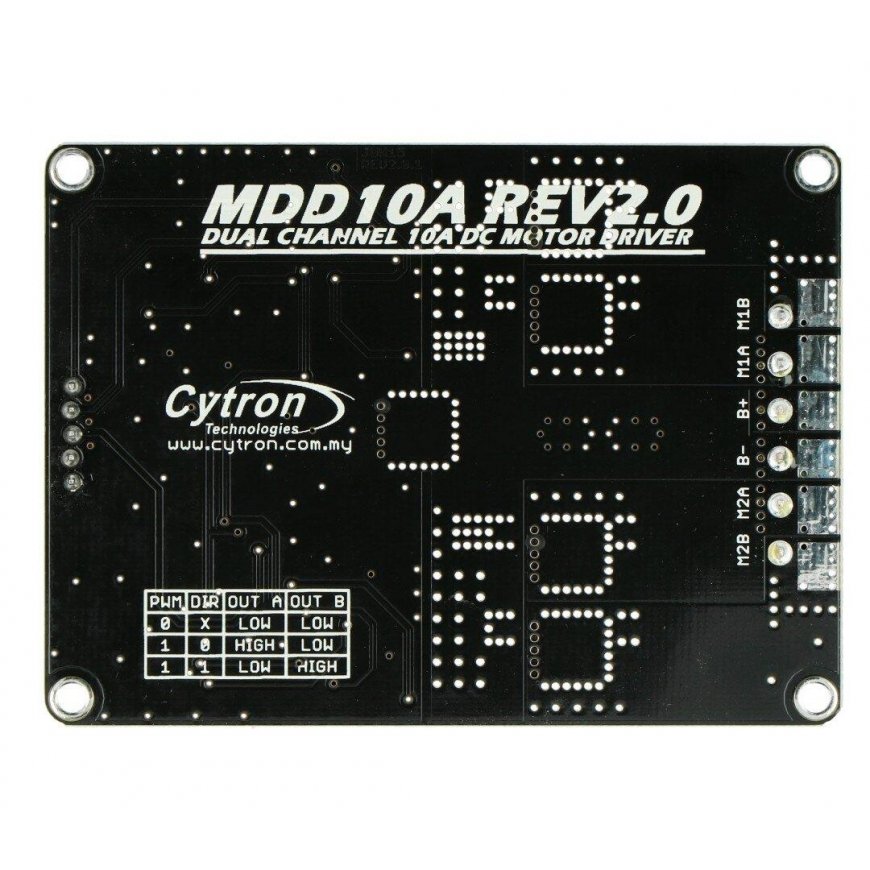

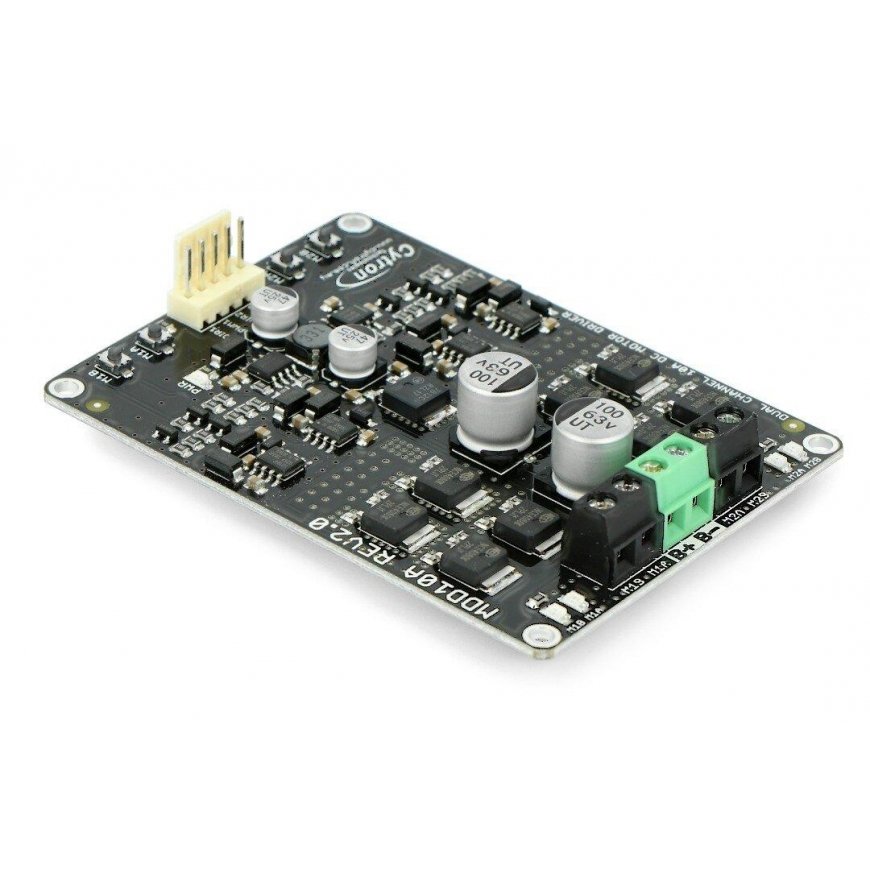

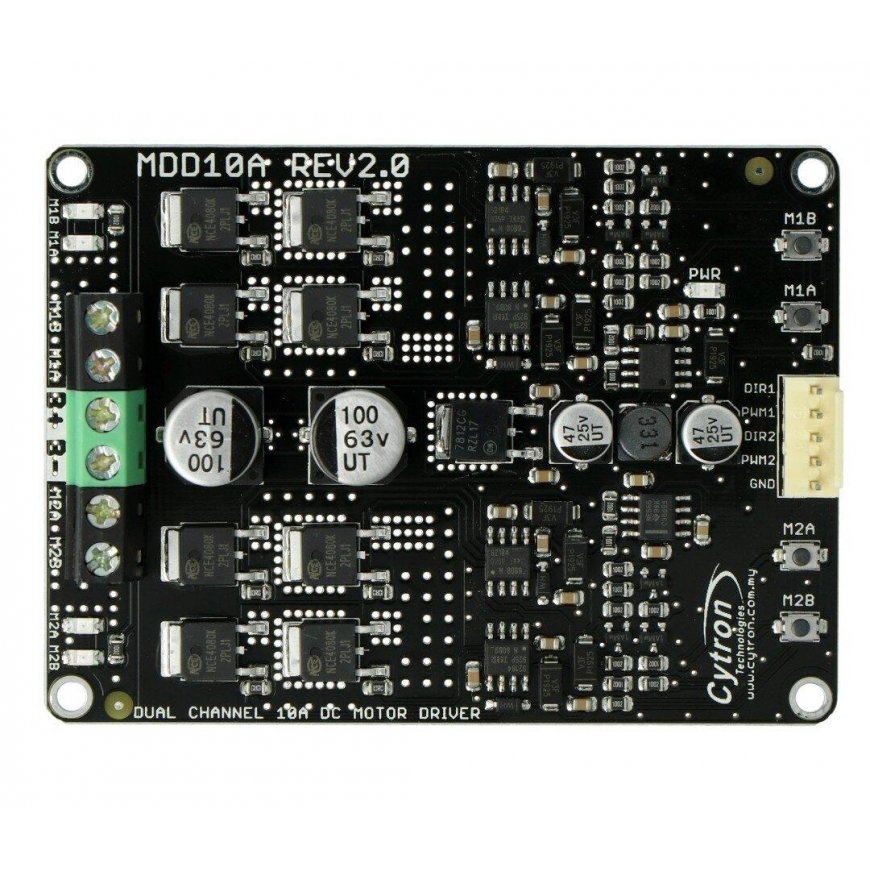

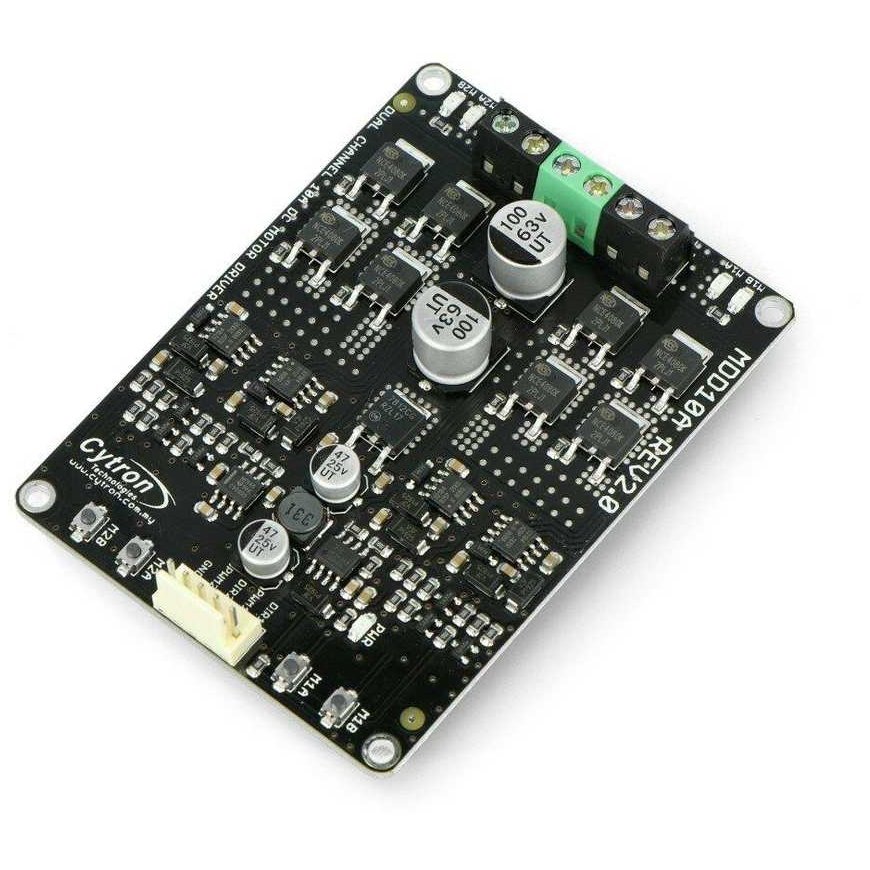

Cytron MDD10A - two-channel 30V/10A motor controller
39.13 €
Monthly payment from 1,91 €
3550533 AN-15818
5904422350444
Shipping 7-9 b.d.
You are interested in this product?
All about the product
Two-channel DC motor controller. The continuous current of one channel is 10 A (instantaneous 30 A). The supply voltage is from 5 V to 30 V. The controller operates with 3.3 V and 5 V logic voltages (PWM and DIR), so it can be controlled by any microcontroller, such as Arduino or Raspberry.Specifications:
- Supply voltage: 5 V to 30 V
- Logic voltage: 3.3 V or 5 V
- Current per channel: 10 A (30 A torque)
- Number of channels: 2
- Full NMOS H-bridge for better performance without heatsinks
- PWM speed control frequency up to 20 kHz
- 2 buttons for quick system testing
- Dimensions: 84.5 x 62 mm
- Weight: 33.5 g
