Fermion - SHTC3 I2C temperature and humidity sensor - DFRobot SEN0414
20.41 €
3549232 AN-20677
5904422382193
Shipping 11-18 b.d.
You are interested in this product?
All about the product

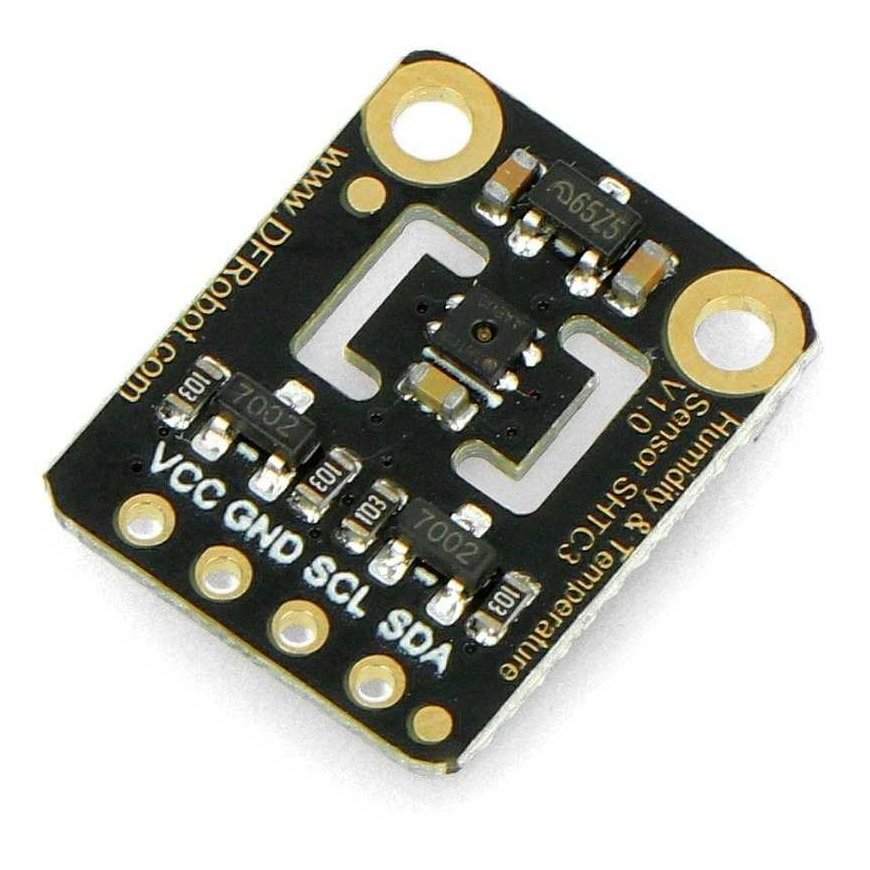

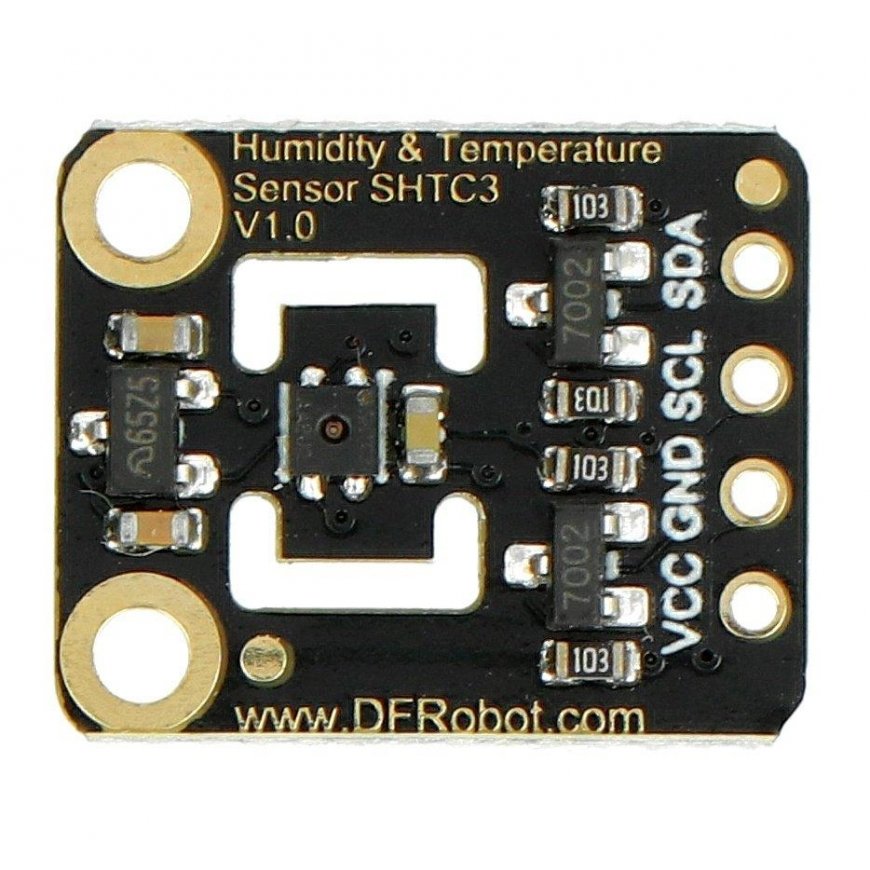

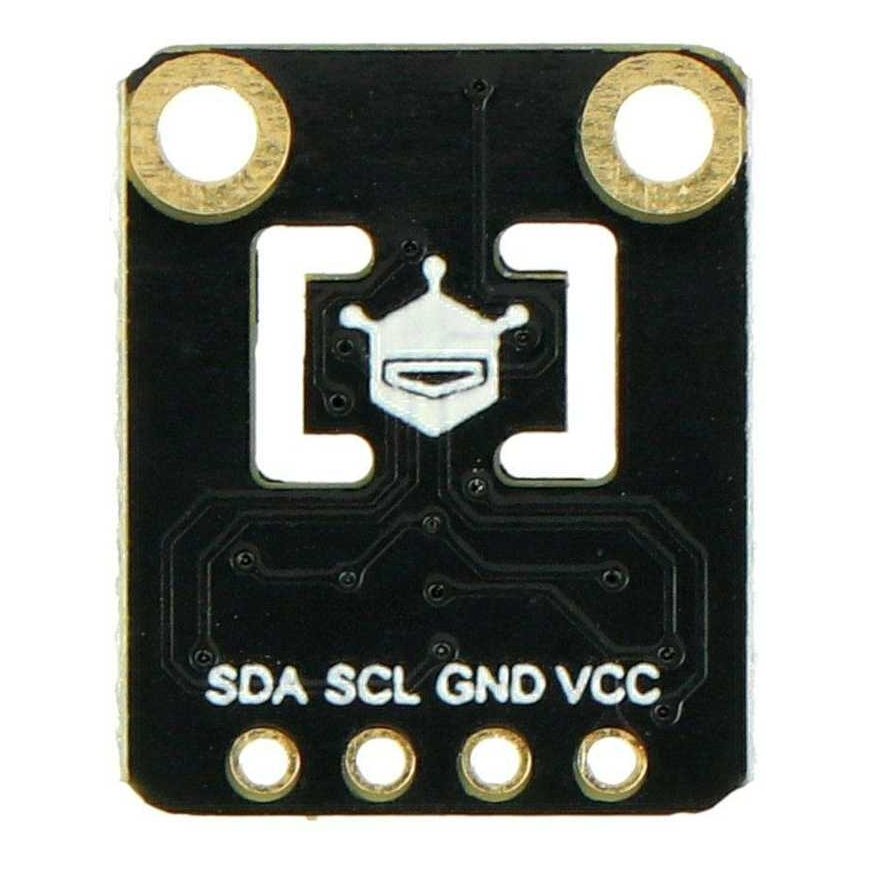

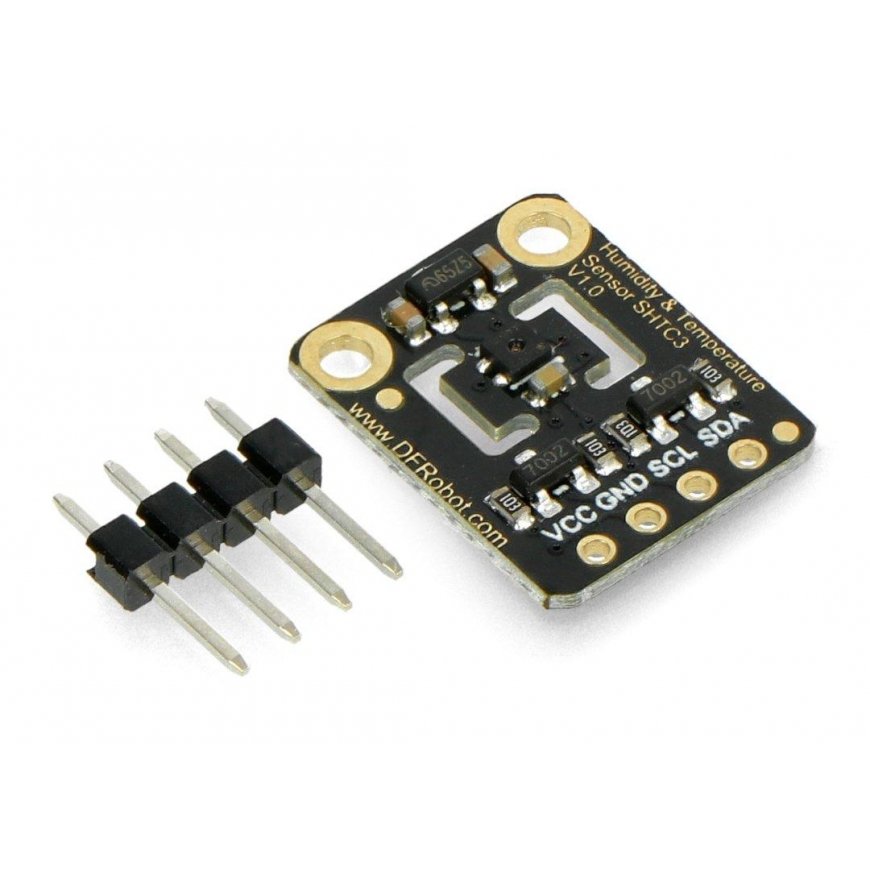

SHTC3 temperature and humidity sensor on the Fermion series DFRobot board. The SHTC3 can measure humidity from 0% to 100% RH with an accuracy of ± 2% and temperature from -40 °C to 125 °C with an accuracy of ± 0.2 °C. The module uses an I2C interface. The board is powered from 3.3 V to 5 V and consumes less than 0.15 mA in low-power mode, making it ideal for mobile and wireless devices powered by batteries.Main features:
- Temperature and humidity measurement
- High accuracy
- Low power mode
- I2C interface
- Small dimensions
- Fast response time
- Supply voltage: 3.3V to 5V
- Current consumption: 0.45 mA
- Interface: I2C
- Humidity measurement range: 0% to 100% RH
- Humidity measurement accuracy: ± 2% RH
- Temperature measurement range: -40 °C to 125 °C
- Temperature measurement accuracy: ± 0.2 °C
- Response time: 8s
- Mounting hole diameter: M2 (2 mm)
- Mounting hole spacing: 10 mm
- Dimensions: 14 x 17 mm
