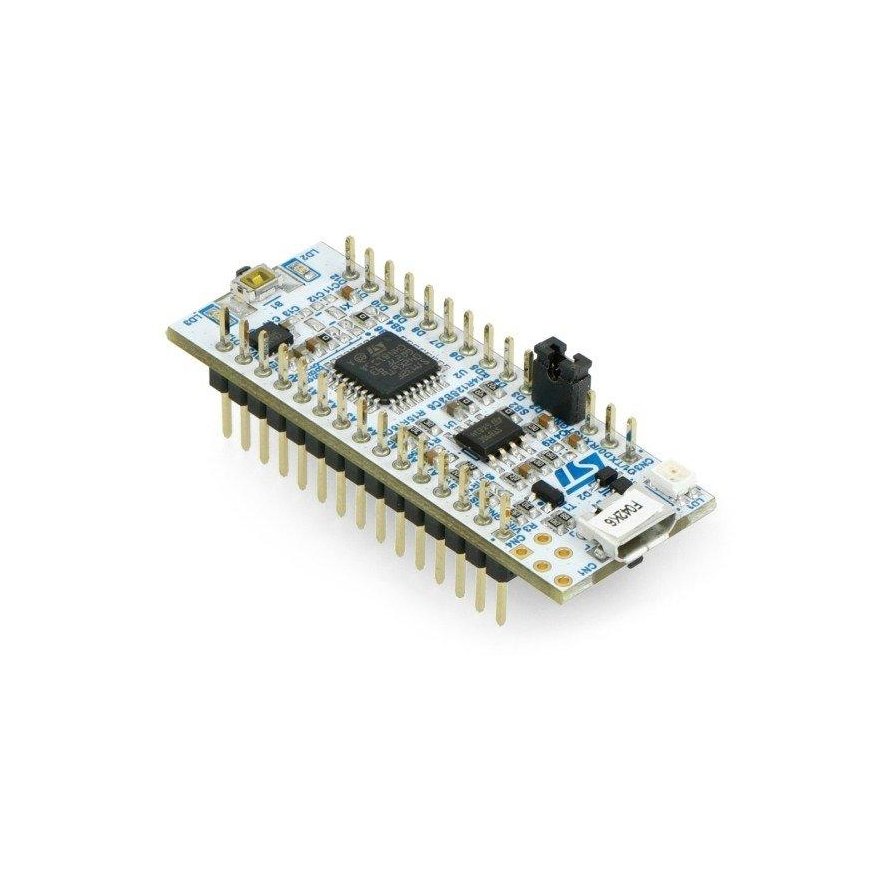

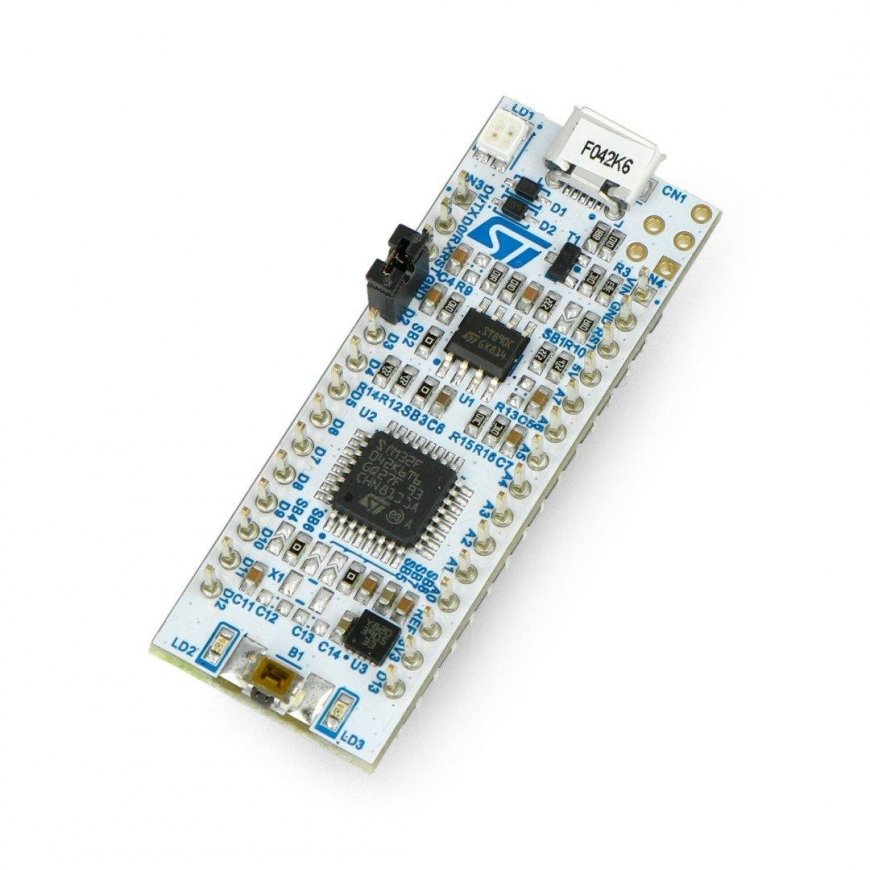

Stmicroelectronics STM32 NUCLEO-F042K6 - STM32F042K6 ARM Cortex M0
49.00 €
Monthly payment from 2,16 €
3548593 AN-04890
5904422364908
Shipping 11-18 b.d.
You are interested in this product?
All about the product
Small module with 32-bit microcontroller with ARM Cortex M0, 48 MHz, 32 KB Flash, 6 KB SRAM. Nucleo is compatible with the mbed platform. Pins are compatible with Arduino Nano.Specifications:
- Microcontroller STM32F042K6T6:
- Core: Cortex M0
- Clock frequency 48 MHz
- 32KB Flash
- 6KB SRAM
- Interfaces: I2C, SPI, i2S, CAN, 2 x USART
- The module is compatible with the mbed system (mbed.org)
- The ST-Link/V2 debugger is placed on the board with the ability to work as a standalone device with SWD output
- The system is powered by a voltage of 2 V to 3.6 V
- The board also contains:
- Three LEDs (one user-accessible)
- Reset button
- Micro-AB USB connector
- Gold pins for I/O ports
