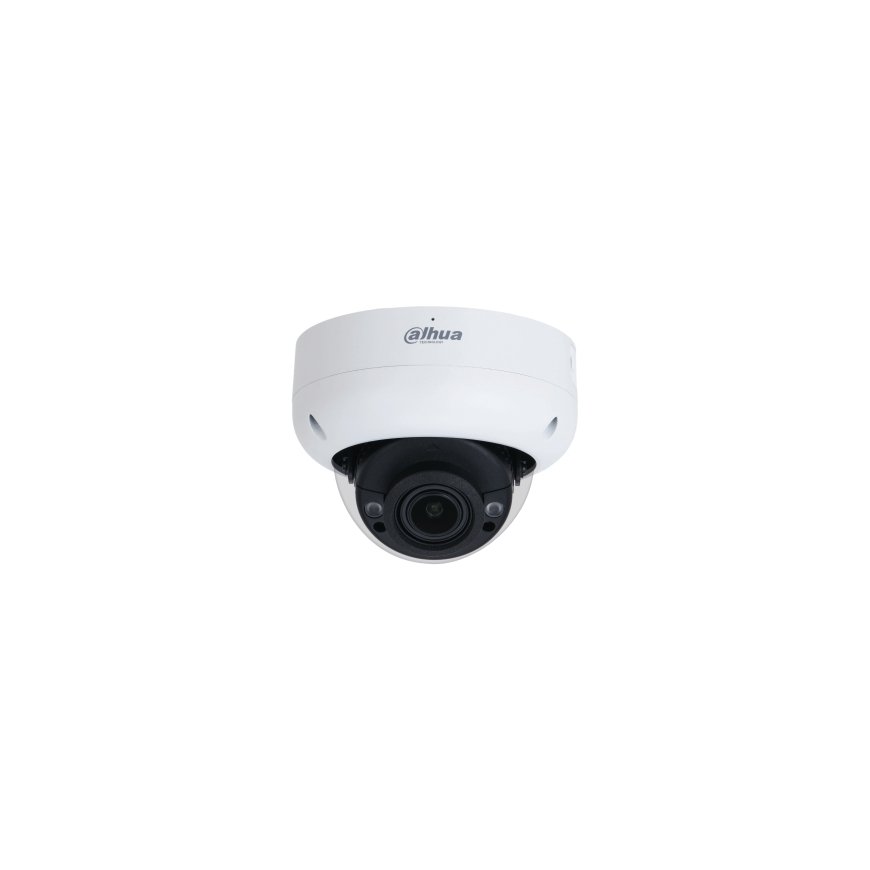

Dahua Technology IPC DH- -HDBW3841R-ZS-S2 security camera Dome IP security camera Indoor & outdoor 3840 x 2160 pixels Ceiling
292.00 €
Monthly payment from 8,42 €
3543870 DH-IPC-HDBW3841R-ZS-S2
6923172542366, 8435280914327
Shipping 1-2 days
You are interested in this product?
All about the product
Launched by Dahua Technology, WizSense is a series of AI products and solutions that adopt independent AI chip and deep learning algorithm. It focuses on human and vehicle with high accuracy, enabling users to fast act on defined targets. Based on Dahua's advanced technologies,WizSense provides intelligent, simple and inclusive products and solutions.

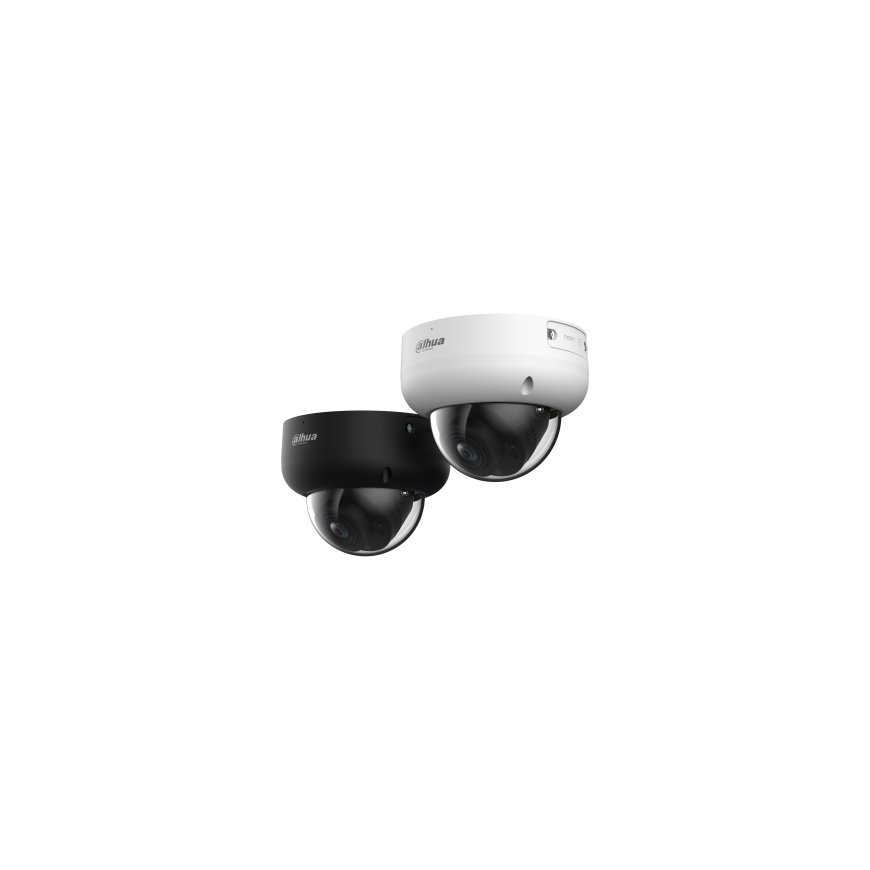

Series Overview
Dahua WizSense 3 Series Network Camera greatly saves on bandwidth and storage space through its AI Coding technology. Driven by its advanced deep learning algorithms, the camera supports intelligent functions such as perimeter protection, smart motion detection (SMD), Quick Pick, and AI SSA (AI Scene Self-adaptation), making it easy and convenient to use. Starlight technology and its large aperture lens also allow the camera to produce clear, vivid images even in poor lighting
conditions.
SMD 4.0
Dahua Smart Motion Detection technology works with intelligent algorithms to classify targets that trigger motion detection alarms. It filters out objects that are not targets, such as small and large animals, to avoid triggering false alarms. With an AI NVR, Quick Pick technology becomes available, allowing you to easily search for and pick out human and vehicle targets from SMD event videos, prioritizing the highest matches.
AI SSA
Dahua AI Scene Self-adaptation (AI SSA) adopts deep learning algorithms to detect environmental conditions, such as rain, fog, backlight, low light and flicker, to adjust the parameters of the image to
suit the conditions, ensuring that clear images are always produced.
Smart H.265+ & Smart H.264+
With advanced scene-adaptive rate control algorithm, Dahua smart encoding technology realizes the higher encoding efficiency than H.265 and H.264, provides high-quality video, and reduces the cost of storage and transmission
Perimeter Protection
With deep learning algorithm, Dahua Perimeter Protection technology can recognize human and vehicle accurately. In restricted area (such as pedestrian area and vehicle area), the false alarms of intelligent detection based on target type (such as tripwire, intrusion) are largely reduced.
Protection (IP67, IK10, Wide Voltage)
IP67: The camera passes a series of strict test on dust and soak. It has dust-proof function, and the enclosure can works normal after soaking in 1 m deep water for 30 minutes. IK10: The enclosure can stand the punch more than 5 times from a 5 kg hammer falling from a height of 40 cm (Impact energy is 20J). Wide voltage: The camera allows ±30% (for some power supplies) input voltage tolerance (wide voltage range), and it is widely applied to outdoor environment with instable voltage.
Cyber Security
Dahua network cameras employ a series of security technologies, including security authentication and authorization, access control protocols, trusted protection, encrypted transmission and encrypted storage. These technologies improve the camera's defense against external cyber threats and prevent malicious programs from comprising the device.
Features
| Wi-Fi | No |
| Bluetooth | No |
| Product colour | Multicolour |
| Form factor | Dome |
| International Protection (IP) code | IP67 |
| Weight | 713 g |
| Height | 94 mm |
| Type | IP security camera |
| Maximum resolution | 3840 x 2160 pixels |
| Connectivity technology | Wired |
| Operating temperature (T-T) | -30 - 60 °C |
| Storage temperature (T-T) | -40 - 60 °C |
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Networking standards | IEEE 802.1x |
| LED indicators | Yes |
| Housing material | Metal |
| Ethernet interface type | Gigabit Ethernet |
| Noise reduction | Yes |
| Protection features | Vandal proof |
| Mounting type | Ceiling |
| Power source type | DC; PoE |
| Power consumption (max) | 9.2 W |
| Angle of rotation | 355° |
| Placement supported | Indoor & outdoor |
| Tilt angle range | 0 - 80° |
| Video formats supported | H.264+; H.265+ |
| Supported network protocols | IPv4; IPv6; HTTP;TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP |
| Wide Dynamic Range (WDR) | Yes |
| Day/night mode | Yes |
| IK code | IK10 |
| Fog proof | Yes |
| Camera shutter speed | 1/3 s–1/100,000 |
| Sensor type | CMOS |
| Optical sensor size | 25.4 / 2.8 mm (1 / 2.8") |
| Video compression formats | H.264; H.265; H.264B; H.264H |
| Built-in HDD | No |
| Detection distance | 50 m |
| DC output current | 12 A |
| Diameter | 12.2 cm |
| Number of cameras | 1 |
| Mirror | Yes |
| Internal memory | 1000 MB |
| White balance | Auto; Manual; Outdoor; Custom modes; Natural; Street lamp |
| Gain control type | Auto |
| Pan range | 0 - 355° |
| Total megapixels | 8 MP |
| Camera shutter type | Mechanical |
| Weatherproof | Yes |
| Night vision | Yes |
| Dynamic range | 120 dB |
| Camera tilt control | No |
| Number of sensors | 1 |
| Number of lenses | 1 |
| Alarm input/output | Yes |
| Progressive scan | Yes |
| Power consumption (Power over Ethernet (PoE)) | 10.5 W |
| Bit rate control | Constant Bit Rate (CBR)/Variable Bit Rate (VBR) |
| Back Light Compensation (BLC) | Yes |
| Highlight Compensation (HLC) | Yes |
| Region of Interest (ROI) encoding | Yes |
| ROM capacity | 128 MB |
| Noise reduction technology | 3D noise reduction |
| Adjustment shutter speed | Auto/Manual |
| Number of effective pixels (H x V) | 3840 x 2160 pixels |
| Lens viewing angle, diagonal | 131 - 35° |
| Lens viewing angle, horizontal | 109 - 30° |
| Lens viewing angle, vertical | 56 - 17° |
| Minimum illumination (panoramic camera) | 0.0007 lx |
| Signal-to-Noise Ratio (SNR) (panoramic camera) | 56 dB |
| Number of Privacy masking areas (panoramic camera) | 4 |
Performance | |
| Connectivity technology | Wired |
| Wide Dynamic Range (WDR) | Yes |
| Day/night mode | Yes |
| Alarm input/output | Yes |
| Placement supported | Indoor & outdoor |
| Type | IP security camera |
| Dynamic range | 120 dB |
Design | |
| Housing material | Metal |
| Mounting type | Ceiling |
| International Protection (IP) code | IP67 |
| Protection features | Vandal proof |
| LED indicators | Yes |
| Product colour | Multicolour |
| Form factor | Dome |
| Weatherproof | Yes |
| IK code | IK10 |
| Fog proof | Yes |
Camera | |
| Camera shutter speed | 1/3 s–1/100,000 |
| Tilt angle range | 0 - 80° |
| Pan range | 0 - 355° |
| Angle of rotation | 355° |
| White balance | Auto, Manual, Outdoor, Custom modes, Natural, Street lamp |
| Camera shutter type | Mechanical |
| Adjustment shutter speed | Auto/Manual |
| Camera tilt control | No |
| Lens viewing angle, horizontal | 109 - 30° |
| Lens viewing angle, vertical | 56 - 17° |
| Lens viewing angle, diagonal | 131 - 35° |
Image sensor | |
| Sensor type | CMOS |
| Optical sensor size | 25.4 / 2.8 mm (1 / 2.8") |
| Progressive scan | Yes |
| Number of effective pixels (H x V) | 3840 x 2160 pixels |
| Number of sensors | 1 |
Lens system | |
| Number of lenses | 1 |
Video | |
| Maximum resolution | 3840 x 2160 pixels |
| Video formats supported | H.264+, H.265+ |
| Video compression formats | H.264, H.265, H.264B, H.264H |
| Noise reduction | Yes |
| Bit rate control | Constant Bit Rate (CBR)/Variable Bit Rate (VBR) |
| Back Light Compensation (BLC) | Yes |
| Highlight Compensation (HLC) | Yes |
| Region of Interest (ROI) encoding | Yes |
| Gain control type | Auto |
| Noise reduction technology | 3D noise reduction |
| Total megapixels | 8 MP |
Network | |
| Wi-Fi | No |
| Supported network protocols | IPv4; IPv6; HTTP;TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP |
| Ethernet LAN | Yes |
| Ethernet interface type | Gigabit Ethernet |
| Networking standards | IEEE 802.1x |
| Bluetooth | No |
Storage | |
| Internal memory | 1000 MB |
| Built-in HDD | No |
| ROM capacity | 128 MB |
Ports & interfaces | |
| Ethernet LAN (RJ-45) ports | 1 |
Security | |
| Detection distance | 50 m |
| Mirror | Yes |
Power | |
| DC output current | 12 A |
| Power consumption (max) | 9.2 W |
| Power consumption (Power over Ethernet (PoE)) | 10.5 W |
| Power source type | DC, PoE |
Operational conditions | |
| Operating temperature (T-T) | -30 - 60 °C |
| Storage temperature (T-T) | -40 - 60 °C |
Weight & dimensions | |
| Weight | 713 g |
| Height | 94 mm |
| Diameter | 12.2 cm |
Packaging content | |
| Number of cameras | 1 |
Night vision | |
| Night vision | Yes |
Panoramic camera | |
| Minimum illumination (panoramic camera) | 0.0007 lx |
| Signal-to-Noise Ratio (SNR) (panoramic camera) | 56 dB |
| Number of Privacy masking areas (panoramic camera) | 4 |
