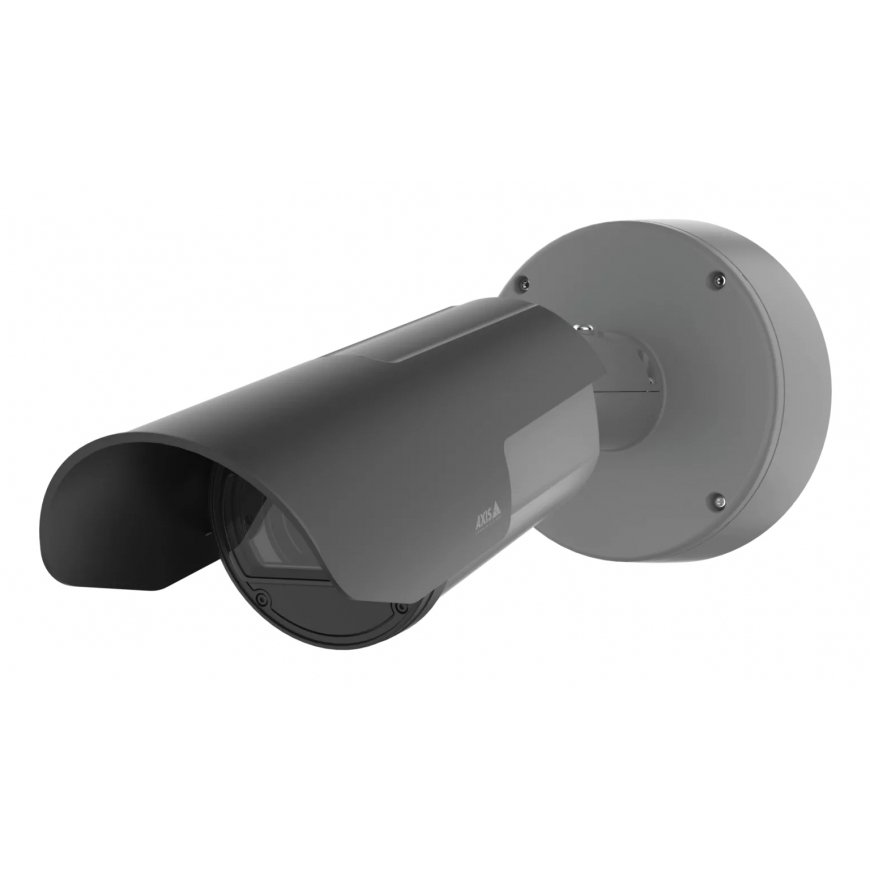

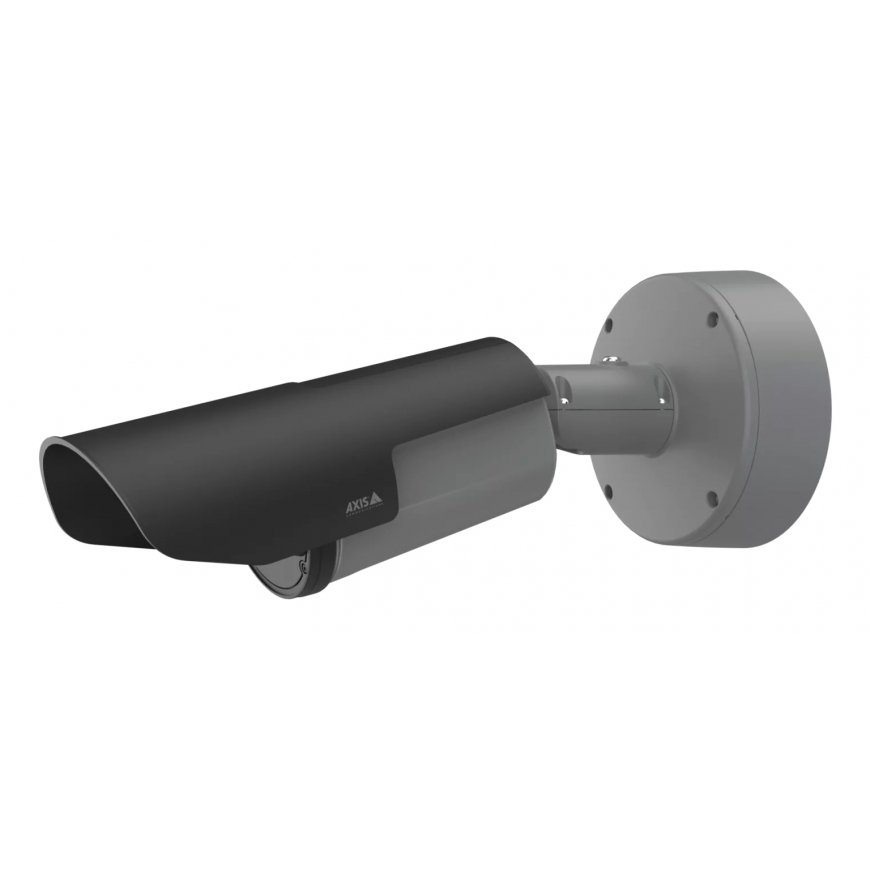

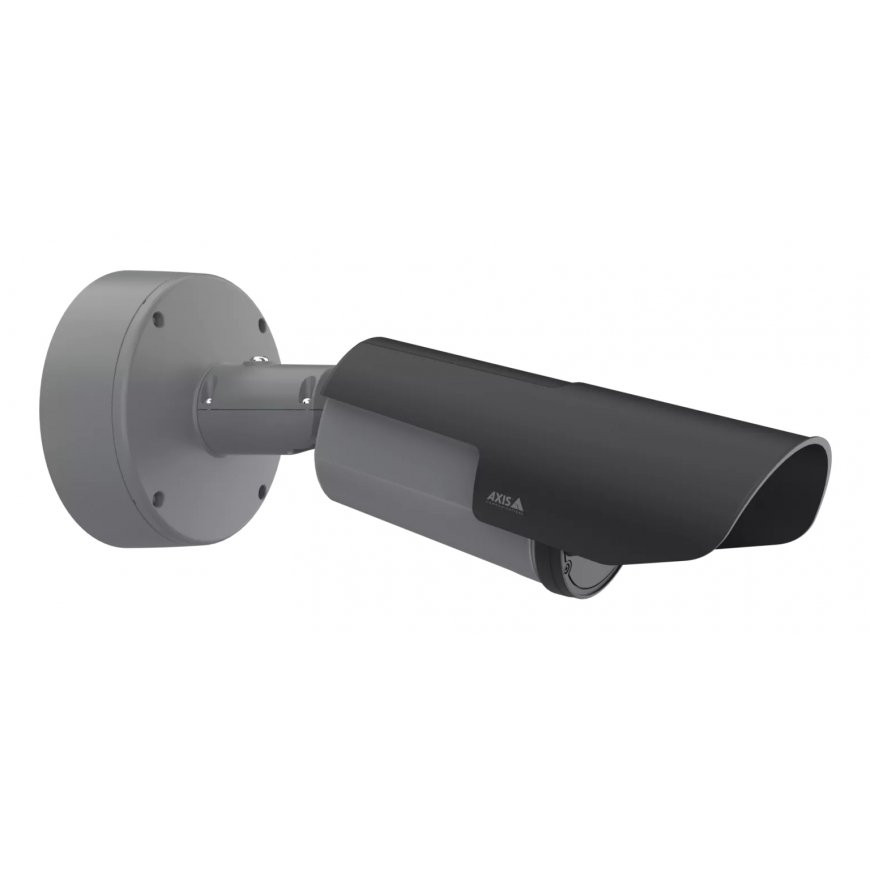

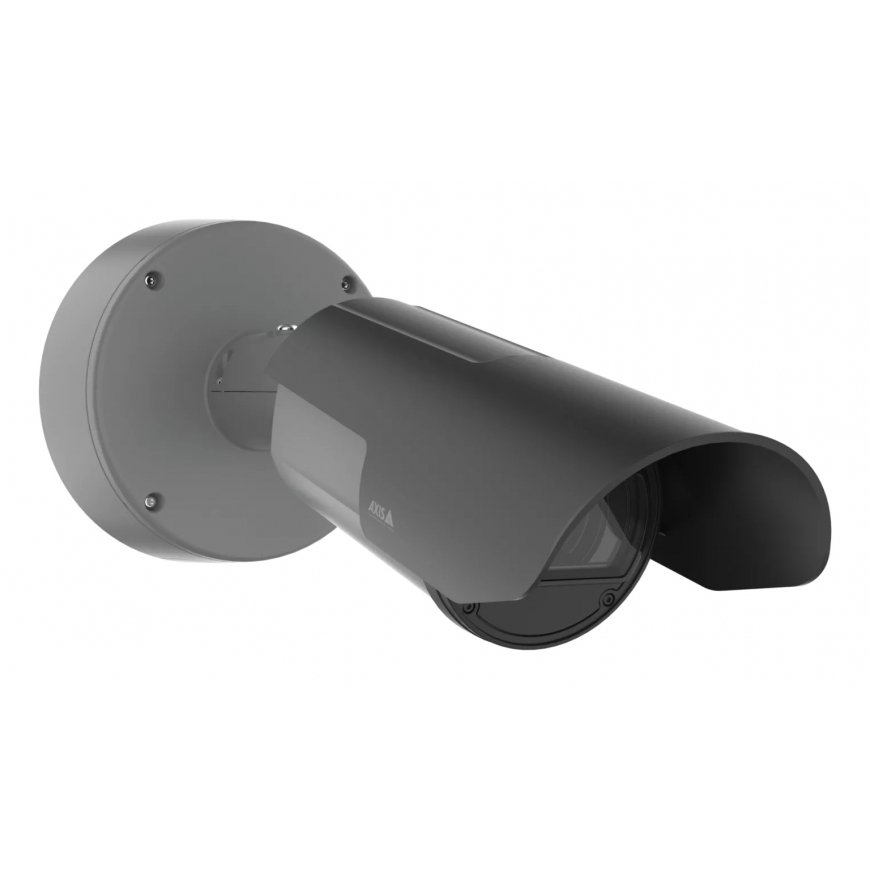

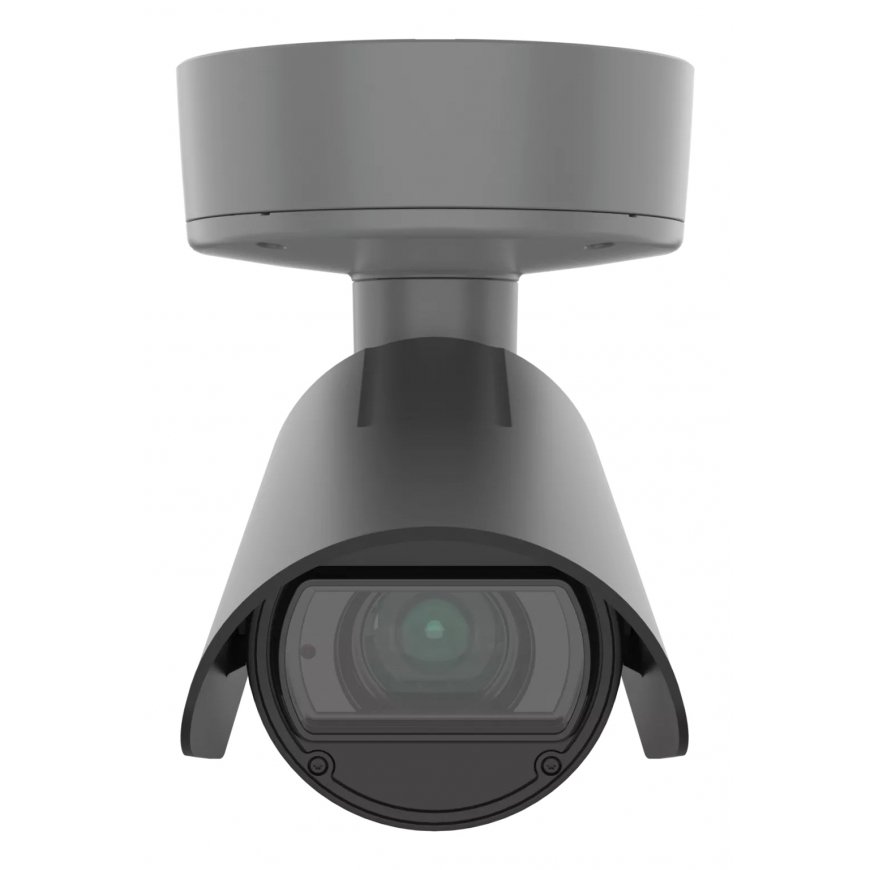

Axis Q1800-LE Bullet IP security camera Outdoor 1920 x 1080 pixels Wall
2 246,00 €
Monthly payment from 58.73 €
3540773 03107-001
7331021089334
Shipping 2-3 b.d.
You are interested in this product?
Extraordinary accuracy 24/7
Designed to capture license plates with exceptional clarity and sharpness, this purpose-tuned camera comes preconfigured with advanced algorithms focusing solely on license plates. This ensures the required pixel density for accurate identification - with practically no setup required! It can capture plates at speeds up to 250 km/h (155 mph) in single lanes and from distances of up to 100 m (328 ft) during daylight. In pitch darkness, the camera captures license plate images at up to 50 m (164 ft), and up to 100 m (328 ft) with the optional accessory AXIS T90D20 IR-LED Illuminator delivering unmatched, reliable performance day and night.
Do it your way
AXIS Q1800-LE is fully compatible with edge- or server-based LPR software from any leading third-party vendor, giving you the freedom to choose the license plate recognition analytics that best suit your needs. Built on the Axis open platform, it integrates seamlessly with most third-party video management software (VMS) and supports a wide range of third-party applications and analytics. Plus, with various installation accessories available, this camera offers flexible mounting options, making it an ideal solution for any deployment.
Ready for anything
This purpose-tuned camera ensures accurate license plate capture 24/7 with minimal setup. Robust and weatherproof, it ensures durability in the toughest conditions. It includes an extra-long weathershield that can withstand hurricane-force winds of up to 60 m/s (134 mph) and resist harsh weather impacts (IK10-rated casing, IK08-rated front glass, and IP66- and NEMA 4X-rated). Plus, electronic image stabilization ensures stable images in situations where the camera is subject to vibrations. What’s more, the discreet gray color housing and black weathershield blend right into any traffic environment.
Performance | |
| Certification | UL/cUL, BIS, UKCA, CE, KC, VCCI, RCM |
| Connectivity technology | Wired |
| Wide Dynamic Range (WDR) | Yes |
| Day/night mode | Yes |
| PTZ control | Yes |
| Placement supported | Outdoor |
| Type | IP security camera |
| Preset points | Yes |
| Infrared (IR) cut-off filter | Yes |
| PTZ modes | Digital PTZ |
Design | |
| Housing material | Aluminium, Glass |
| Mounting type | Wall |
| International Protection (IP) code | IP66 |
| Protection features | Vandal proof, Weatherproof, Shockproof |
| Product colour | Black |
| Form factor | Bullet |
| IK code | IK10, IK08 |
Camera | |
| Minimum illumination | 0.06 lx |
| Camera shutter speed | 1/111000 - 2 s |
| Tilt angle range | 0 - 90° |
| Pan range | -180 - 180° |
| Angle of rotation | 270° |
| Camera pixel size | 2.9 µm |
| Lens viewing angle, horizontal | 22 - 1.3° |
| Horizontal field of view (thermal module) | 38 - 2.3° |
Image sensor | |
| Sensor type | CMOS |
| Optical sensor size | 25.4 / 2.8 mm (1 / 2.8") |
| Number of sensors | 1 |
Lens system | |
| Focal length range | 7 - 138 mm |
| Auto focus | Yes |
| Detect distance (wide) | 96.7 m |
| Detect distance (tele) | 1884.2 m |
| Observe distance (wide) | 38.4 m |
| Observe distance (tele) | 747.7 m |
| Recognize distance (wide) | 19.3 m |
| Recognize distance (tele) | 376.8 m |
| Identify distance (wide) | 9.7 m |
| Identify distance (tele) | 188.4 m |
| Closest focusing distance | 1.2 m |
| Identify distance | 1.2 m |
| Number of lenses | 1 |
Video | |
| Maximum resolution | 1920 x 1080 pixels |
| Frame rate | 90 fps |
| Video formats supported | H.264, M-JPEG, AVC, H.265 |
| Supported graphics resolutions | 1920 x 1080 (HD 1080), 320 x 180, 1400 x 1050 (SXGA+), 160 x 120 |
| Supported video modes | 1080p |
| Image quality adjustment | Brightness, Contrast, Saturation, Sharpness |
| Noise reduction | Yes |
| Video streaming | Yes |
| Text caption overlay | Yes |
| Image stabilizer | Yes |
| Bit rate control | Constant Bit Rate (CBR)/Variable Bit Rate (VBR) |
| Noise reduction technology | 3D noise reduction, 2D noise reduction |
Audio | |
| Audio formats supported | AAC-LC, LPCM, ADPCM, OPUS, PCM |
| Audio detection | Yes |
| Signal-to-Noise Ratio (SNR) | 55 dB |
| Audio system | 2-way |
| Sample rate | 48 kHz |
| Built-in speaker(s) | Yes |
Network | |
| Supported network protocols | IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPS3 , HTTP/ 2, TLS3 , QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP®, SNMP v1/v2c/v3 (MIBII), DNS/DNSv6, DDNS, NTP, NTS, RTSP, RTP, SRTP/ RTSPS, TCP, UDP, IGMPv1/v2/v3, RTCP, DHCPv4/v6, SSH, LLDP, CDP, MQTT v3.1.1, Secure syslog (RFC 3164/5424, UDP/TCP/TLS), Link-Local address (ZeroConf) |
| Ethernet LAN | Yes |
| Networking standards | IEEE 802.3af, IEEE 802.3at |
| Streaming method | Multicast |
Storage | |
| Flash memory | 8192 MB |
| Internal memory | 2048 MB |
| Compatible memory cards | MicroSD (TransFlash), MicroSDHC, MicroSDXC |
| Card reader integrated | Yes |
Ports & interfaces | |
| Microphone in | Yes |
| DC-in jack | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Terminal block port | Yes |
Security | |
| Video motion detection | Yes |
| Active tampering alarm | Yes |
| Security algorithms | HTTPS |
| Intelligent Video Surveillance (IVS) system features | Human detection, Vehicle detection, Moving object, Line crossing detection |
| Password protection | Yes |
| Pixel counter | Yes |
| Digest authentication | Yes |
Power | |
| Power consumption (typical) | 11 W |
| Power consumption (max) | 29 W |
| Power source type | PoE |
Operational conditions | |
| Operating temperature (T-T) | -40 - 60 °C |
| Operating relative humidity (H-H) | 10 - 100% |
| Storage temperature (T-T) | -40 - 65 °C |
| Storage relative humidity (H-H) | 5 - 95% |
Weight & dimensions | |
| Weight | 3.2 kg |
| Width | 183 mm |
| Depth | 464 mm |
| Height | 183 mm |
Packaging content | |
| Cables included | LAN (RJ-45) |
| Manual | Yes |
| Number of cameras | 1 |
Night vision | |
| Night vision | Yes |
| LED type | IR |
| Night vision distance | 100 m |
| Infra-red wavelength | 850 nm |
| B/W night vision distance | 50 m |
Management features | |
| Remotely operated | Yes |
Other features | |
| Doesn't contain | BFR, CFR |
Panoramic camera | |
| Sensor type (panoramic camera) | CMOS |
| Signal-to-Noise Ratio (SNR) (panoramic camera) | 55 dB |
Sustainability | |
| Compliance certificates | Trade Agreements Act (TAA), Electromagnetic Compatibility (EMC) |
