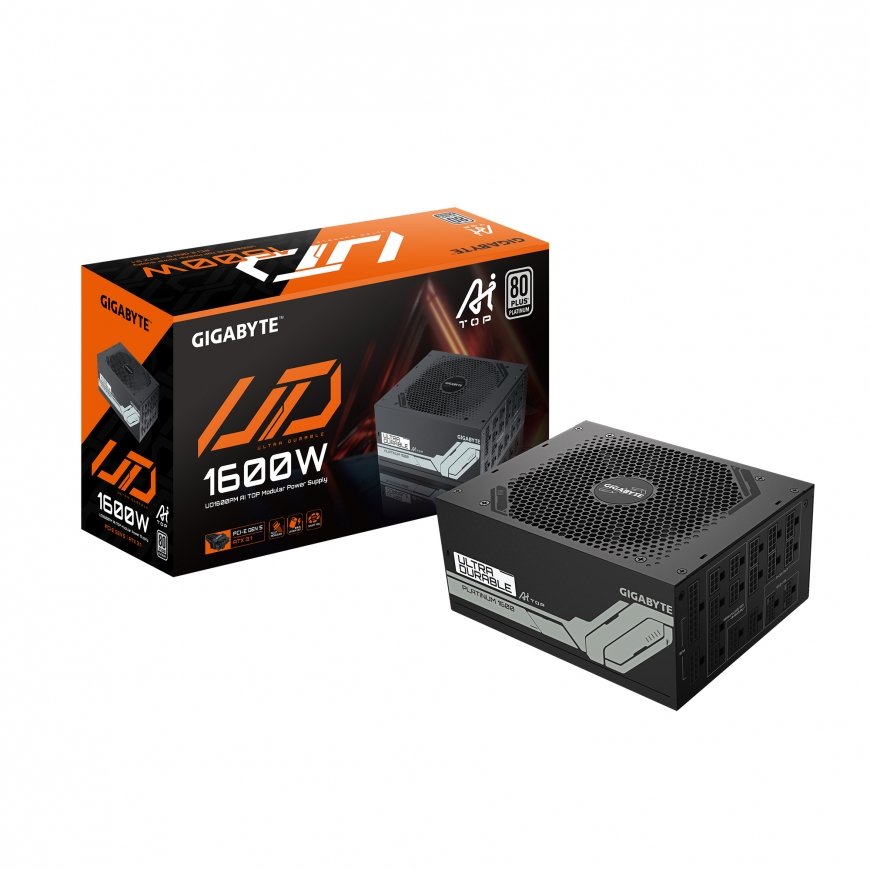

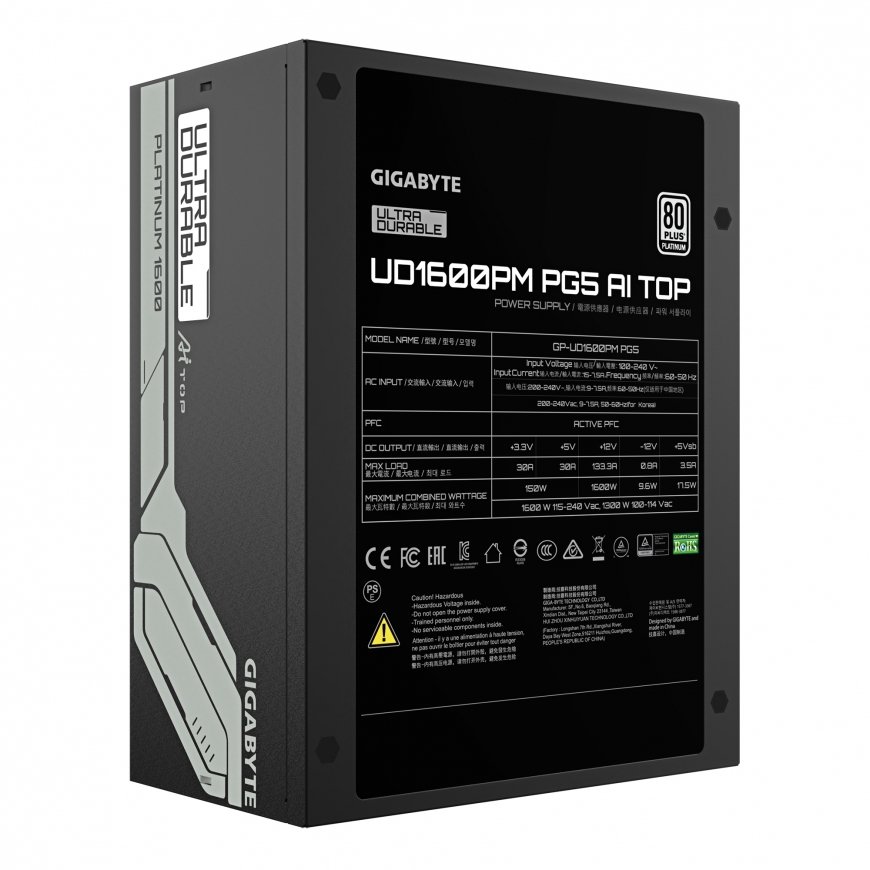

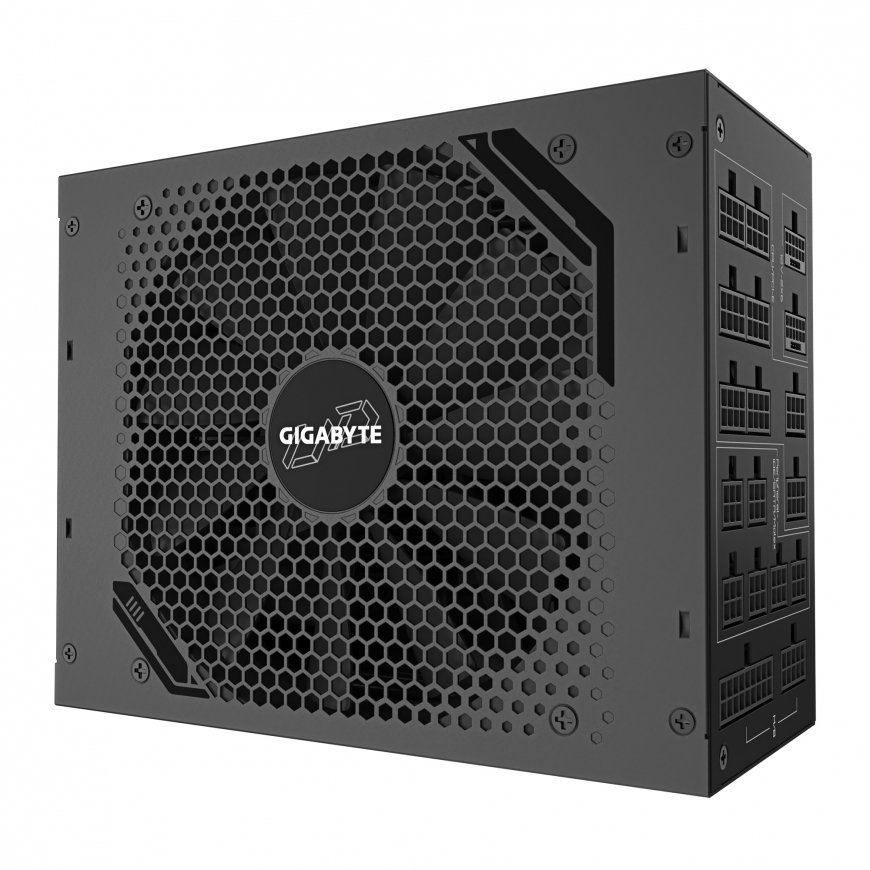

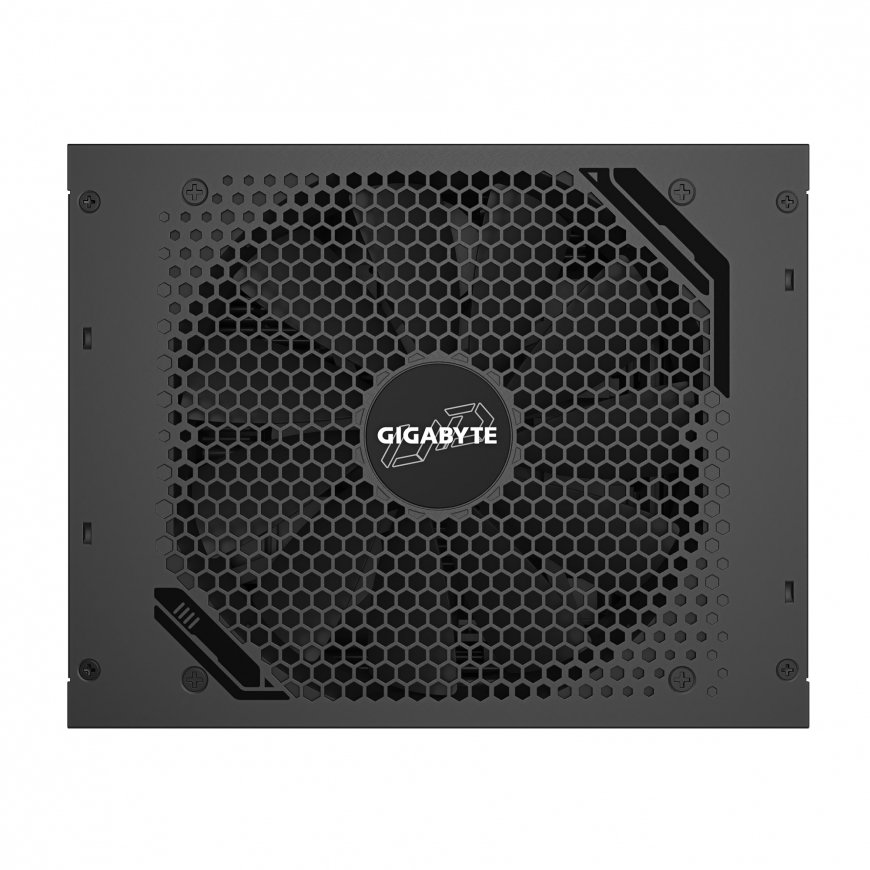

GIGABYTE UD1600PM PG5 AI TOP power supply unit
347,31 €
343,87 €
Monthly payment from 9.75 €
3527632 GP-UD1600PM PG5 EU
4719331555047
Shipping 3-7 b.d.
You are interested in this product?
Power | |
| Hold time | 16 ms |
| Efficiency | 92% |
| Input current | 15 - 7.5 A |
| Power protection features | Over current, Overload, Over voltage, Overheating, Short circuit, Under voltage |
| Power factor | 0.9 |
| Power Factor Correction (PFC) type | Active |
| Combined power (+3.3V) | 150 W |
| Combined power (+12V) | 1600 W |
| Combined power (+5V) | 150 W |
| Combined power (-12V) | 9.6 W |
| Combined power (+5Vsb) | 17.5 W |
| Max output current (+3.3V) | 30 A |
| Max output current (+12V) | 133.3 A |
| Max output current (+5V) | 30 A |
| Max output current (+5Vsb) | 3.5 A |
| Max output current (-12V) | 0.8 A |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Power Good signal delay range | 100 - 150 ms |
| Total power | 1600 W |
Performance | |
| Mean time between failures (MTBF) | 100000 h |
| ATX version | 3.1 |
| Purpose | PC |
| 80 PLUS certification | 80 PLUS Platinum |
| Bearing technology | DBB |
| Power supply unit (PSU) form factor | ATX |
Design | |
| Product colour | Black |
| Number of fans | 1 fan(s) |
| Fan diameter | 12 cm |
| Fan location | Top |
| Cooling type | Active |
| On/off switch | Yes |

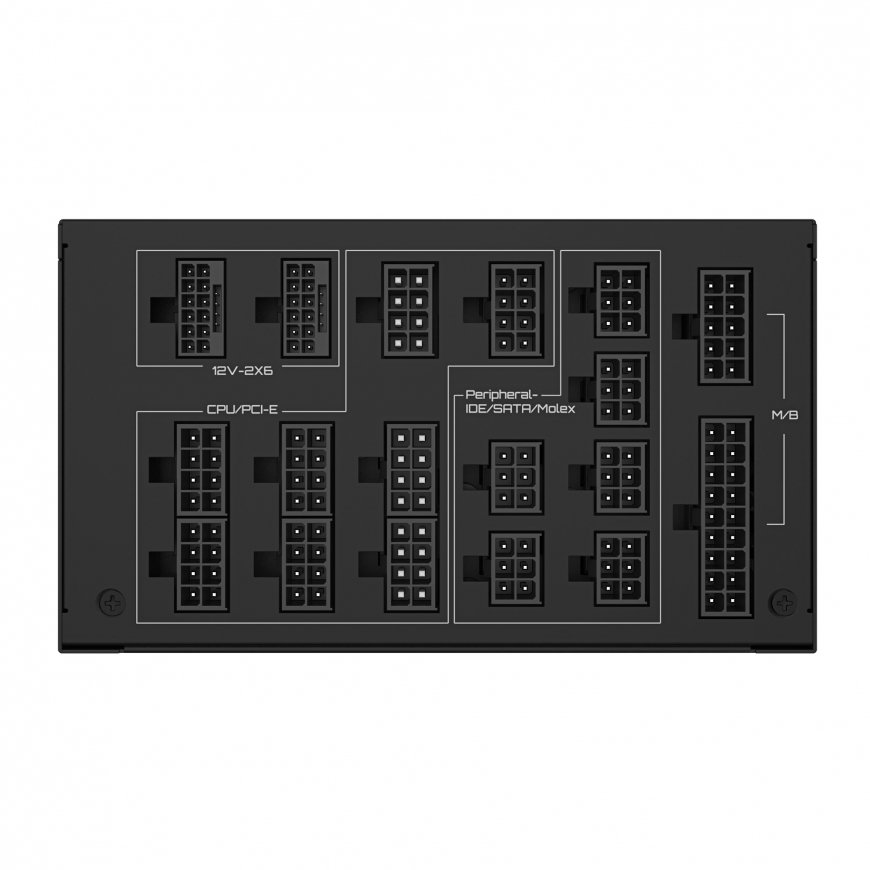

Ports & interfaces | |
| Number of SATA power connectors | 16 |
| Peripheral (Molex) power connectors (4-pin) | 6 |
| ATX power connector (20+4 pin) | Yes |
| CPU power connector (4+4 pin) | Yes |
| PCI Express power connectors (6+2 pin) | 8 |
| Motherboard power connector | 20+4 pin ATX |
| Cabling type | Fully-Modular |
| PCI Express connector | Yes |
| Motherboard power cable length | 61 cm |
| SATA power cable length | 150, 650 |
| EPS power connector (4+4 pin) | Yes |
Weight & dimensions | |
| Weight | 5.3 kg |
| Width | 150 mm |
| Depth | 190 mm |
| Height | 86 mm |
Packaging data | |
| Package weight | 5.58 kg |
| Package type | Box |
| Package height | 145 mm |
| Package width | 410 mm |
| Package depth | 219 mm |
Logistics data | |
| Warranty period | 10 year(s) |
