Asrock Taichi TC-1300T power supply unit 1300 W 20+4 pin ATX ATX Black
359,00 €
Monthly payment from 10.14 €
3423871 90-UXT130-TFEAAB
4710483949289
This product is no longer in stock
You are interested in this product?
BE READY FOR ATX 3.1 & PCIe 5.1
The ASRock TAICHI series power supply supports both current and future standards, fully compliant with ATX12V V3.1 and PCIe Gen 5.1. Ideal for both current systems and future builds, this power supplies can handle up to 235% power excursion and respond swiftly to power spikes, ensuring reliable, safe power for your components.
+5V BOOST Mode
Voltage Compensation Mechanism
When this switch is enabled, it boosts the +5V voltage to maintain optimal performance.
If no voltage drop occurs, the PSU will regulate the +5V rail to approximately +5.15V, ensuring consistent power delivery.

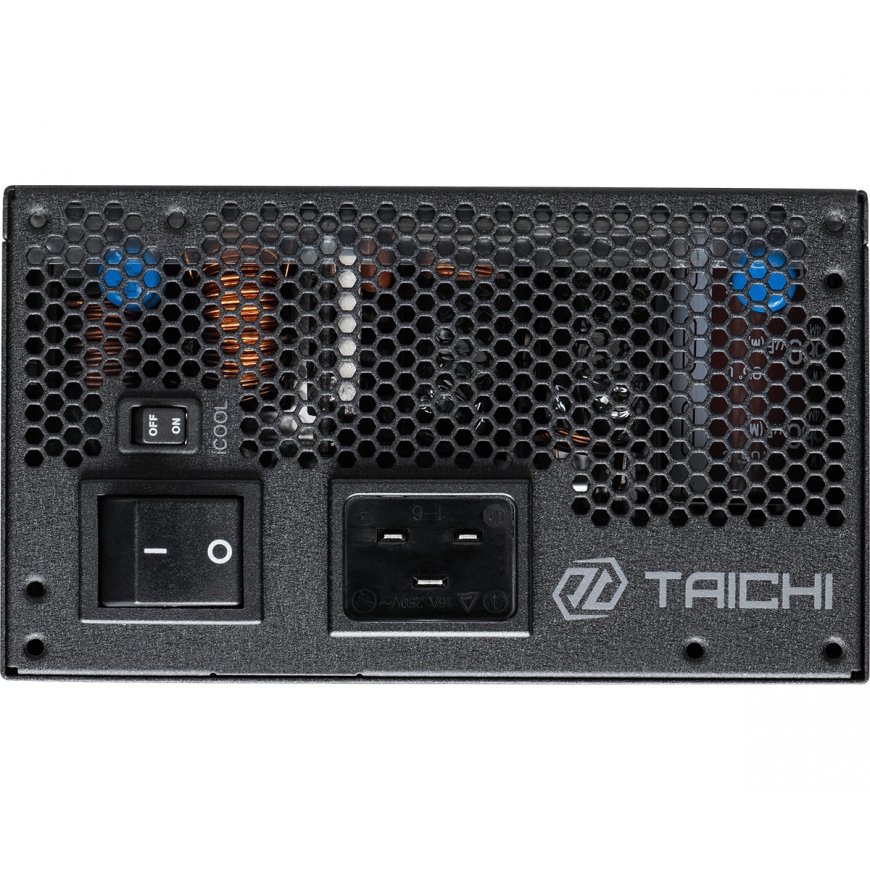

iCOOL Intelligent Fan Control Mode
●iCOOL Mode ON: The power supply runs more efficiently. The fan stays off during low to medium loads, reducing noise and improving energy efficiency. The fan only activates when the load or temperature increases.
●iCOOL Mode OFF: The fan runs continuously, regardless of load. This may increase noise slightly but provides consistent cooling and better performance under heavy loads.
80 PLUS & CYBENETICS TITANIUM CERTIFIED
The TAICHI Series Power Supply guarantees unmatched power efficiency and peak performance, delivering exceptional reliability for the most demanding systems.
CYBENETICS LAMBDA A++
The Taichi TC-1300T power supply operates at less than 15 dB of noise on average, earning the prestigious Cybenetics Lambda A++ certification. This recognition underscores the Taichi series' outstanding noise control performance, making it an exceptional choice for users seeking ultra-quiet operation.
Infineon CoolMOS + SiC SBD
The industrial-leading components deliver high efficiency and reliability.
Safety First with ASRock
Full suite of protections to keep all components safe during normal to extreme power levels.
ASRock offers an outstanding 10 –Year warranty, guaranteeing long term reliable and peace of mind operation.
Power | |
| Power protection features | Over current, Overload, Over voltage, Overheating, Short circuit, Under voltage |
| Total power | 1300 W |
Performance | |
| Mean time between failures (MTBF) | 100000 h |
| ATX version | 3.1 |
| Purpose | PC |
| 80 PLUS certification | 80 PLUS Titanium |
| Bearing technology | FDB |
| Power supply unit (PSU) form factor | ATX |
Design | |
| Product colour | Black |
| Number of fans | 1 fan(s) |
| Fan diameter | 13.5 cm |
| Cooling type | Active |
| On/off switch | Yes |
| On/off fan switch | Yes |

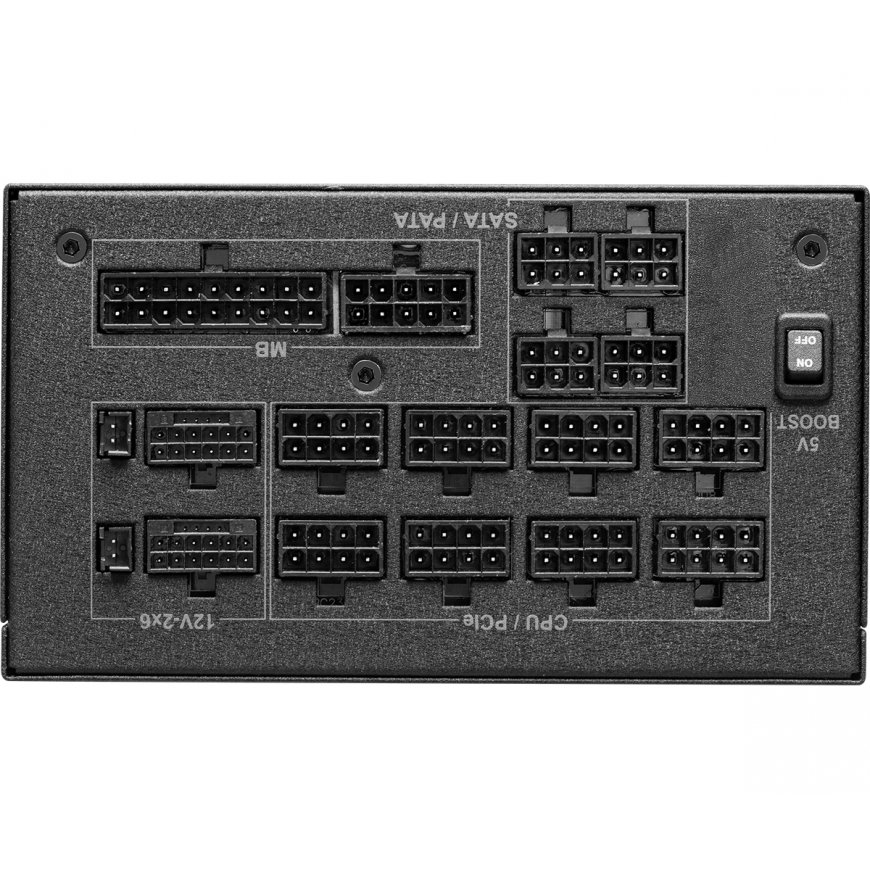

Ports & interfaces | |
| Number of SATA power connectors | 12 |
| Peripheral (Molex) power connectors (4-pin) | 6 |
| ATX power connector (20+4 pin) | Yes |
| CPU power connector (4+4 pin) | Yes |
| PCI Express power connectors (6+2 pin) | 8 |
| Motherboard power connector | 20+4 pin ATX |
| Cabling type | Fully-Modular |
| Motherboard power cable length | 60 cm |
| SATA power cable length | 450, 100 |
| CPU power cable length | 65 cm |
| Number of EPS connectors | 2 |
Weight & dimensions | |
| Width | 150 mm |
| Depth | 180 mm |
| Height | 86 mm |
