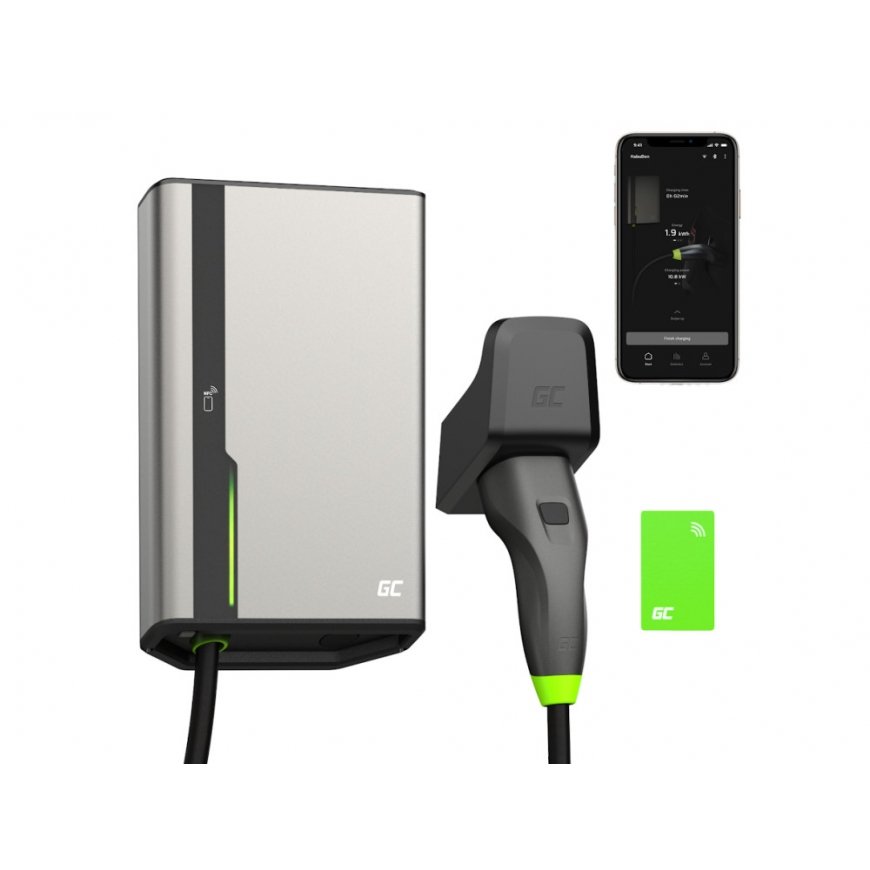

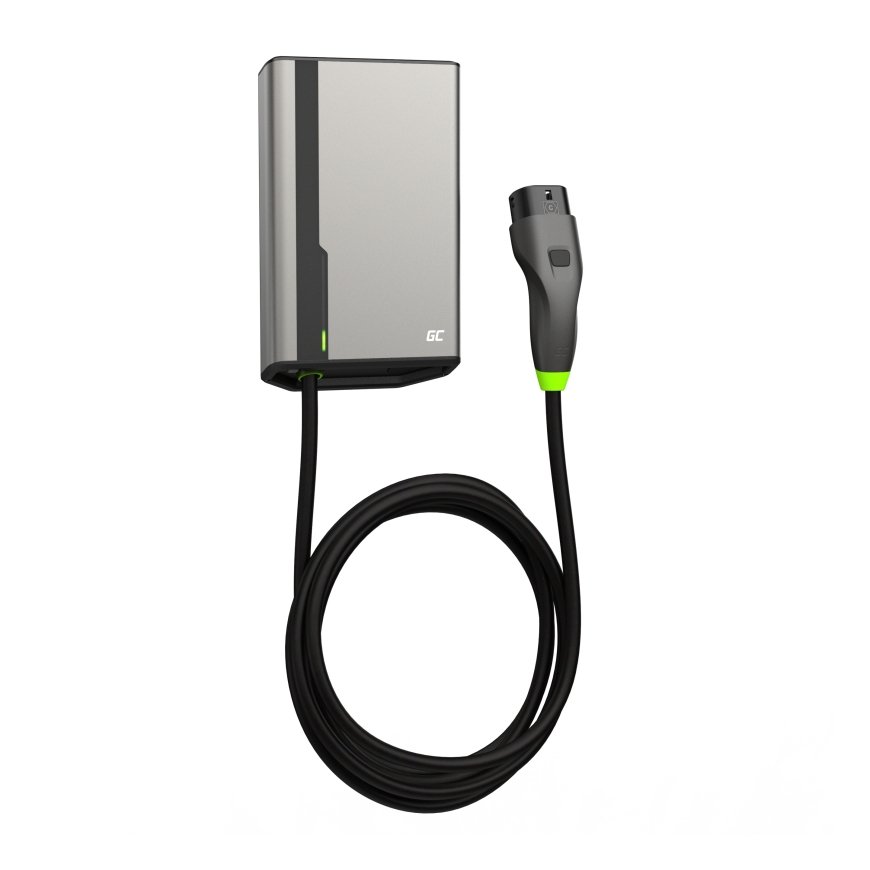

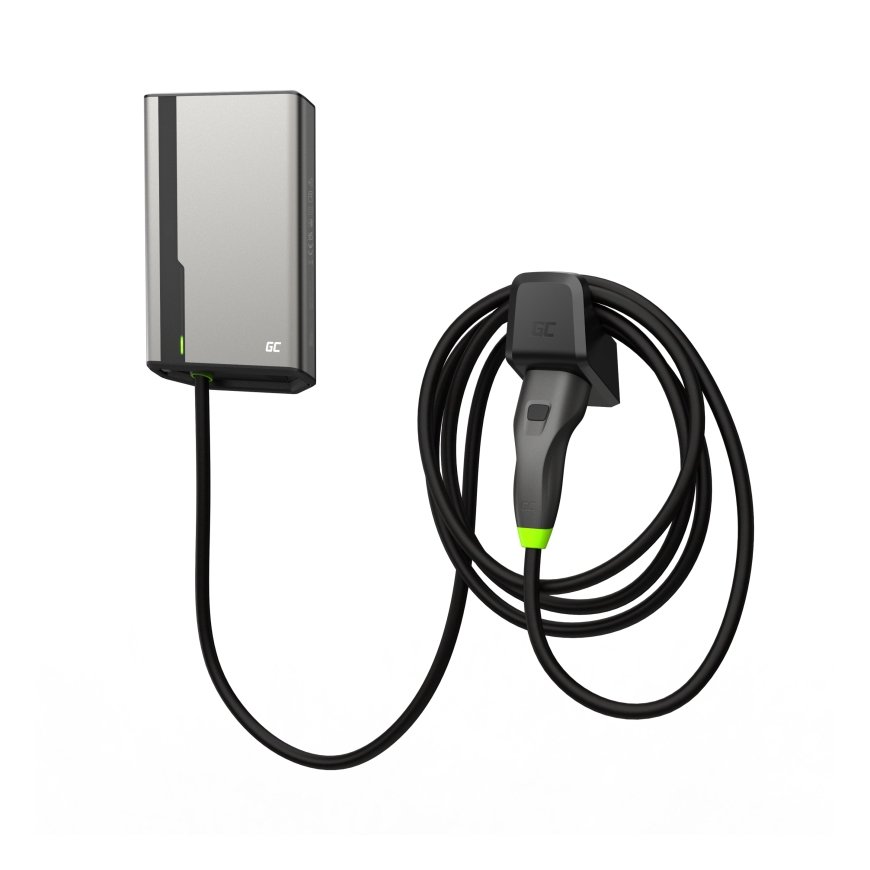

Green Cell GC EVGC021B2275 - Wallbox, 3,6 - 22 KW, 7,5 m, NFC Grey Aluminium Wall Built-in display LED
629.00 €
Monthly payment from 17,10 €
3388514 EVGC021B2275
5904326374683
4-6 b.d.
You are interested in this product?
All about the product
Green Cell GC EVGC021B2275 - Wallbox, 3,6 - 22 KW, 7,5 m, NFC. Product colour: Grey, Mounting type: Wall, Housing material: Aluminium. Mechanical impact protection code: IK10, International Protection (IP) code: IP54, Vehicle charging standard: Mode 3. Power source type: AC, Maximum charging power: 22000 W, Single-phase output voltage supported: 230 V. Charging cable length: 7.5 m, Width: 211 mm, Depth: 73 mmFeatures
| Wi-Fi | Yes |
| Product colour | Grey |
| Near Field Communication (NFC) | Yes |
| International Protection (IP) code | IP54 |
| Weight | 6.7 kg |
| Width | 211 mm |
| Depth | 73 mm |
| Height | 335 mm |
| Quantity per pack | 1 pc(s) |
| Certification | IEC 62196, IEC 62752, IEC 60309, EN 300 220-1/2, EN 300 328, EN 301 489-1/17, EN 301 489-1/3,; EN 301 489-1/52, EN 301 511 |
| Housing material | Aluminium |
| Built-in display | Yes |
| Mounting type | Wall |
| Power source type | AC |
| Display technology | LED |
| Firmware upgradeable | Yes |
| Cable colour | Black |
| Number of phases | 3 |
| Over current protection | Yes |
| RFID reader | Yes |
| Three-phase output voltage supported | 400 V |
| Maximum operating power (three-phase) | 22 kW |
| Maximum operating current (three-phase) | 32 A |
| Charging cable length | 7.5 m |
| Maximum operating power (single-phase) | 7.2 kW |
| Maximum operating current per phase | 32 A |
| Integrated charging cable | Yes |
| Vehicle connection plug | Type 2 |
| Single-phase output voltage supported | 230 V |
| Mechanical impact protection code | IK10 |
| Maximum charging power | 22000 W |
| Vehicle charging standard | Mode 3 |
| Minimum operating power (single-phase) | 1.4 kW |
| Direct current failure monitoring | Yes |
Features | |
| International Protection (IP) code | IP54 |
| Product colour | Grey |
| Built-in display | Yes |
Weight & dimensions | |
| Weight | 6.7 kg |
| Depth | 73 mm |
| Height | 335 mm |
| Width | 211 mm |
Technical details | |
| Cable colour | Black |
| Wi-Fi | Yes |
| Housing material | Aluminium |
Packaging data | |
| Quantity per pack | 1 pc(s) |
Certificates | |
| Certification | IEC 62196, IEC 62752, IEC 60309, EN 300 220-1/2, EN 300 328, EN 301 489-1/17, EN 301 489-1/3,, EN 301 489-1/52, EN 301 511 |
