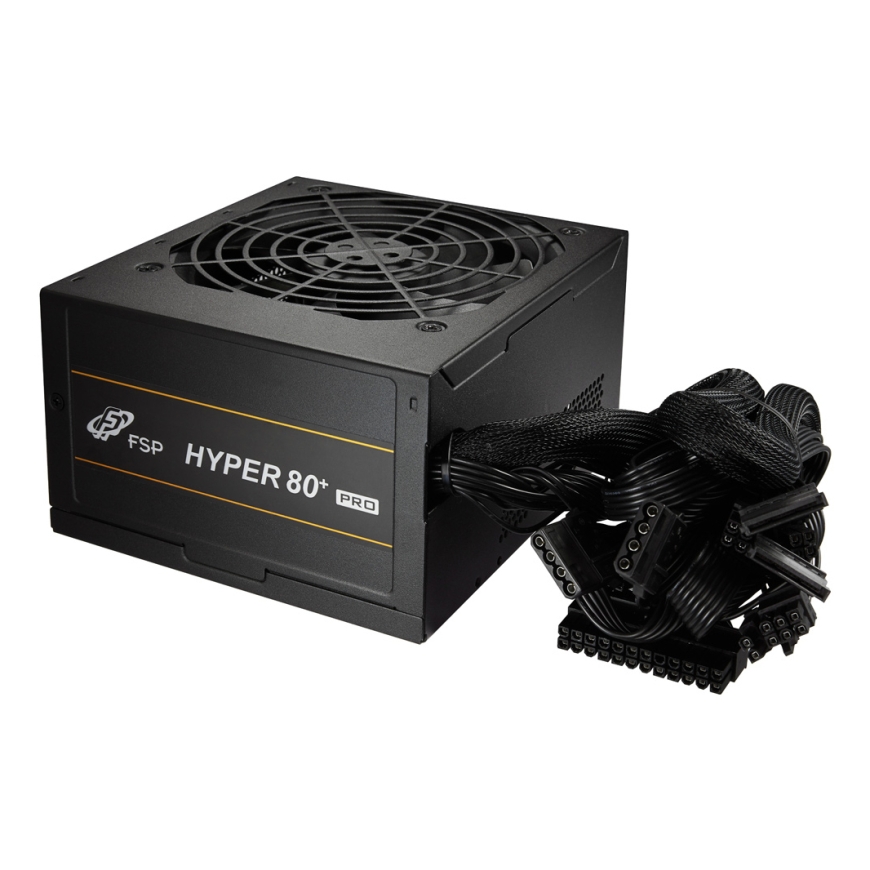

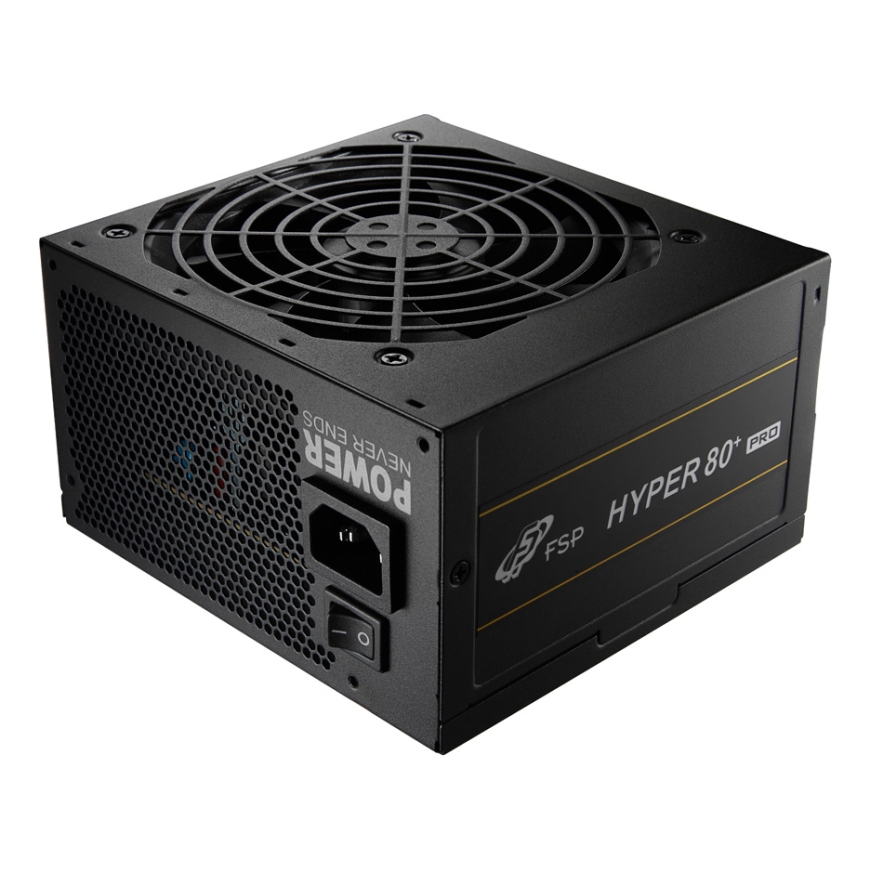

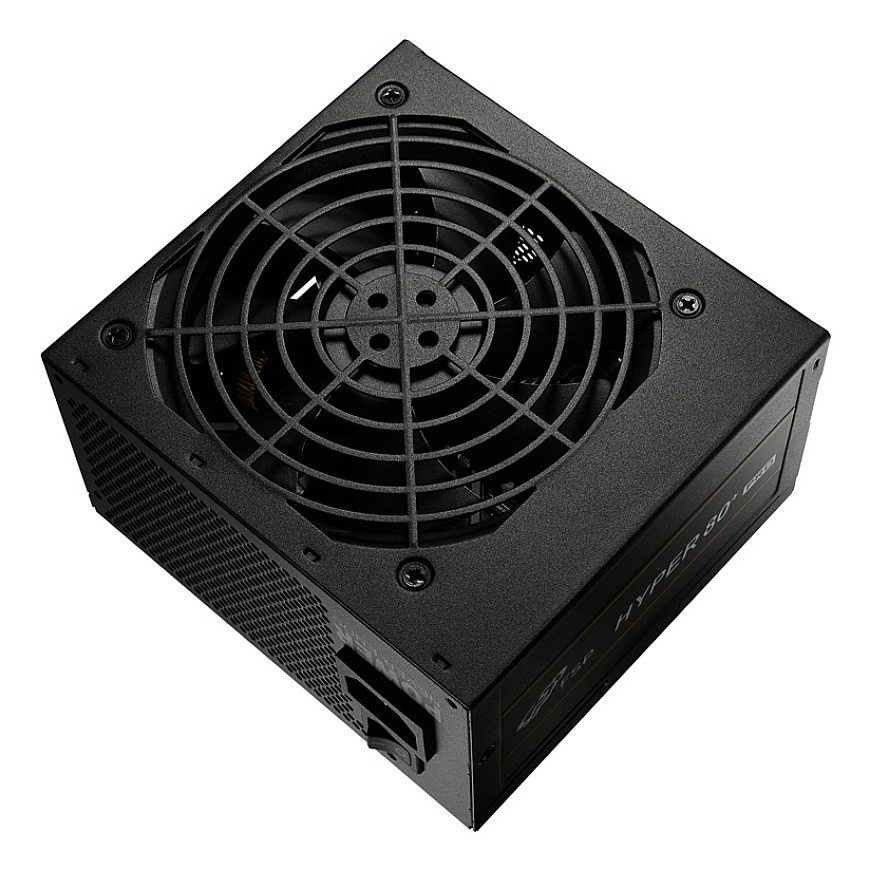

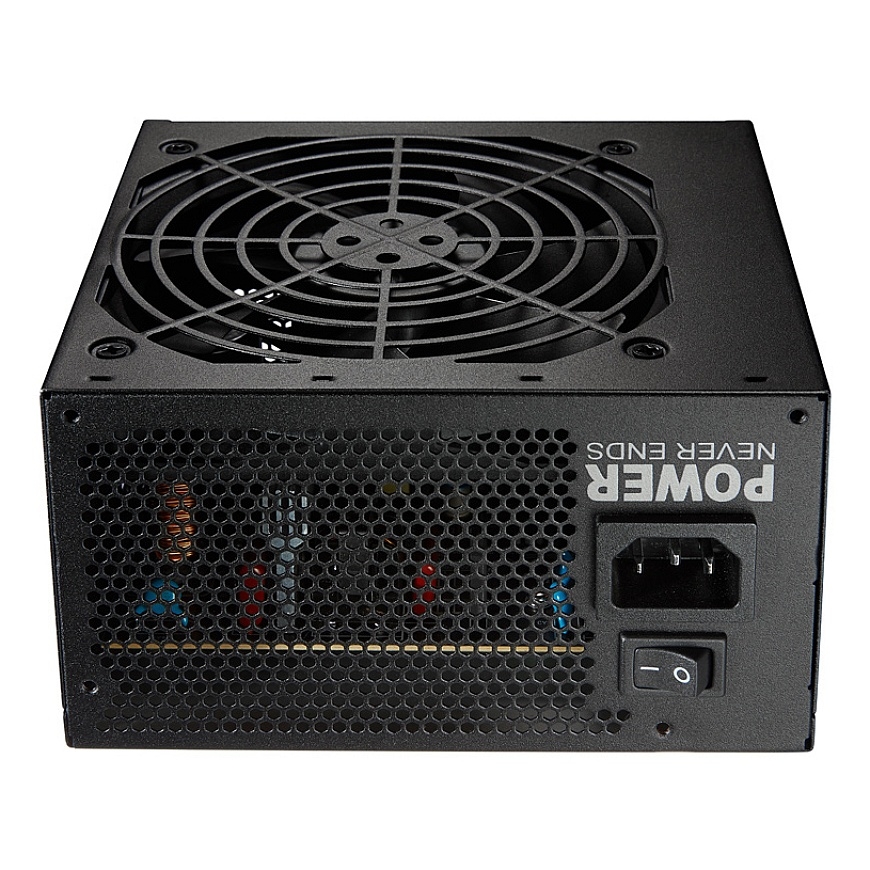

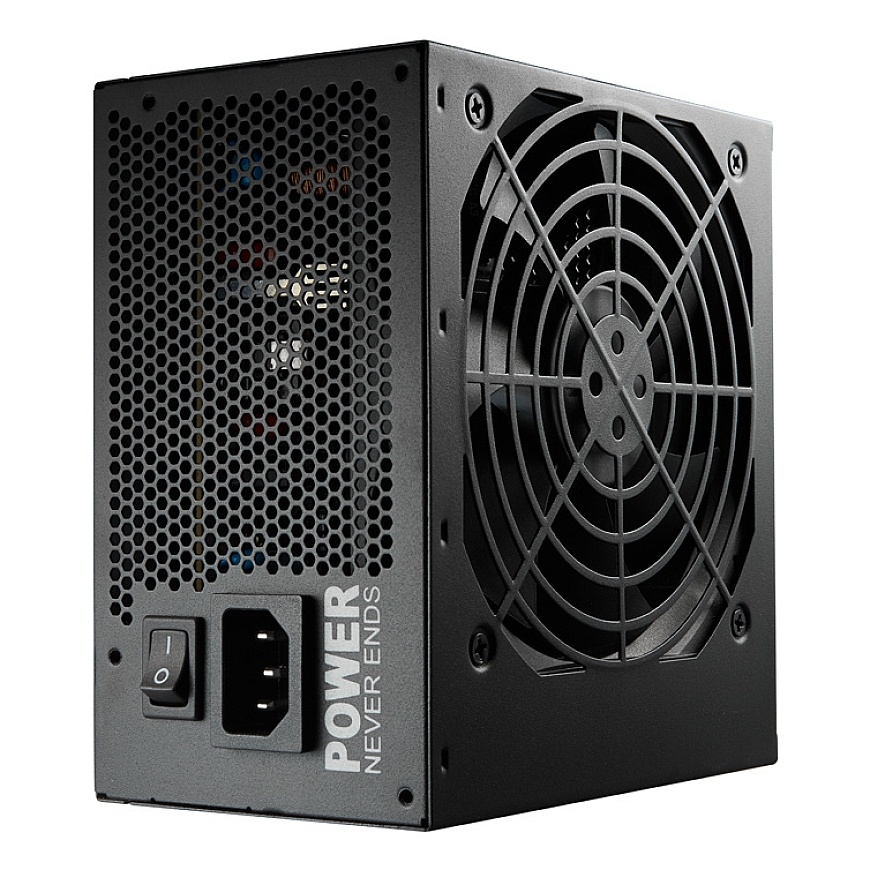

FSP HYPER 80+ PRO 450W Power supply unit ATX ATX3.1 Black
59.00 €
Monthly payment from 2,42 €
3388298 9PA450A404
4711498480552
Shipping 3-7 b.d.
You are interested in this product?
All about the product
80 Plus® 230V EU White CertificationHYPER 80+ PRO series, 80 PLUS® 230V EU White certified, saves energy through its high efficiency up to 82% and excesses the standard through its high efficiency up to 85%.
DC-to-DC Module Design
With a 12V SR circuit and the DC to DC structure, HYPER 80+ PRO series ensure you outstanding conversion efficiency and provides stable output voltage.
450V 105C, Heavy-duty capacitor
The bulk capacitor inside serves to support working under an extremely harsh environment, such as with high temperatures, peak voltage fluctuations. It stabilizes the performance for high reliability that your system can count on.
Energy Related ErP/Eup 2013
Green Power! The total AC power consumption of the completed system is less than 5Vsb rail to support the new EU Regulation ErP 2013 for modern day systems.
Keep in Compliance IEC 62368
FSP Group provides a full kinds of additional safety approvals to keep designs ahead of the changing regulations. FSP has upgraded the majority of power supplies to the new IEC 62368 standard for your gaming rigs.
Intelligent Fan Speed Control
An advanced thermal control fan makes optimal cooling and reduces noise under maximum operation.
120mm fan and heat dissipation design to spin quietly and keep cooling under maximum operation.
All Black Round Cables
The all black coating round cables give your system a superior look rather so many entry-level power supplies.
Power | |
| Hold time | 17 ms |
| Efficiency | 88% |
| Input current | 3 A |
| Power protection features | Over current, Overload, Over voltage, Short circuit |
| Power factor | 0.9 |
| Power Factor Correction (PFC) type | Active |
| Combined power (+3.3V) | 85 W |
| Combined power (+12V) | 450 W |
| Combined power (+5V) | 85 W |
| Combined power (-12V) | 3.6 W |
| Combined power (+5Vsb) | 12.5 W |
| Max output current (+3.3V) | 16 A |
| Max output current (+12V) | 37.5 A |
| Max output current (+5V) | 16 A |
| Max output current (+5Vsb) | 2.5 A |
| Max output current (-12V) | 0.3 A |
| AC input voltage | 200 - 240 V |
| AC input frequency | 50/60 Hz |
| Total power | 450 W |
Performance | |
| ATX version | 3.1 |
| Purpose | PC/Server |
| 80 PLUS certification | 80 PLUS Bronze |
| Bearing technology | Sleeve |
| Power supply unit (PSU) form factor | ATX |
Design | |
| Product colour | Black |
| Number of fans | 1 fan(s) |
| Fan diameter | 12 cm |
| Cooling type | Active |
| On/off switch | Yes |
Ports & interfaces | |
| ATX Power connector (24-pin) | Yes |
| Floppy drive power connector | 1 |
| Number of SATA power connectors | 5 |
| EPS power connector (8-pin) | Yes |
| Peripheral (Molex) power connectors (4-pin) | 2 |
| CPU power connector (4+4 pin) | Yes |
| PCI Express power connectors (6+2 pin) | 2 |
| Motherboard power connector | 24-pin ATX |
| Cabling type | Non-Modular |
| PCI Express connector | Yes |
| Floppy disk drive connector | Yes |
Weight & dimensions | |
| Weight | 1.24 kg |
| Width | 140 mm |
| Depth | 150 mm |
| Height | 86 mm |
Technical details | |
| Sustainability certificates | ErP |
Certificates | |
| Compliance certificates | EuP |
