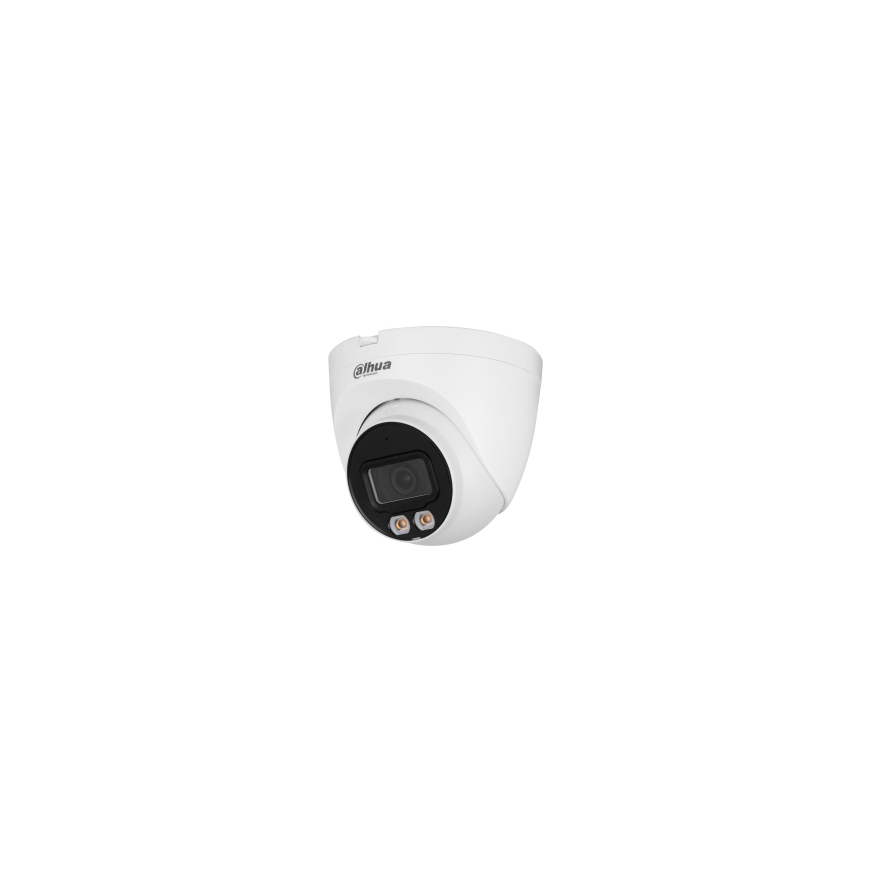

Dahua Technology WizSense HDW2449T-S-LED Turret IP security camera Indoor & outdoor 2688 x 1520 pixels Ceiling
149.00 €
Monthly payment from 4,74 €
3368444 HDW2449T-S-LED-0280BPRO
6939554921803
Shipping 1-2 b.d.
You are interested in this product?
All about the product
Launched by Dahua Technology, WizSense is a series of AI products and solutions that adopt independent AI chip and deep learning algorithm. It focuses on human and vehicle with high accuracy, enabling users to fast act on defined targets. Based on Dahua's advanced technologies, WizSense provides intelligent, simple and inclusive products and solutions.Features
| Product colour | White |
| Compatible memory cards | MicroSD (TransFlash) |
| Maximum memory card size | 256 GB |
| Form factor | Turret |
| International Protection (IP) code | IP67 |
| Weight | 370 g |
| Width | 109.9 mm |
| Depth | 109.9 mm |
| Height | 100.9 mm |
| Type | IP security camera |
| Supported video modes | 1080p |
| Maximum resolution | 2688 x 1520 pixels |
| Package weight | 510 g |
| Connectivity technology | Wired |
| Mobile operating systems supported | Android; iOS |
| Supported graphics resolutions | 1280 x 720 (HD 720); 1920 x 1080 (HD 1080); 2560 x 1440; 640 x 480 (VGA); 1280 x 960; 2304 x 1296; 2520 x 1520 |
| Certification | FCC: 47 CFR FCC Part 15, Subpart B; CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU; CE-LVD: EN 62368-1 |
| Operating temperature (T-T) | -40 - 60 °C |
| Storage temperature (T-T) | -40 - 60 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| DC-in jack | Yes |
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Card reader integrated | Yes |
| Ethernet interface type | Fast Ethernet |
| Noise reduction | Yes |
| Mounting type | Ceiling |
| Power source type | DC; PoE |
| Power consumption (max) | 5.2 W |
| Angle of rotation | 360° |
| Placement supported | Indoor & outdoor |
| Tilt angle range | 0 - 78° |
| Web browser | Yes |
| Video formats supported | H.264; H.265; H.264+; H.265+ |
| Built-in microphone | Yes |
| Supported network protocols | IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; NTP; Multicast; ICMP; IGMP |
| Wide Dynamic Range (WDR) | Yes |
| Camera shutter speed | 1/3 - 1/100000 s |
| Sensor type | CMOS |
| Optical sensor size | 25.4 / 2.9 mm (1 / 2.9") |
| Video compression formats | H.264; H.265; M-JPEG; H.264B; H.264H |
| Built-in HDD | No |
| Video motion detection | Yes |
| Intelligent Video Surveillance (IVS) system features | Intrusion; Tripwire; Human detection; Vehicle detection |
| DC output voltage | 12 |
| Diameter | 11 cm |
| Number of cameras | 1 |
| Signal-to-Noise Ratio (SNR) | 56 dB |
| Mirror | Yes |
| Power consumption | 2.1 mA |
| Number of illumination LEDs | 2 |
| Internal memory | 128 MB |
| Voice codecs | G.726; G.711Mu; G.711a; PCM |
| Number of users | 6 user(s) |
| Minimum illumination | 0.008 lx |
| Gain control type | Auto/Manual |
| Pan range | 0 - 360° |
| Frame rate | 30 fps |
| Total megapixels | 4 MP |
| Camera shutter type | Electronic |
| Night vision | No |
| LED type | IR |
| Maximum aperture number | 1.6 |
| Closest focusing distance | 0.9 m |
| Dynamic range | 120 dB |
| Number of sensors | 1 |
| Number of lenses | 1 |
| Video streaming | Yes |
| Progressive scan | Yes |
| Power consumption (Power over Ethernet (PoE)) | 2.5 W |
| Detect distance | 63.6 m |
| Observe distance | 25.4 m |
| Recognize distance | 12.7 m |
| Identify distance | 6.4 m |
| Night vision distance | 30 m |
| Privacy masking | Yes |
| Bit rate control | Constant Bit Rate (CBR)/Variable Bit Rate (VBR) |
| Bit rate | H.264: 32 kbps–6144 kbps; H.265: 12 kbps–6144 kbps |
| Back Light Compensation (BLC) | Yes |
| Highlight Compensation (HLC) | Yes |
| Streaming method | Multicast |
| ROM capacity | 128 MB |
| Management software | DSS; DMSS |
| Noise reduction technology | 3D noise reduction |
| Fixed focal length | 3.6 mm |
| Recognize distance (wide) | 12.7 m |
| Identify distance (wide) | 6.4 m |
| Adjustment shutter speed | Auto/Manual |
| Observe distance (tele) | 34.2 m |
| Recognize distance (tele) | 17.1 m |
| Identify distance (tele) | 8.5 m |
| Normal focusing range | 0.9 - 1.6 m |
| Privacy protection | Yes |
| Bit rate range | 12 - 6144 Kbit/s |
| Lens viewing angle, diagonal | 120° |
| Lens viewing angle, horizontal | 101° |
| Lens viewing angle, vertical | 53° |
| Number of Privacy masking areas (panoramic camera) | 4 |
Performance | |
| Certification | FCC: 47 CFR FCC Part 15, Subpart B, CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU, CE-LVD: EN 62368-1 |
| Connectivity technology | Wired |
| Wide Dynamic Range (WDR) | Yes |
| Placement supported | Indoor & outdoor |
| Type | IP security camera |
| Dynamic range | 120 dB |
Design | |
| Mounting type | Ceiling |
| International Protection (IP) code | IP67 |
| Product colour | White |
| Form factor | Turret |
Camera | |
| Minimum illumination | 0.008 lx |
| Camera shutter speed | 1/3 - 1/100000 s |
| Tilt angle range | 0 - 78° |
| Pan range | 0 - 360° |
| Angle of rotation | 360° |
| Camera shutter type | Electronic |
| Adjustment shutter speed | Auto/Manual |
| Lens viewing angle, horizontal | 101° |
| Lens viewing angle, vertical | 53° |
| Lens viewing angle, diagonal | 120° |
Image sensor | |
| Sensor type | CMOS |
| Optical sensor size | 25.4 / 2.9 mm (1 / 2.9") |
| Progressive scan | Yes |
| Number of sensors | 1 |
Lens system | |
| Normal focusing range | 0.9 - 1.6 m |
| Fixed focal length | 3.6 mm |
| Maximum aperture number | 1.6 |
| Observe distance (tele) | 34.2 m |
| Recognize distance (wide) | 12.7 m |
| Recognize distance (tele) | 17.1 m |
| Identify distance (wide) | 6.4 m |
| Identify distance (tele) | 8.5 m |
| Closest focusing distance | 0.9 m |
| Detect distance | 63.6 m |
| Observe distance | 25.4 m |
| Recognize distance | 12.7 m |
| Identify distance | 6.4 m |
| Number of lenses | 1 |
Video | |
| Maximum resolution | 2688 x 1520 pixels |
| Frame rate | 30 fps |
| Video formats supported | H.264, H.265, H.264+, H.265+ |
| Supported graphics resolutions | 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 2560 x 1440, 640 x 480 (VGA), 1280 x 960, 2304 x 1296, 2520 x 1520 |
| Supported video modes | 1080p |
| Video compression formats | H.264, H.265, M-JPEG, H.264B, H.264H |
| Noise reduction | Yes |
| Video streaming | Yes |
| Privacy masking | Yes |
| Bit rate control | Constant Bit Rate (CBR)/Variable Bit Rate (VBR) |
| Bit rate | H.264: 32 kbps–6144 kbps; H.265: 12 kbps–6144 kbps |
| Back Light Compensation (BLC) | Yes |
| Highlight Compensation (HLC) | Yes |
| Gain control type | Auto/Manual |
| Noise reduction technology | 3D noise reduction |
| Total megapixels | 4 MP |
Audio | |
| Built-in microphone | Yes |
| Signal-to-Noise Ratio (SNR) | 56 dB |
| Voice codecs | G.726, G.711Mu, G.711a, PCM |
| Bit rate range | 12 - 6144 Kbit/s |
Network | |
| Supported network protocols | IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; NTP; Multicast; ICMP; IGMP |
| Ethernet LAN | Yes |
| Ethernet interface type | Fast Ethernet |
| Number of users | 6 user(s) |
| Streaming method | Multicast |
Storage | |
| Internal memory | 128 MB |
| Compatible memory cards | MicroSD (TransFlash) |
| Built-in HDD | No |
| Card reader integrated | Yes |
| Maximum memory card size | 256 GB |
| ROM capacity | 128 MB |
Ports & interfaces | |
| DC-in jack | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
Security | |
| Video motion detection | Yes |
| Privacy protection | Yes |
| Intelligent Video Surveillance (IVS) system features | Intrusion, Tripwire, Human detection, Vehicle detection |
| Mirror | Yes |
Power | |
| Power consumption | 2.1 mA |
| DC output voltage | 12 |
| Power consumption (max) | 5.2 W |
| Power consumption (Power over Ethernet (PoE)) | 2.5 W |
| Power source type | DC, PoE |
Operational conditions | |
| Operating temperature (T-T) | -40 - 60 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage temperature (T-T) | -40 - 60 °C |
Weight & dimensions | |
| Weight | 370 g |
| Width | 109.9 mm |
| Depth | 109.9 mm |
| Height | 100.9 mm |
| Diameter | 11 cm |
Packaging content | |
| Number of cameras | 1 |
Night vision | |
| Number of illumination LEDs | 2 |
| Night vision | No |
| LED type | IR |
| Night vision distance | 30 m |
Management features | |
| Web browser | Yes |
| Management software | DSS; DMSS |
System requirements | |
| Mobile operating systems supported | Android, iOS |
Panoramic camera | |
| Number of Privacy masking areas (panoramic camera) | 4 |
Packaging data | |
| Package weight | 510 g |
