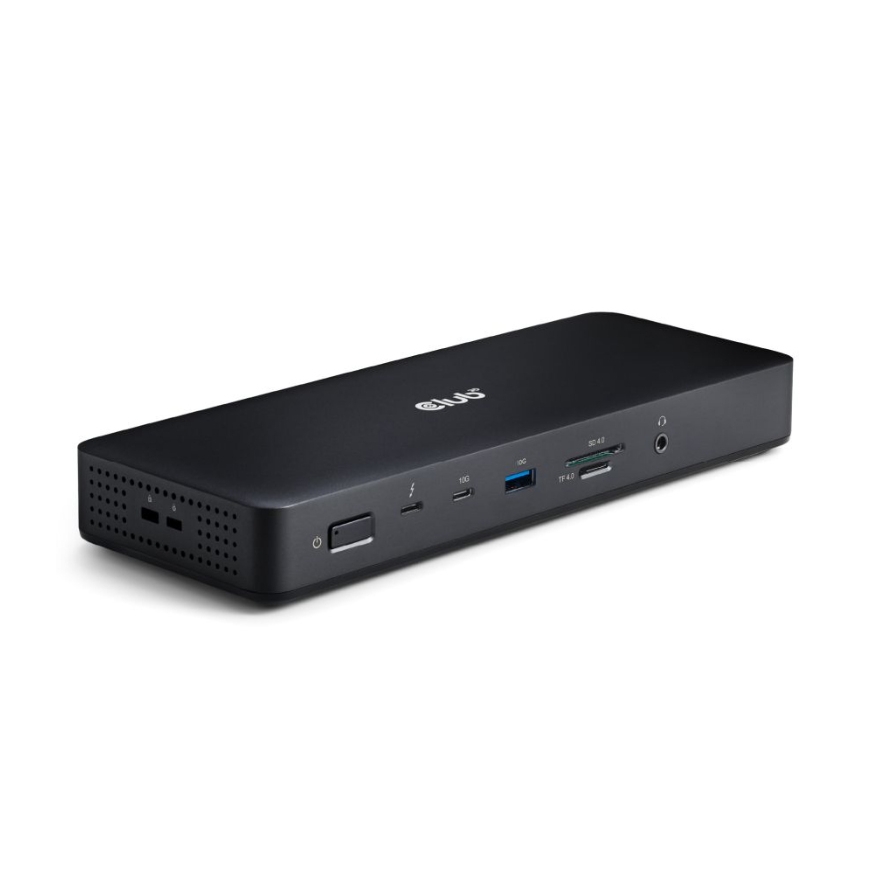

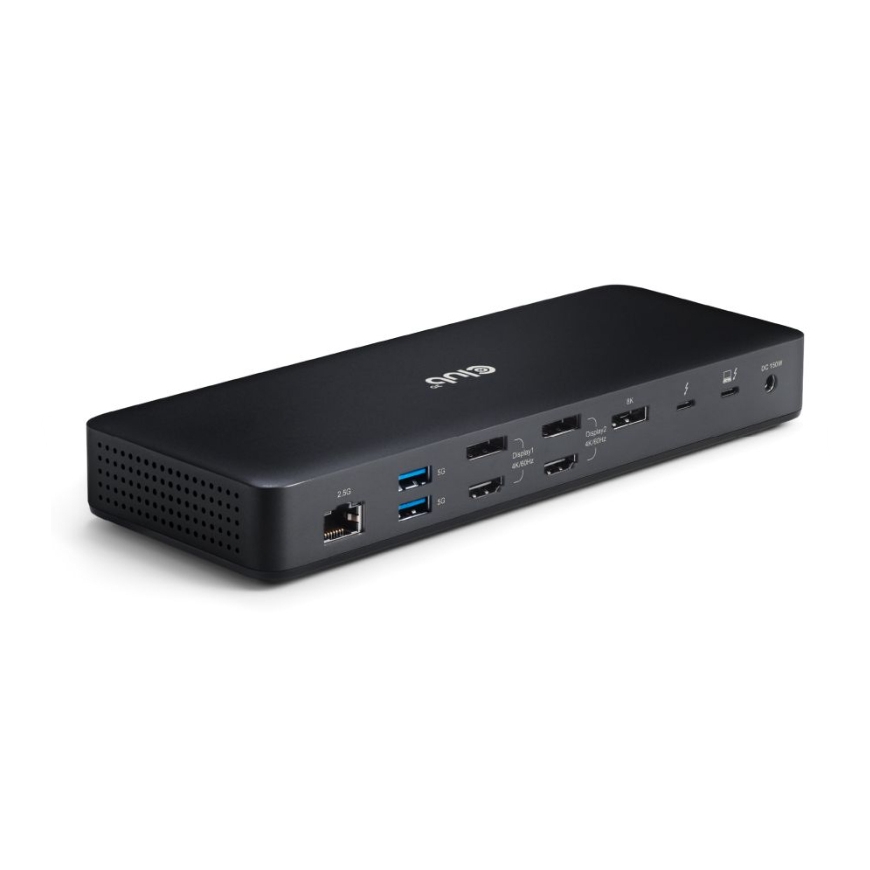

CLUB3D CSV-1583 laptop dock/port replicator Wired Thunderbolt 4 Black
CLUB3D CSV-1583 laptop dock/port replicator Wired Thunderbolt 4 Black

The product's shade and actual color may differ from what is shown in the picture, as the images are for illustrative purposes. The product description is general and may not include all the product's features.

CLUB3D CSV-1583 laptop dock/port replicator Wired Thunderbolt 4 Black

299,00 €
Monthly payment from 8.60
3352539

CSV-1583

8719214473044, 0841615103300

2026-07-28

Quantity
You are interested in this product?
(Read terms of service)
The Club 3D CSV- 1583 is a Thunderbolt™ 4 Certified 16-in-1 Quadra Displays Docking Station with DisplayLink® which provides the most advanced, efficient, and versatile I/O solution available with up to 40Gb/s for data and video. Among all 7 video ports, allow to output max 3 videos when connected to M1, M2 and M3; 4 videos when connected to M1 Pro/Max, M2 Pro/Max, M3 Pro/Max and other Mac series NoteBooks and Windows NoteBooks. RJ45 supports max 2.5G bandwidth. USB ports support max 10G data transmission. Besides, it supports smart power function which enables to distribute power according to the power consumption of the connected device, making full use of external power supply. It is designed for TBT4™/USB4™ based PCs and compatible with /DP-Alt-mode PCs.
Product colourBlack
HDMI ports quantity2
Compatible memory cardsMicroSD (TransFlash); SD
Weight594 g
Width85 mm
Depth225 mm
Height22 mm
Cables includedPower
Quantity per pack1 pc(s)
Package width125 mm
Package depth275 mm
Package height87 mm
Package weight796 g
Connectivity technologyWired
Windows operating systems supportedWindows 10
Mac operating systems supportedYes
Host interfaceThunderbolt 4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity3
Combo headphone/mic portYes
DC-in jackYes
Ethernet LAN (RJ-45) ports1
Card reader integratedYes
Data transfer rate40 Gbit/s
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity1
DisplayPorts quantity3
Cable lock slotYes
Cable lock slot typeKensington
Harmonized System (HS) code8473 3020
Power cable length1 m
Thunderbolt 4 ports quantity4
Thunderbolt 4 cable length0.8 m
Plastic packaging weight4 g
Paper/cardboard packaging weight163 g
Total plastic packaging weight20 g
Total paper/cardboard packaging weight815 g
