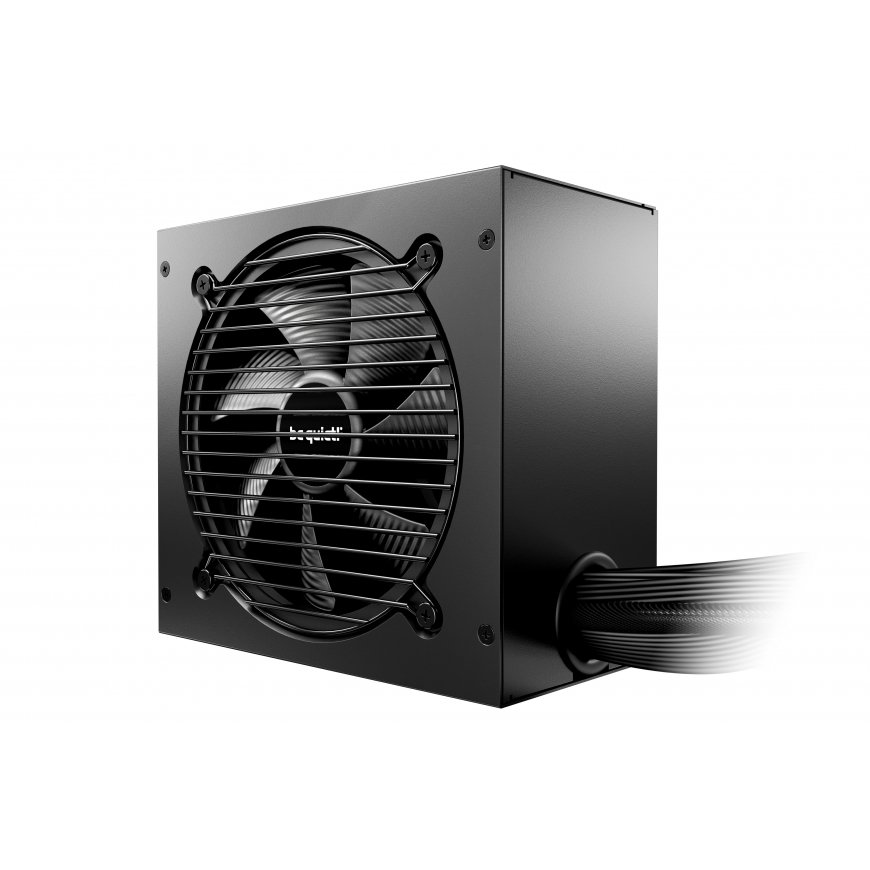

be quiet! PURE POWER 12 550W power supply unit 20+4 pin ATX ATX Black
109.00 €
Monthly payment from 3,71 €
3350238 BP001EU
4260052191163
Shipping 4-6 b.d.
You are interested in this product?
All about the product
Exceptional quiet, superior featuresPure Power 12 550W is ATX 3.1 compliant and PCIe 5.1 compatible and offers peerless dependability with best-in-class features. Having both a PCIe 5.1 cable and PCIe 6+2 cables in the scope of delivery, this PSU offers remarkable convenience and outstanding compatibility.
Power | |
| Hold time | 16.64 ms |
| Efficiency | 91.2% |
| Peak power | 600 W |
| Power protection features | Over current, Overload, Over voltage, Overheating, Short circuit, Under voltage, Surge & inrush protection (SIP) |
| Power factor | 0.98 |
| Power Factor Correction (PFC) type | Active |
| Maximum input current (@110V) | 10 A |
| Combined power (+3.3V) | 120 W |
| Combined power (+12V) | 550 W |
| Combined power (+5V) | 120 W |
| Combined power (-12V) | 3.6 W |
| Combined power (+5Vsb) | 15 W |
| Max output current (+3.3V) | 20 A |
| Max output current (+5V) | 20 A |
| Max output current (+5Vsb) | 3 A |
| Max output current (-12V) | 0.3 A |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Max output current (+12V1) | 45.8 A |
| Maximum input current (@220V) | 5 A |
| Total power | 550 W |
| Number of +12V rail(s) | 1 |
Performance | |
| Noise level | 14.6 dB |
| Mean time between failures (MTBF) | 100000 h |
| ATX version | 3.1 |
| EPS version | 2.92 |
| Purpose | PC |
| 80 PLUS certification | 80 PLUS Gold |
| Bearing technology | Rifle |
| Power supply unit (PSU) form factor | ATX |
Design | |
| Product colour | Black |
| Number of fans | 1 fan(s) |
| Fan diameter | 12 cm |
| Cooling type | Active |
| On/off switch | Yes |
Ports & interfaces | |
| Number of SATA power connectors | 5 |
| Peripheral (Molex) power connectors (4-pin) | 1 |
| CPU power connector (4+4 pin) | Yes |
| PCI Express power connectors (6+2 pin) | 2 |
| Motherboard power connector | 20+4 pin ATX |
| Cabling type | Non-Modular |
| Motherboard power cable length | 55 cm |
| SATA power cable length | 500, 650, 800 |
| Peripheral (Molex) power cable length | 800 mm |
| PCI Express power cable length | 60 cm |
| CPU power cable length | 60 cm |
| PCI Express power connectors (12-pin) | 1 |
Operational conditions | |
| Operating relative humidity (H-H) | 0 - 90% |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 70 °C |
| Storage relative humidity (H-H) | 0 - 95% |
Weight & dimensions | |
| Weight | 2.3 kg |
| Width | 86 mm |
| Depth | 160 mm |
| Height | 150 mm |
Technical details | |
| Sustainability certificates | ENERGY STAR, ErP, Triman |
Packaging data | |
| Package weight | 2.8 kg |
| Package height | 210 mm |
| Package width | 133 mm |
| Package depth | 320 mm |
Other features | |
| Screws included | Yes |
Logistics data | |
| Shipping (inner) case length | 44 cm |
| Shipping (inner) case width | 34.5 cm |
| Shipping (inner) case height | 41.8 cm |
| Shipping (inner) case net weight | 17.7 kg |
| Products per shipping (inner) case | 6 pc(s) |
| Warranty period | 10 year(s) |
Packaging content | |
| Cables included | AC |
| Cable tie(s) included | Yes |
Certificates | |
| Compliance certificates | CE, RoHS, WEEE, Federal Communications Commission (FCC), UKCA, CB, cTUVus |
